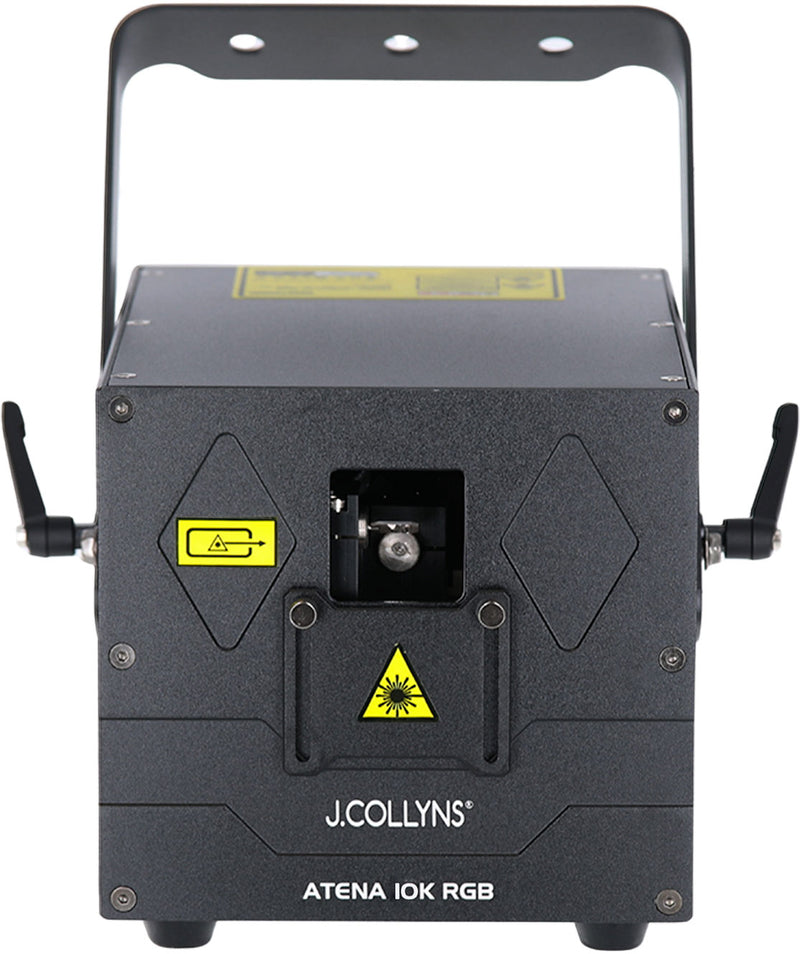

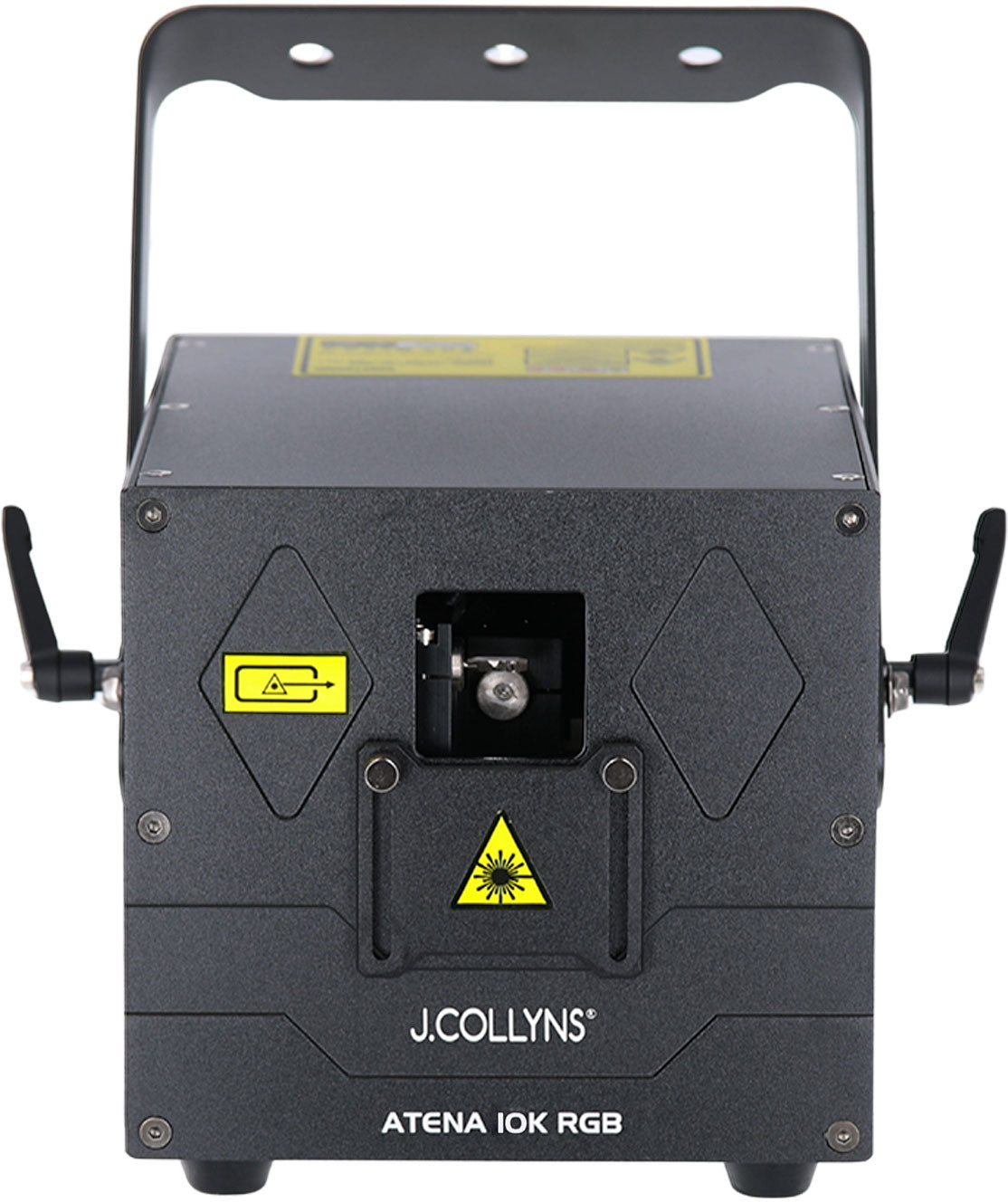

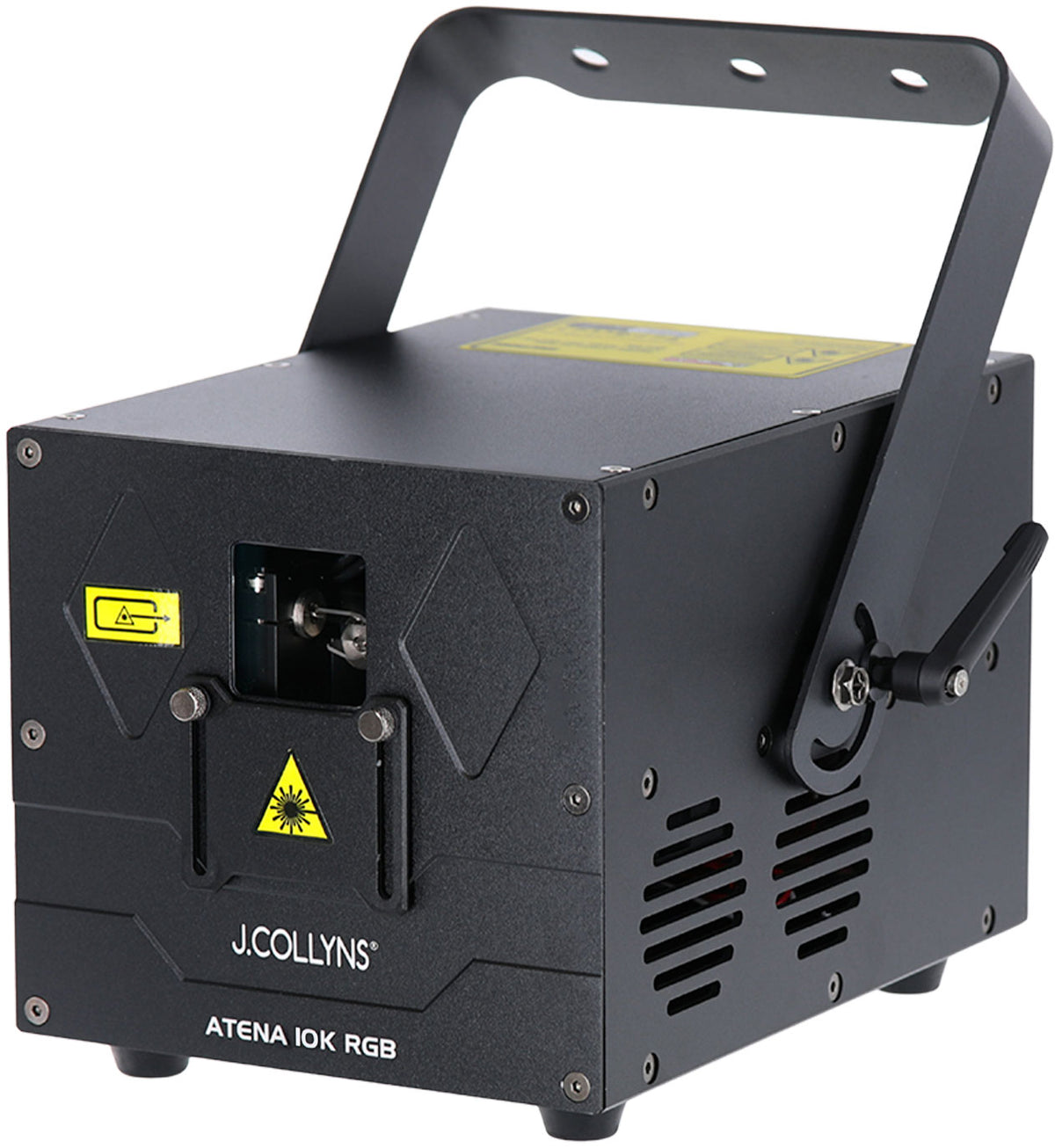

J.collyns Atena 10K RGB

Name: Atena 10K RGB
Brand: J.collyns
SKU: 412250
Price: 1487.00 EUR
Availability: InStock

NEW

1.487,00 €VAT incl.

0,55 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 412250

EAN : 3662279740376

This item is covered for 3 years

Information

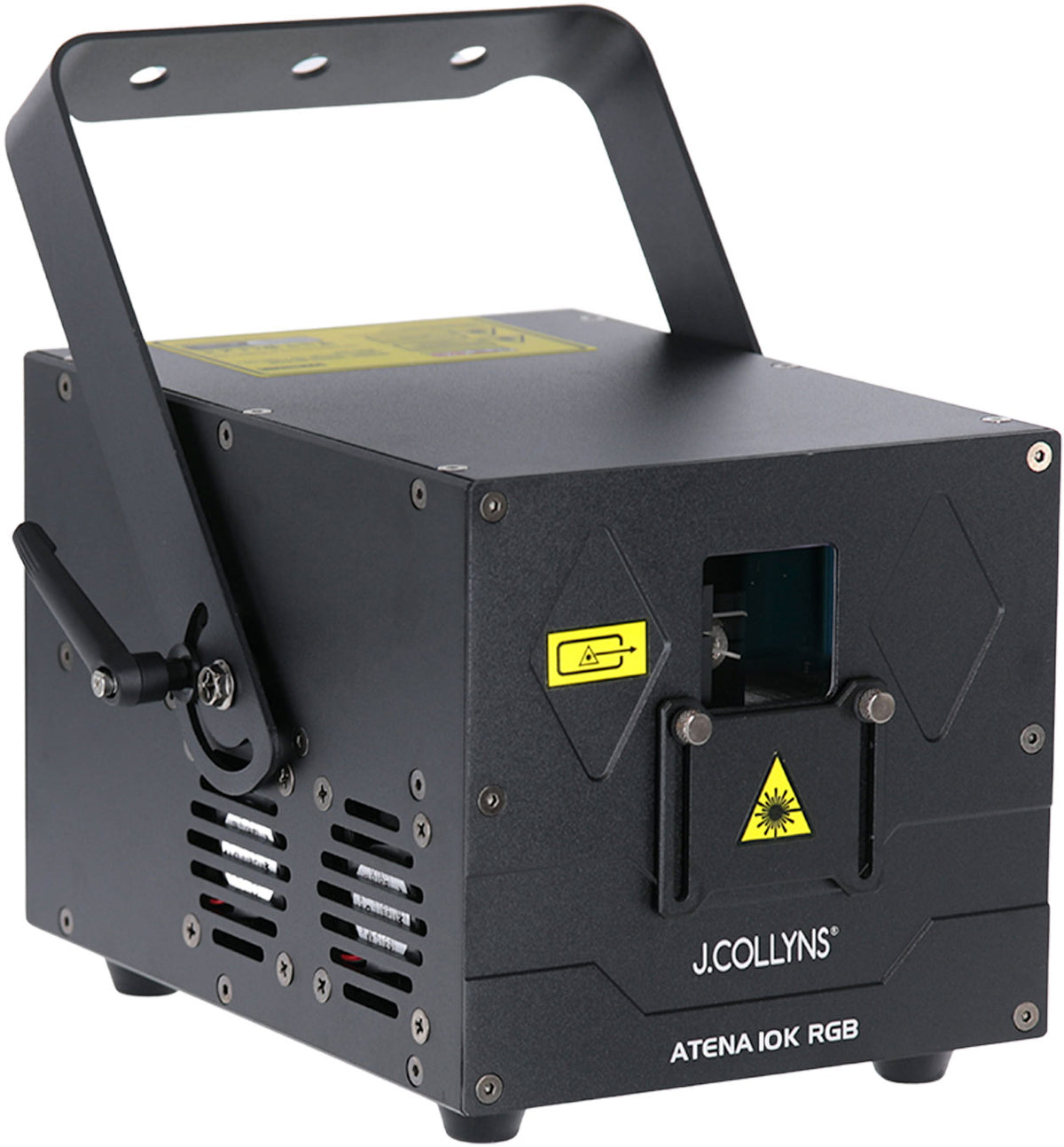

Essential Information About the ATENA 10K RGB Laser Projector
• 10 W RGB Power with 638 nm, 520 nm, and 450 nm diodes for rich colors, clean white, and excellent range in stage environments.
• Precise Beam (diameter < 5.5 mm, divergence < 1.5 mrad) ideal for fine drawings, logos, tunnels, and sharp-edged mappings.
• Versatile Control in Auto, Sound, DMX 10/34 channels, and ILDA (DB25 and RJ45) for seamless show control integration.
• Fast Scanners up to 25 kpps at 25 degrees and 2 banks of 2D/3D animations for dynamic shows without software.

Atena 10K RGB

1.487,00 €VAT incl.

0,55 € Ecotax included

Reference price

Designed for Stage, Events, and Laser Mapping

Designed for touring, clubs, and TV sets, the ATENA 10K RGB fully expresses itself on large stages, festivals, and premium events. Its narrow beam limits light "spill," making it suitable for laser mappings, architectural decorations, and precise stage dressings. In mobile performances, it offers immersive effects with reduced setup time and easily integrates into an existing lighting rig.

For Whom and For What Uses

This projector is aimed at lighting directors, lighting designers, event service providers, professional DJs, and club operators seeking a reliable, quick-to-deploy RGB solution compatible with ILDA. It is also suitable for theaters and multipurpose venues wishing to enrich their visual displays with sharp figures, waves, cones, and aerial effects whenever light fog is present.

Technical specifications

Category

Laser

Color

Multicolor

Questions frequently asked

What power and colors does the J.collyns Atena 10K RGB offer?

The RGB source totals 10 W, distributed between a 2.5 W red diode at 638 nm, a 3 W green diode at 520 nm, and a 4.5 W blue diode at 450 nm. This combination allows for multicolor projection.

Is this laser compatible with ILDA control software?

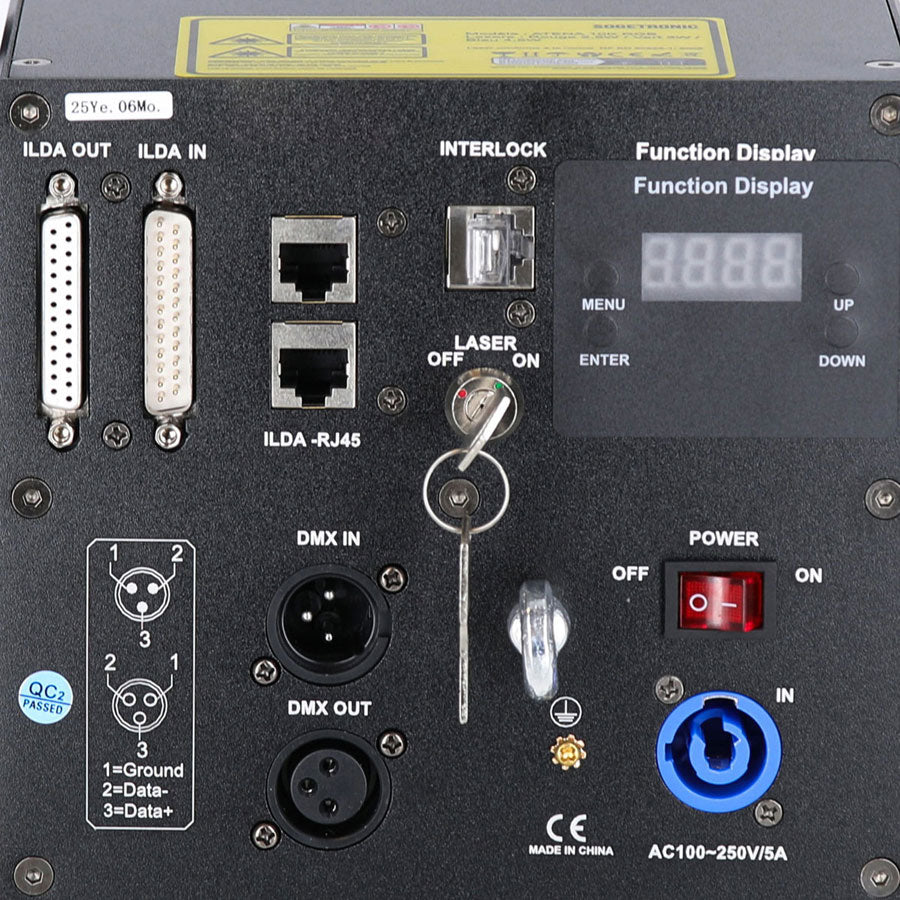

ILDA control is available via DB25 or RJ45 connectors. Real-time control can thus be ensured from an interface or software compatible with ILDA.

What is the speed of the laser scanners?

The scanners reach up to 25 kpps at 25 degrees, providing smooth tracing and stable complex figures.

Which DMX modes are available?

Two DMX512 configurations are offered: 10 or 34 channels. Auto and Sound modes are also integrated to launch animations without programming. Two banks of 2D/3D animations complete the playback options.

Is the beam suitable for long-distance projections and mapping?

With a diameter under 5.5 mm and divergence below 1.5 mrad, the beam remains narrow over distance. The target adjustment and zoom facilitate alignment on a screen, set, or projection area.
