Add Depth to Your Laser Shows

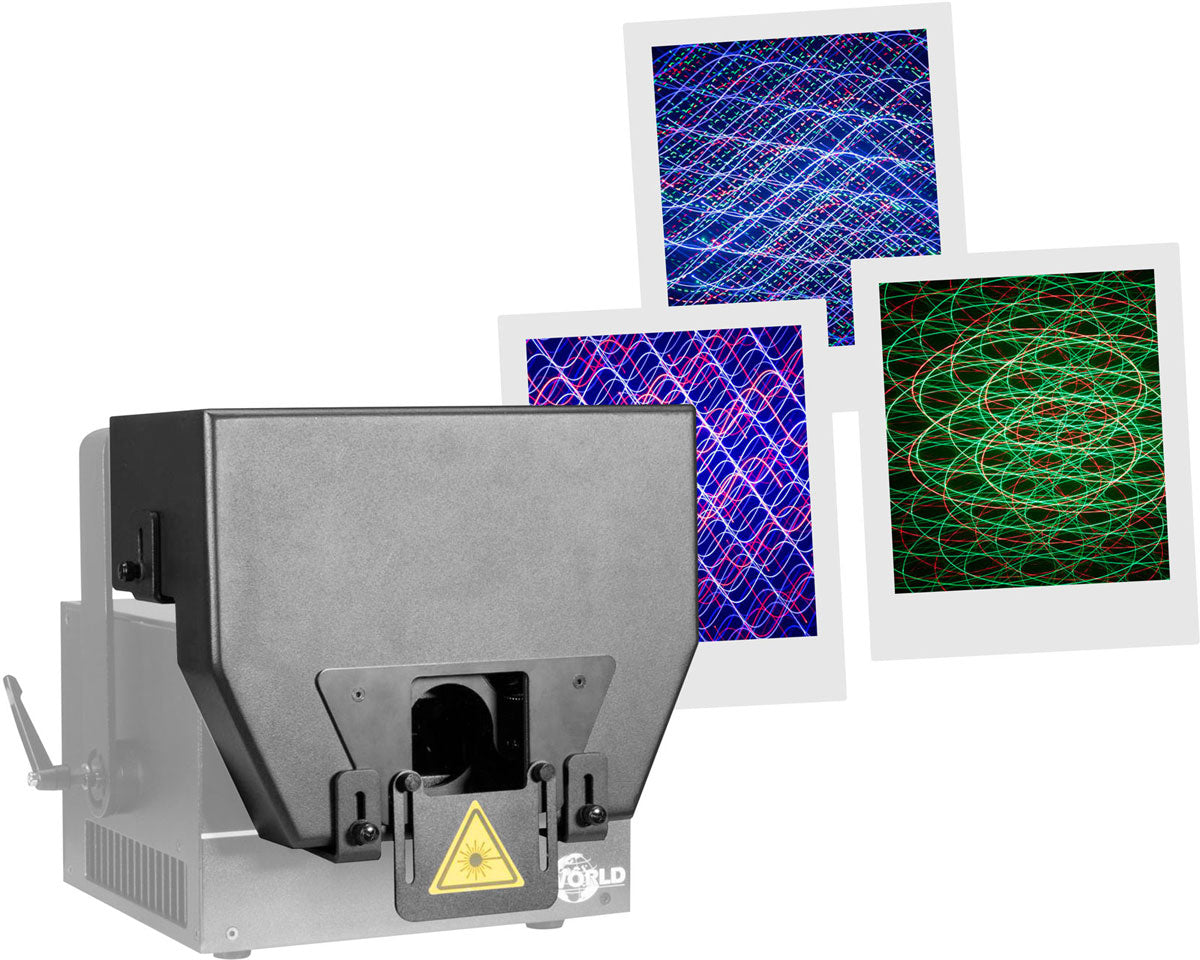

Instantly add light textures to your lasers on stage, in clubs, at weddings, or DJ events. This module creates spectacular washes, grids, and streaks on the front, backdrops, or fixed installations (bars, restaurants, multipurpose rooms).
Who Is It For?
Ideal for mobile DJs, lighting technicians, event providers, and club operators seeking varied laser effects without complicating the control setup. Also suitable for discerning private users for a refined home installation.
Features and Innovations
The FX Gobo Wheel enhances your laser beam with three dedicated diffraction glasses and an "open" mode that allows the native projection to pass through. In DMX mode, combine continuous rotation and "shake" effects to pace your cues. Its wide angle (55 degrees) ensures excellent coverage, while universal power supply and compact format facilitate integration.
Technical specifications
| Gobo effects wheel | 3 diffraction glasses + open slot |
| Effect types | burst grating (grid), line grating (line network), lumia (streaks, refraction), open (normal projection) |
| Movement effects | rotation and shake |
| Max. projection angle | 55 degrees |
| Operating mode | DMX |

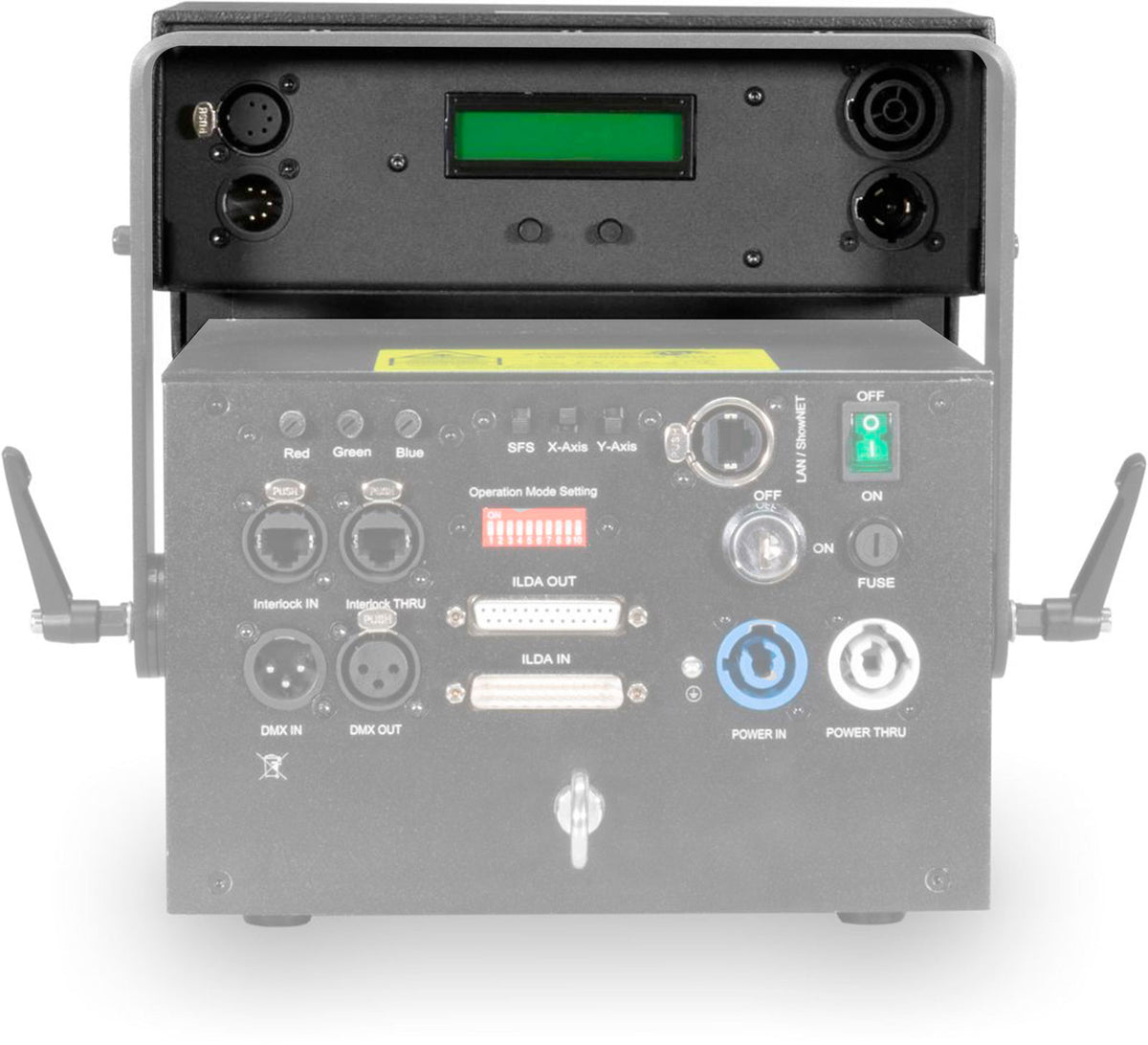

| Compatible external accessory module | Laserworld DS, PL, and tarm series |
| Voltage | 85 V - 250 V AC, 50/60 Hz |
| Power consumption | 30 W |
| Dimensions | 240 x 170 x 120 mm |
| Weight | 1.5 kg |
Questions frequently asked
Is the Laserworld FX Gobo Wheel compatible with DS, PL, and tarm lasers?
This external module is compatible with the Laserworld DS, PL, and tarm series.
What diffraction effects are available?
The wheel includes three diffraction glasses: burst grating, line grating, and lumia. An open position maintains the normal laser projection.
Can the wheel rotation be controlled via DMX?
Operation is done via DMX. Continuous rotation and the shake effect can be combined to animate the projections. The maximum projection angle reaches 55 degrees.
What coverage angle does this laser effects wheel offer?
The projection can cover a maximum angle of 55 degrees, suitable for building facades and stage backdrops.
What are the dimensions and power consumption of the module?
The housing measures 240 x 170 x 120 mm with a weight of 1.5 kg. Its power consumption is 30 W with a power supply accepting 85 to 250 V AC at 50/60 Hz.
