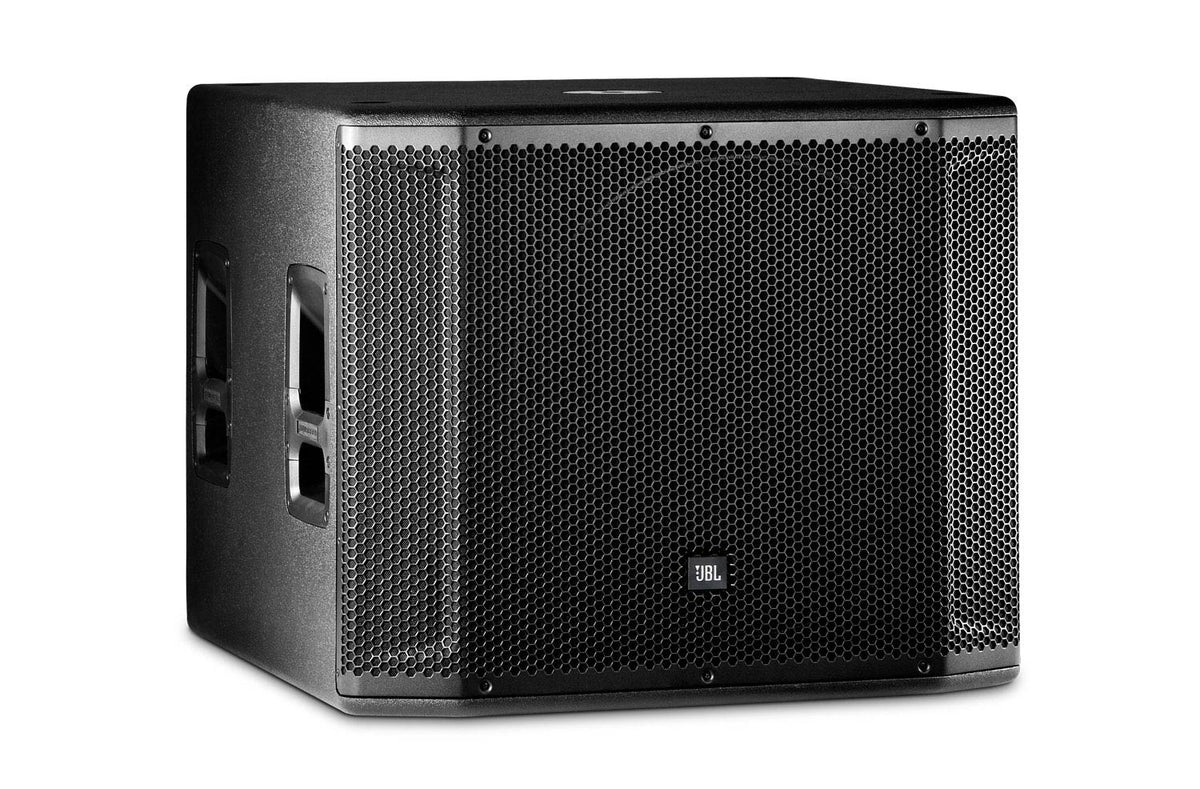

JBL SRX818S
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
JBL
https://www.jbl.com
------------------------
Safety manager:
CSI audiovisuel
Email:
Address:
SRX800 Passive: JBL's Touring and Event DNA in a Passive Subwoofer Version
The JBL SRX800 Passive series was designed to offer, in a transportable format, a level of sound quality, power, and reliability tailored for intensive use. The SRX818S fits this logic: an 18-inch passive subwoofer built around JBL components, with a field-oriented construction to meet the demands of mobile sound reinforcement and challenging configurations.
A Subwoofer for Providers, DJs, and Live Stages Seeking Controlled Bass
The JBL SRX818S targets users who prioritize external amplification and a system approach: providers, sound engineers, venues, bands, and DJs looking for a subwoofer capable of delivering a solid low end without sacrificing precision. It naturally integrates under front speakers to add impact on kick drums, synths, bass guitars, and electronic music, while maintaining a usable response for vocals and amplified instruments.
Design, Components, and Performance: The Efficiency of a Road-Ready 18-Inch Sub

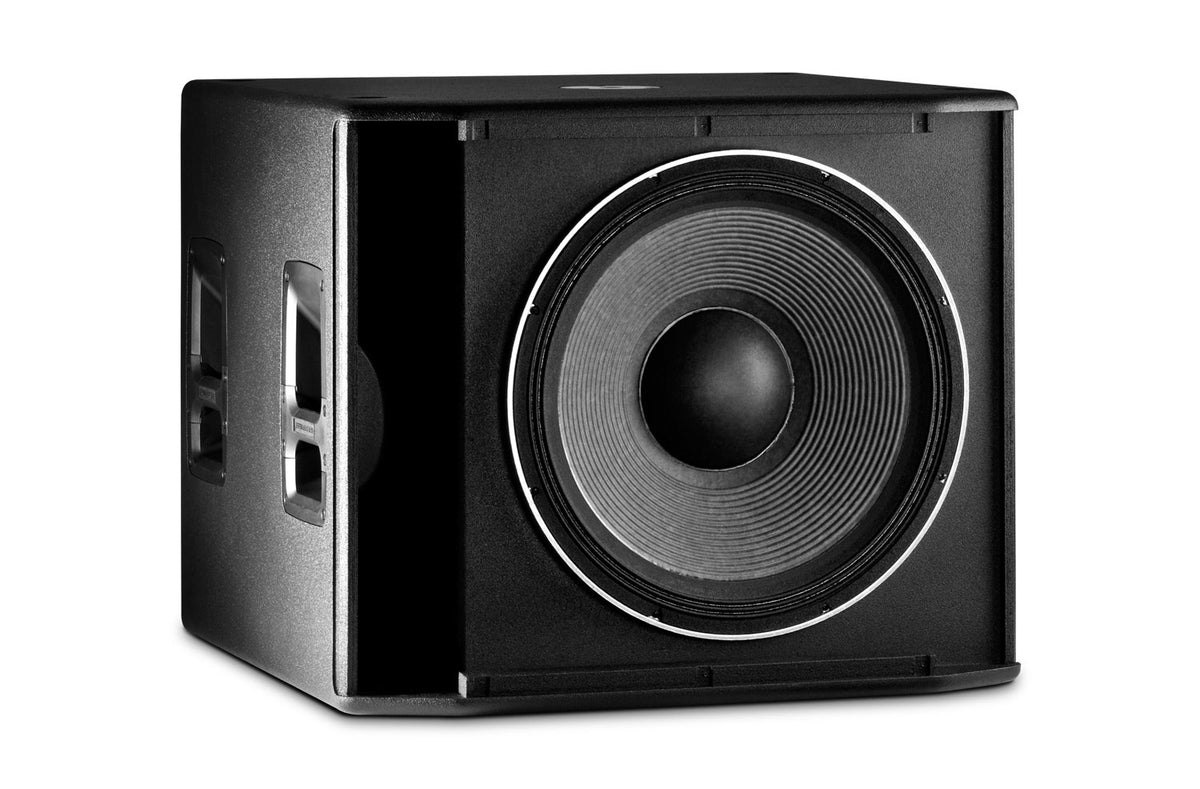

JBL 2279H Driver: Efficiency and Power Handling
At the heart of the SRX818S, the JBL 2279H (18 inches) is sized to provide bass that is both energetic and controlled. With a sensitivity of 96 dB (1W/1m) and a maximum SPL rated at 135 dB, the subwoofer is designed to perform when levels rise, whether at front of house or as sub reinforcement at events.
System Management: Optimized Presets and Harman Professional Ecosystem
To get the best from the speaker in a playback context, the SRX800 series relies on an integration logic: optimized presets available in Crown amplifiers and dbx processors. This approach facilitates achieving a coherent sound (filtering, equalization, protection) and fits into a system controllable via Audi-Architect, convenient for installed setups or multi-speaker systems.
Build and Transport: 18 mm Plywood and Duraflex(TM) Finish
The 18 mm plywood enclosure and Duraflex(TM) finish meet the demands of handling, loading, and regular use. The format remains suitable for events where a good balance between impact, depth, and portability is sought, with a controlled weight for its category.
Technical specifications
| Bluetooth | No | ||
| Type | 18-inch passive subwoofer | Amplification power | 600 W continuous |
| Components | 1 x JBL 2279H (18 inches) | Enclosure | 18 mm plywood |
| Frequency response | 28 Hz - 150 Hz (-10 dB) | Finish | Duraflex(TM) |
| Sensitivity | 96 dB, 1W/1m | Dimensions (W x D x H) | 683 x 684 x 575 mm |
| Max SPL | 135 dB SPL | Weight | 35.4 kg |
| Nominal impedance | 8 ohms | ||
Questions frequently asked
Which amplifier should be used with the JBL SRX818S?
This passive subwoofer requires external amplification and has a nominal impedance of 8 ohms. Its program power rating is 1200 W. Optimized presets are available on Crown amplifiers and dbx processors.
Does the SRX818S reach low frequencies in the bass?
The specified frequency response extends from 28 Hz to 150 Hz at -10 dB, thanks to the 18-inch JBL 2279H driver.
What sound level can this JBL subwoofer achieve?
With a sensitivity of 96 dB at 1 W/1 m, the subwoofer has a maximum SPL of 135 dB.
Is the JBL SRX818S suitable for DJ and live performances?
Its 18-inch driver is designed to reinforce the kick drum, synths, and bass in mobile sound reinforcement setups. It targets contractors, DJs, venues, and bands using an external amplification approach.
What are the dimensions and weight of the SRX818S?
The enclosure measures 683 x 684 x 575 mm and weighs 35.4 kg. Its cabinet is made of 18 mm plywood with a Duraflex(TM) finish.
