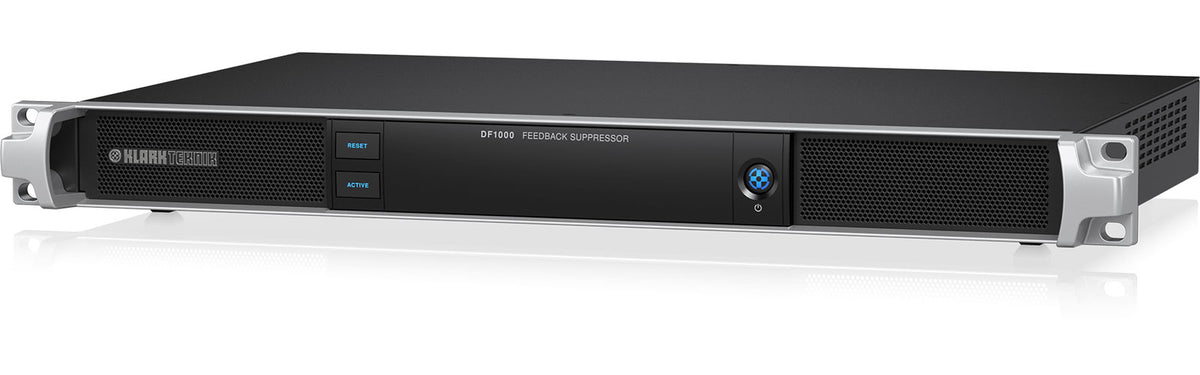

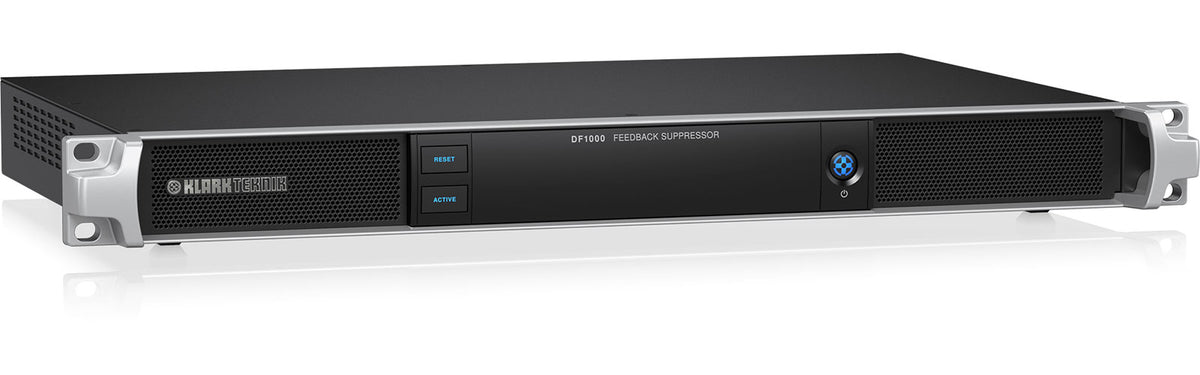

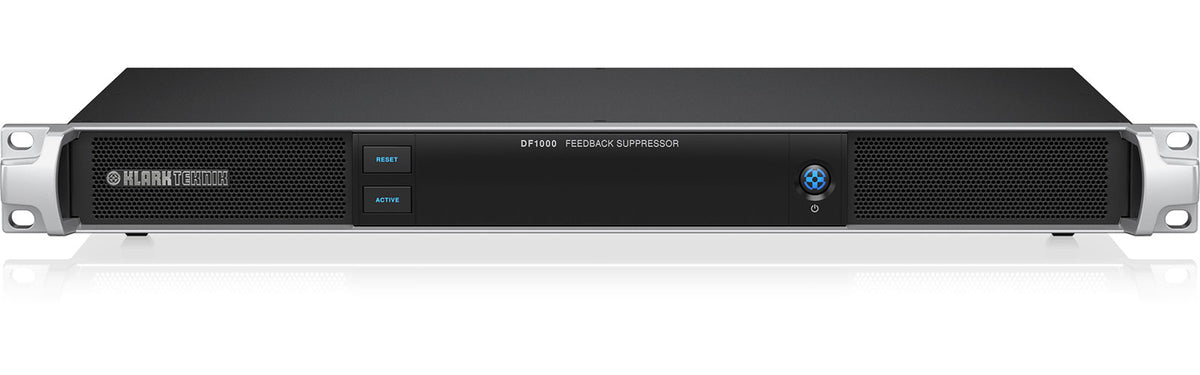

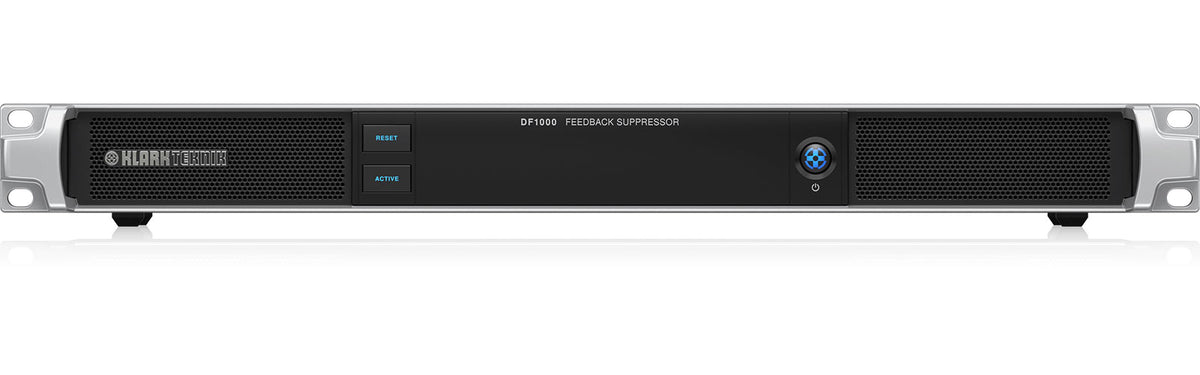

Klark Teknik DF1000

A Live Sound Essential: Klark Teknik’s Answer to Feedback

The Klark Teknik DF1000 embodies the “hands-on” approach to sound reinforcement processors: a format designed to integrate easily into an existing audio chain, with a straightforward interface and a clear purpose. Here, the goal is to protect your speeches and musical performances from feedback, without forcing you to deal with complex settings. The result is a decidedly professional processor focused on efficiency and reliability, designed to operate continuously at the heart of a sound reinforcement system.

Who is the DF1000 for, and when should it be used?

The DF1000 is aimed at technicians, musicians and sound providers who need to ensure stable sound reinforcement in “high-risk” environments: conference rooms, places of worship, multipurpose venues, concerts, mobile stages, or any live sound reinforcement installation. It is particularly useful when multiple microphones are open, the room acoustics are challenging, or the monitor level needs to remain comfortable for presenters.

Thanks to its two independent channels, you can use it in stereo for the front of house (FOH), or divide the tasks: one channel for mono front of house and one channel dedicated to monitor outputs. It is a simple solution for centralizing feedback management without adding multiple devices.

Automation, precision and transparency: feedback suppression without compromise

“Plug and play” setup

The DF1000 is designed to operate without calibration: insert it in line between your mixing console and power amplifiers, power on the unit, activate the processing from the front panel, and let the processor respond instantly. This approach is ideal when you need to move quickly during setup and teardown, or when several users take turns using the same system.

32 filters per channel and ultra-fast detection

When feedback begins, the algorithm locates the critical frequency and automatically applies a very narrow notch filter. The DF1000 can manage up to 32 independent digital filters per channel, allowing it to handle several feedback modes over the course of an event (microphone movements, changes in placement, level variations, etc.). The advantage of narrow filters is that they reduce the problematic frequency while limiting the impact on the overall tone, resulting in more natural sound than overly broad corrective equalization.

A more stable, louder, more relaxed system

Beyond listening comfort, feedback suppression helps protect your loudspeakers and stabilize the overall mix. In practice, this can provide a possible increase in gain before feedback, rated at up to 10 dB, which is useful for gaining more headroom on vocals, ambient microphones or acoustic instruments. The DF1000 thus becomes a discreet yet decisive ally, especially in reverberant rooms or setups with monitors positioned close to the microphones.

Connectivity designed for integration

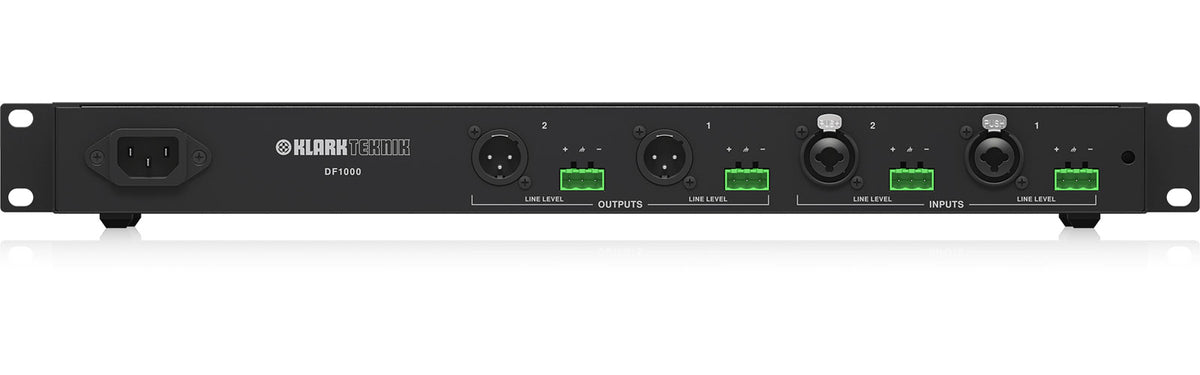

To adapt to modern setups, the DF1000 offers XLR and Euroblock inputs and outputs. The inputs are available via combination XLR/6.35 mm jack connectors and 3-pin line-level Euroblock connectors, while the outputs are provided on XLR and Euroblock. Whether installed in a rack, technical bay or fixed installation, the unit integrates easily into a professional sound reinforcement chain.

Technical specifications

Number of channels

2

U-height

1

Connections	2 x XLR / TRS combo	S/N ratio	> 88 dB @ +4 dBu input
Input impedance	approximately 20 kohms	CMRR	> 45 dB
Nominal input level	+4 dBu	Processor system gain	0 dB
Maximum input level	+21 dBu	Additional acoustic gain	10 dB
Output impedance	approximately 50 ohms	Converters	24-bit
Nominal output level	+4 dBu	Sampling rate	48 kHz
Maximum output level	+21 dBu	Feedback reduction method	automatic detection and application of a notch filter
Controls	Power On / Off	Filters	32 independent digital notch filters per channel
Indicators	Power	Filter width	min. 1/126th octave, max. 1/38th octave
Frequency response	20 Hz to 20 kHz, +0/-0.5 dB	Resolution	0.2 Hz
Dynamic range	104 dB	Time required to find a feedback mode	100–400 msec
THD+N	< 0.01% @ 20 Hz to 20 kHz, +4 dBu input	Time required to find multiple feedback modes	2–4 sec
Crosstalk	< -81 dB
