J.collyns GALAXY 5K IP65
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
What you need to know
What you need to know
- Pure diode RGB laser 5.2 W (Red 1.2 W 638 nm / Green 1.5 W 520 nm / Blue 2.5 W 450 nm) for remarkably precise colors.
- High-speed scanner 40 kpps and +/-25 degrees scan angle for smooth, sharp, and immersive animations.
- Professional controls: DMX 14/22 channels, ILDA (DB25/RJ45), Auto and Sound modes, ideal with software like Pangolin.
- Designed for outdoor use: IP65 chassis, integrated safety (Interlock, automatic beam cut-off), and included flight case.
Manufacturer Information
J.collyns
https://www.sogetronic.fr
------------------------
Safety manager:
SOGETRONIC
Email:
Address:
Built for Stage and Events, Indoors and Outdoors
The "GALAXY 5K IP65" is designed for large-scale shows where visual impact makes the difference: concerts, open-air festivals, clubs, amusement parks, mapping, and outdoor scenographies. Its IP65 protection rating allows for permanent or temporary outdoor installations, while its precise beam draws tunnels, waves, and graphic patterns that cut through the crowd and structure the stage space. Indoors, its power reserve and color rendering make it formidable in clubs, theaters, and TV studios.
Who This Laser Projector Is For
This model targets lighting technicians, service providers and rental companies seeking a reliable and quick-to-deploy laser, as well as DJs and VJs who want to enhance their shows with precise graphic effects. Club operators, event organizers, and installers will find a robust solution for fixed or semi-permanent installations, while artistic collectives will appreciate its ILDA compatibility for creating custom shows.
- High-end tightening and fastening knob for quick, play-free adjustment.
Technical specifications
| Laser class | 4. | DMX | 14 / 22 channels. |
| Total power | 5.2 W. | ILDA connectivity | DB25 and RJ45, In/Out. |
| Diodes | Red 1.2 W / 638 nm ; Green 1.5 W / 520 nm ; Blue 2.5 W / 450 nm. | Compatibility | professional laser show software. |
| Beam diameter | < 5.5 mm. | Mains power supply | AC 90-250 V. |
| Divergence | < 1.0 mrad. | Connection | PowerCon (In). |
| Laser modulation | TTL. | Protection rating | IP65 (suitable for outdoor installations). |
| Pattern adjustment | Yes. | Tightening and mounting knob | yes. |
| Zoom adjustment | Yes. | Insert | safety ring for rigging sling. |

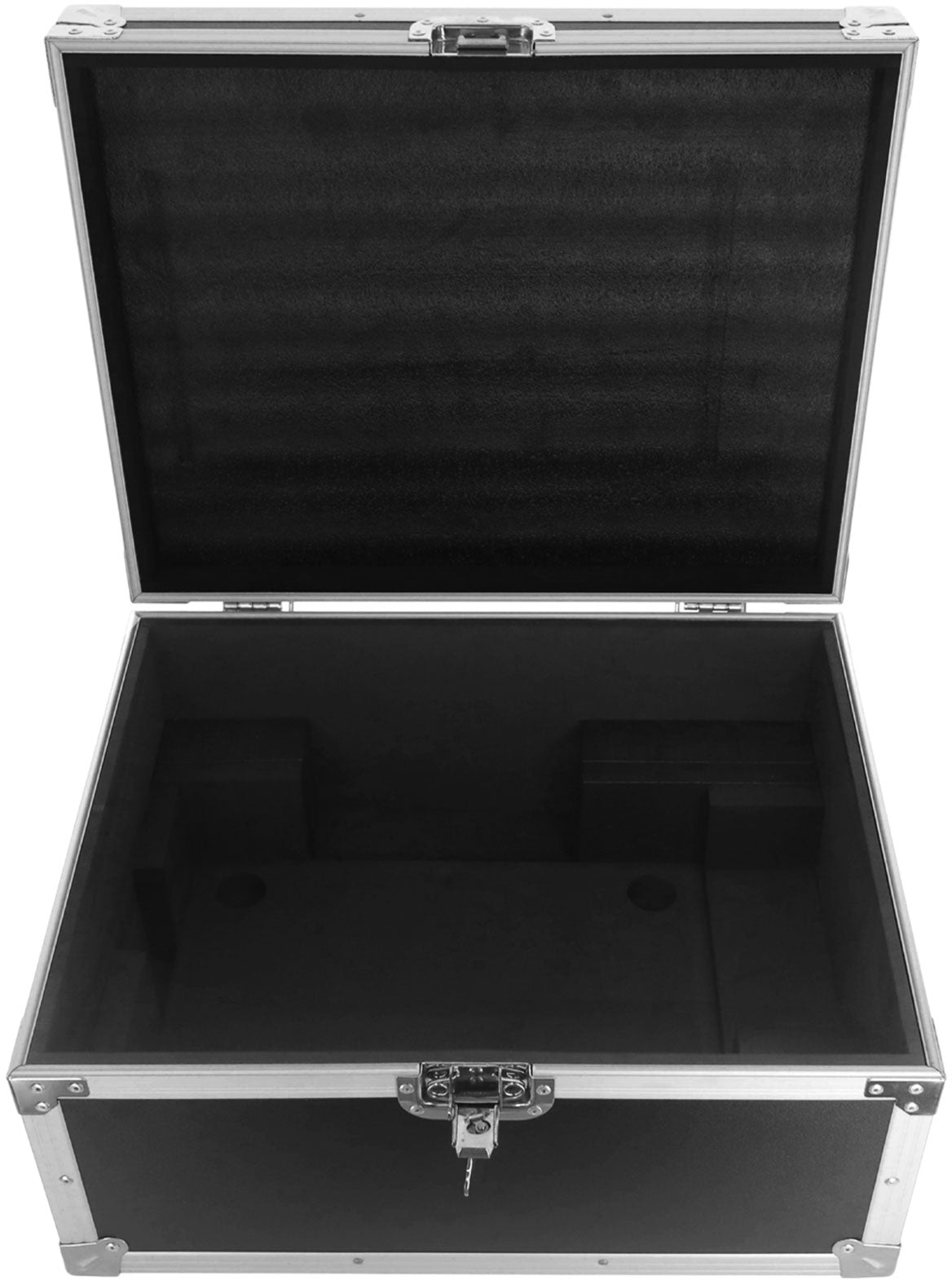

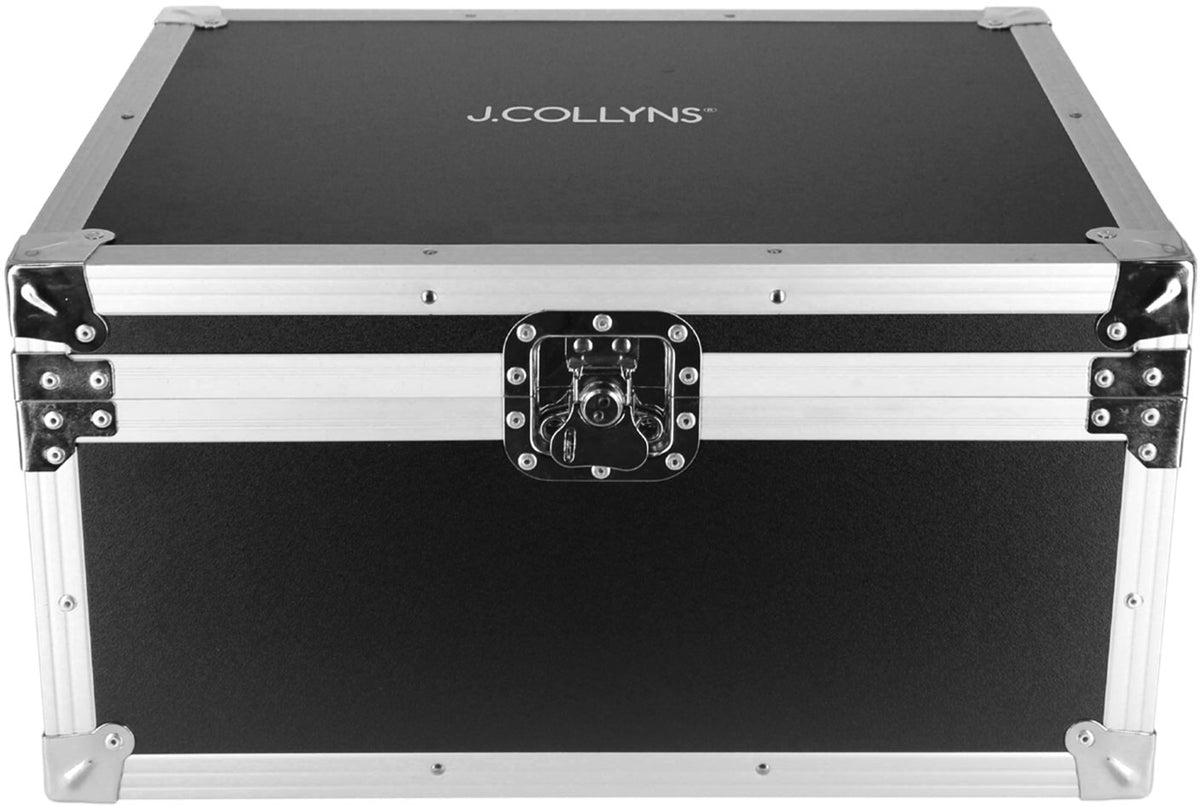

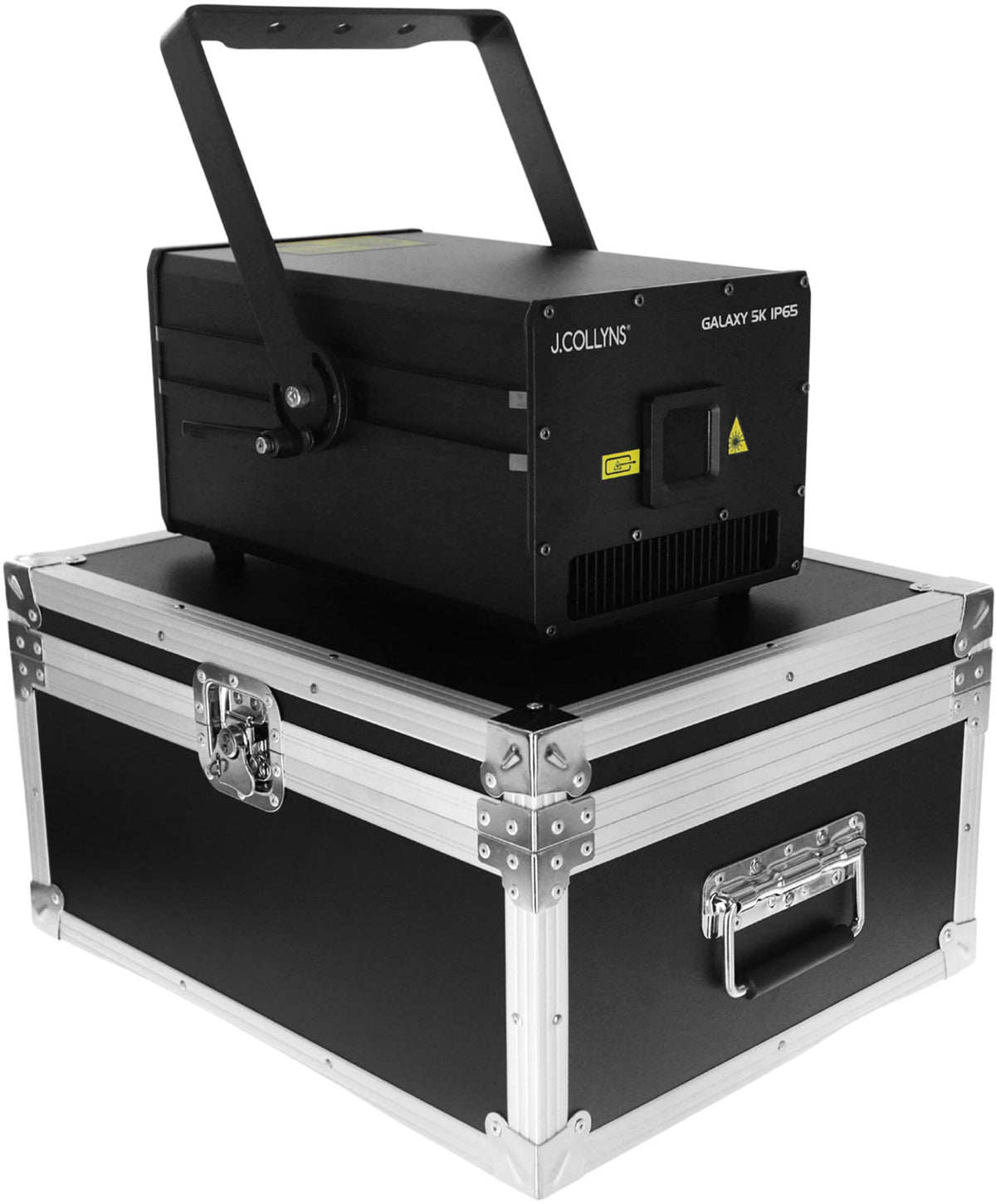

| Scanner speed | up to 40 kpps at +/-25 degrees. | Supplied accessory | transport flight case. |
| Scanning angle | +/-25 degrees. | Safety | Interlock on RJ45. |
| Built-in animation library | lines, waves, tunnels and graphic patterns. | Beam protection | automatic shutdown of the laser output in the event of a problem. |
| Control modes | Auto / Sound / DMX512 / ILDA. | Warning | eye and skin exposure - danger from direct laser radiation - Class 4 laser device. For use by trained personnel and in accordance with current regulations. |
You will also like
J.collyns
GALAXY 10K IP65
Laserworld
PL-5500RGB Outdoor MK2
Laserworld
CS-12.000 RGB ShowNET
J.collyns
GALAXY 15K IP65
J.collyns
Atena 10K RGB
J.collyns
ALTIS 6K APPBT
Laserworld
PL-10.000RGB MK3 ShowNet
Laserworld
CS-6000 RGB
Questions frequently asked
Can the GALAXY 5K IP65 be used outdoors in the rain?
Thanks to its IP65 rating, this projector allows for permanent or temporary outdoor installations. The power supply accepts a voltage range from 90 to 250 V AC via a PowerCon input.
How can this laser be controlled via DMX or with ILDA software?
DMX512 control is available on 14 or 22 channels. ILDA In/Out connections are provided on DB25 and RJ45. Auto and Sound modes also allow use of the internal library without advanced control.
What is the beam accuracy over long distances?
With a divergence of less than 1.0 mrad and a beam diameter under 5.5 mm, the projections remain sharp over long distances.
What precautions should be taken with this 5.2 W laser?
Classified as a Class 4 laser, this device presents a hazard in case of direct eye or skin exposure. Its use is reserved for trained personnel, in accordance with current regulations.
What graphic effects are available for a laser show?
The scanners reach 40 kpps over a scanning angle of +/-25 degrees, enabling fast pattern animation. The built-in library includes lines, waves, tunnels, and graphic patterns, with TTL modulation for high-contrast shapes.
