LD Systems Icoa 15 A

Name: Icoa 15 A
Brand: LD Systems
SKU: 329054
Price: 444.00 EUR
Availability: InStock
Rating: 5.0 (1 reviews)

444,00 €VAT incl.

0,90 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 329054

EAN : 4049521408519

This item is covered for 3 years

Information

Essential Information About the LD Systems ICOA 15 A Active Speaker

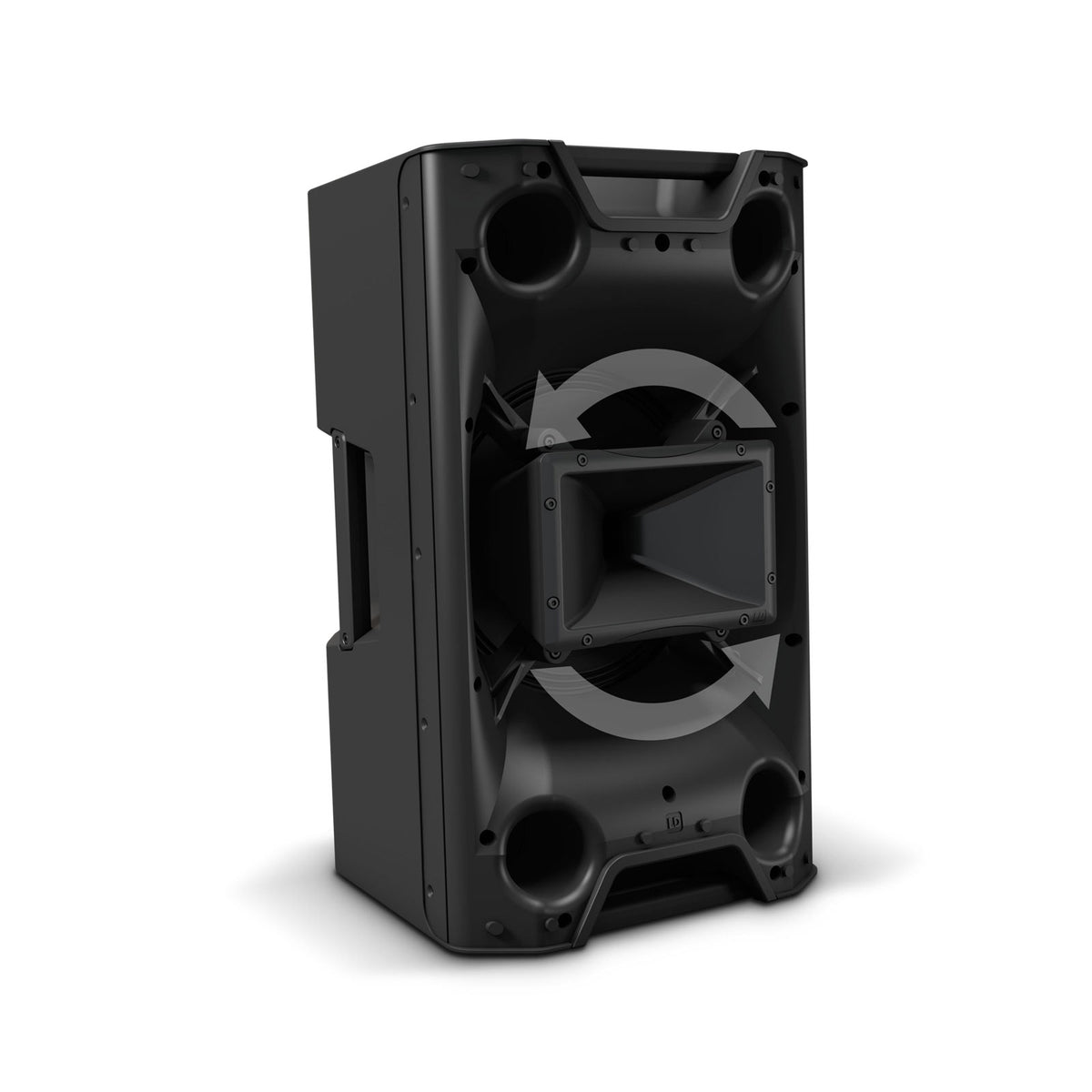

• Total versatility: front of house, stage monitor, satellite, suspension, thanks to the coaxial design and 90 x 50 deg rotatable horn.
• Clear and powerful sound with DynX DSP, 4 presets, 3-band equalizer, and built-in delay to adapt to any venue.
• Class D amplification delivering 300 W RMS and up to 126 dB max level, extended response from 50 to 20000 Hz.
• Comprehensive connectivity with 2 combo XLR/jack inputs, 3.5 mm AUX input, and XLR Mix output, Dual Tilt 36 mm socket at 0 deg or 5 deg.

Icoa 15 A

444,00 €VAT incl.

0,90 € Ecotax included

Reference price

Essential Information About the LD Systems ICOA 15 A Active Speaker

Total versatility: front of house, stage monitor, satellite, suspension, thanks to the coaxial design and 90 x 50 deg rotatable horn.

Clear and powerful sound with DynX DSP, 4 presets, 3-band equalizer, and built-in delay to adapt to any venue.

Class D amplification delivering 300 W RMS and up to 126 dB max level, extended response from 50 to 20000 Hz.

Comprehensive connectivity with 2 combo XLR/jack inputs, 3.5 mm AUX input, and XLR Mix output, Dual Tilt 36 mm socket at 0 deg or 5 deg.

A Versatile Reference in the ICOA Series

Within LD Systems' "ICOA" range, the ICOA 15 A stands out with its road-ready enclosure, coaxial structure, and rotatable steel horn. In 15 inches, it offers greater bass depth and even coverage, ideal for versatile stages, clubs, and touring events.

For Whom and For What Uses

Designed for mobile DJs, bands, dance schools, and service providers, the ICOA 15 A can be used alone or paired, as a 55 deg stage monitor, satellite on a stand, or suspended. Its headroom and presets facilitate sound reinforcement for vocals, instruments, and recorded music, with or without subwoofer support depending on the context.

Technical specifications

Battery	No	Speaker structure	polymer molding
Number of channels	2 channels	Inputs	stereo minijack, combo XLR/jack
Speaker diameter	1", 15"	Outputs	XLR
Number of speakers	2	Color	Black
EQ	Yes	Power output	300 W
Media Player	Bluetooth	Nominal mode power consumption (Wh)	150 W
Cutaway	Yes

Questions frequently asked

LD Systems ICOA 15 A: What power and sound level does it deliver?

The class D amplification delivers 300 W and the maximum sound pressure level reaches 126 dB. The frequency response extends from 50 Hz to 20 kHz thanks to the 15-inch speaker and the 1-inch HF driver.

Can the ICOA 15 A be used as a stage monitor?

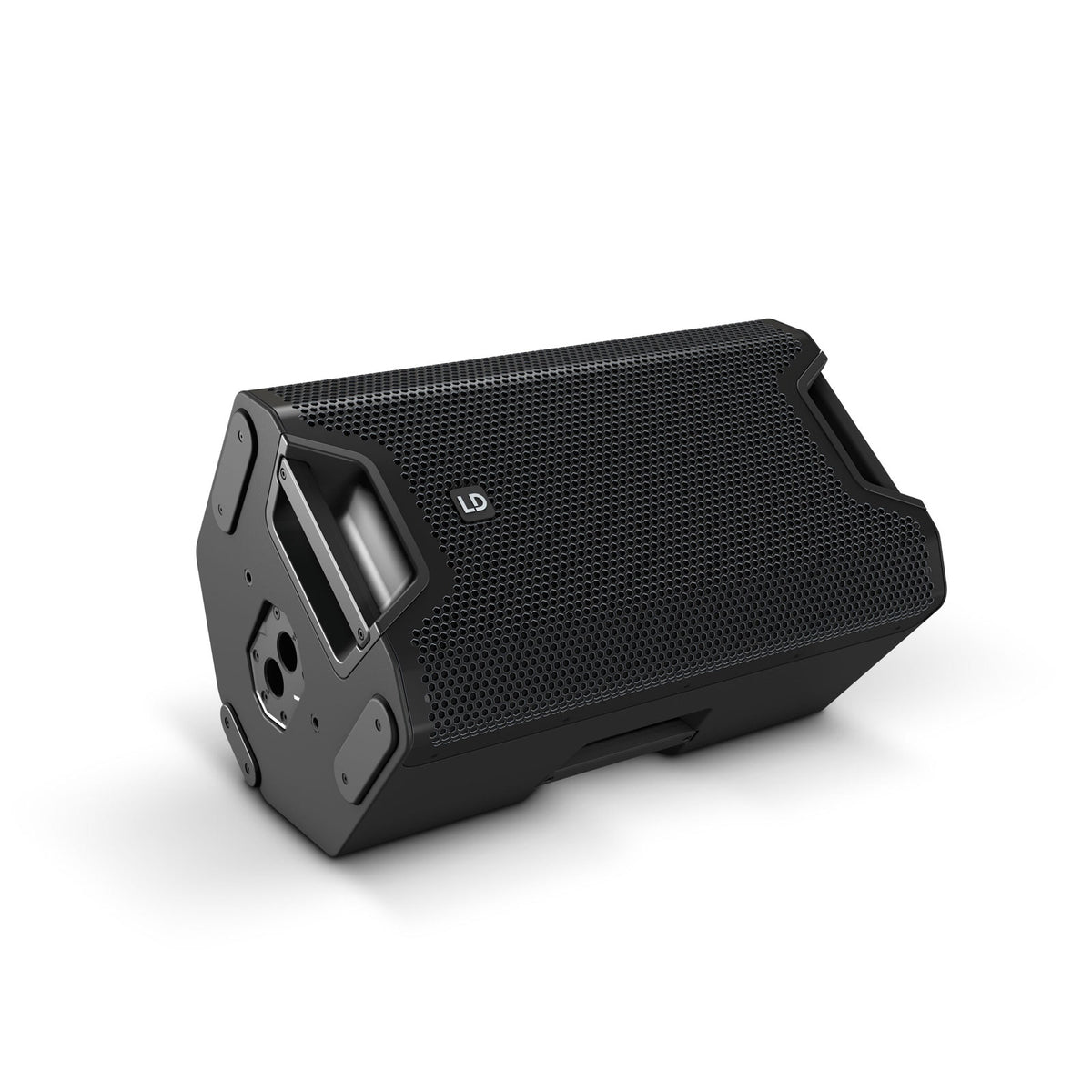

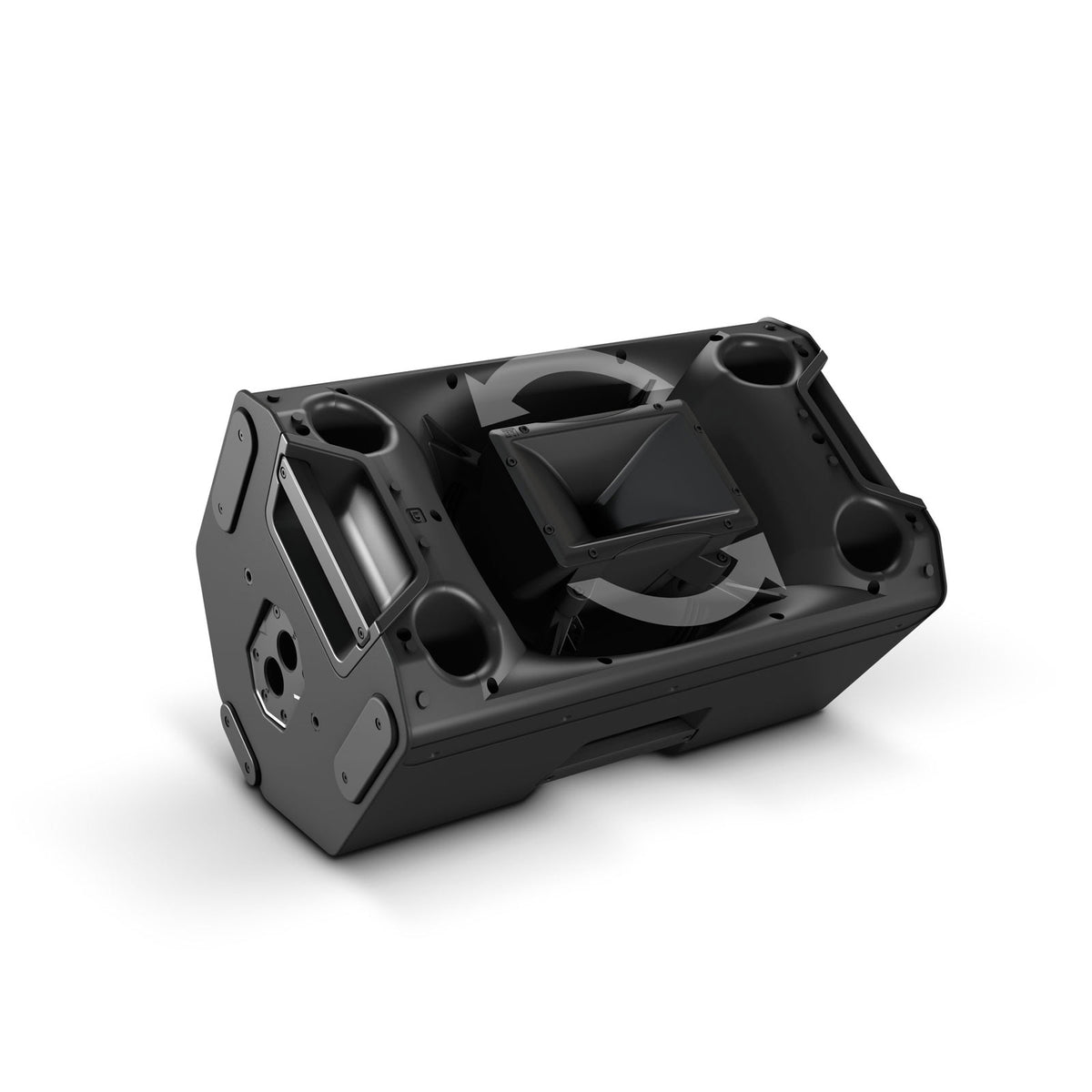

Its beveled edge allows for ground monitor use with a 55° angle. The rotatable 90° x 50° horn maintains suitable coverage when the speaker is positioned horizontally.

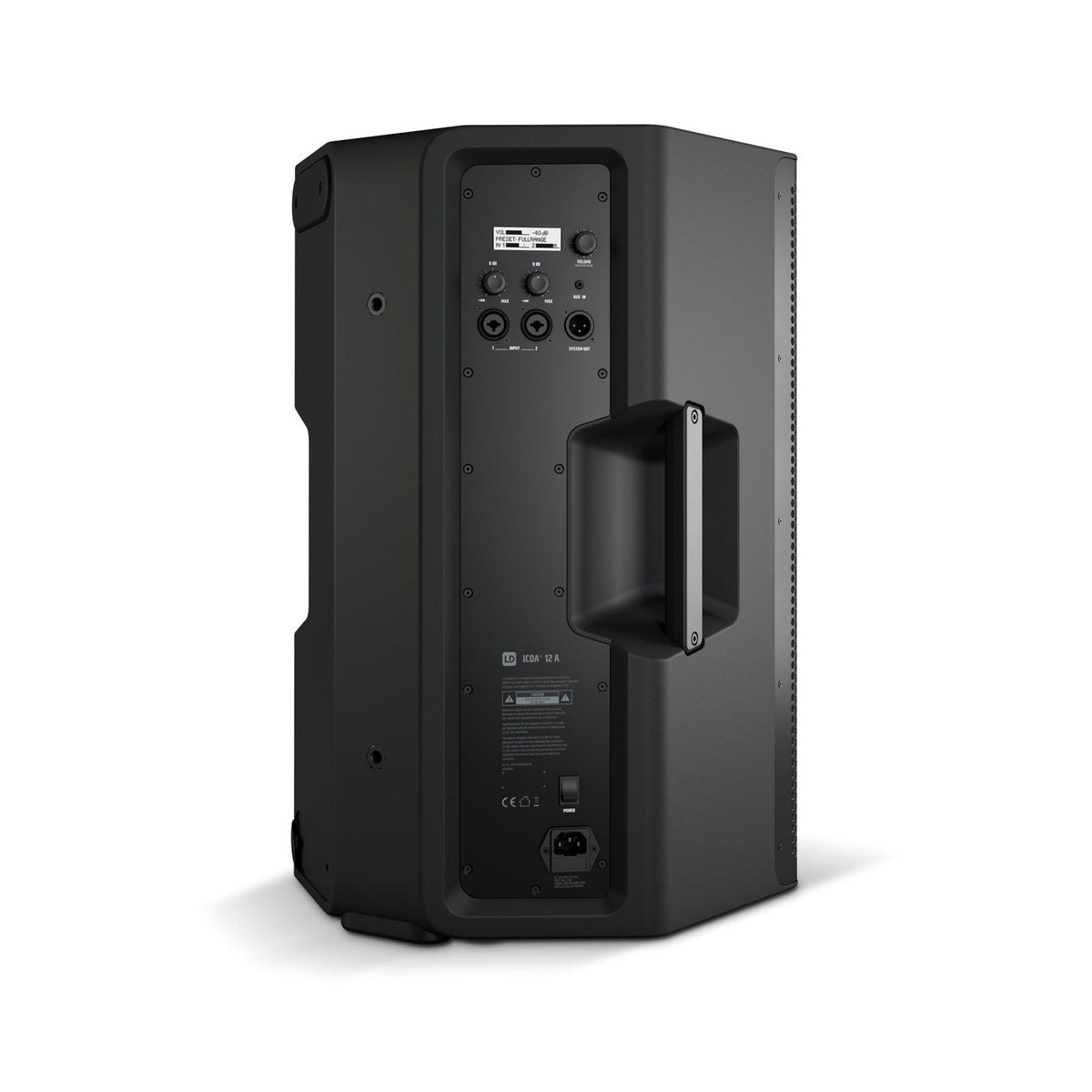

What inputs are available on this LD Systems speaker?

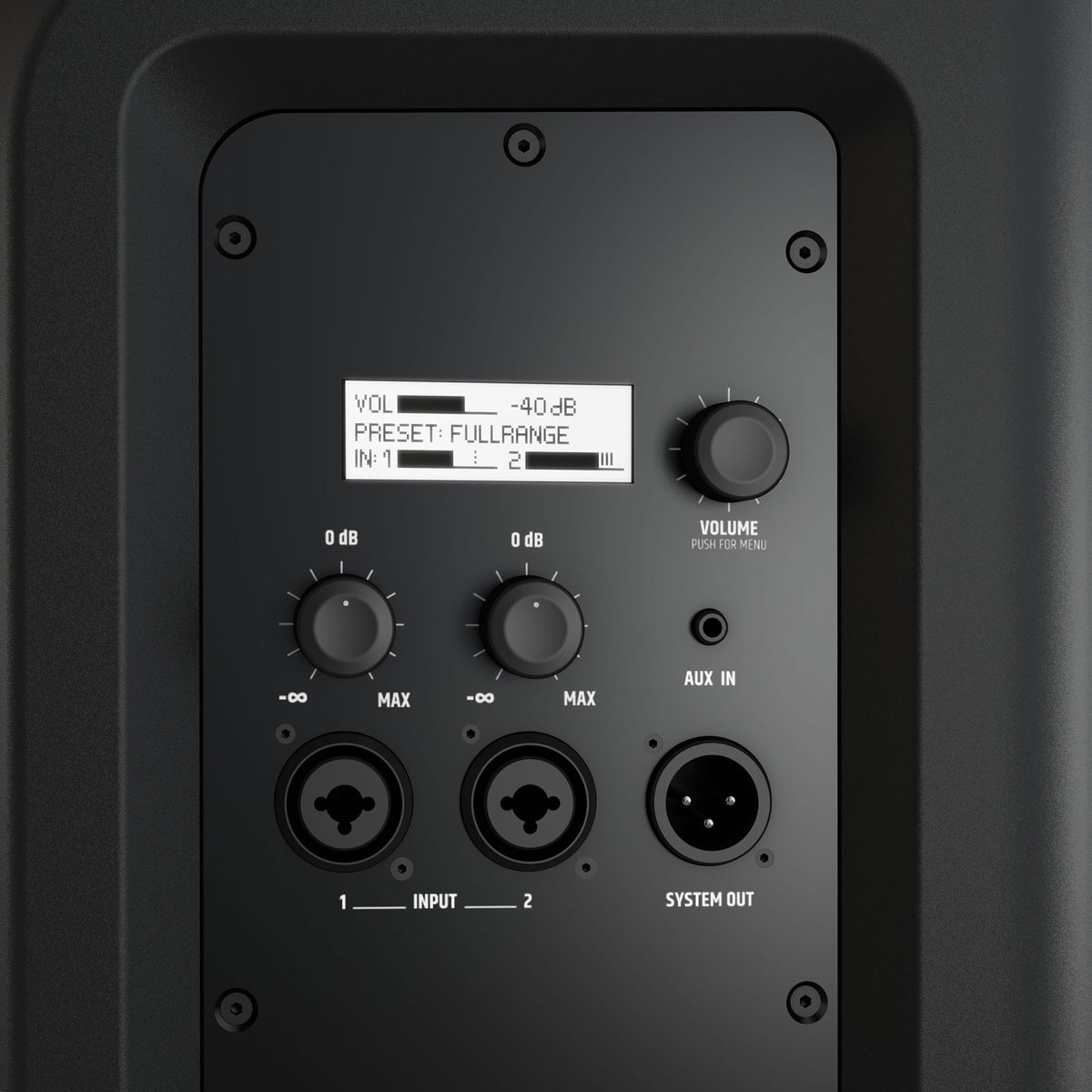

Two mic/line channels with combo XLR/jack connectors have independent gain controls. A stereo mini-jack AUX input is present, while an XLR Mix output allows sending the signal onward.

Can the sound and delay be adjusted on the ICOA 15 A?

The DynX DSP includes four presets, a three-band equalizer, and a delay adjustment. These functions allow tonal shaping and alignment of a speaker line without an external processor.

What mounting options are available for a 15-inch ICOA speaker?

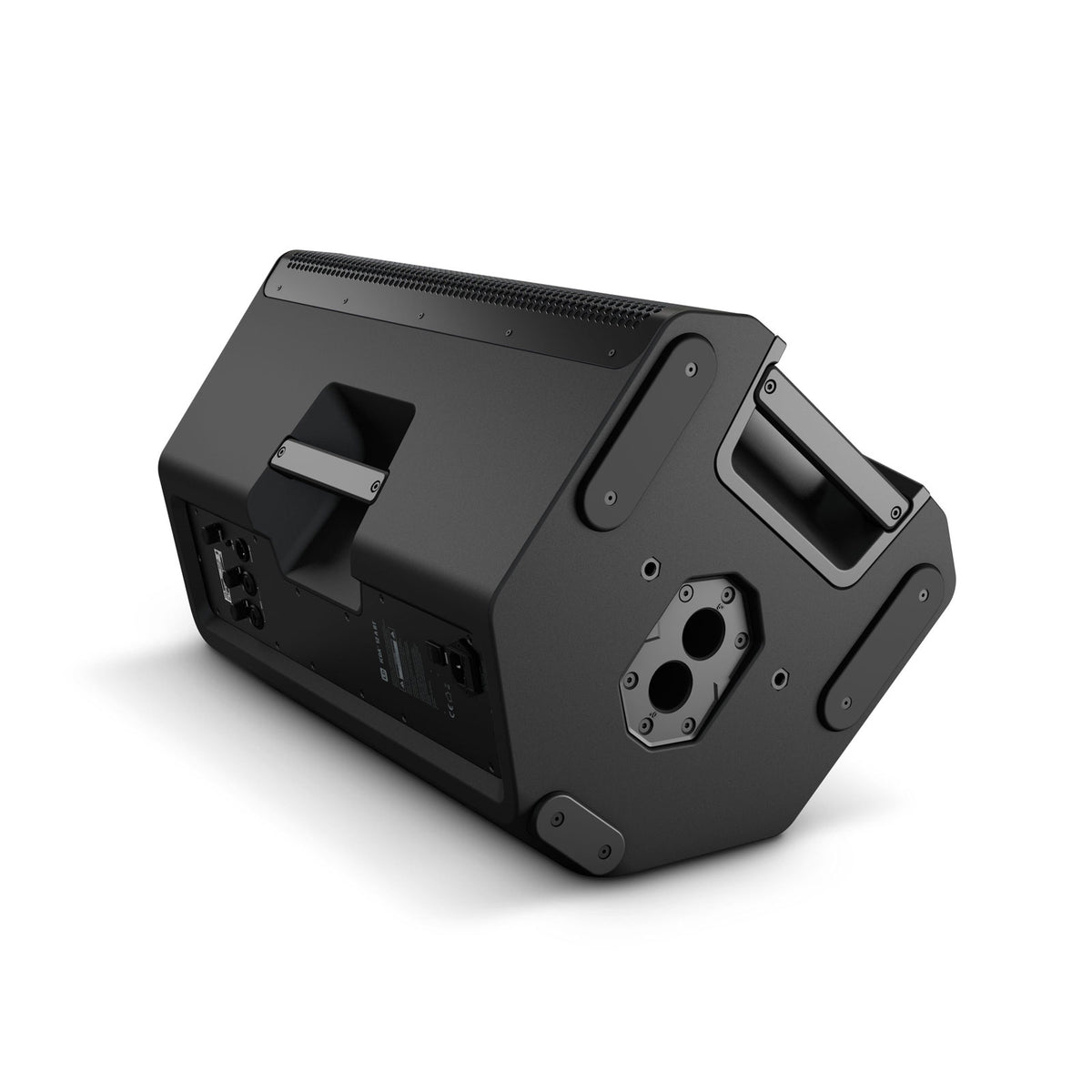

The molded polymer enclosure features a Dual Tilt 36 mm pole mount adjustable to 0° or 5°. Six M10 rigging points are also provided for suspension. With dimensions of 635 x 396 x 375 mm, the speaker weighs 19.95 kg.
