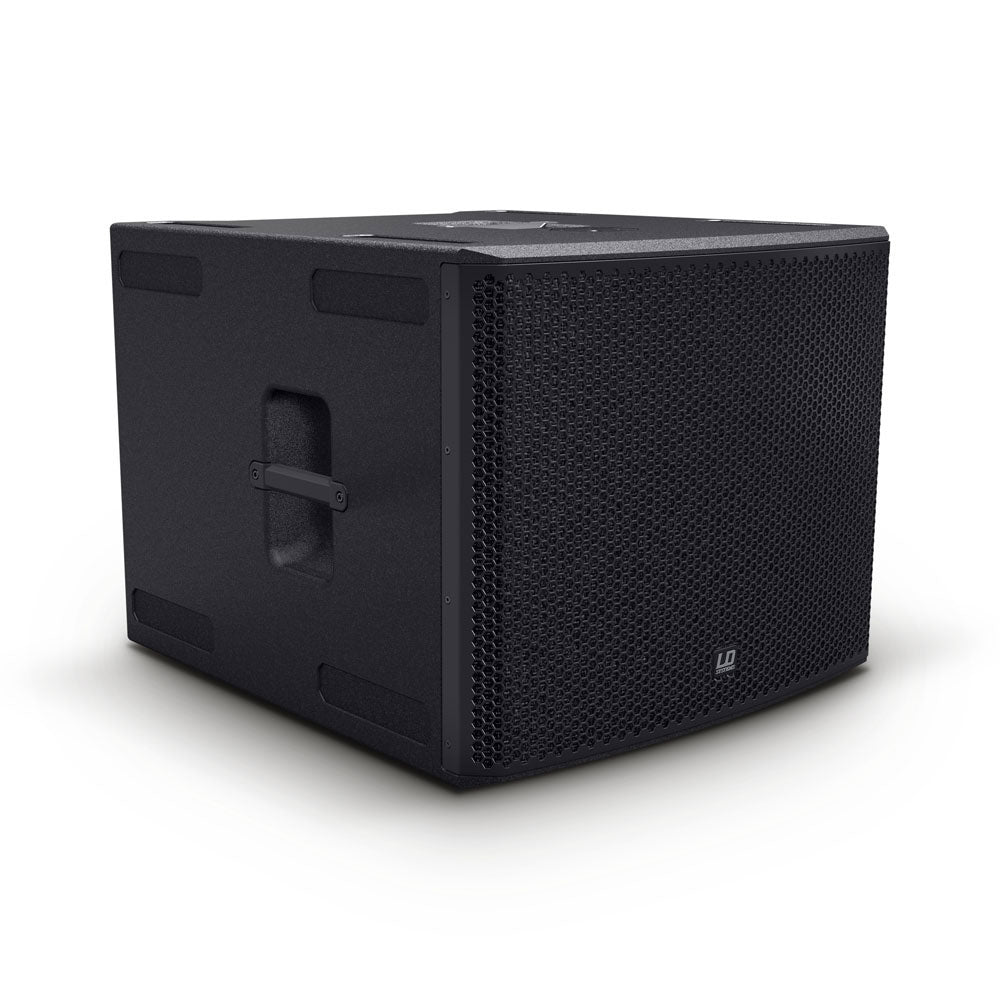

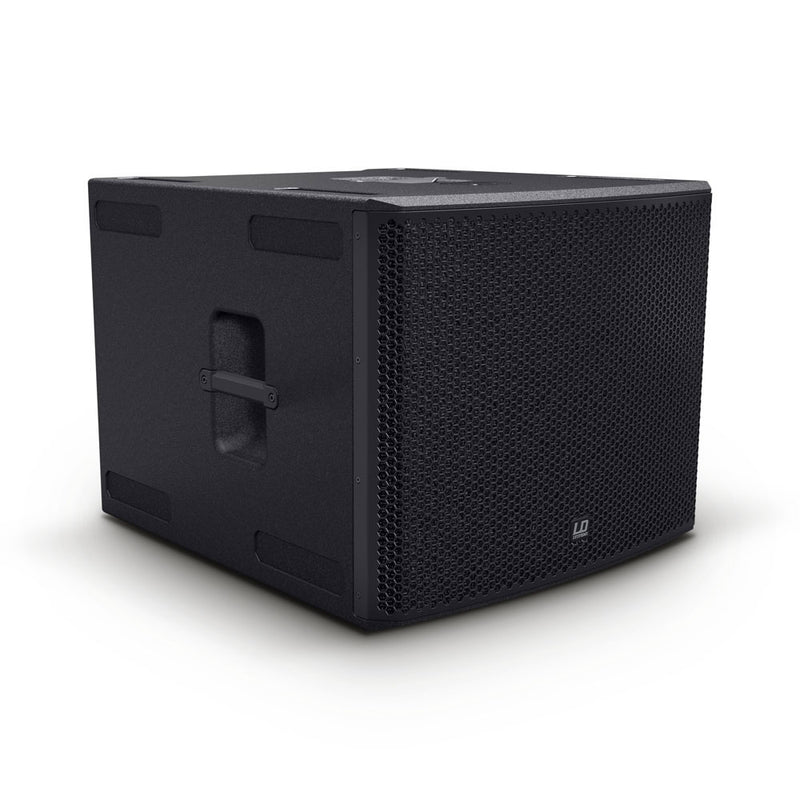

LD Systems LDESUB18AG3 - Active 18-inch subwoofer

The 18-inch low-frequency reinforcement of the STINGER G3 family

The LD Systems STINGER SUB 18 A G3 belongs to a professional PA range comprising loudspeakers and subwoofers, available in active and passive versions. This family focuses on a practical approach: dedicated transducers, robust enclosures and settings designed to build a coherent system. The active 18-inch model provides a solution with integrated amplification for users who want to enhance the low-end foundation of their sound system without adding an external amplifier.

For live performances, DJs and events

This PA subwoofer is suited to systems intended for club concerts, touring bands and private or professional events. It provides effective reinforcement when the music requires greater impact and presence in the lower frequency range. The series is also available in configurations combining two 18-inch subwoofers with satellite loudspeakers, for musical performances as well as corporate events.

Accessible settings for building a coherent system

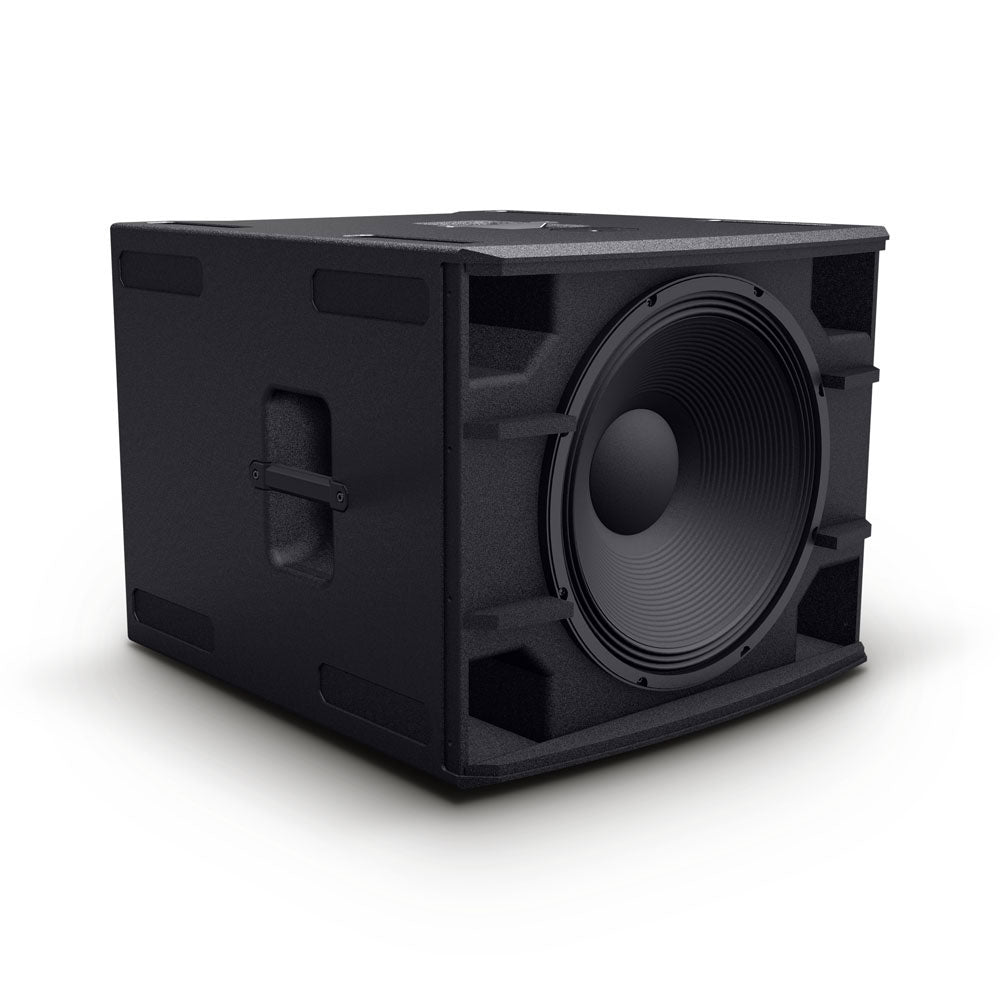

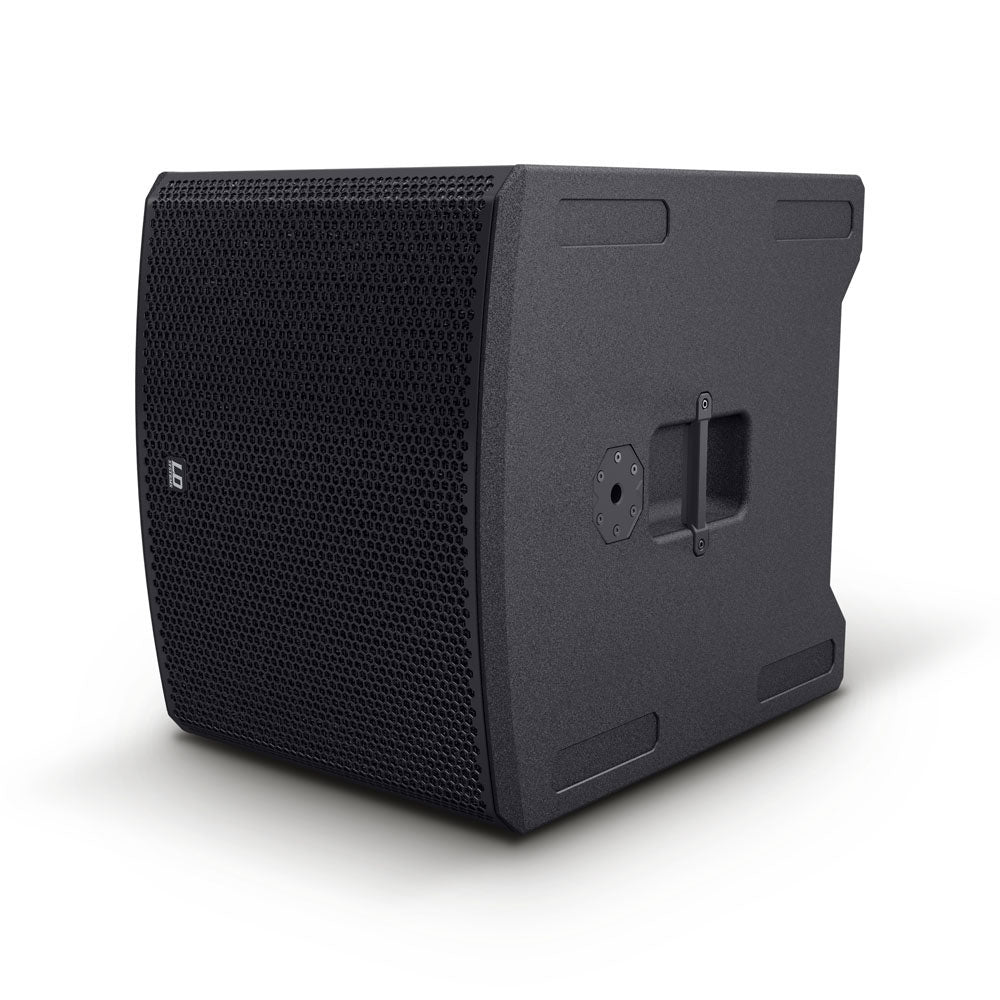

The DynX DSP supports low-frequency reproduction, while the three crossover frequencies make it possible to adapt the connection with the main loudspeakers. The bass-reflex enclosure can be positioned horizontally or vertically depending on the available space. Its steel grille protects the loudspeaker, while the ergonomic handles and stacking recesses facilitate handling and setup. An M20 threaded insert also allows the use of a suitable coupling pole.

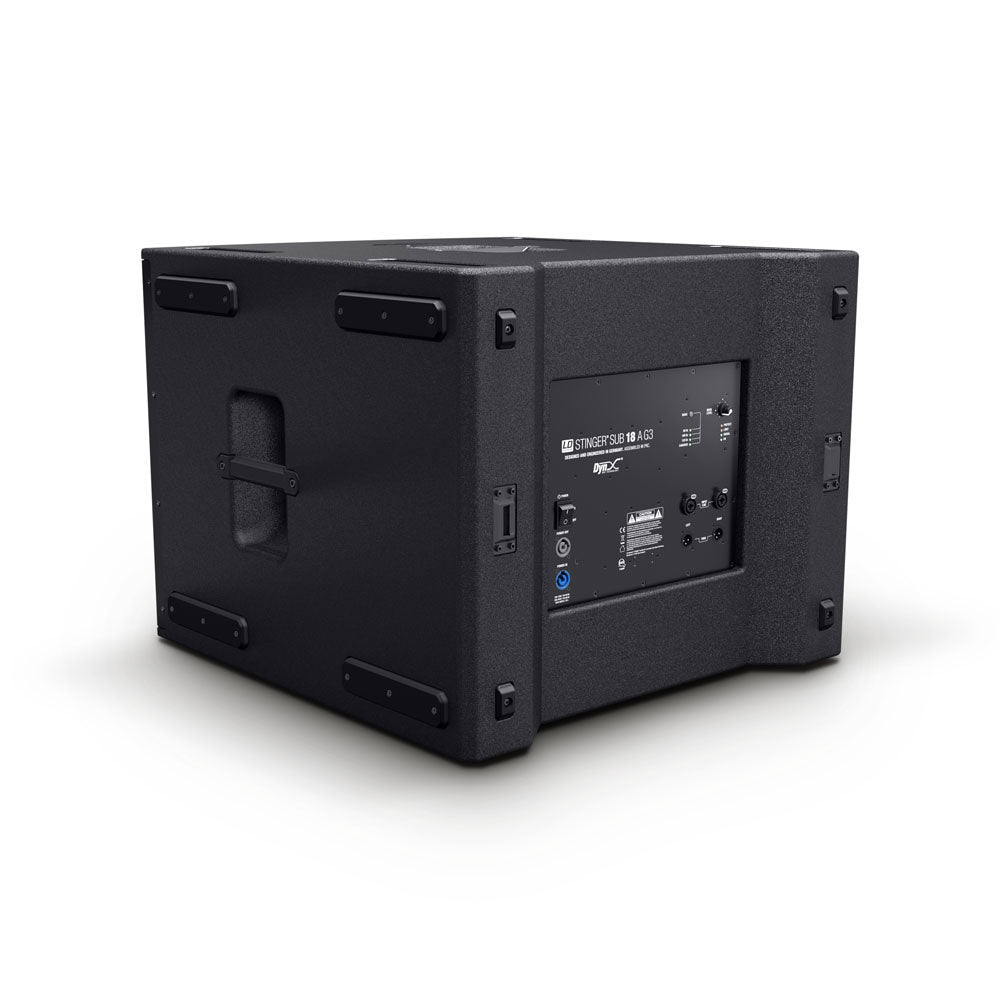

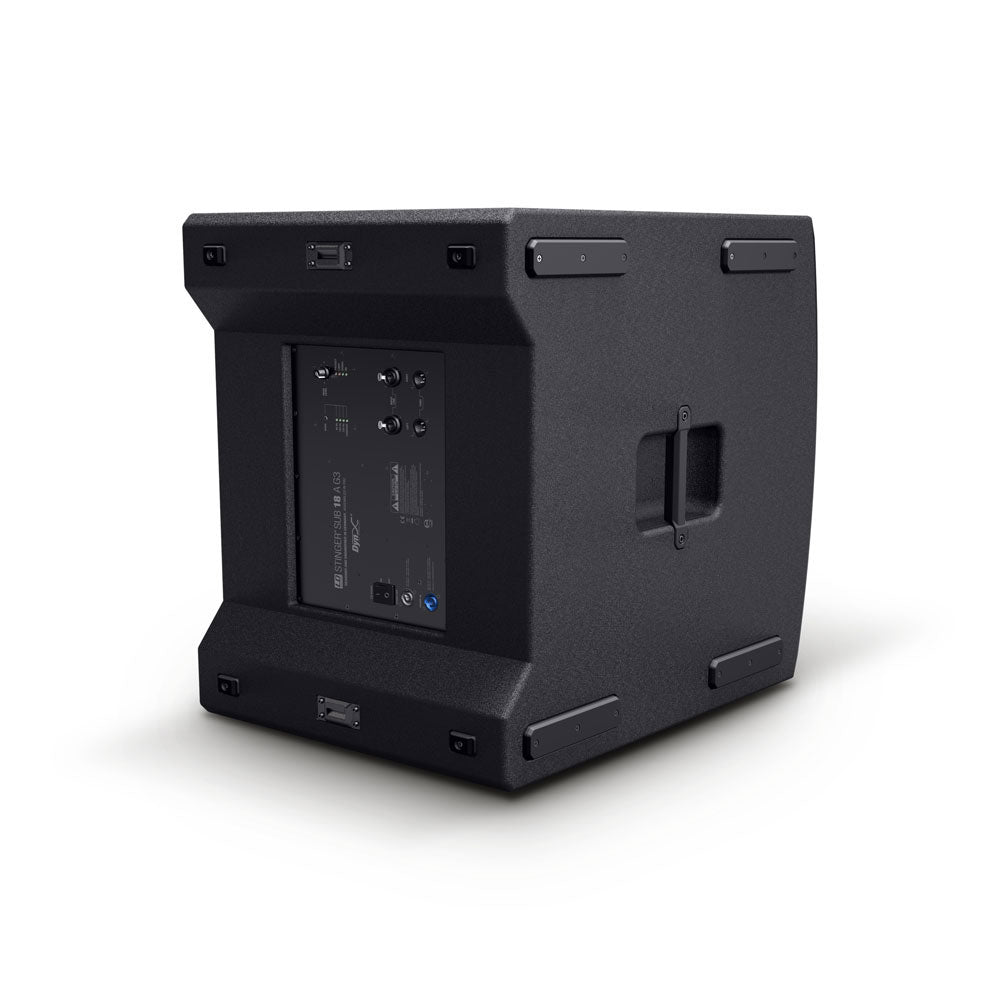

The connections include two XLR/jack combo inputs and two XLR link outputs. For a setup using three identical subwoofers, the cardioid preset makes it possible to reduce low-frequency dispersion towards the rear. This configuration helps limit unwanted bass on stage and rear reflections: it requires suitable positioning and settings, and does not correspond to the operation of a single subwoofer.

Technical specifications

Battery	No	Cutaway	No
Number of channels	1 channel	Speaker structure	wood
Bluetooth	No	Inputs	combo XLR/jack
Speaker diameter	18"	Outputs	XLR
Number of speakers	1	Color	Black
EQ	No	Power output	2400 W

Type	active bass-reflex subwoofer for sound reinforcement.	Line outputs	two XLR outputs.
Loudspeaker	proprietary, 18 inches, equivalent to 457.2 mm.	Input impedance	30 kohms.
Magnet	ferrite.	Input sensitivity	0.3 V RMS.
Voice coil	4 inches, equivalent to 101.6 mm.	Switch-mode power supply	100–120 V or 200–240 V AC, 50–60 Hz, automatic switching.
Amplification	integrated, Class D.	Maximum power consumption	600 VA.
Power	800 W RMS and 1,600 W peak.	Operating conditions	from 0 to 40 degrees Celsius, relative humidity below 80%, non-condensing.
Maximum level	135 dB SPL peak.	Enclosure	18 mm birch plywood with polyurea finishing.
Frequency response	from 35 Hz to the selected low-pass filter frequency.	Front protective grille	steel.
Digital processing	DynX.	Positioning	horizontal or vertical.
Low-pass presets	80, 100 and 120 Hz.	Enclosure equipment	four ergonomic recessed handles, non-slip feet and stacking recesses.
Cardioid preset	configuration of three identical subwoofers.	Coupling bar insert	M20 threaded.
Controls	Main Level and Mode selection.	Dimensions, width x height x depth	677 x 547 x 740 mm.
Indicators	On, Signal, Limit, Protect and Mode.	Weight	42.6 kg.
Protection	DC component, overcurrent, short circuit and limiter.	Accessories available separately	protective cover and caster board.
Line inputs	two balanced combo XLR/6.35 mm TRS jack inputs.
