LD Systems Maui 5 White

MAUI 5: the smallest format in the MAUI family, designed for mobility

The MAUI 5 is the most compact member of LD Systems' MAUI range. Designed as an "all-in-one" system (front sound + monitors), it targets performances where quick setup and minimal footprint are essential, without sacrificing clarity and projection. Designed in Germany, it relies on a column + bass reflex subwoofer architecture to deliver coherent sound reinforcement, easy placement, and simple control.

Who is it for and what are the uses?

This active column sound system is aimed at musicians, singers, DJs, hosts, and small ensembles looking for a self-contained, clean, and quick-to-set-up solution. The MAUI 5 is particularly suitable for rehearsals, bars, small stages, conferences, dance/fitness classes, events, and animations where a lightweight, stable system capable of covering a wide area is needed. Thanks to its dispersion and column design, it also helps reduce feedback risks when using microphones, while remaining pleasant to listen to at close range.

Key Features: DSP, 4-channel mixing, and versatile connectivity

Class D amplification with DSP and protections

The bass reflex subwoofer houses the Class D amplification, DSP processing (including LECC audio signal processing), as well as protection circuits against overvoltage, overheating, short circuits, and overload. The result is a system designed to withstand the demands of mobile use, with optimized operation and signal control tailored for sound reinforcement.

A true "all-in-one": integrated mixer and separate volume controls

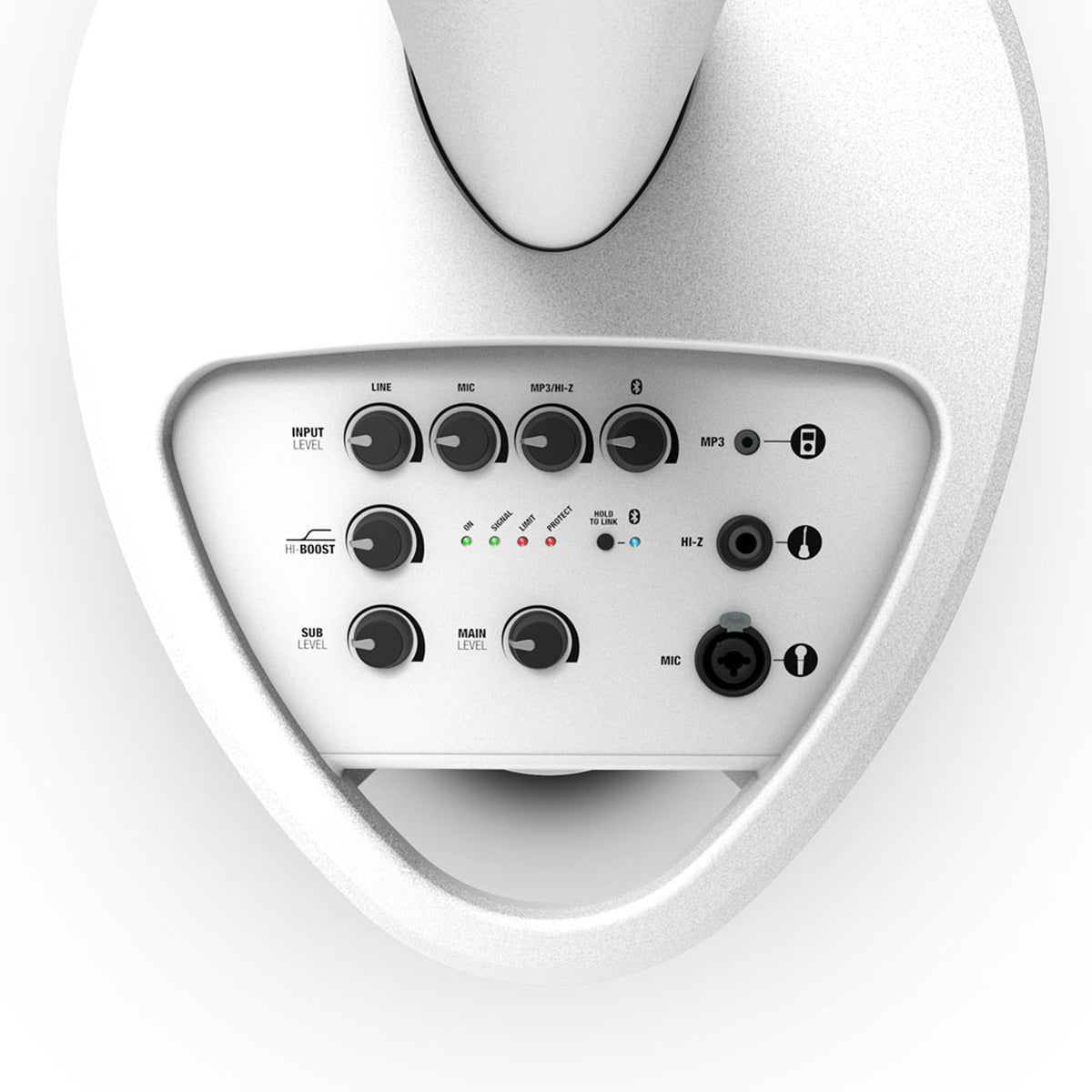

The MAUI 5 features a 4-channel mixer and practical level management: master volume, subwoofer level, and dedicated settings per input (mic, line, MP3/Hi-Z, Bluetooth). This direct control avoids the need for multiple external devices for simple performances, while allowing connection of very different sources: microphone, audio player, keyboard, guitar, etc.

Built-in Bluetooth for wireless audio streaming

Its integrated Bluetooth receiver allows quick playback of playlists, backing tracks, or ambient music from a smartphone or tablet. The dedicated pairing button simplifies startup, and the Bluetooth level has its own control to easily balance vocals and music.

Technical specifications

Battery	No	Media Player	Bluetooth
Number of channels	2 channels	Speaker structure	wood
Bluetooth	Yes	Inputs	minijack, jack, 1 x NL4 (speakON compatible), combo XLR/jack
Speaker diameter	1", 8", 3"	Outputs	XLR
Number of speakers	5	Color	White
EQ	Yes	Power output	800 W

Product type	complete sound reinforcement system	Mid/high satellite enclosure material	ABS
Type	active	Mid/high column width	82 mm
Maximum continuous sound pressure level	114 dB SPL	Mid/high column height	535 mm
Maximum peak sound pressure level	120 dB SPL	Mid/high column depth	105 mm
Frequency response	50 - 20,000 Hz	Amplifier module	integrated into subwoofer
Dispersion angle (H x V)	120deg x 20deg	Amplifier type	Class D
Total height	1985 mm	Total system power (RMS)	200 W
Weight	10.9 kg	Total system power (peak)	800 W
Miscellaneous	audio signal processing via DSP	Protection features	DSP multiband limiter, overheating, short circuit, overload
Woofer diameter	1 x 8"	Cooling	convection
Woofer magnet	ferrite	Indicators	On, Signal, Limit, Protect
Woofer brand	OEM	Power supply	switching power supply
Woofer voice coil diameter	2"	Mains voltage	100 to 120 V, 50 - 60 Hz / 200 to 240 V, 50 - 60 Hz (automatic adjustment)
Enclosure type	bass reflex	Controls	Sub Level, MP3/Hi-Z Level, Main Level, Mic Level, Line Level, BT Level, Bluetooth pairing button
Enclosure material	ABS	Number of line inputs	2 x stereo
Subwoofer width	305 mm	Line input connectors	XLR and 6.35mm Jack
Subwoofer height	405 mm	Number of microphone inputs	1
Subwoofer depth	395 mm	Microphone input connectors	XLR and 6.35mm Jack
Midrange driver diameter	4 x 3"	MP3 player input	1
Midrange driver magnet	neodymium	MP3 player input connector	3.5 mm mini-jack
Midrange driver brand	OEM	High impedance (Hi-Z) input	1
Midrange driver voice coil diameter	1"	High impedance (Hi-Z) input connector	6.35mm Jack
Nominal impedance mid/high satellite	4 ohms	Number of speaker outputs	1
Number of speaker inputs	1	Speaker output connector	proprietary multipoint format
Speaker connector type	proprietary multipoint format	A/D-D/A converter resolution	24 bits / 24 bits
Mid/high column type	sealed	Internal sampling frequency	48 kHz
