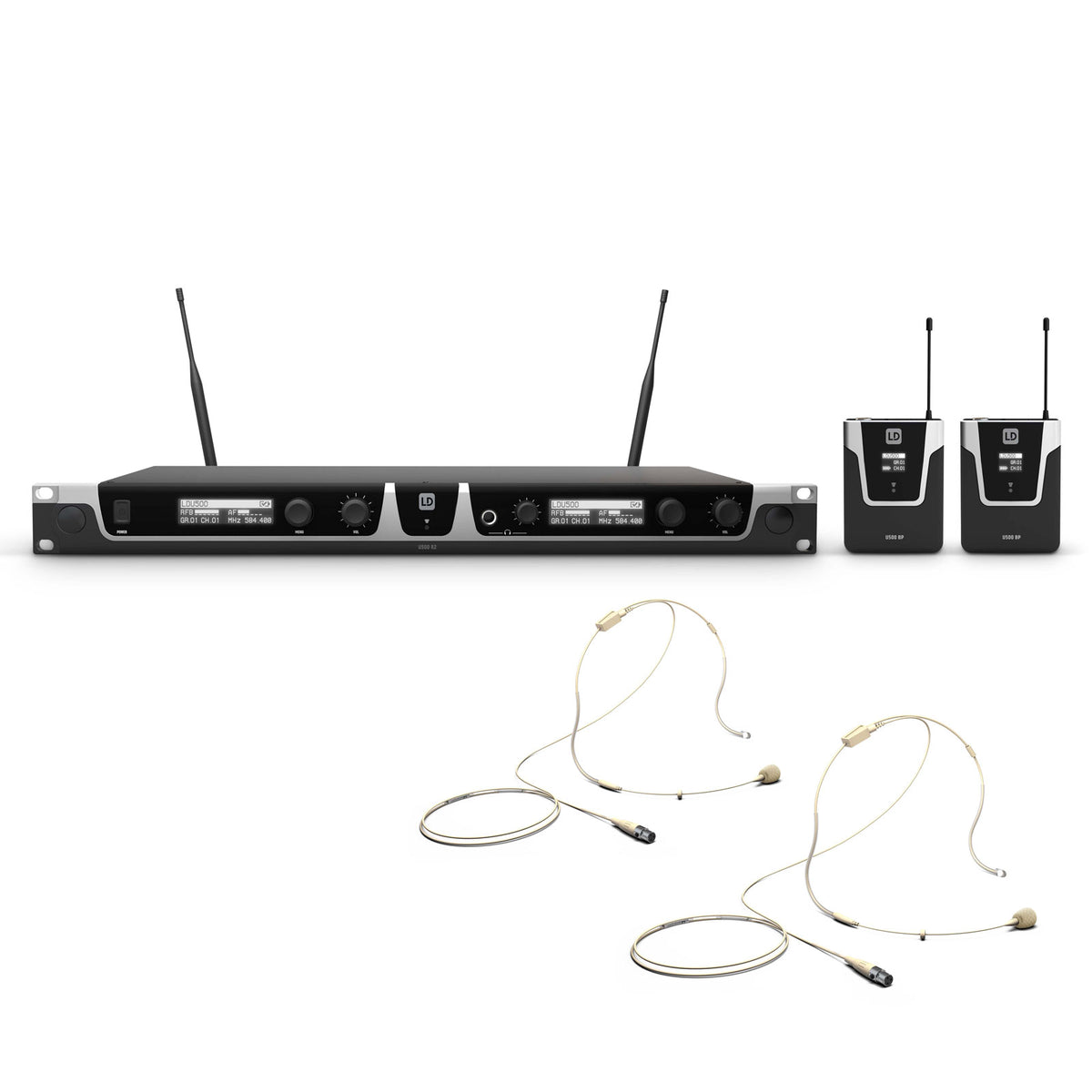

LD Systems U505 BPHH 2
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
What you need to know
What you need to know
- Generous Stage Range: up to over 100 meters in open field, with selectable RF transmission power up to 30 mW.
- Professional Reliability with UHF True Diversity: enhanced stability, squelch, and pilot tone to minimize dropouts and interference.
- Quick Setup: automatic channel search and "One-Touch" infrared synchronization between transmitter and receiver.

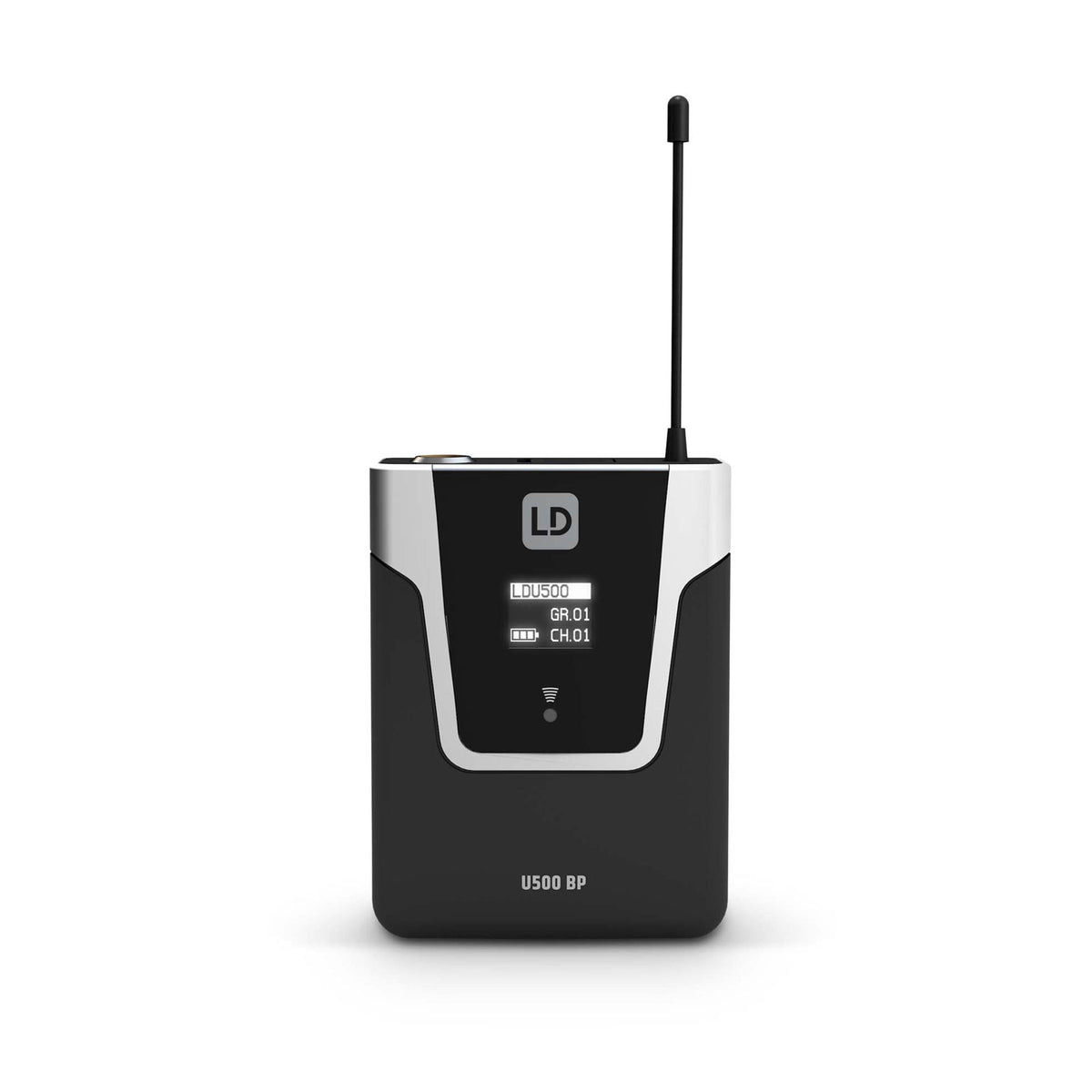

- Clear Information Display: OLED display (group, channel, frequency, signal strength, battery level) and the ability to name users.
Manufacturer Information
LD Systems
https://www.adamhall.com
info@adamhall.com
------------------------
Safety manager:
Adam Hall GmbH
Email: info@adamhall.com
Address:
A Series Designed to Democratize Wireless Performance on Stage
The U500 series was developed with a simple ambition: to offer a wireless microphone system capable of delivering professional sound, flawless reliability, and solid performance, while remaining accessible. Within the LD Systems range, it positions itself as a solution oriented towards stage and event use, with a design focused on radio stability, ease of use, and faithful transmission, suited to the demands of live performances as well as recurring events.
For Whom and For What Uses?
The U500 series vocal sets are aimed at singers, hosts, speakers, technical teams, and service providers who want to gain freedom of movement without sacrificing quality. Thanks to their advertised range and frequency management, they are suitable for concerts, speeches, corporate events, places of worship, multipurpose rooms, or mobile stages. The series is available in various configurations (handheld transmitter, headset microphone, lavalier microphone, single or dual receivers), making it easy to choose a coherent system depending on the voice, staging, and event format.
- Accurate transmission with no distortion, latency, or alteration
Technical specifications
| Category | Complete system | Capsule | dynamic / static |
| Transmission technology | UHF True Diversity | Microphone | dynamic or condenser, capsule isolated from vibrations |
| Switchable RF transmission power | 2, 10 or 30 mW | Available systems with | handheld transmitters, headset microphones, lavalier microphones |
| Range | more than 100 metres in open space | Receivers | single or dual (depending on system) |
| Channel search | automatic | Handheld microphone capsules | interchangeable |
| Frequency synchronisation | " One-Touch " between transmitter and receiver, via infrared | Series versions | version for brass instruments, guitar, or with lavalier or headset microphone |
| Squelch | managed by pilot tone | U505 | 584 to 608 MHz (12 systems usable simultaneously) |
| Display | OLED | U506 | 655 to 679 MHz (12 systems usable simultaneously) |
| Displayed information | group, channel, radio frequency, signal strength, battery level | U508 | 823 to 832 MHz + 863 to 865 MHz (six systems usable simultaneously) |
| User names | can be entered | U506 UK (Channel 38) | 606 to 614 MHz (six systems usable simultaneously) |
| Transmission time | up to 10 hours | U518 | 1785 to 1800 MHz (four to six systems usable simultaneously) |
| Transmitter power supply | 2 AA batteries | ||
You will also like
Shure
GLXD14+E-MX53-Z4
Shure
GLXD14+E-SM35-Z4
Sennheiser
Ew-D Me3 Set (470,2 - 526 Mhz)
Shure
SLXD14+E-SM35-G65
Shure
GLXD14r+E-MX53-Z4
Shure
Rackmountable HF Headset System
LD Systems
U505 BPH 2
LD Systems
U508 BPH2 - Dual
Questions frequently asked
What is the range of the LD Systems U505 BPHH 2 wireless system?
The advertised range exceeds 100 meters in open field. The RF transmission power is selectable between 2, 10, and 30 mW depending on stage conditions.
How many U505 systems can operate simultaneously?
Within the U505 band from 584 to 608 MHz, up to 12 systems can be used at the same time. Automatic scanning facilitates the selection of a free frequency.
What is the battery life with AA batteries?
The transmitter operates with two AA batteries and offers up to 10 hours of advertised battery life.
Does the U505 BPHH 2 protect against radio interference?
The UHF True Diversity architecture is combined with a pilot tone and a squelch circuit. The receiver mutes in the absence of the pilot tone to limit noise from unwanted signals. Infrared sync then allows quick alignment between transmitter and receiver.

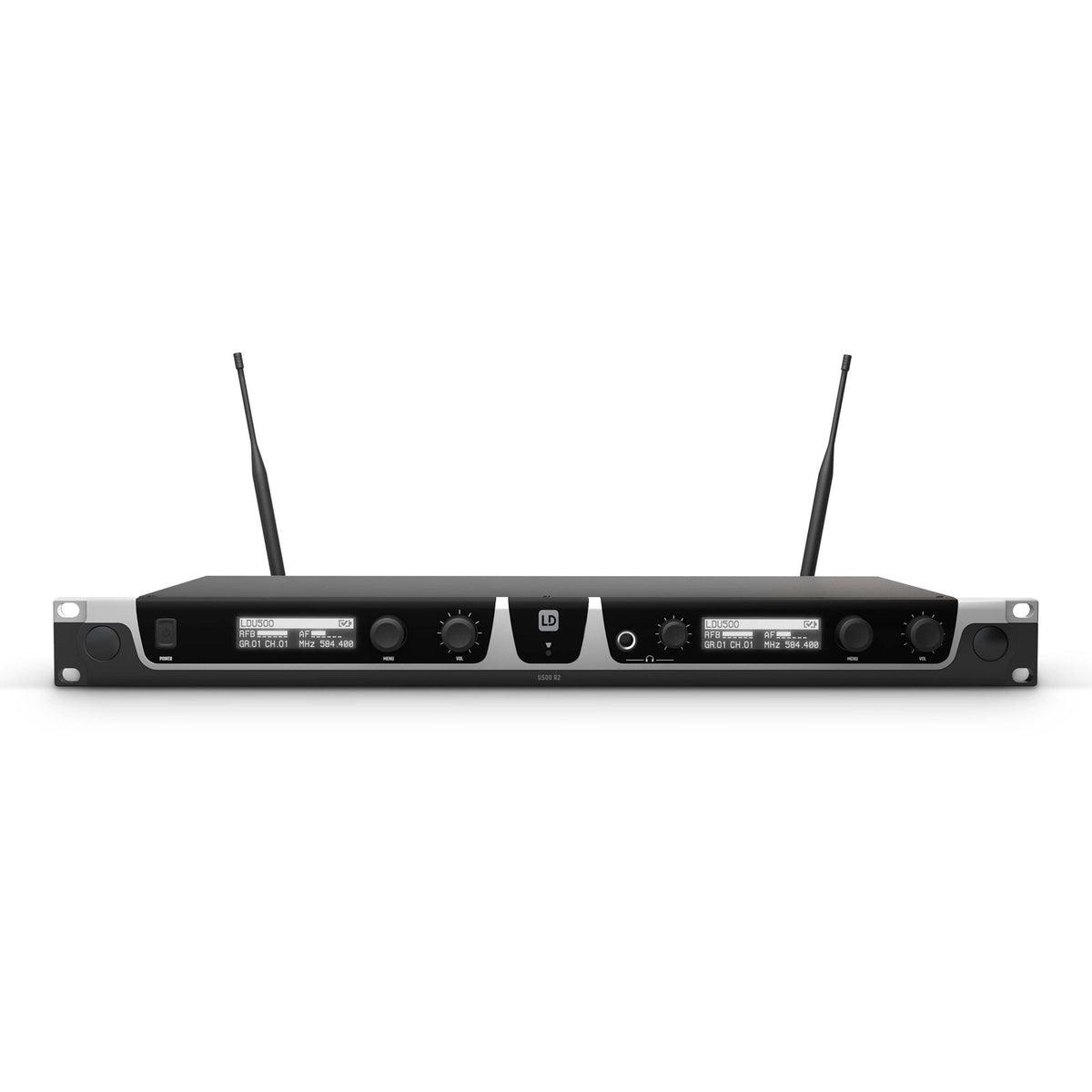

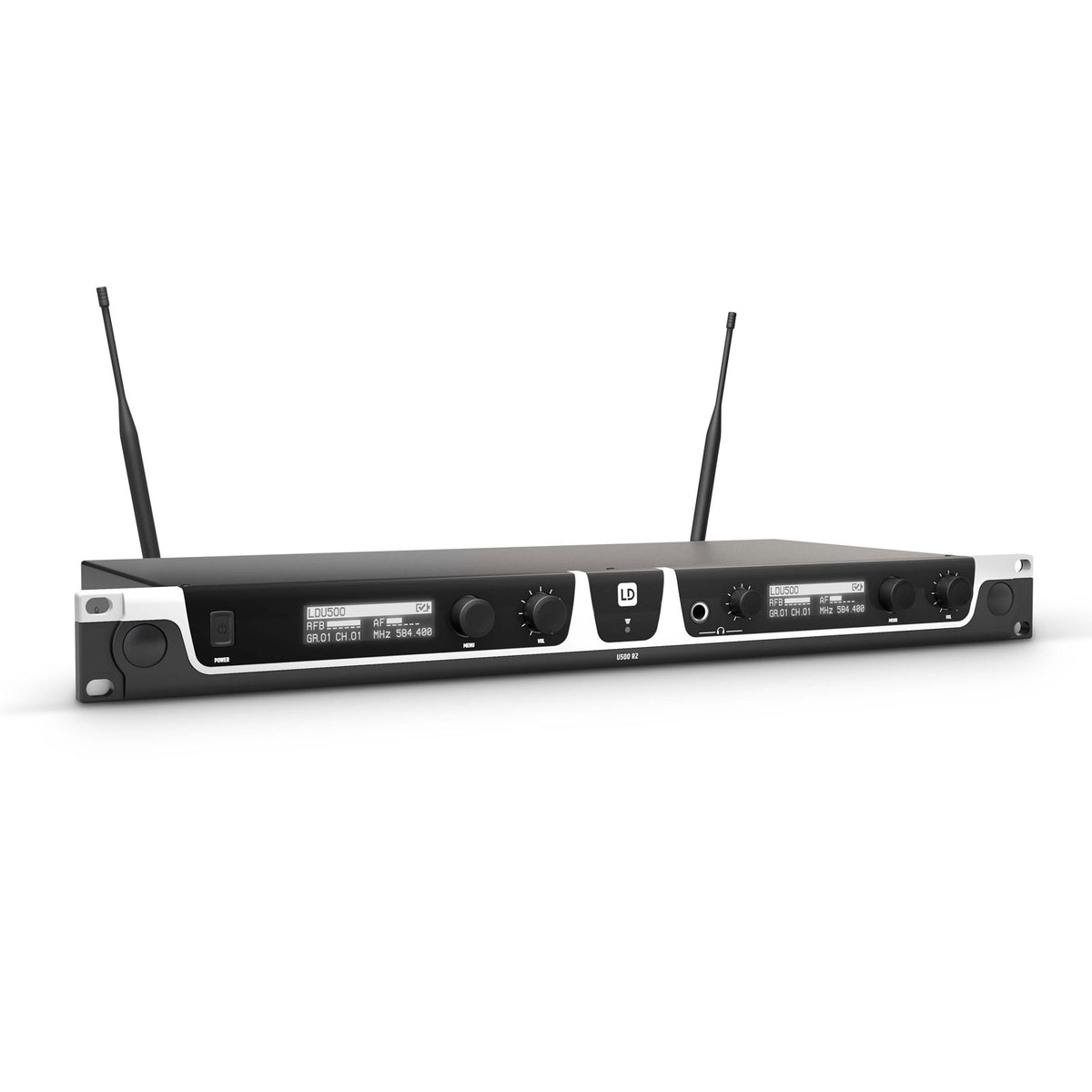

What information is displayed on the receiver's screen?
The OLED display shows the group, channel, radio frequency, signal strength, and battery level. User name input is also provided to identify different users.
