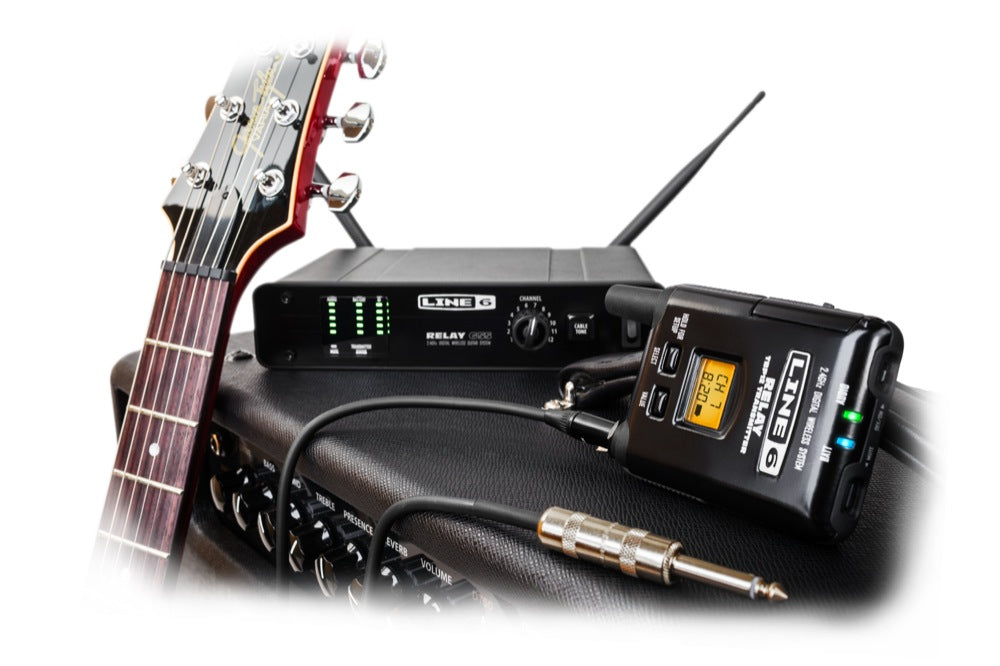

A Line 6 Digital Wireless Reference Designed for Touring
The Relay G55 continues the lineage of Line 6 digital wireless systems based on fourth-generation technology. Designed in a half-rack format, it targets guitarists and technicians seeking a stable, easy-to-deploy solution that remains consistent from gig to gig, without compromising dynamics and attack.
Who Is It For and What Are Its Uses?
The Relay G55 is aimed at guitarists (and bassists) who perform live, rehearse, or play on large stages and want to move freely while maintaining a clean and consistent signal. The selection among 12 channels allows for multi-instrument setups, and worldwide license-free operation facilitates international gigs and tours.
RF Stability, Visual Monitoring, and Optional "Cable Tone"

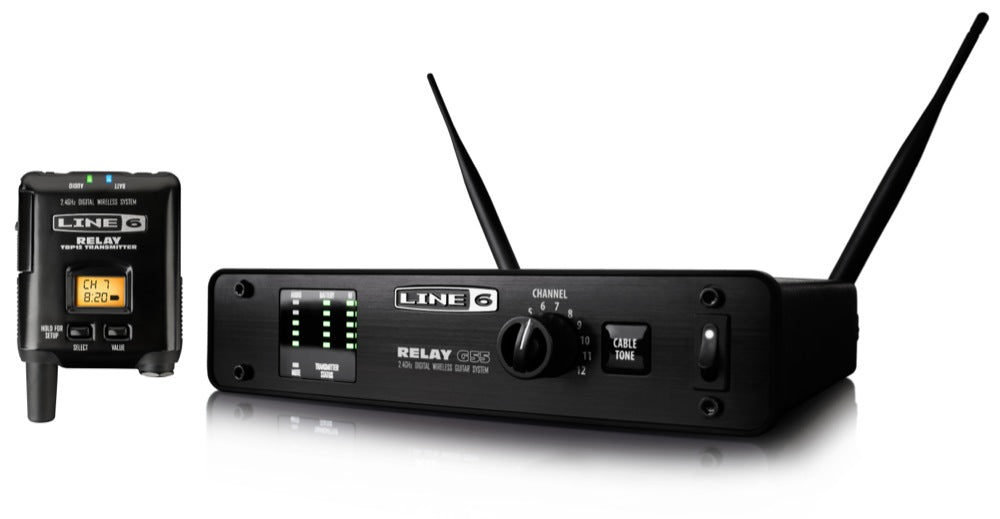

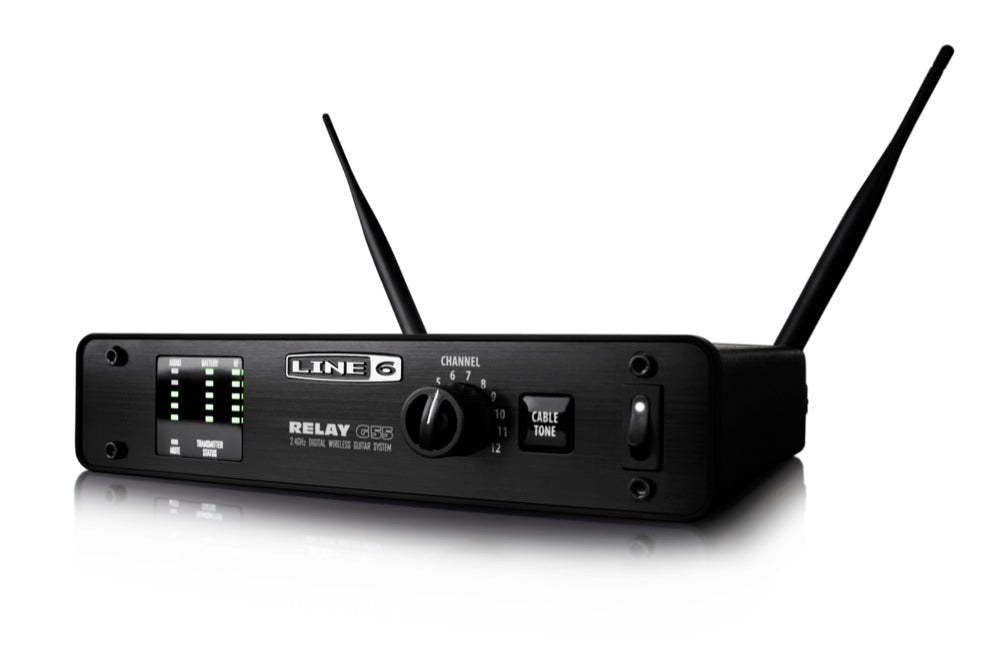

In addition to operating in the 2.4 GHz band, the DCL (Digital Channel Lock) protection helps preserve audio integrity against other devices on the same band. Regarding playing feel, the "cable tone" simulation replicates the natural high-frequency roll-off of a standard 8 m cable, useful for regaining a more familiar top end without losing wireless benefits. Real-time monitoring remains clear: an LCD screen on the belt-pack transmitter (channel, battery status) and five-segment LED indicators on the receiver (signal strength, battery, audio level). The system can also integrate into a custom setup by combining Relay and XD-V products, provided the same RF mode is used.
Technical specifications
| Category | Complete system | Frequency band | 2,4 GHz |
| Number of channels | 12 | Color | Black |
| Frequency response | 10 Hz - 20 kHz | ||
| Dynamic range | 117 dB (A-weighted) | Outputs | XLR and 6.35 mm Jack |
| Range | up to 100 m | ||
Questions frequently asked
What is the range of the Line 6 Relay G55 wireless system?
The advertised range reaches up to 100 m.
Can the Relay G55 operate with multiple wireless systems on stage?
The system uses the 2.4 GHz band and offers 12 channels. The DCL (Digital Channel Lock) protection helps maintain audio integrity in the presence of other devices using this band.
Does the Relay G55 reproduce the sound of a guitar cable?
A cable simulation reproduces the natural high-frequency attenuation of a standard 8 m cable. This feature allows for a treble response closer to a wired connection.
What outputs are available on the receiver?
The receiver features XLR and 6.35 mm jack outputs. These connectors allow for integration into various stage setups.
How can the Relay G55 signal and battery status be monitored?
On the beltpack transmitter, an LCD screen displays the selected channel and battery status. Five LED segments on the receiver indicate signal strength, battery level, and audio level. The specified frequency response ranges from 10 Hz to 20 kHz.
