Mackie 1402-VLZ4
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Mackie
https://www.mackie.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:

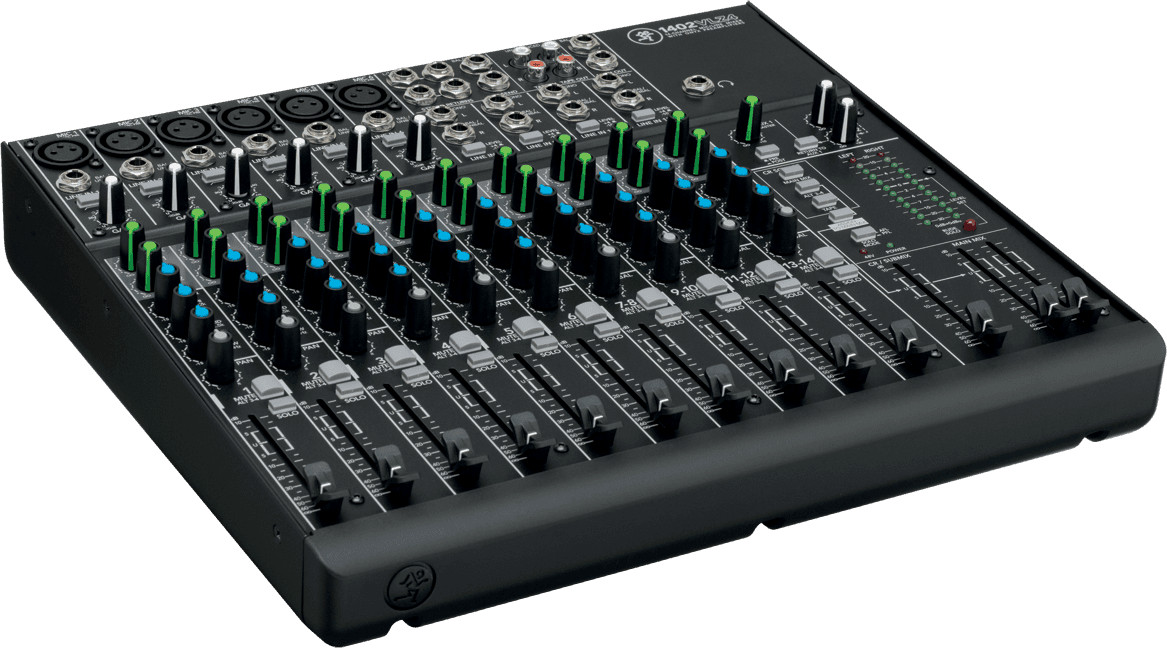

Essential Information About the Mackie 1402VLZ4 Analog Mixing Console
- ONYX Mic Preamps: high gain reserve, extended dynamic range, and very low noise for clear and detailed recordings.
- Versatile Studio & Stage: designed for both Home Studio recording and live mixing, with straightforward and efficient ergonomics.
- "Built-Like-A-Tank" Construction: reinforced steel chassis built to withstand transportation and real-world usage conditions.

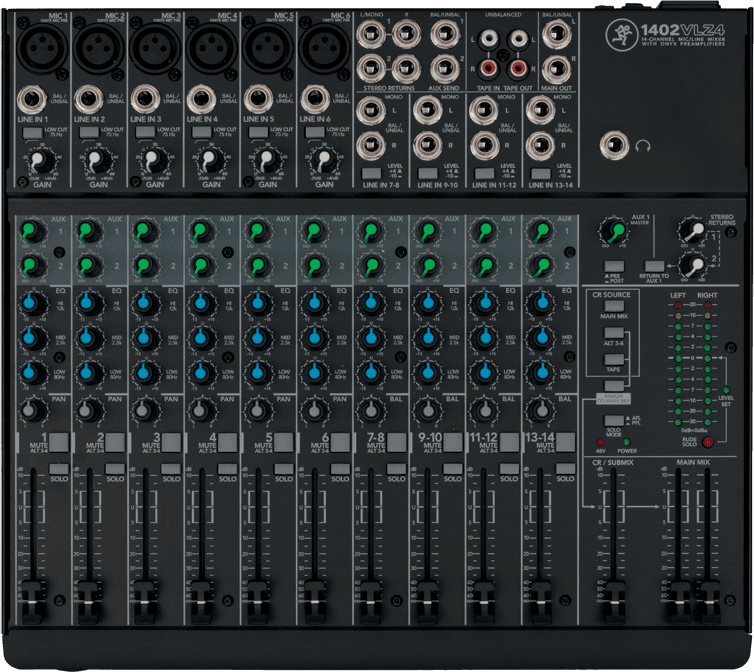

- Comprehensive Connectivity: 6 mono inputs with insert, 4 stereo inputs, auxiliaries, subgroups, and RCA I/O to adapt to various setups.
The VLZ4 Series: An Evolution Within a Proven Range
With the VLZ4 series, Mackie emphasizes what has made the range successful for nearly 25 years: consistent audio quality, recognized reliability, and versatility suitable for most configurations. The integration of ONYX mic preamps continues this tradition by delivering a clean sound, great breadth, and very low noise levels. The result: a console capable of meeting serious demands, including applications expecting "broadcast"-style sound, without complicating the workflow.
A Console Tailored for Home Studio, Live, and Versatile Performances
The 1402VLZ4 targets musicians, technicians, and content creators seeking a reliable analog console to manage multiple sources simultaneously: vocals, guitars, keyboards, drum machines, stereo players, effects returns, etc. In the Home Studio, it serves as a simple and fast routing center, ideal for recording, monitoring, and mixing with imperceptible latency. On stage, it becomes a compact and robust solution to sound a small band, duo, conference, or fixed installation, while maintaining precise control over equalization and auxiliary sends.
Technical specifications
| Insert | Yes | Number of auxiliary returns | 2 |
| Number of faders | 13 | Busses / groups | 2 sub-groups |
| Number of channels | 14 | Number of auxiliary sends | 2 |
| Phantom power supply | Yes | Mic inputs | 5 x XLR |
| Motorised faders | No | Line inputs | 14 x balanced jacks |
| Filters | Low cut at 75 Hz | Inputs (other) | 2 x Rca, 2 x stereo effects returns 2 x balanced jacks |
| PFL/AFL mode | Yes | Main outputs | 2 x XLR, 2 x balanced jacks |
| Rackable | Yes | Outputs (other) | 2 x Aux balanced Jacks |
| Rack unit | 13 | Color | Black |
| Category | analog mixer | Built-in effects | Yes |
| Fader travel | 60 mm | Weight | 4.5 kg |
| Number of mic preamps | 6 | Dimensions (mm) | 356 x 329 x 81 |
Questions frequently asked
How many microphones can be connected to the Mackie 1402-VLZ4?
The mixer has 5 XLR mic inputs and 6 ONYX mic preamps. Phantom power is available for microphones that require it.
Does the mixer have inserts for external compressors?
Inserts are present on the mono inputs, allowing integration of an external compressor, gate, or equalizer on a source.
What outputs are available for PA and monitors?

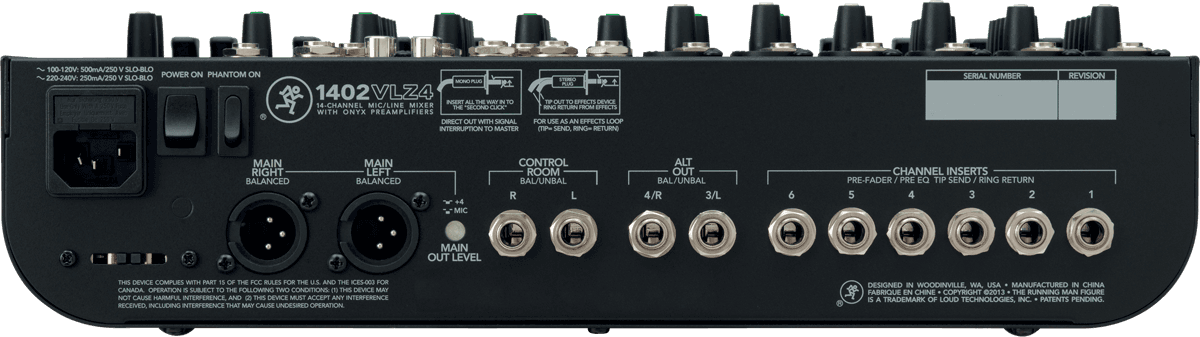

The main section includes 2 XLR outputs and 2 balanced jack outputs. Two balanced jack auxiliary outputs provide feeds for monitors or external effects processors. There are also two auxiliary sends and two auxiliary returns.
Can this mixing console be rack-mounted?
This model is rack-mountable and occupies 13 rack units. The RK rack kit is offered as an optional accessory.
What are the dimensions and weight of the 1402-VLZ4?
With dimensions of 356 x 329 x 81 mm and a weight of 4.5 kg, this mixer remains suitable for mobile setups. A 1402-VLZ-BAG carrying case is available separately.
