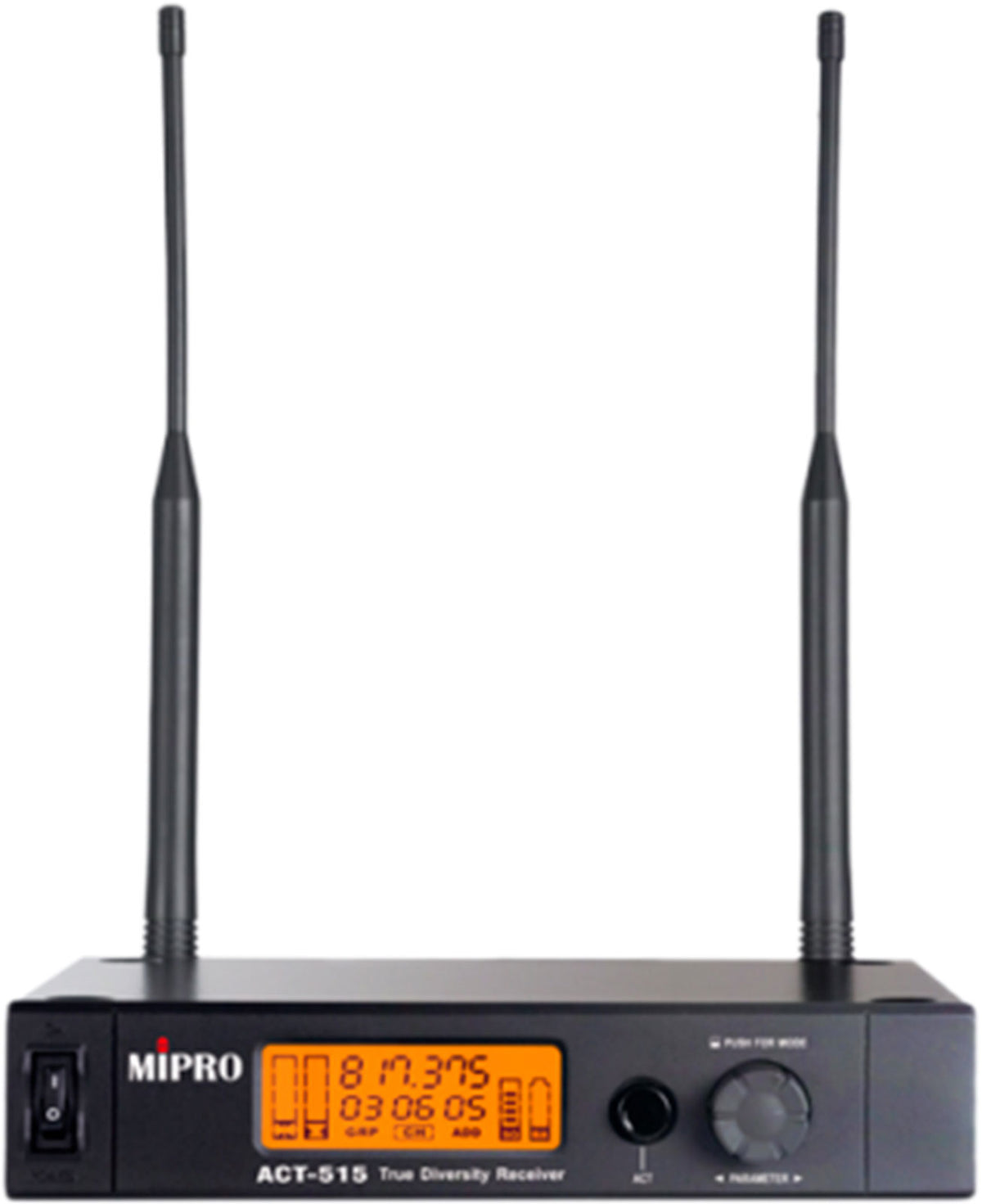

Mipro ACT-515
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Manufacturer Information
Mipro
https://www.mipro.com.tw
mipro@mipro.com.tw
------------------------
Safety manager:
MSC Distribution
Email: infos@msc-distribution.com
Address:
- EIA standard metal chassis
- UHF frequency range
- Bandwidth 24 MHz
- Reception mode True diversity reception
- Sensitivity 6 dB?V @ S/N > 80 dB
- Frequency response 50 Hz ~ 18 kHz
- Dynamic range > 111 dBA
- Balanced audio output: +16dB / 0dB / -6dB, unbalanced: +10dB / 0dB / -6dB
- PC interface USB interface. MIPRO ACT-BUS for remote control of up to 64 channels.
- FSA compatible
- Detachable antenna. A 50? TNC female connector provides polarization for MIPRO antenna systems.
- Compatible with ACT-500H / ACT-500T / BC-T(UHF) / MT-92A
- Dual "PiloTone & NoiseLock" circuits minimize interference.
- Backlit LCD displays group, channel, frequency, RF and audio power, antenna A/B, transmitter battery status, interference warning indicator and panel lock.
- Easy identification of working mode (green) and standby mode (red) during performance.
- 1/4" XLR balanced / unbalanced audio output jack, output level switch and DC input are located on the rear panel.
- PLL-synthesized UHF technology for improved RF stability, reduced spurious emissions and greater frequency agility. One-touch autoscan for clear and interference-free channel.
- 80 preset unconditional channels and 8 user-defined channels can be saved and recalled.
- Adjustable SQ " for higher sensitivity to increase receiving distance or lower sensitivity to reduce interference.
- Adjust the SQ when the interference indicator is on to obtain the ideal sensitivity level.
- Power Supply External switching power supply 100~240V AC.
- Dimensions 210 × 44 × 163 mm (W × H × D)
- Weight Approx. 0.9 kg
Technical specifications
| Category | receiver | ||
Questions frequently asked
What audio outputs are available on the Mipro ACT-515?
The receiver features both a balanced audio output and an unbalanced audio output.
What balanced output level can be set?
The balanced output offers three levels: +16 dB, 0 dB, and -6 dB. This adjustment allows adaptation of the output level to the connected audio system.
What are the levels of the unbalanced output?
The unbalanced output provides settings at +10 dB, 0 dB, and -6 dB.
Can one choose between balanced and unbalanced outputs?
Two audio output types are specified: balanced and unbalanced. The balanced output reaches +16 dB, while the unbalanced output reaches +10 dB. Both also feature 0 dB and -6 dB settings.
Does the unbalanced output offer a -6 dB setting?
Yes, the -6 dB level is among the three settings available on the unbalanced output, along with 0 dB and +10 dB.
