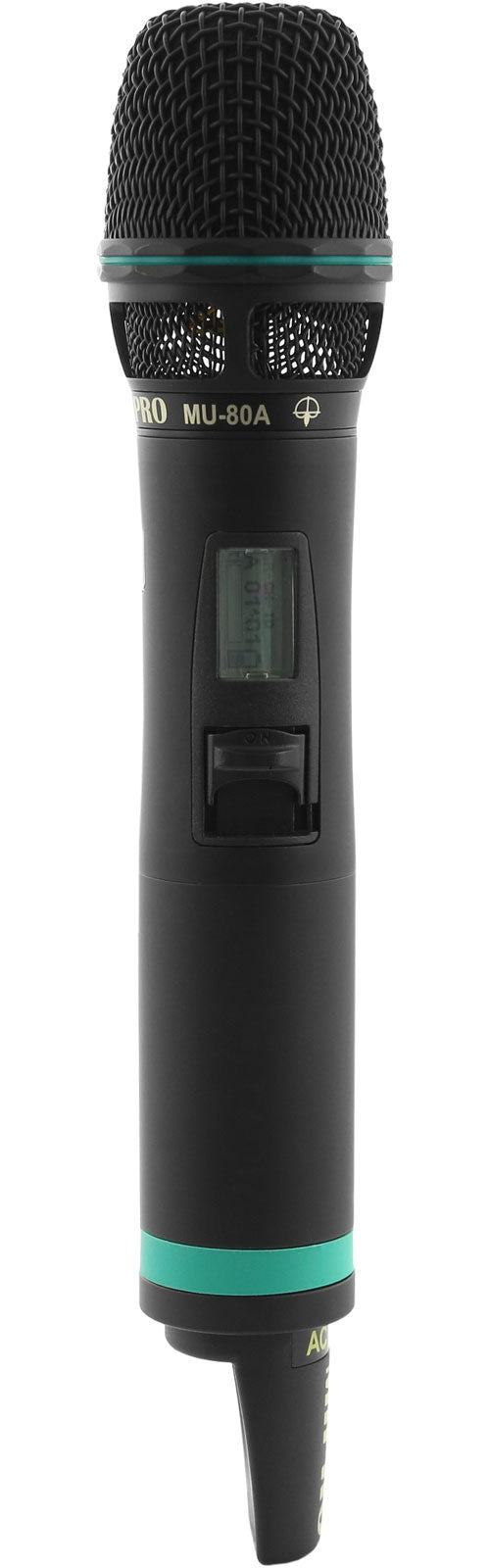

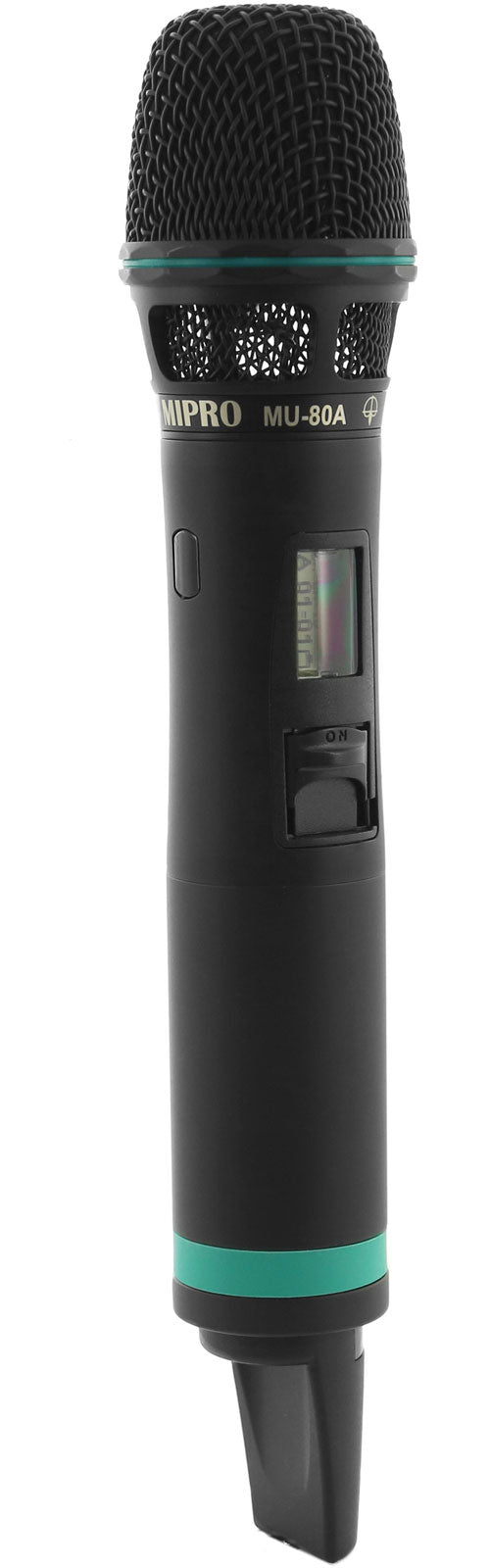

Mipro ACT-580H

The ACT-580 Series: A Modern Approach to 5.8 GHz Wireless Microphones

The Mipro ACT-580H is part of the ACT-580 ecosystem, a range designed around the 5.8 GHz ISM band. This approach aims to offer a convenient wireless solution for many audio setups while maintaining a familiar handling experience for handheld microphone users. Designed to work with dedicated receivers from the series, the ACT-580H focuses on ease of use and clear visibility of essential information during performances.

What Uses Is the ACT-580H Handheld Transmitter Intended For?

With its handheld microphone format, the ACT-580H is ideal for speeches, hosting, presentations, conferences, as well as singing and stage performances where freedom of movement is essential. It is suitable for multipurpose rooms, places of worship, educational institutions, technical service providers, DJs, and bands seeking a robust transmitter that is quick to deploy and easy to monitor thanks to its screen and indicators. In demanding environments, monitoring battery life and choosing the power supply type allow adaptation of preparation to the context (rehearsal, long event, regular use).

Key Features: Control, Autonomy, and Compatibility

ACT Synchronization: Accelerated Start-Up

ACT synchronization facilitates pairing between the transmitter and a compatible receiver. This feature is designed to reduce setup time, especially when deploying multiple systems or quickly securing an installation before an event.

Wideband Audio Quality

The ACT-580H offers a frequency response from 20 Hz to 20 kHz, an important factor for preserving voice intelligibility and detail accuracy, both in speech and musical applications. This bandwidth contributes to natural reproduction when the system is properly adjusted on the console and matched to the capsule used.

Two Capsule Options: Adapt the Microphone to Your Stage

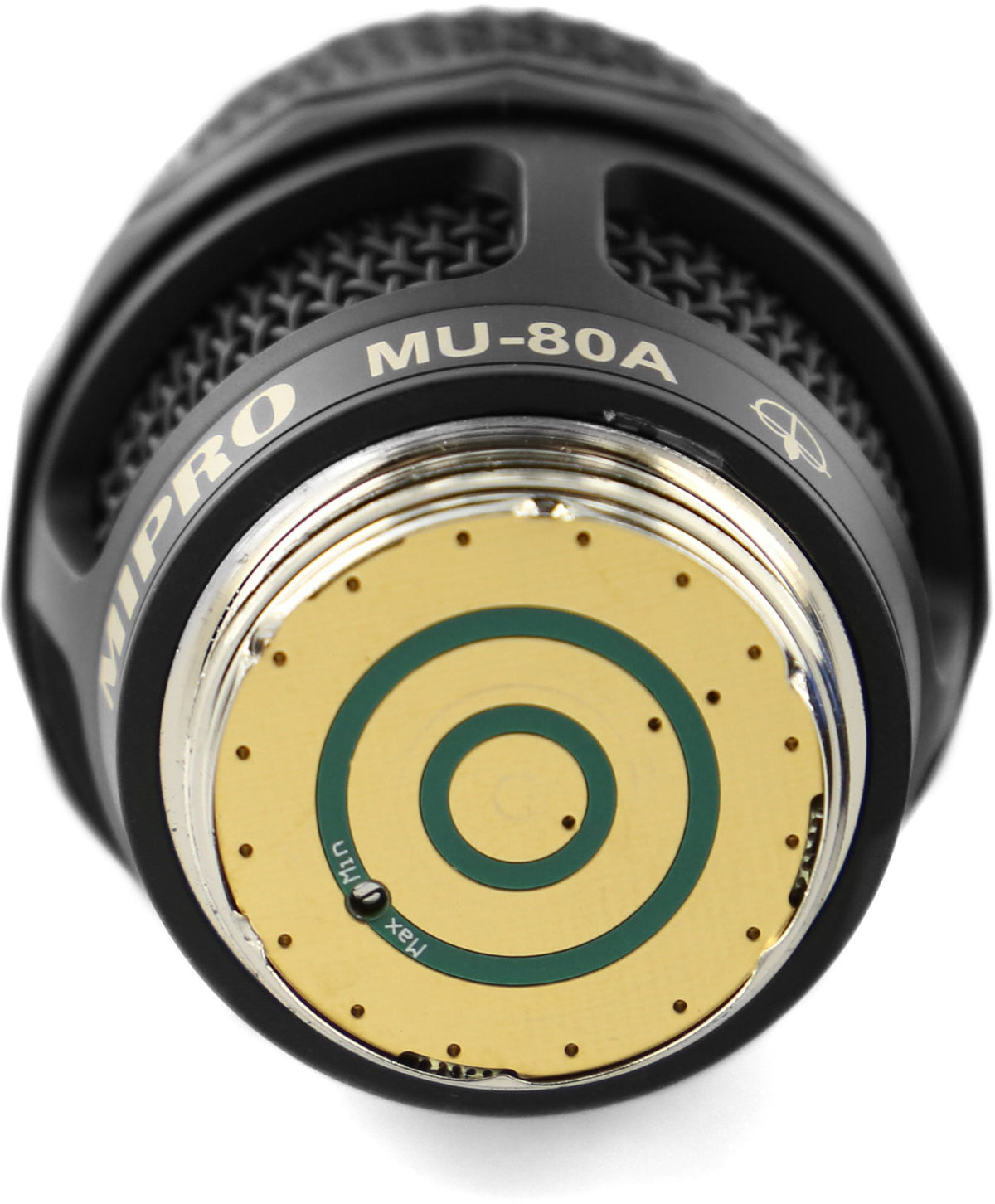

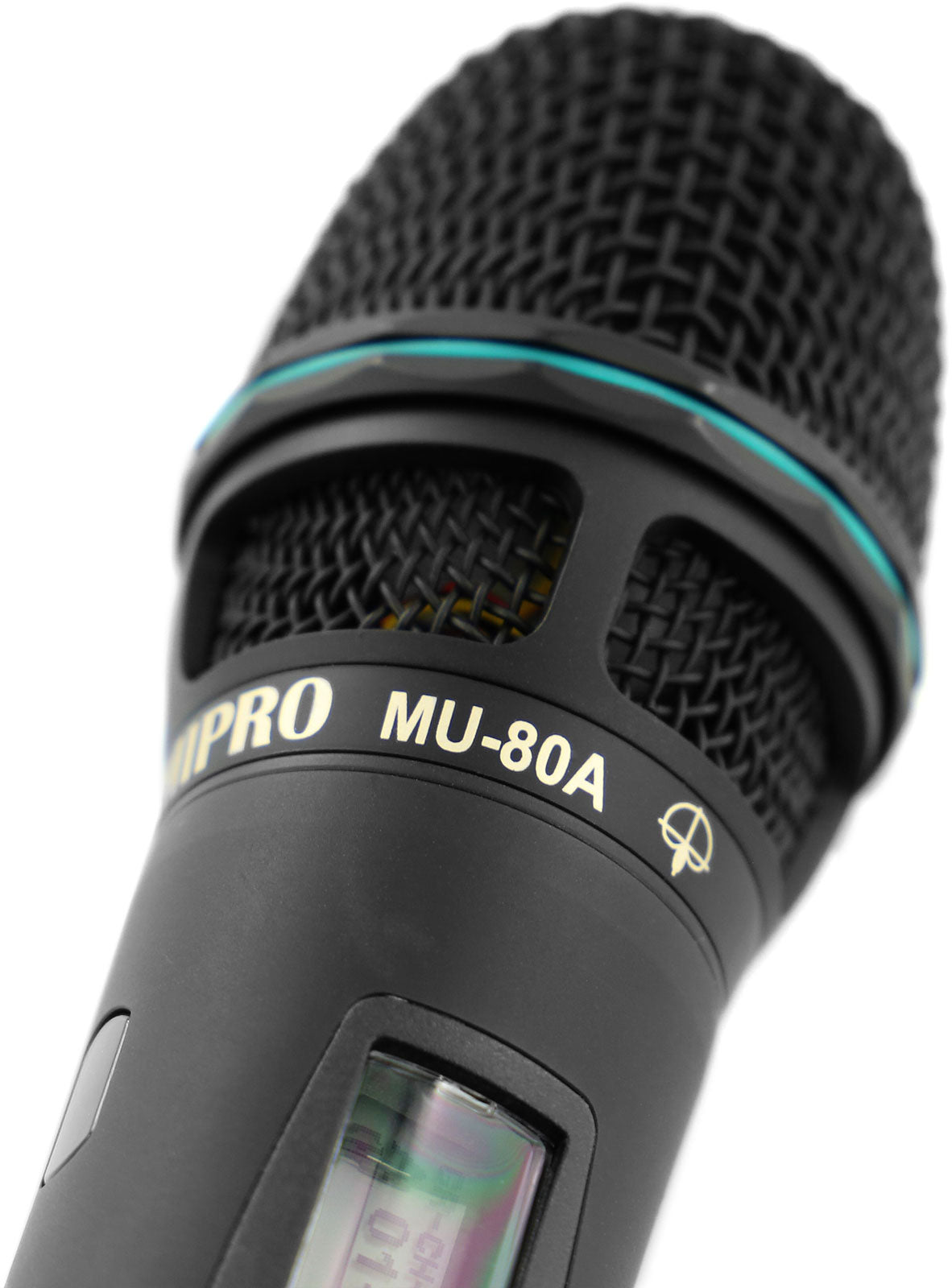

Depending on the configuration, the ACT-580H can be paired with a dynamic MU-59A capsule or a condenser MU-80A capsule. This choice allows tailoring the sound and sensitivity according to the use (spoken voice, singing, microphone proximity, vocal power), while remaining within the compatibility framework provided by the series.

Readability and Battery Monitoring

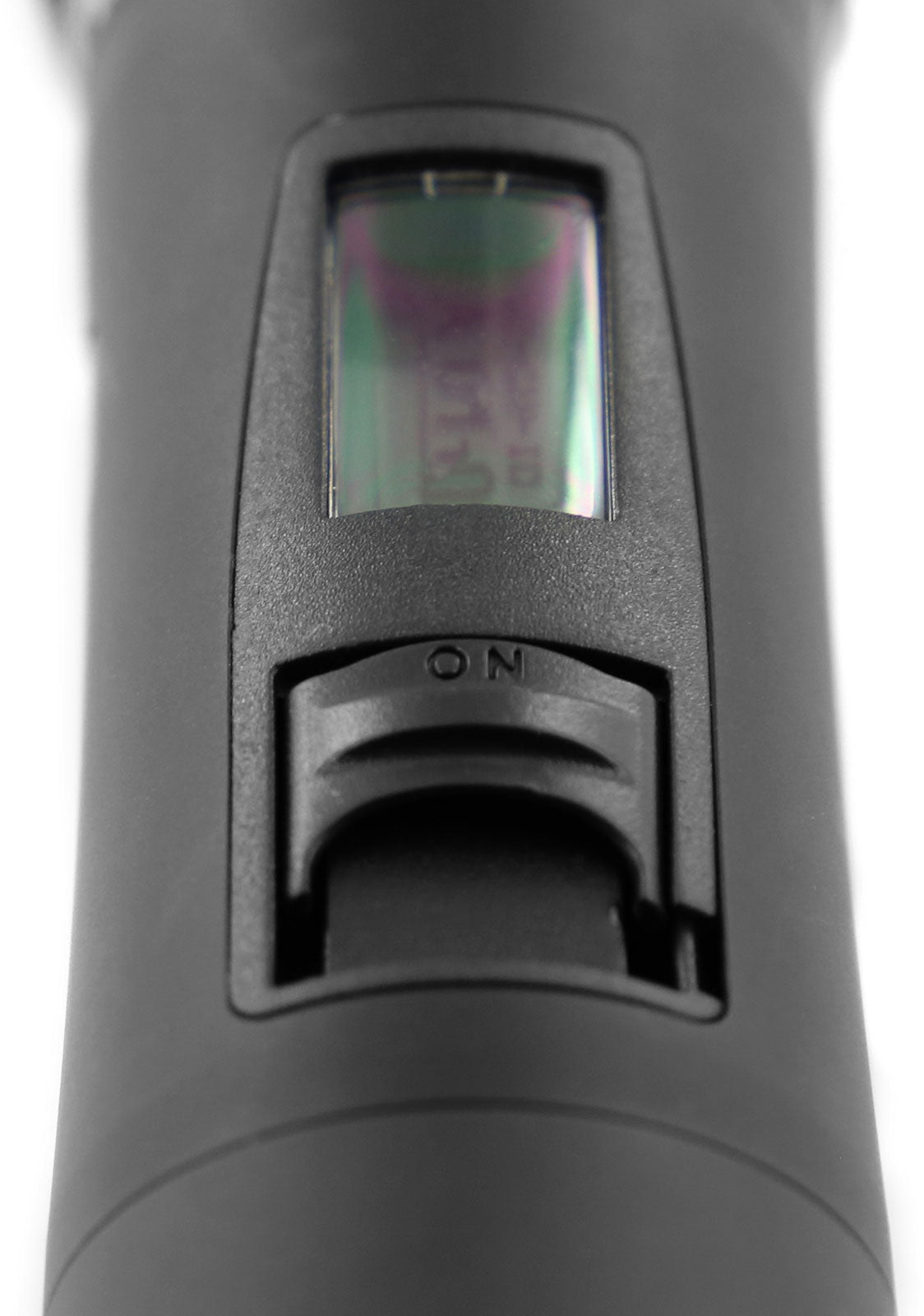

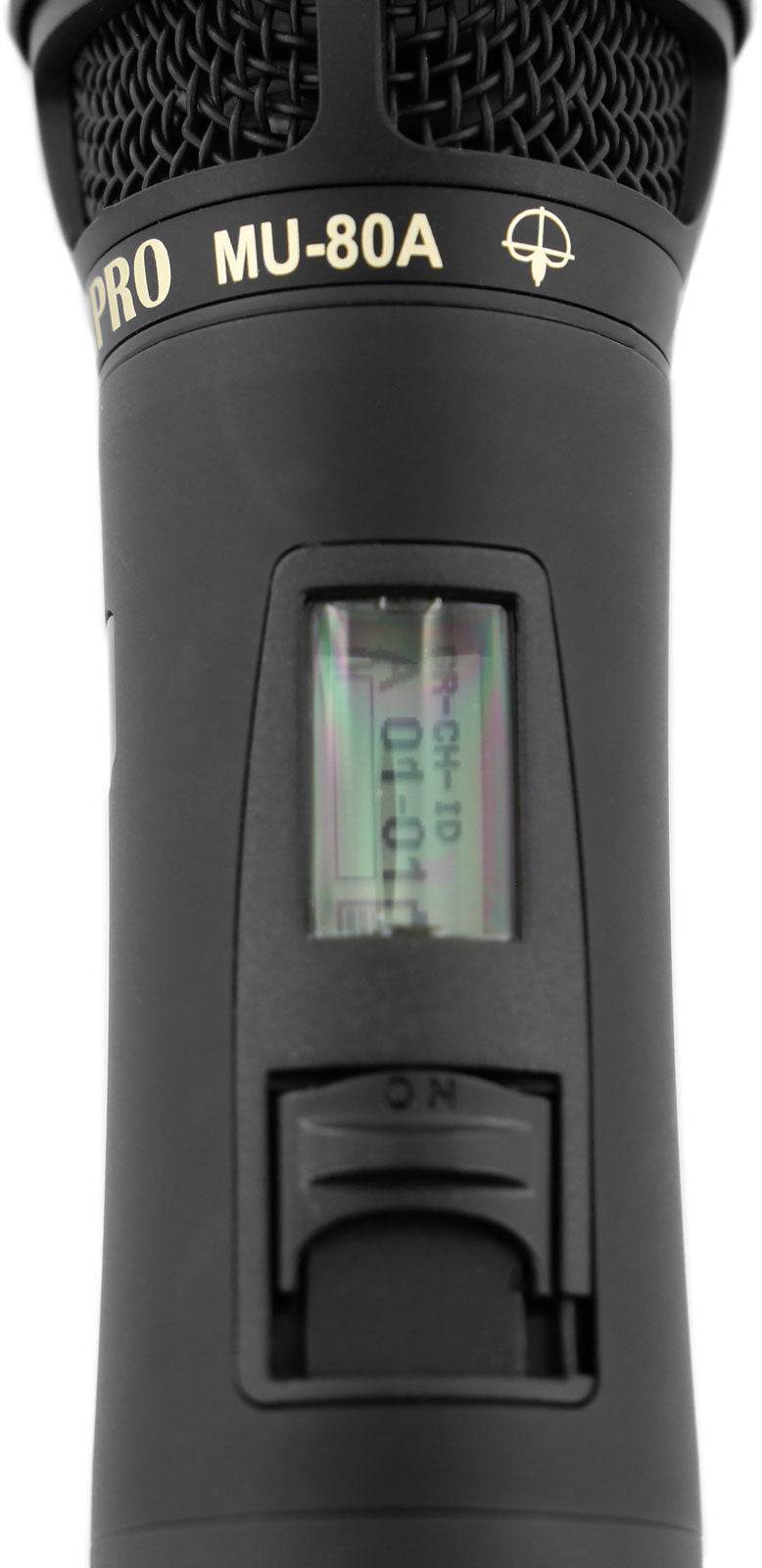

Its green backlit LCD screen enhances information visibility under stage or control room conditions. The battery charge level indicator helps anticipate replacements or recharges to avoid interruptions during use.

Flexible Power Supply and USB Type-C Charging

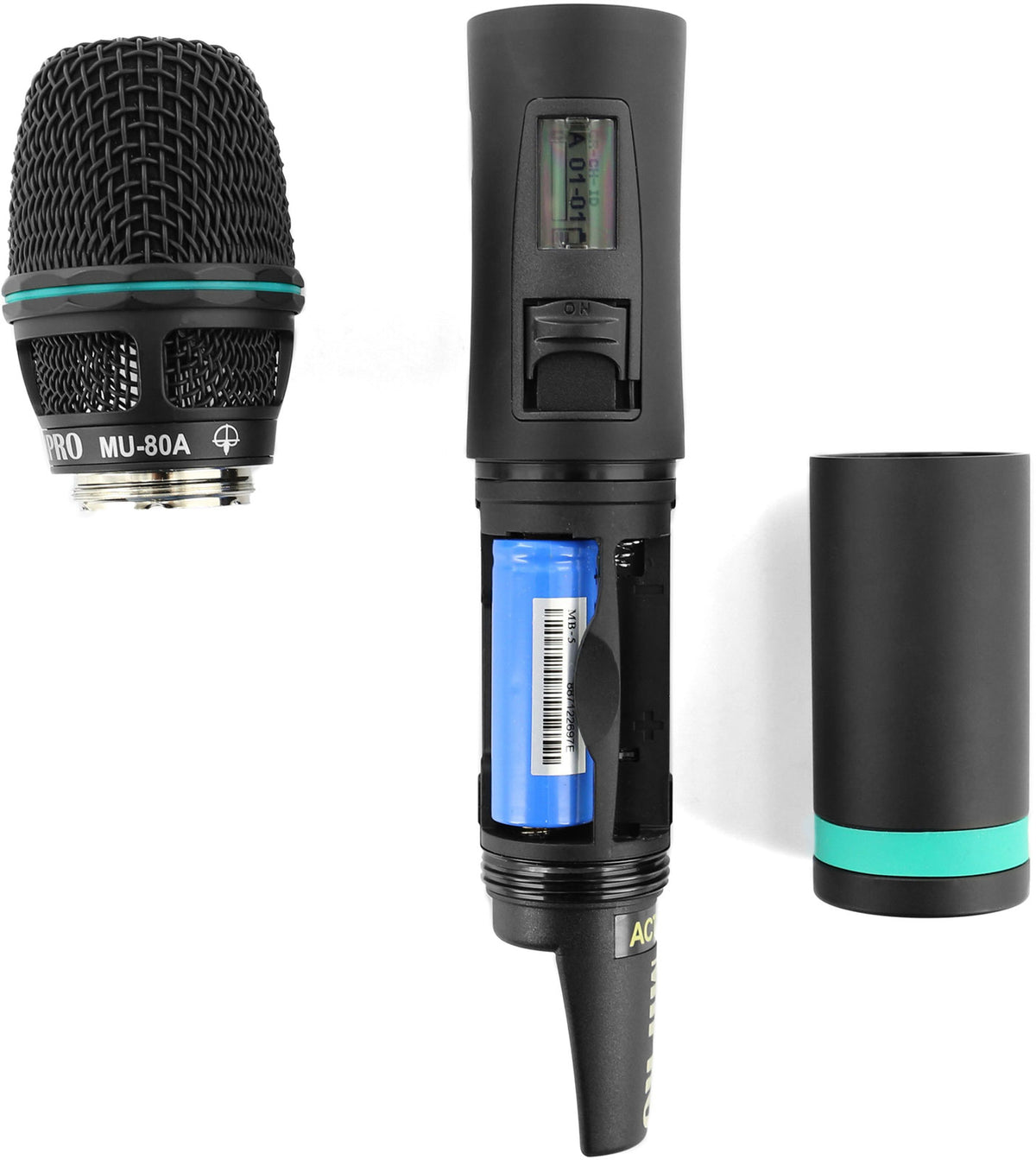

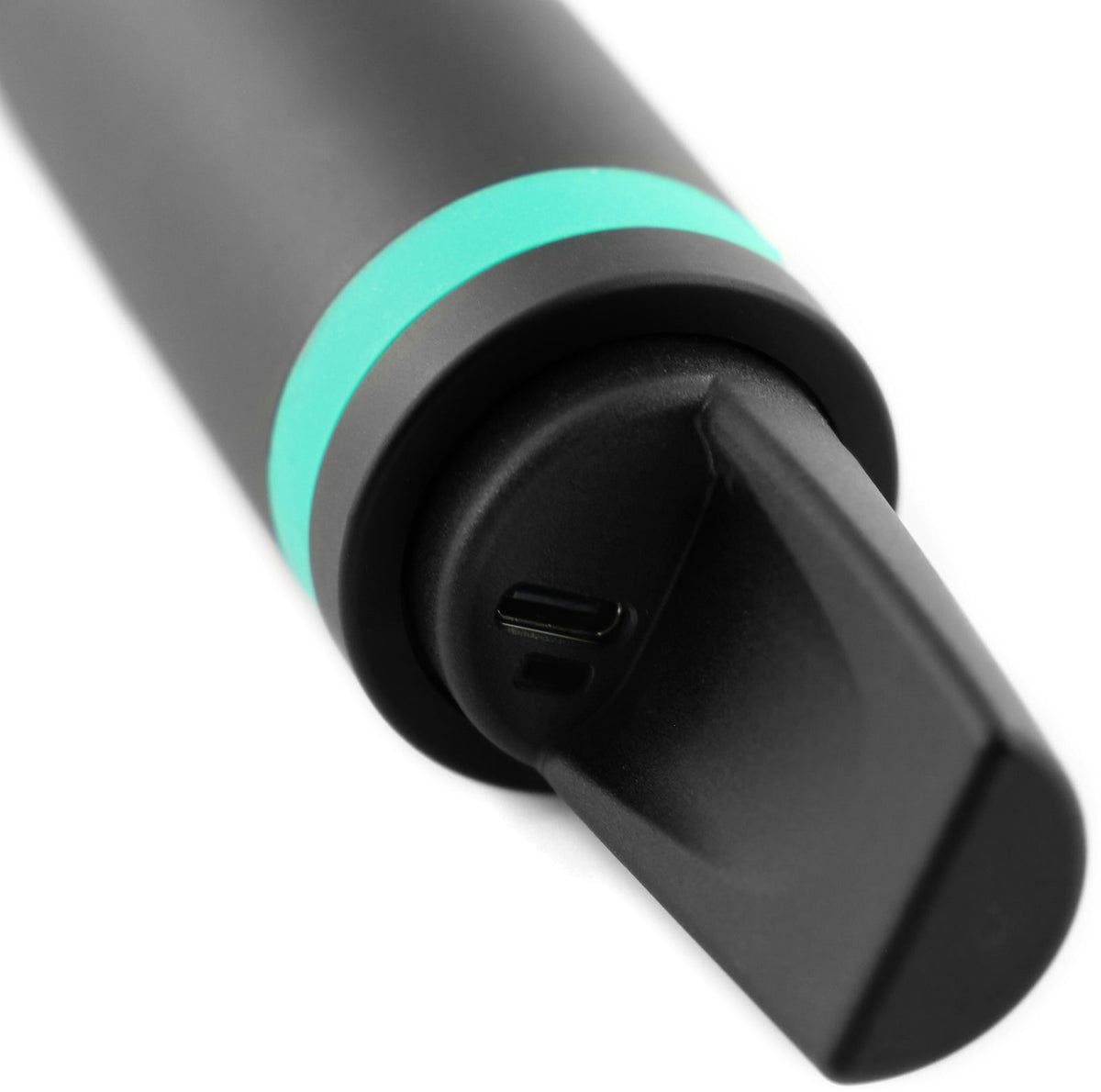

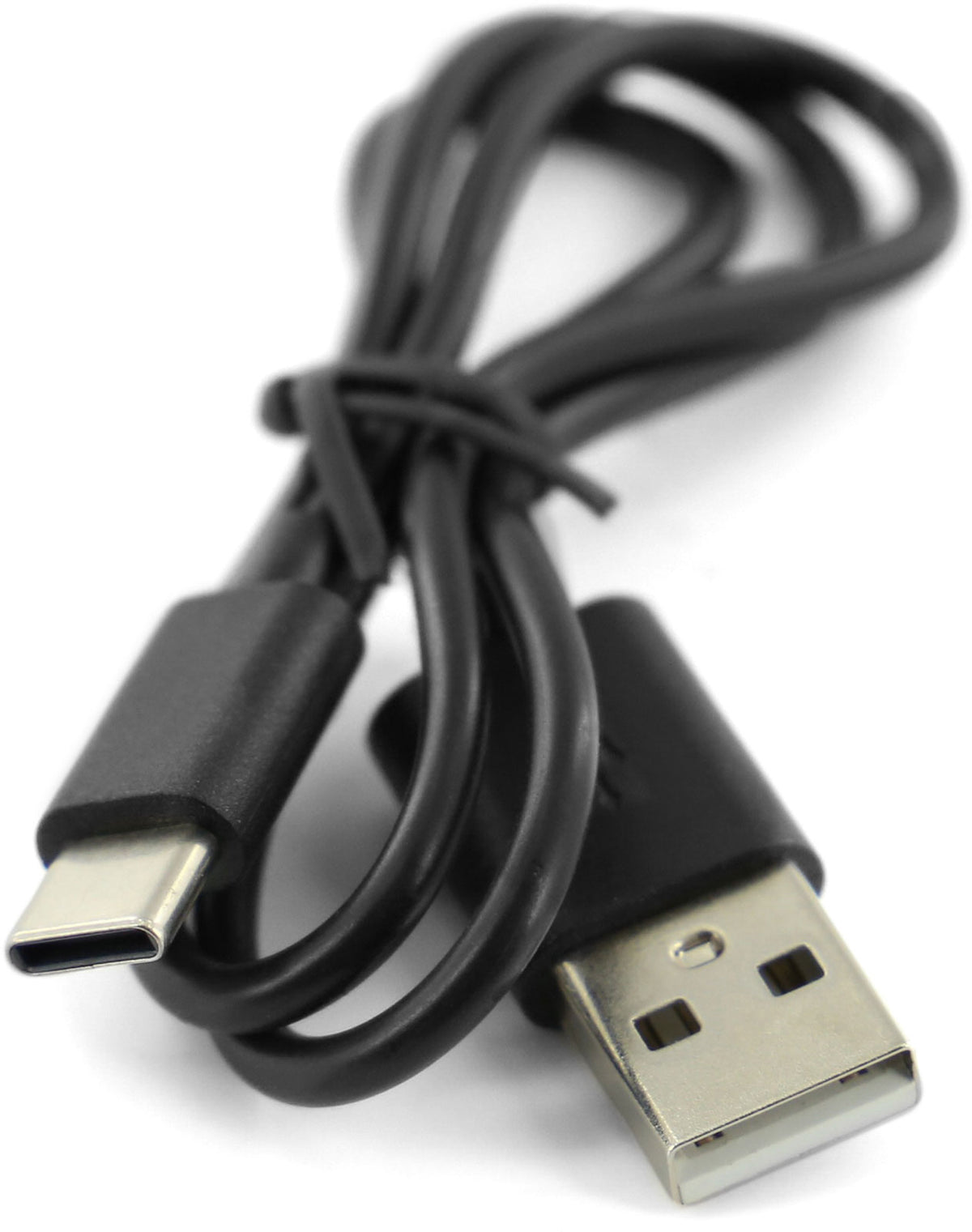

To adapt to your logistics, the transmitter operates either with 2 AA batteries or a 18500 Lithium-ion battery. Charging via USB Type-C cable simplifies daily preparation, especially for fixed installations, equipment fleets, and users wishing to streamline power management.

RF Power and Handling Format

The RF output power of 20 mW (depending on the country) corresponds to the intended usage framework for this system. With its handheld microphone size, the ACT-580H maintains a familiar ergonomics for users while remaining light enough for extended use.

Technical specifications

Category

transmitter

Capsule

dynamic / static

Model	Mipro ACT-580H	Battery Indicator	charge level LED
Type	handheld transmitter	Power Supply	2 AA batteries
Frequency Band	5.8 GHz ISM (5725 to 5850 MHz)	Alternative Power Supply	18500 Lithium-ion battery
Synchronization	ACT	Charging	via USB Type-C cable
Frequency Response	20 Hz to 20 kHz	Dimensions	diameter 51 mm x 263 mm
Compatible Capsule	dynamic MU-59A	Weight	294 g
RF Output Power	20 mW (country-dependent)	Compatible with	ACT-5801
Display	green backlit LCD
