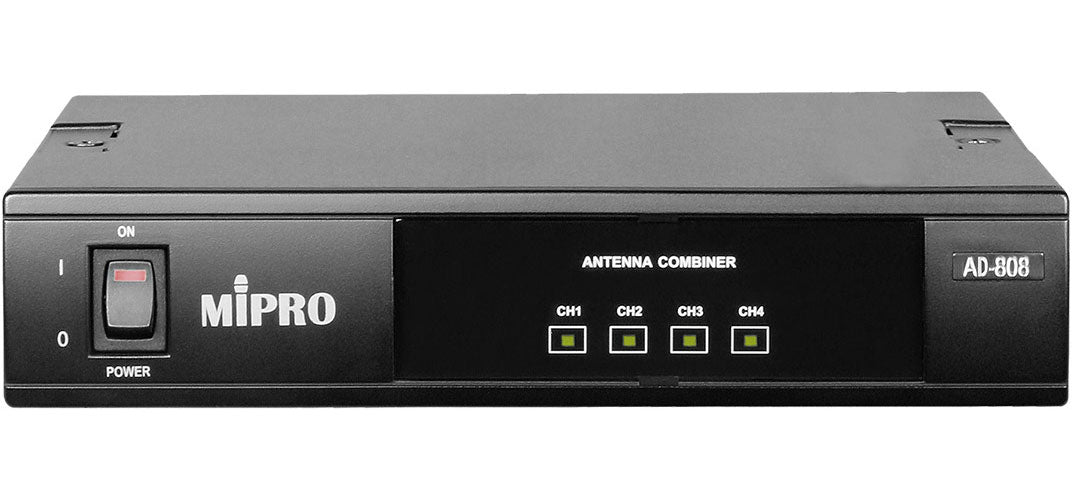

Mipro AD-808 Signal combiner
Estimated Shipping Widget will be displayed here!
Couldn't load pickup availability
Information
Information
Manufacturer Information
Mipro
https://www.mipro.com.tw
mipro@mipro.com.tw
------------------------
Safety manager:
MSC Distribution
Email: infos@msc-distribution.com
Address:
A Mipro Accessory Designed to Optimize Wireless Chains
As a specialist in wireless systems, Mipro offers RF accessories intended to make installations cleaner and easier to manage. The AD-808 fits this approach: grouping multiple RF lines into a single point to streamline cabling and improve clarity during setup and teardown.
Intended Uses and Users
The Mipro AD-808 is aimed at sound contractors, stage technicians, stage managers, and fixed installations (venues, places of worship, auditoriums) who want to centralize multiple UHF signals without multiplying outputs and cable runs. It is particularly relevant when stability and organization of the wireless system become priorities.
Key Features: Wideband RF Combining and Signal Control
Wide UHF Range and Controlled RF Performance
With coverage from 470 to 960 MHz, the AD-808 offers great deployment flexibility. Its 0 dB gain +/- 2 dB aims for neutral integration in the chain, while the intermodulation distortion < -57 dBc helps maintain clean operation in dense RF environments.
TNC Connectors and Included Power Supply

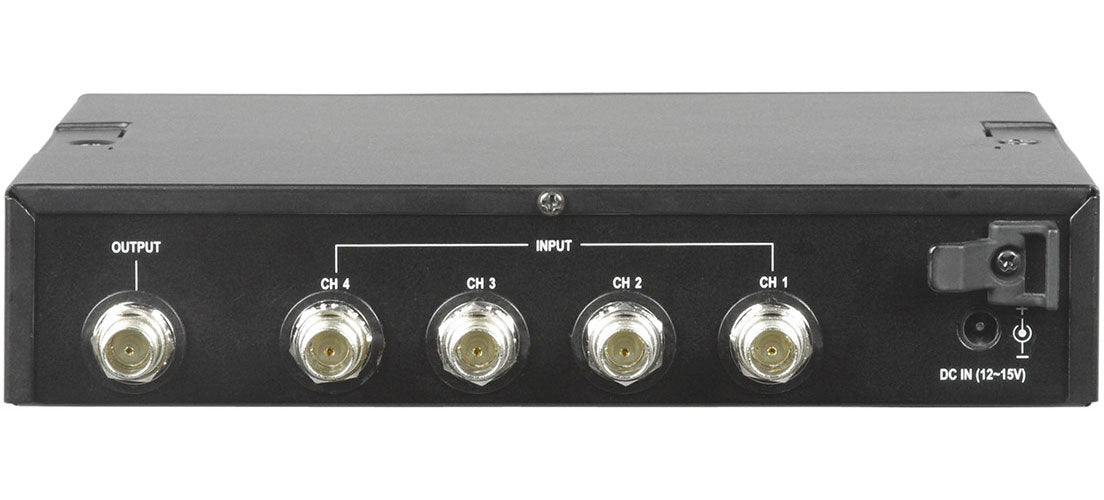

The 4 TNC inputs and 1 TNC output facilitate robust RF cabling. The included power adapter allows immediate commissioning, whether on tour or in fixed installation.
Technical specifications
| Connection | USB |
| TNC | 4 inputs + 1 output |
| Wideband UHF | 470 - 960 MHz |
| Gain | 0 dB +/- 2 dB |
| Maximum RF input power | 20 dBm (100 mW) |
| Intermodulation distortion | < -57 dBc |
| Impedance | 50 ohms |
| Dimensions | 210 x 206 x 44 mm |
| Weight | 1.1 kg |
Questions frequently asked
How many RF lines can be combined with the Mipro AD-808?
The combiner merges up to 4 TNC RF inputs into a single TNC output. This setup centralizes UHF links into one cable path.
What UHF frequency range is supported?
The RF coverage spans from 470 to 960 MHz. This wide range is suitable for installations using UHF signals within this band.
Does the RF combiner provide amplification gain?
The specified gain is 0 dB with a tolerance of ± 2 dB. The signal is thus transmitted with a neutral performance in the RF chain.
What connectors are used on this equipment?
The RF connections are based on 4 inputs and 1 output in TNC format, with an impedance of 50 ohms. A USB connector is also listed in the specifications.
Is power supplied and what are the dimensions?
A power adapter is included for operation. The enclosure measures 210 x 206 x 44 mm and weighs 1.1 kg. The maximum allowable RF input power is 20 dBm, equivalent to 100 mW.
