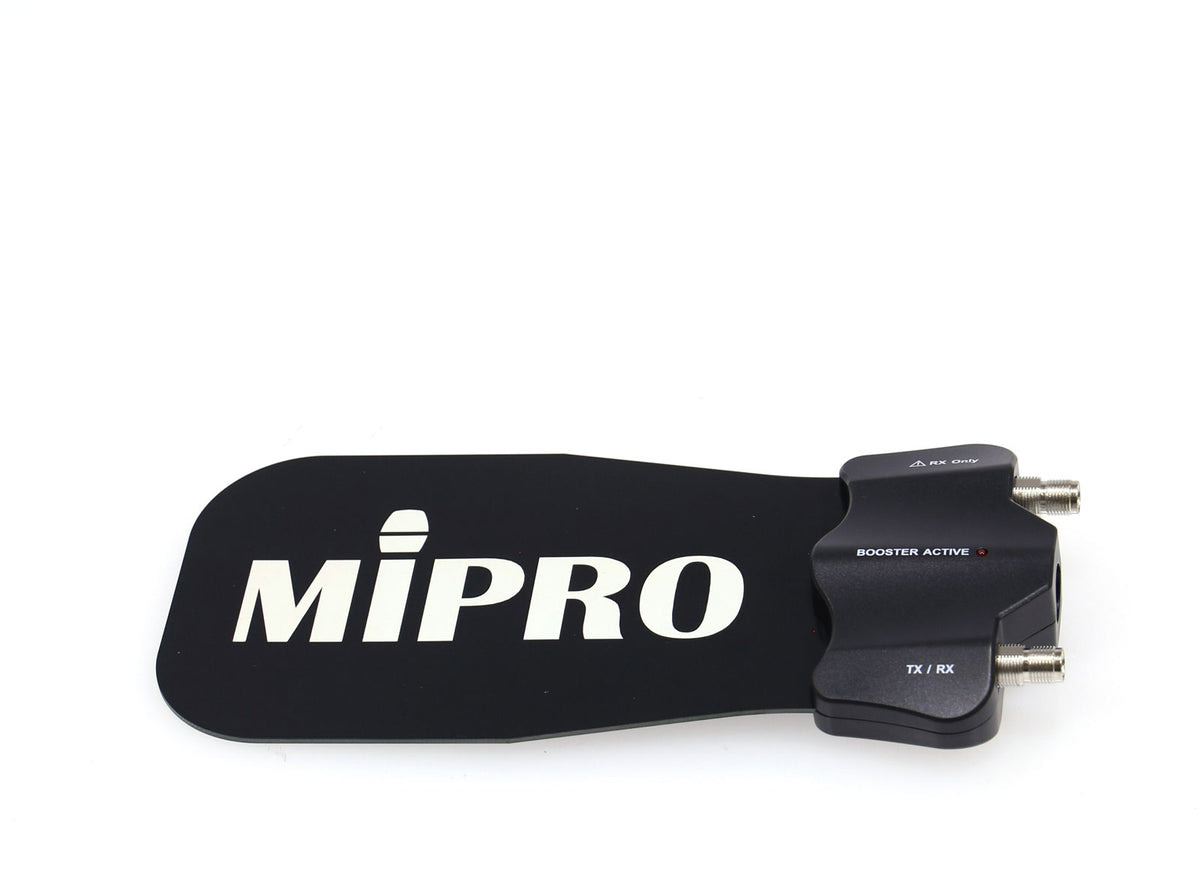

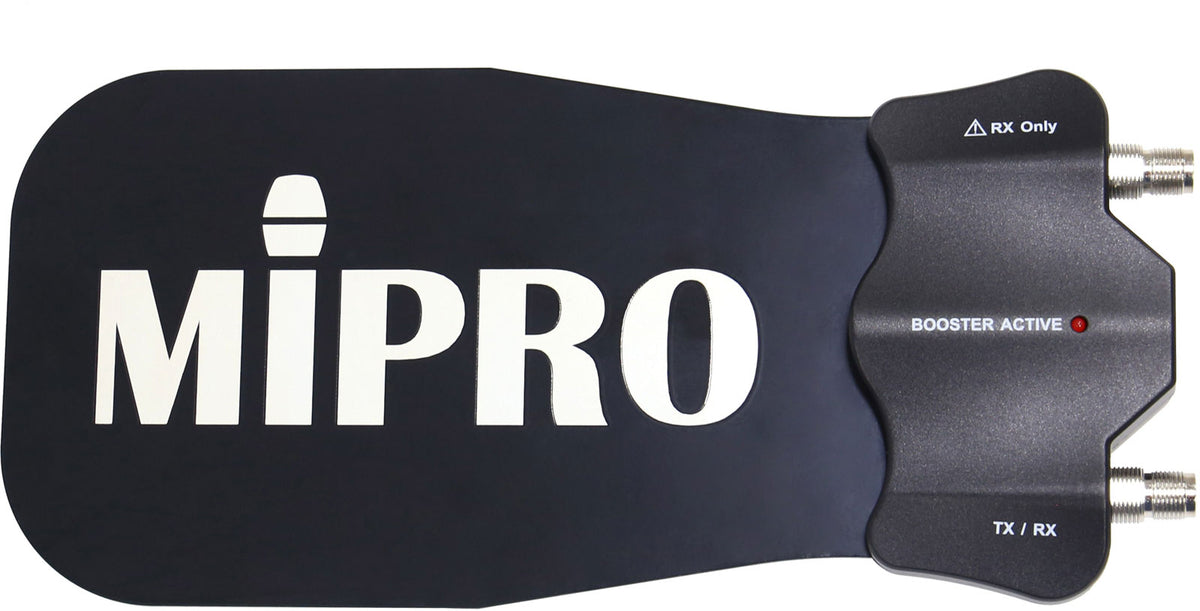

An Antenna Designed for Modern UHF RF Configurations
In wireless microphone and UHF link installations, the antenna plays a key role in reception stability. This model positions itself as a wideband solution to support versatile configurations, especially when multiple frequencies or working environments are likely to change (studio, stage, conference, mobile performance).
Who Is It For and What Are the Use Cases?
This antenna is intended for users of UHF RF systems (sound engineers, service providers, integrators, houses of worship, conference rooms) seeking consistent reception without needing to precisely orient the antenna. Thanks to its omnidirectional directivity, it is particularly suitable for setups where transmitters move around or when the mounting location requires a fixed angle.
Performance and Integration: Essentials Without Complication
Wideband UHF and Controlled Gain
The 470-1000 MHz range covers an extended UHF spectrum. The specified gain (2 to 4 dBi) helps optimize signal capture depending on the installation, while maintaining a balanced approach for common uses (moderate distance, typical performance environments).

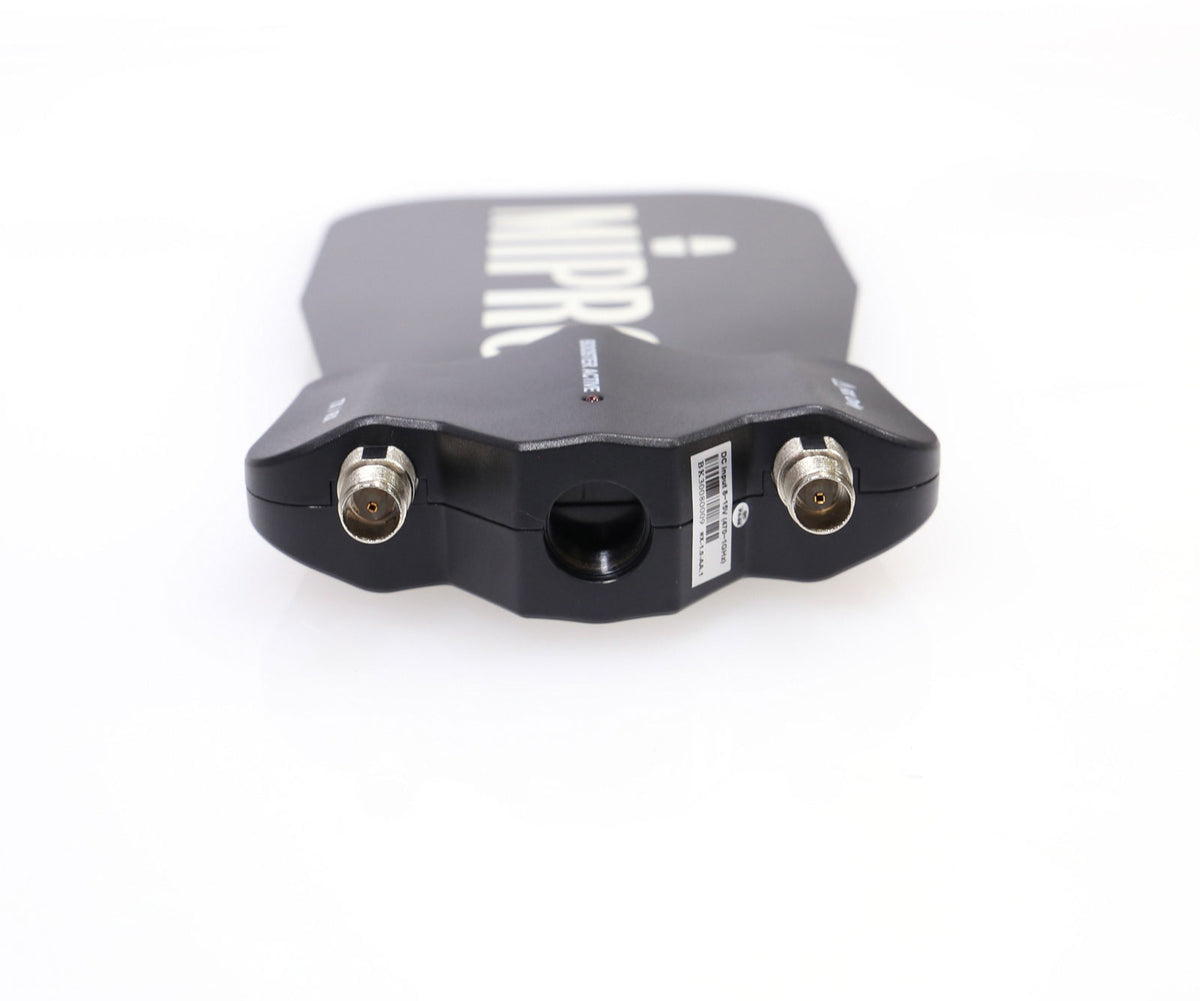

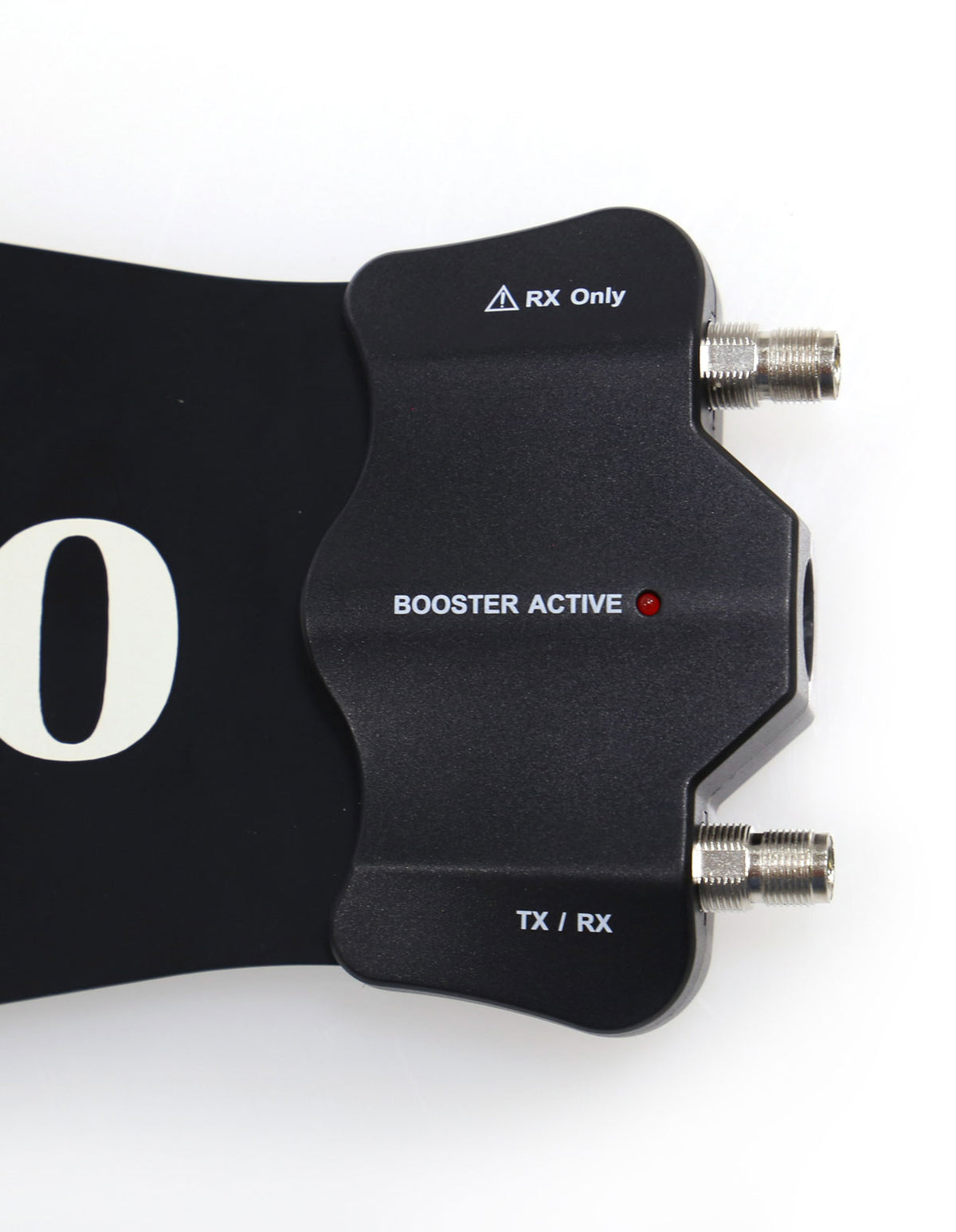

TNC Connection and Power via Cable
The TNC connectivity (input + output) facilitates integration into an existing setup. Power is supplied via the antenna cable (8 to 15 V DC), simplifying wiring. Note: the antenna is sold without a mount, which should be planned according to your mounting method.
Technical specifications
| Type | antenna |
| Frequency Band | wideband UHF 470 to 1000 MHz |
| Gain | 2 to 4 dBi |
| Directivity | omnidirectional |
| Impedance | 50 Ohms |
| Connectivity | TNC (input + output) |
| Power Supply | via antenna cable, 8 to 15 V DC |
| Dimensions | 120 x 261 x 32 mm |
| Weight | 200 g |
| Mount | not included (sold without mount) |
Questions frequently asked
Does the Mipro AT 70W antenna cover the UHF frequencies of my wireless system?
The frequency range covered extends from 470 to 1000 MHz. Compatibility requires that the wireless system operates within this UHF band and uses a 50-ohm impedance.
Is this antenna omnidirectional?
Its omnidirectional directivity allows reception of transmitters without precise antenna orientation.
What type of connector is required to install this UHF antenna?
Integration is done via TNC connectors, with an input and an output. The 8 to 15 V DC power supply is delivered through the antenna cable. No cables are indicated among the supplied items.
What is the gain of the AT 70W antenna?
The declared gain is 2 to 4 dBi. This value is intended for reception setups at moderate distance in typical performance environments.
Is a mounting bracket included?
The bracket is not included. With dimensions of 120 x 261 x 32 mm and a weight of 200 g, a mounting system must be provided separately according to the installation.
