Mipro MPB30

Name: MPB30
Brand: Mipro
SKU: 418246
Price: 129.00 EUR
Availability: InStock

129,00 €VAT incl.

0,05 € Ecotax included

Reference price

Available on order

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 418246

EAN : 4719854407670

This item is covered for 3 years

Information

Essential Information About the Mipro MPB30 Antenna Booster
• Optimizes UHF reception to enhance the reliability of an RF system in demanding environments (stage, events, installations).
• Adjustable gain from 0 to 14 dB to tailor the level without unnecessarily over-amplifying the signal.
• Wide coverage from 470 to 960 MHz, convenient for many UHF configurations.
• Regulated power supply and output : designed to integrate cleanly into an antenna chain.

MPB30

129,00 €VAT incl.

0,05 € Ecotax included

Reference price

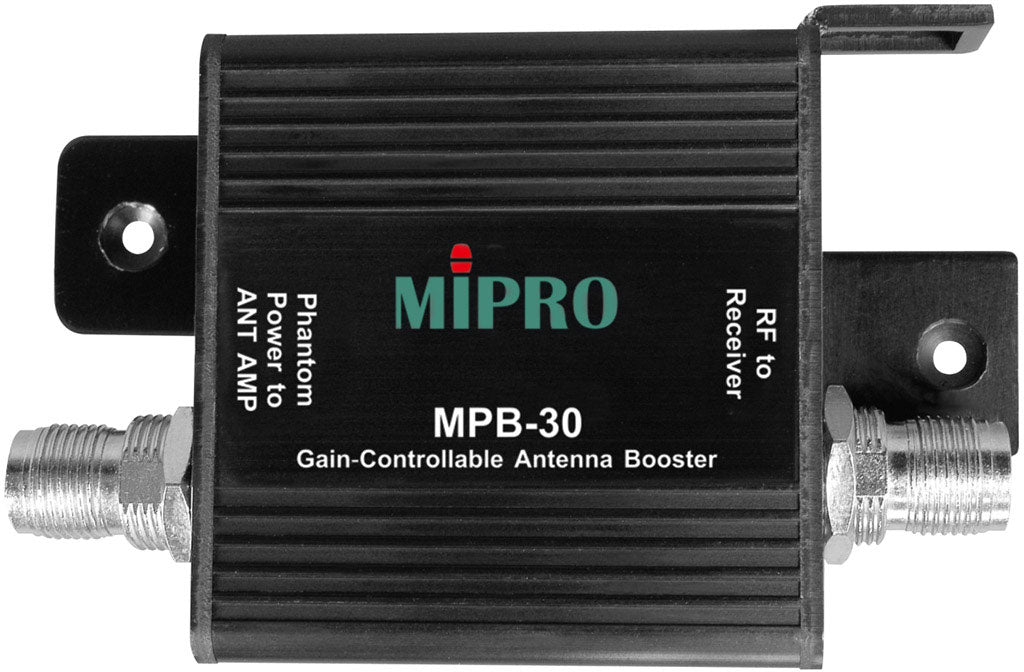

A Discreet but Crucial Link in an RF Chain

The Mipro MPB30 is an antenna booster designed to strengthen the signal between the antenna and the receiver when cable lengths, stage setup, or installation constraints can degrade reception. Compact and easy to install, it is aimed at users seeking an effective solution to gain stability without complicating their system.

Who Is It For and What Are Its Uses?

This MPB30 is particularly suitable for UHF wireless microphone setups in live performances, mobile sound reinforcement, conference settings, or fixed installations. The gain adjustment allows fine-tuning of the boost according to distance, cable quality, and radio environment to achieve more consistent reception and reduce dropouts.

Gain Adjustment and Easy Integration

Variable Gain for Precise Adaptation

With an adjustable gain from 0 to 14 dB, the MPB30 helps compensate for losses related to RF links. This adjustment range allows optimization of the signal level, taking into account field constraints.

TNC Connectors and Controlled Power Supply

Thanks to its TNC connectors, it easily integrates into a compatible UHF antenna chain. Its operation on DC power and regulated output contribute to a cleaner and more stable installation.

Technical specifications

Model	Mipro MPB30
Type	Antenna Booster
Dimensions	90 x 25 x 55 mm
Weight	100 g

Frequency range	UHF 470 ~ 960 MHz
Variable gain	0 ~ 14 dB +/- 1 dB
Impedance	50 ohms
Connectors	TNC

Input voltage	12 ~ 24 V DC / 350 mA
Regulated output voltage	8 V DC / 250 mA

Questions frequently asked

Is the Mipro MPB30 compatible with UHF systems?

The operating range covers UHF frequencies from 470 to 960 MHz. Integration is done within an RF chain having an impedance of 50 ohms.

What gain can this antenna booster provide?

The gain is adjustable from 0 to 14 dB, with a tolerance of +/- 1 dB. This adjustment allows compensation for losses related to the length or quality of the RF cable.

What antenna connectors are used?

The RF inputs and outputs use TNC connectors. Cables and equipment with this type of connector are therefore required.

What power supply is needed for this RF booster?

The required power supply is 12 to 24 V DC with a consumption of 350 mA. A regulated output of 8 V DC / 250 mA is also available.

Is this booster suitable for a wireless microphone setup on stage?

Designed for UHF wireless microphone systems, it can be used in live sound, mobile PA, conference, or fixed installation. Its dimensions of 90 x 25 x 55 mm and weight of 100 g facilitate integration within an antenna chain.
