Mipro MPB-58

Name: MPB-58
Brand: Mipro
SKU: 418247
Price: 139.00 EUR
Availability: InStock

139,00 €VAT incl.

0,05 € Ecotax included

Reference price

Available on order

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 418247

EAN : 4719854400039

This item is covered for 3 years

Information

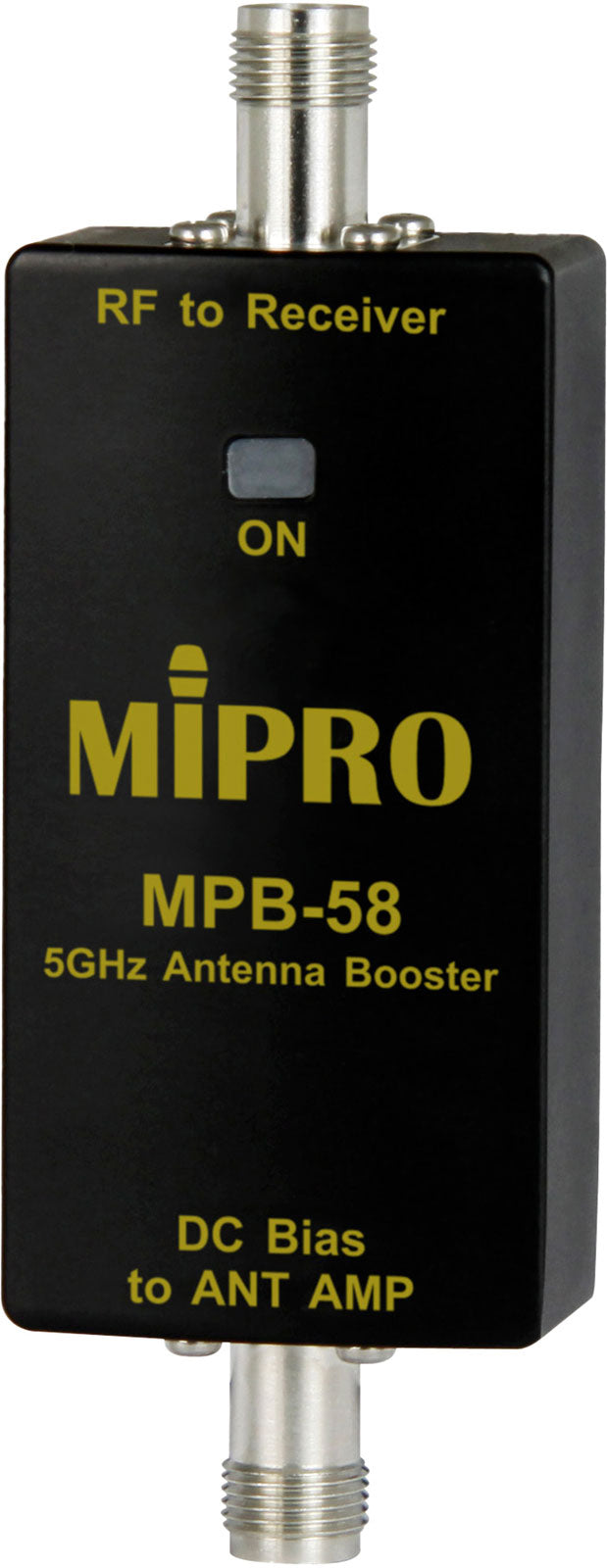

Essential Information About the Mipro MPB-58 Antenna Booster
• Antenna booster designed to enhance the RF signal and ensure reliable reception in demanding setups
• Operates at 5 GHz : ideal for installations compatible with this frequency band
• Gain of approximately 20 dB to compensate for losses related to cable lengths and stage constraints
• Robust design with aluminum housing and TNC connectors for reliable integration

MPB-58

139,00 €VAT incl.

0,05 € Ecotax included

Reference price

A module designed to complement a 5 GHz RF installation

The Mipro MPB-58 fits within the logic of an optimized RF chain: when distance, environment, or cabling can weaken the signal, an antenna booster helps maintain a usable level before the receiver stage. It thus integrates as a technical link, serving the stability and continuity of the signal.

For whom and for what: sound reinforcement, stage, integration, and fixed installations

This antenna booster is intended for users deploying 5 GHz reception who want to secure their installation: live performances, events, studios, places of worship, equipped rooms, or tour racks. It is particularly suitable when antennas are remote or when cable length requires compensating for signal loss.

Gain, connectivity, and power supply: essentials for more stable reception

With a gain of approximately 20 dB, the MPB-58 aims to support the RF signal in the chain while maintaining simple integration thanks to TNC connectors and an aluminum housing suited to field conditions.

DC Power Supply and Regulated Output

The module accepts an input voltage of 12 to 24 V DC with a specified consumption of 350 mA. The regulated output voltage is stated to be equal to the bias, in accordance with the provided specifications.

Technical specifications

Type	Antenna booster
Frequency range	5 GHz
Gain	approximately 20 dB
Impedance	50 Ohms

Connectors

TNC

Input voltage	12 to 24 V DC / 350 mA
Regulated output voltage	Equal to bias

Housing

Aluminum

Questions frequently asked

Is the Mipro MPB-58 compatible with a 5 GHz RF setup?

The MPB-58 is designed for a 5 GHz frequency range. Its 50-ohm impedance matches the specifications required for its integration within this RF chain.

What gain does this antenna booster provide?

A gain of approximately 20 dB is stated. This level compensates for signal losses related notably to cable length or remote antennas.

What type of connectors are used on this RF booster?

Both input and output use TNC connectors. The setup therefore requires RF components compatible with this format.

What power supply is needed for the MPB-58?

The accepted power supply ranges from 12 to 24 V DC, with a specified current consumption of 350 mA. The regulated output voltage equals the bias voltage. This feature facilitates integration within a powered antenna chain.
