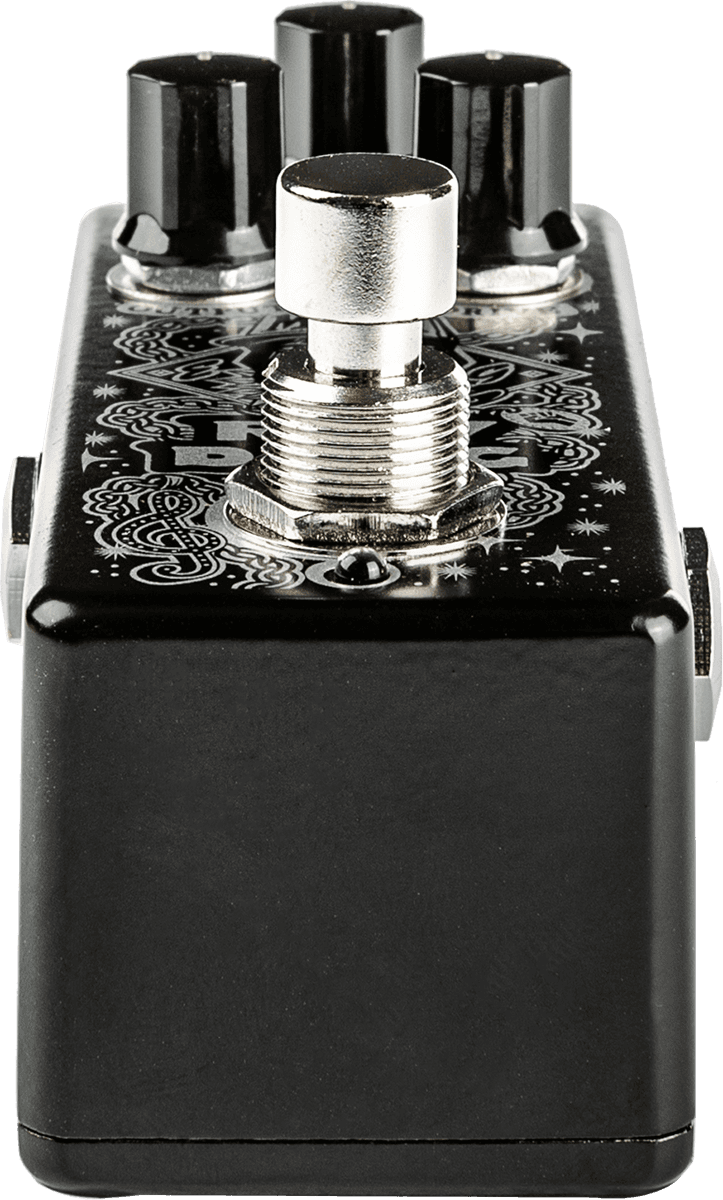

MXR EG74 ERIC GALES RAW DAWG OVERDRIVE
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
MXR
https://www.jimdunlop.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
A Signature Born from a Top-Level Collaboration
Designed with the MXR team to capture the attack, warmth, and power dear to Eric Gales, the Raw Dawg follows in the footsteps of classic overdrives while modernizing the formula. The focus was on a more natural midrange and a higher gain reserve, all housed in a compact chassis ready for the road.For Which Guitarists and Styles?
Tailored for blues, rock, fusion, gospel, or funk guitarists seeking an expressive overdrive, the Raw Dawg excels both as an always-on pedal and as an amp booster. It highlights single coils as well as humbuckers and performs comfortably on stage or in the home studio, alone or stacked with other drives.Technical specifications
| Effects | Distortion / Overdrive / Fuzz, Boost, Overdrive | Type | sector |
| Technology | Analog | Use | guitar |
| Format | Pedal | Color | Multicolor |
| Inputs | Jack, Expression pedal | Power supply included | No |
| True bypass | Yes | Power supply | 9V battery, DC 9 V |
| EQ | Tone | ||
Questions frequently asked
MXR EG74 Raw Dawg: what kind of tone does it offer?
The analog circuit delivers an organic overdrive, with tamed mids, tight bass, and smooth highs. The gain range spans from 21 to 47 dB, from a clean boost to a more aggressive saturation.

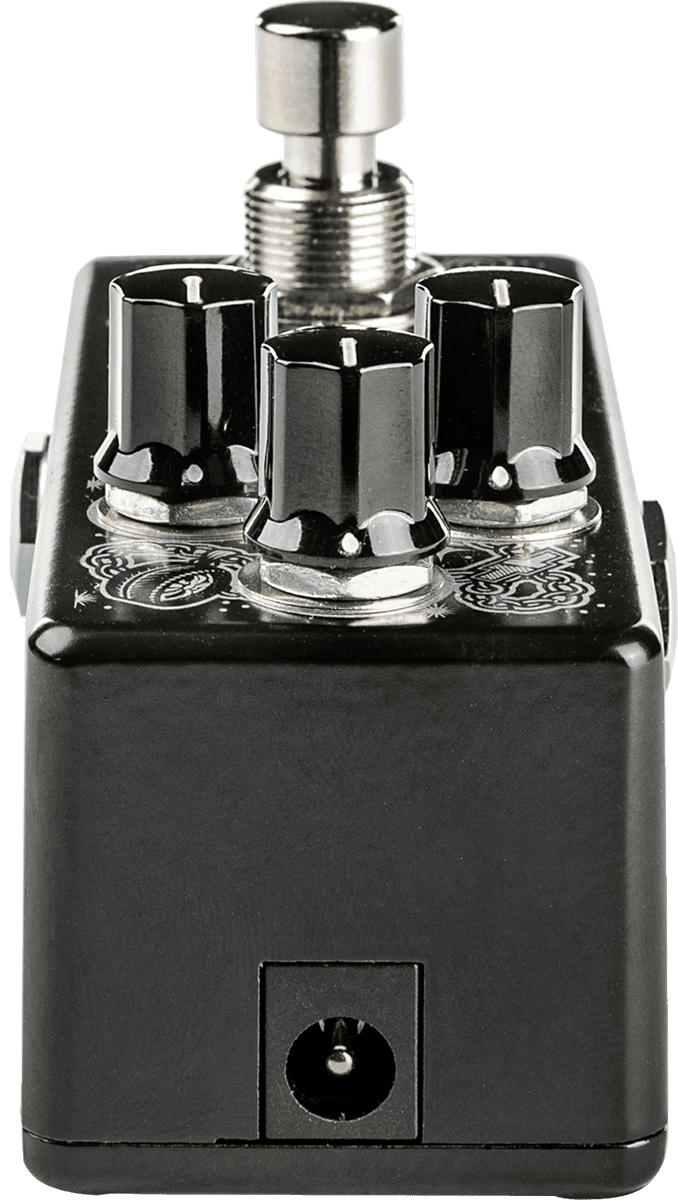

What power supply is required?
The required power supply is 9 V DC with a negative center, consuming about 6 mA, with no battery operation.

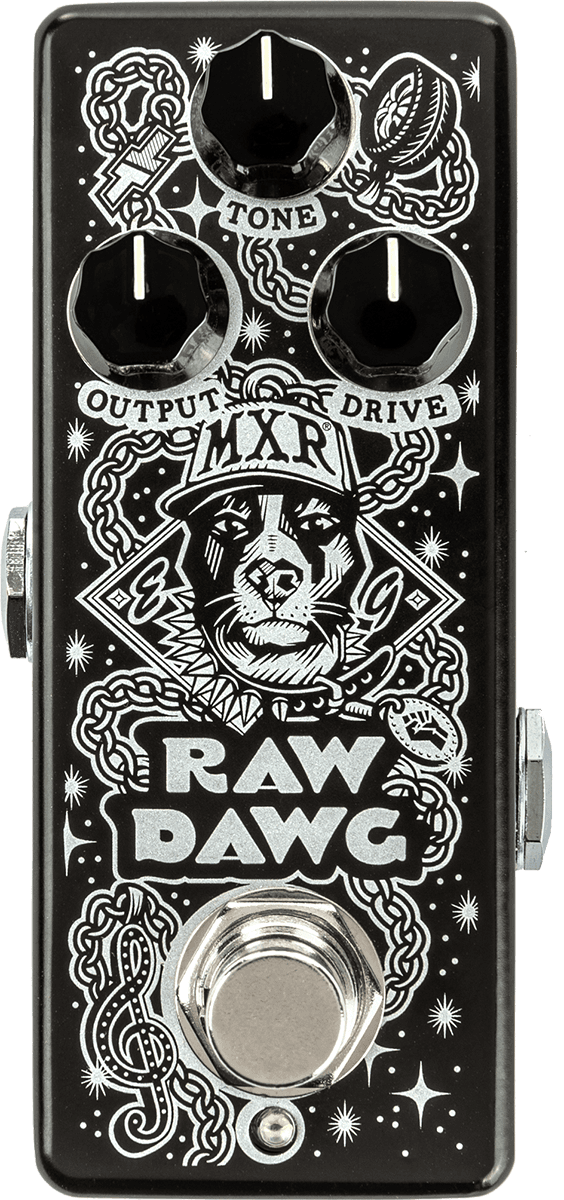

What controls are available on the pedal?
The three knobs are Output, Tone, and Drive. Output controls the output level and allows for use as a boost. Tone adjusts the bass-treble balance, while Drive sets the saturation level.
Is the signal affected when the effect is off?

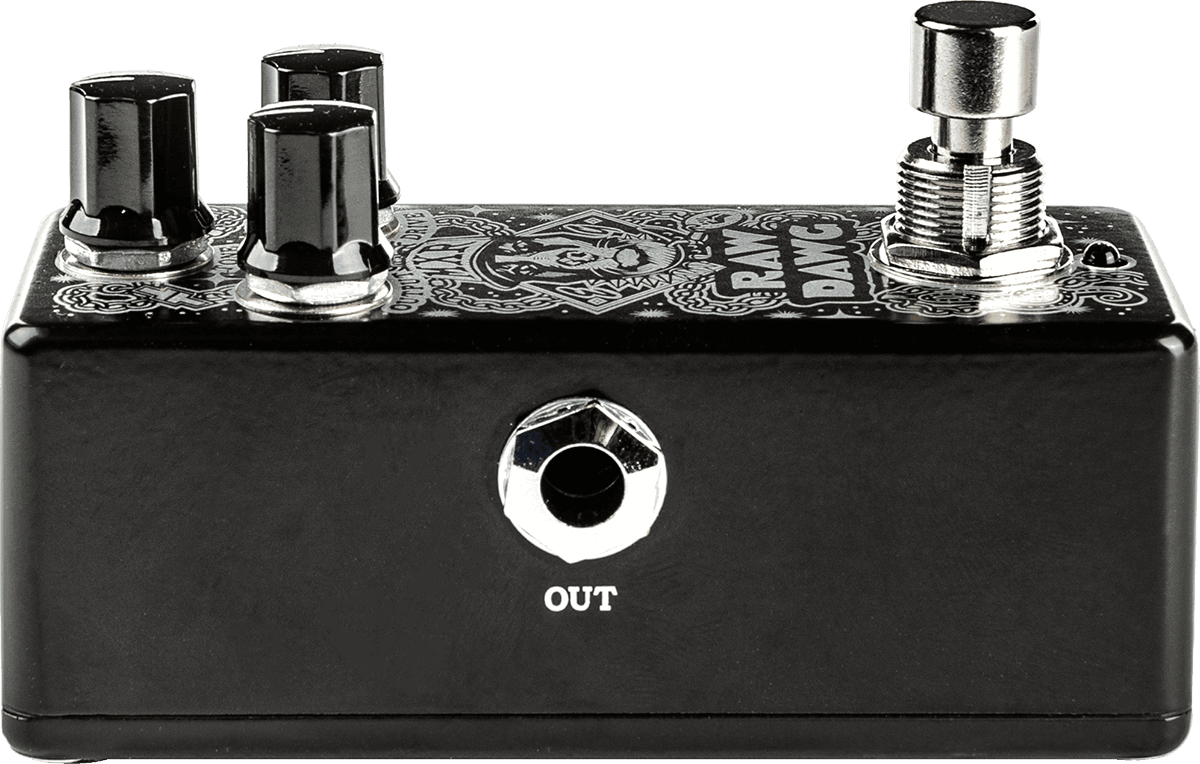

The true bypass keeps the signal path unaffected when the effect is off. The connections include a 6.35 mm jack input and output.
Does the Raw Dawg take up little space on a pedalboard?
With approximate dimensions of 45 x 92 x 55 mm, this compact size fits easily on a pedalboard.
