MXR PEDALS OF SIGNATURE EFFECTS SLASH OCTAVE FUZZ

A modern octave-fuzz in the spirit of great rock tones

The Signature Slash Octave Fuzz follows the grand tradition of "octave" fuzzes that have marked rock history, with that blend of hairy saturation and harmonics that "sing" as soon as you play harder. Here, the approach is decidedly performance-oriented: you keep a solid direct sound, onto which you can layer a massive sub octave, then trigger an octave up "buzzy lead" to cut through the mix. This pedal is designed to recapture iconic textures while maintaining a modern and efficient ergonomics on a pedalboard.

For whom, which styles, and in what contexts?

This pedal is aimed at intermediate to advanced guitarists who want an expressive fuzz and a palette of octaves without multiplying pedals. It shines in hard rock, classic rock, stoner, garage, and blues-rock genres, but can also become a creative tool in alternative and psyche thanks to the blend of octave up and sub octave. In the studio, it serves both to beef up a mono riff and to create overdubs that stand out; on stage, the second footswitch allows you to "boost" the octave up on a key passage without changing your entire setting.

Controls, modes, and operating logic

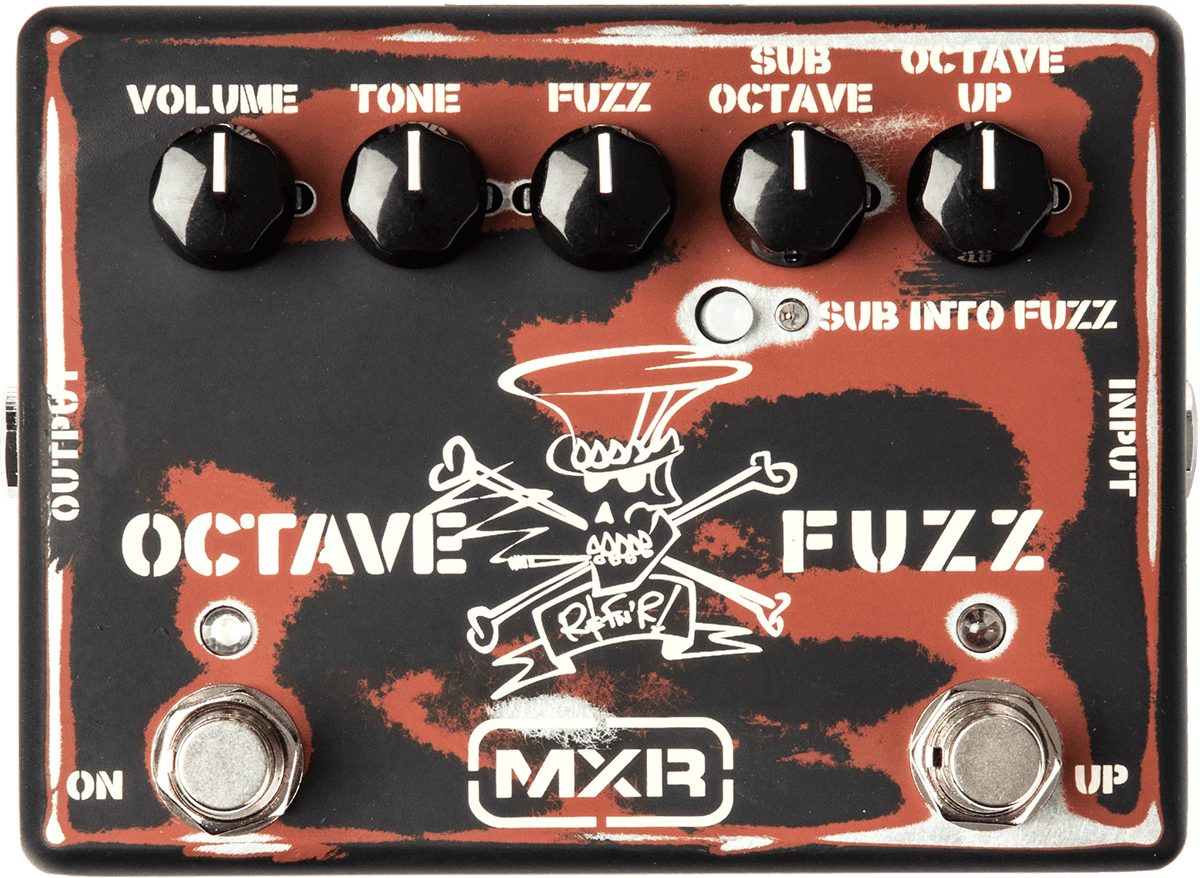

The pedal offers five potentiometers: Volume, Tone, Fuzz, Sub Octave, and Octave Up. The highlight is how the sections interact: the Sub Octave can remain very clear and "clean" to thicken your sound, or be routed into the fuzz circuit via the Sub Into Fuzz switch for a denser and more aggressive grain. The main footswitch activates the effect (and the sub octave), while a second footswitch activates the octave up fuzz additionally, perfect for switching from a heavy riff to a cutting lead with one press.

For further refinement, internal adjustments allow fine-tuning of the octave up section: a Gain trim adjusts the intensity of the octave up fuzz, and a Tone trim sculpts its EQ. Handy if you want a very biting octave up for solos, or conversely a rounder tone to blend into a busy mix. Regarding bypass, it features a true hardwire bypass to preserve the signal when the effect is off.

The sound

At the heart of the Signature Slash Octave Fuzz is a thick, granular, and highly responsive to playing dynamics character: the harder you play, the more harmonics reveal themselves. The sub octave adds a "muscular" low-mid that makes the amp sound bigger, ideal for mono lines or simple riffs that need to fill space. The octave up fuzz adds that very lively "sawtooth" harmonic edge, particularly effective around the 12th fret and on the bridge pickup for leads that soar. Unsurprisingly, this pedal is associated with the world of Slash, but its concept also appeals to rock/metal guitarists broadly, including for more experimental textures.

Technical specifications

Effects	Distortion / Overdrive / Fuzz, Fuzz	EQ	Tone
Technology	Analog	Use	electric guitar
Format	Pedal	Color	Black

Effect type	octave fuzz	Maximum direct signal gain	+1.6 dB
Three voices	main fuzz, sub octave, octave up fuzz	Fuzz gain range	40 dB
Potentiometers	Volume, Tone, Fuzz, Sub Octave, Octave Up	Octave up gain range	20 dB
Switch	Sub Into Fuzz (sends the sub octave into the main fuzz)	Sub octave cutoff frequency	149 Hz
Two footswitches	ON (effect activation), UP (octave up fuzz activation)	Enclosure	metal, Slash signature design
Internal settings	Gain trim and Tone trim for the octave up fuzz section	Dimensions (approx.)	60 x 127 x 92 mm
1 input	6.35 mm jack	Weight (approx.)	0.6 kg
1 output	6.35 mm jack	Documentation	included
Bypass	true hardwire	Power supply	not included
Input impedance	47 kOhms	Required power supply	9V (direct current)
Output impedance	100 Ohms	Power consumption	17 mA
Signal-to-noise ratio	greater than 85 dB
