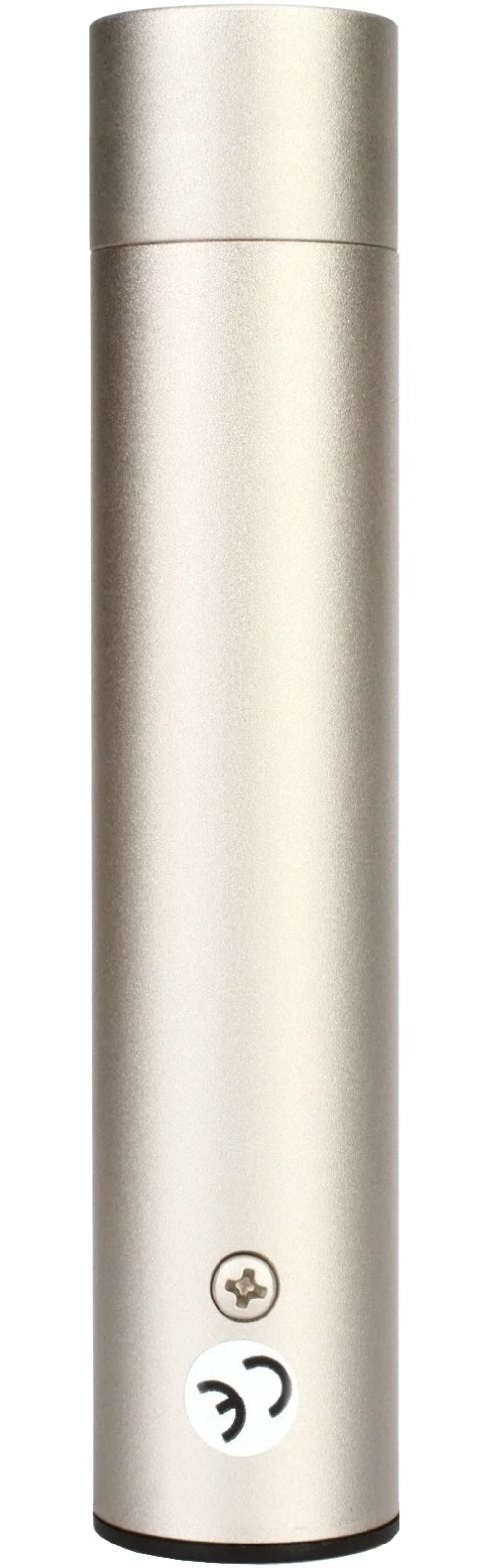

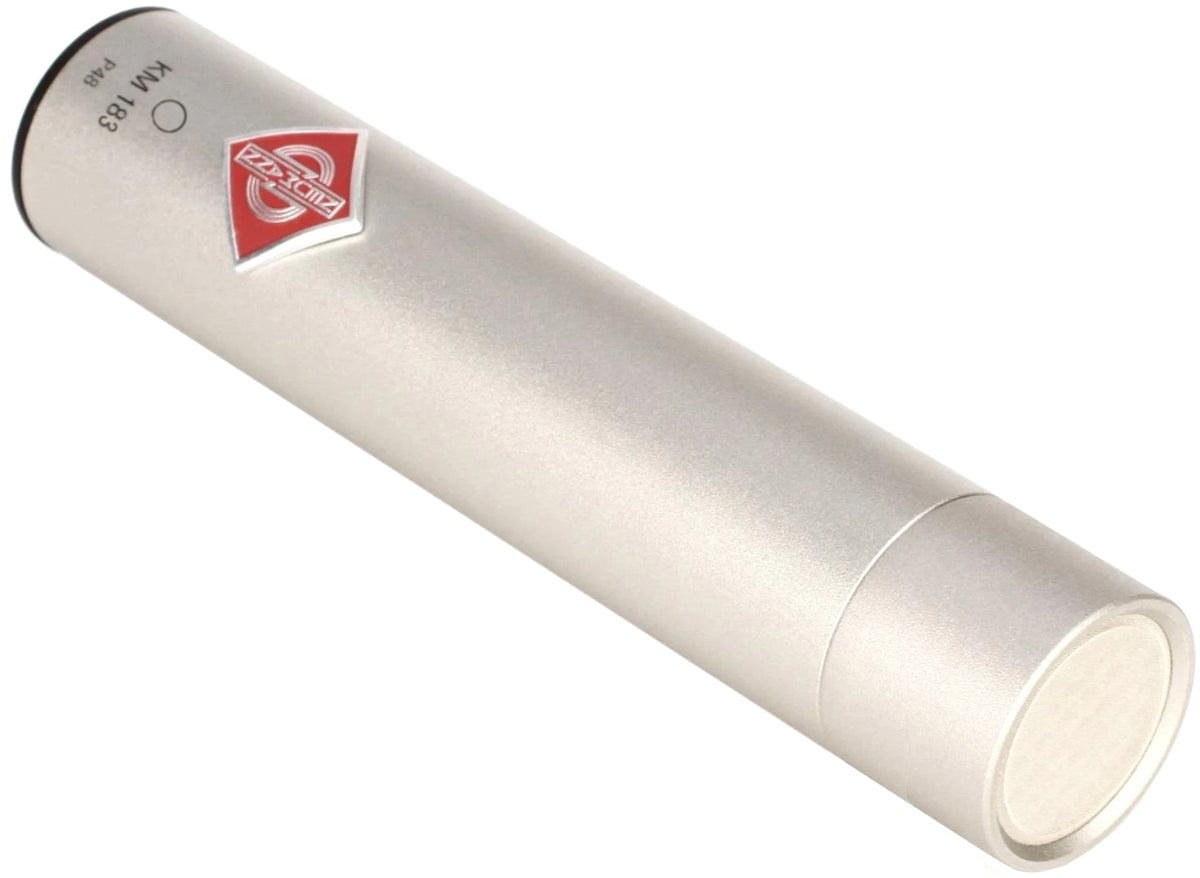

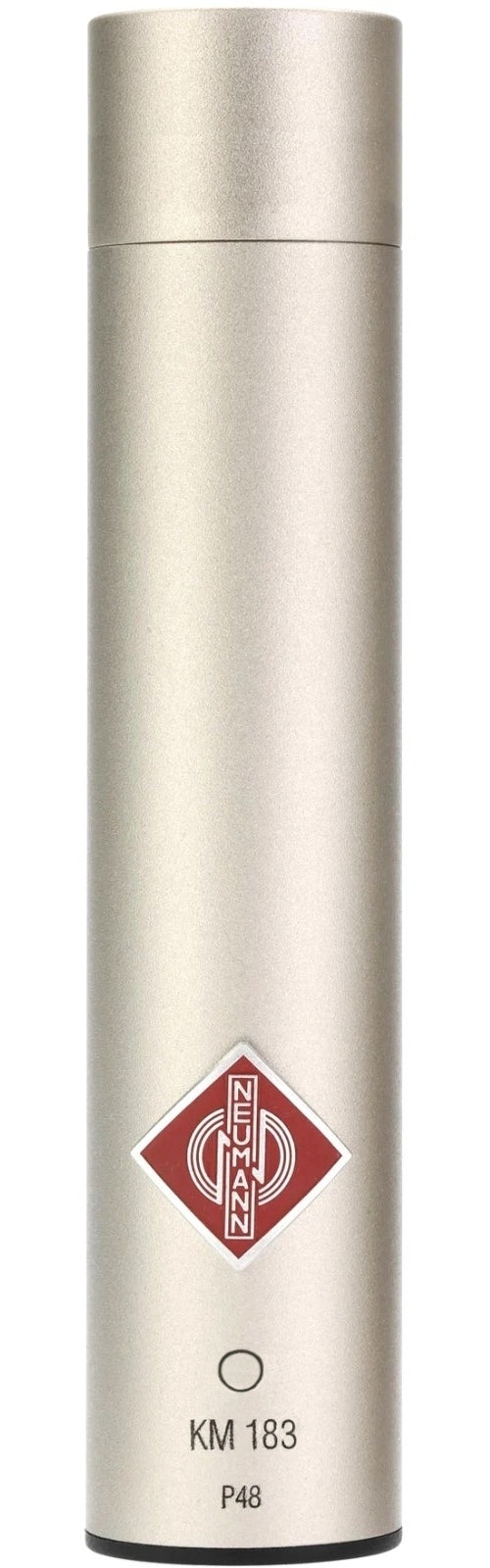

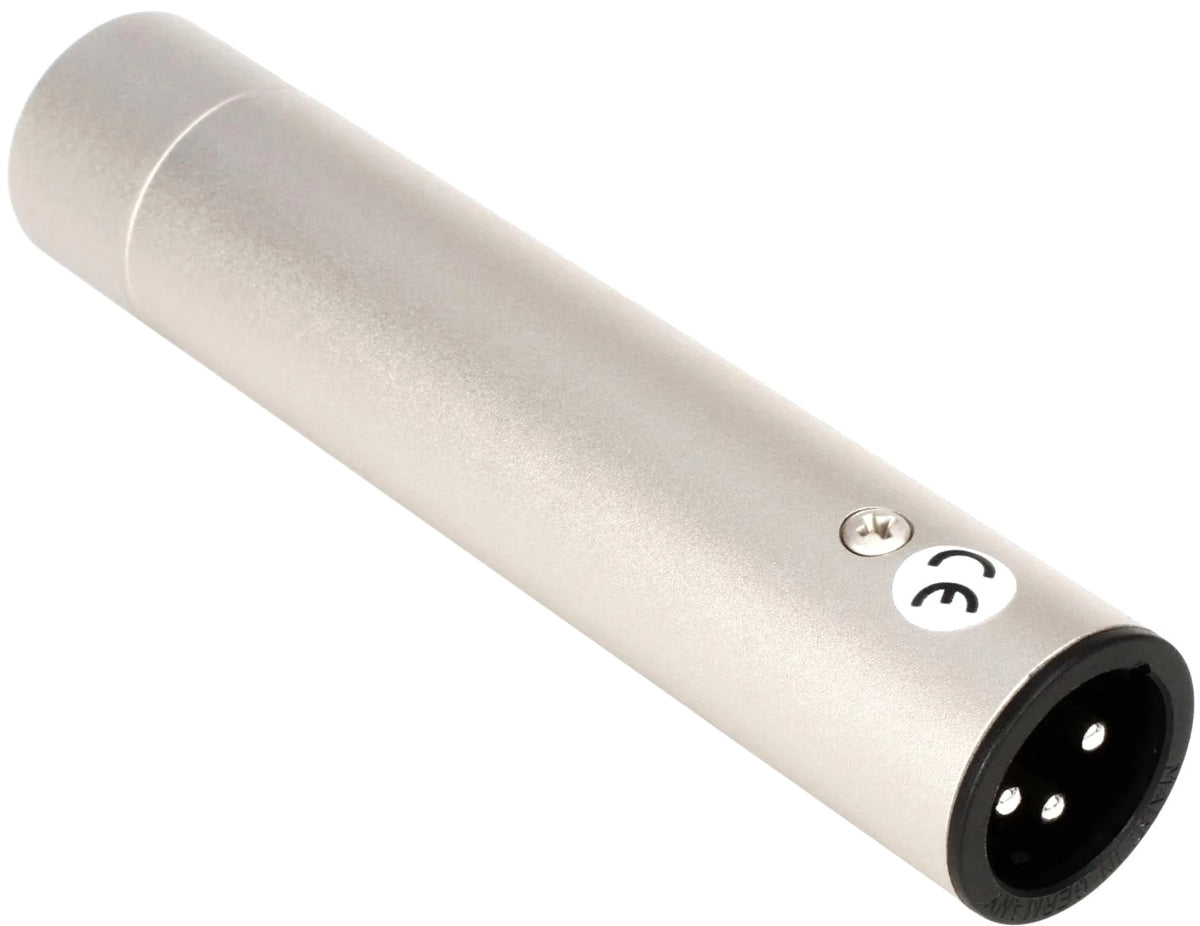

Neumann KM 183 Nickel

Neumann Series 180: the "truth" approach to small diaphragm microphones

The Neumann KM 183 belongs to the Series 180, designed to meet a simple but essential demand: capturing an acoustic source with maximum authenticity, without artificial coloration. While some microphones are deliberately "characterful," the KM 183 aims for a natural, open, and coherent sound image, which explains its regular presence in many studios and control rooms, both in classical music and modern productions.

For whom and for what: acoustic instruments, ensembles, and ambient recordings

Thanks to its omnidirectional pattern and excellent off-axis coherence, the KM 183 excels whenever a spacious and realistic capture is needed: piano, acoustic guitar, strings, woodwinds, brass, choirs, percussion, drums, as well as overheads or spot microphones. As a pressure transducer, its low-frequency response is rated as unlimited, making it a relevant choice for orchestras and organ, as well as for ambient recordings where the low-end foundation must remain intact. Its compact size is also an asset in TV/radio or on stage, where visual discretion is as important as audio quality.

Optimized design for precision: capsule, equalization, and transformerless electronics

Homogeneous omnidirectional pattern for reliable stereo imaging

The heart of the KM 183 is based on a pattern described as uniform and largely frequency-independent. Practically, this limits timbre variations when the source moves or when the microphone captures a significant amount of reverberant field. The result: better compatibility in stereo pairs and surround setups, and fewer surprises when mixing multiple microphones in the same session.

Response designed for diffuse field and controlled proximity presence

The capsule is equalized for a flat response in diffuse field, an approach particularly useful for distant recordings and reverberant environments. In free field, i.e., close to the source, the KM 183 offers a slight high-frequency boost (about 7 dB at 10 kHz) to maintain definition and airiness without losing the natural feel that makes a high-end small diaphragm microphone appealing.

Low output impedance: long cable runs and signal integrity

Its transformerless head amplifier and low impedance output stage are designed to preserve capsule integrity and maintain a stable signal over long cable lengths, rated up to 300 meters without transmission loss. A real convenience in studios, control rooms, remote recordings, or technical setups where cable runs are non-negotiable.

Technical specifications

Frequency response	20 Hz - 20 kHz	Connection	XLR
Category	studio microphone	Color	Grey
Directivity	omnidirectional

Polar pattern	omnidirectional	Max SPL for 0.5% THD	140 dB
Sensitivity at 1 kHz into 1 kohm	12 mV/Pa +/-1 dB	Maximum output voltage	10 dBu
Nominal impedance	50 ohms	Power supply voltage (P48, IEC 61938)	48 V +/-4 V
Nominal load impedance	1 kohm	Current consumption (P48, IEC 61938)	3.2 mA
Equivalent noise level, CCIR	24 dB	Connector type	XLR 3 F
Equivalent noise level, A-weighted	13 dB-A	Diameter	22 mm
Signal-to-noise ratio, CCIR (ref. 94 dB SPL)	70 dB	Length	107 mm
Signal-to-noise ratio, A-weighted (ref. 94 dB SPL)	81 dB	Weight	80 g
