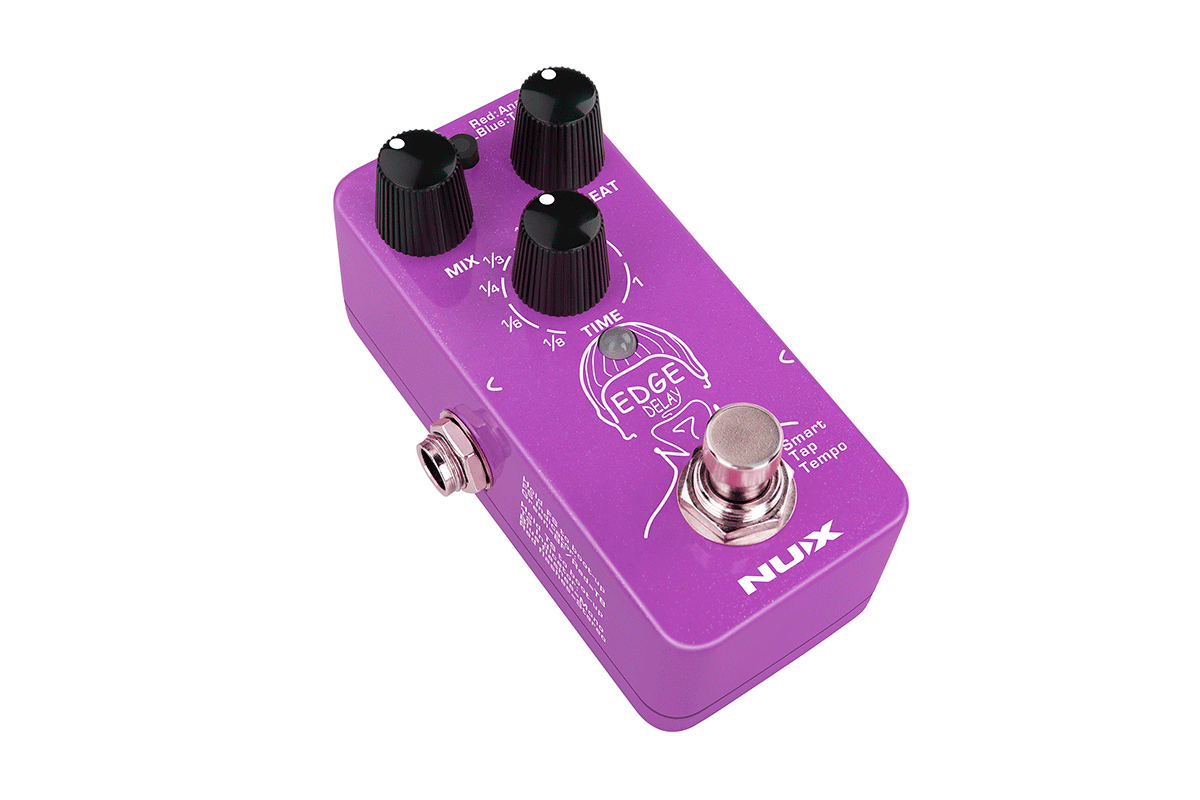

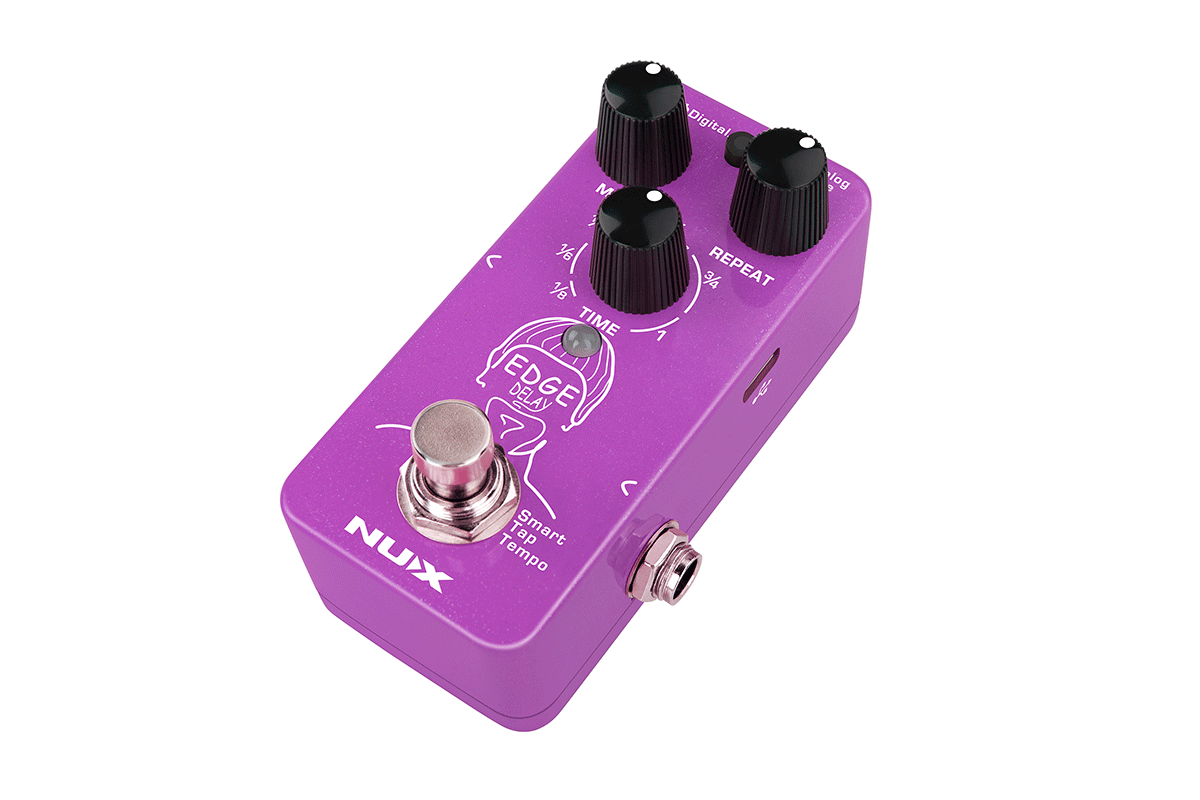

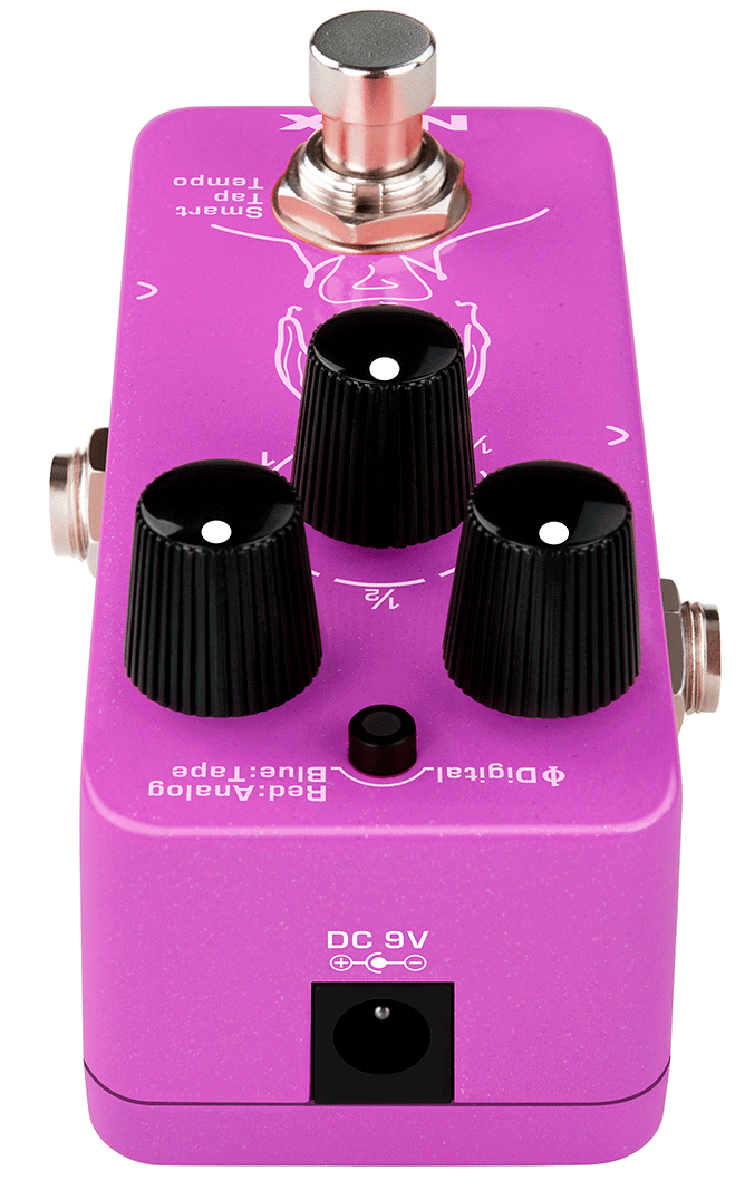

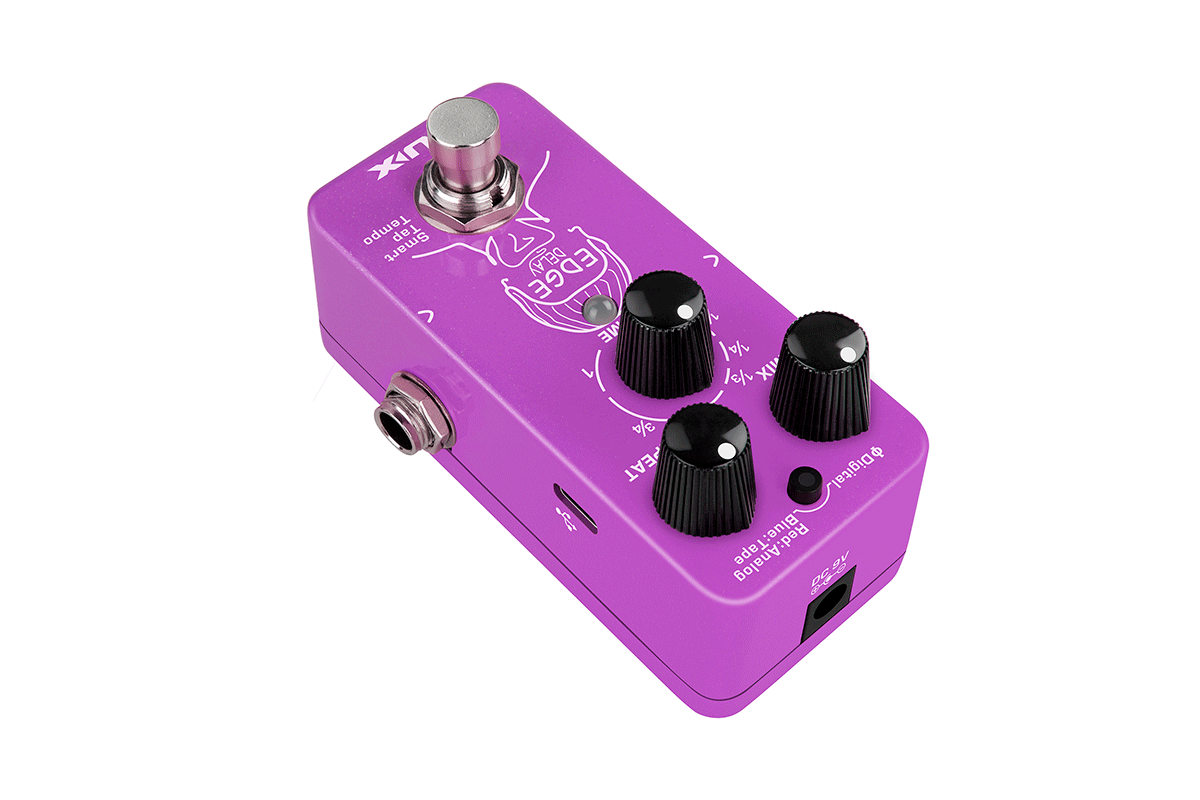

Nux EDGE DELAY (DIGITAL/ANALOG/TAPE ECHO)

A Mini Core Designed for "Classic" Delays... with Modern Options

With the Edge Delay, NUX expands the Mini Core series by offering a compact delay pedal covering three major repeat types that have become guitar standards. The Digital mode targets precision and clarity, ideal for very defined parts and tempo-based rhythms. The Analog mode leans toward rounder, blended repeats, reminiscent of warm delays that sit easily behind an overdrive. Finally, the Tape mode evokes the character of tape echo, appreciated for its grain and musicality, perfect for adding movement and depth to your sound.

This "three colors, one pedal" approach is especially effective when you want a versatile delay without multiplying pedals, while keeping usage simple and immediately musical.

Who Is the NUX Edge Delay For, and In Which Styles Does It Make a Difference?

The NUX Edge Delay is aimed at guitarists (and musicians more broadly) who want an easy-to-set delay pedal but comprehensive enough to cover practical uses: subtle slapback, eighth-note repeats, wider atmospheres like post-rock, or clean, synchronized delays for modern passages. Its mini format is a real asset if your pedalboard is already crowded or if you're building a "fly rig" setup for rehearsals and gigs.

In blues and rock, it excels at thickening a lead, creating a short "vintage" style echo, or adding subtle depth behind a crunch. In pop and indie, the Tap Tempo and subdivisions help achieve clean, regular patterns. In ambient or post-rock, the Tape mode and longer delay times (up to 1500 ms) open the door to expressive echo layers, especially if you like playing with dynamics and the placement of repeats in the mix.

Controls, Modes, and Connectivity: Simple to Use, Complete to Integrate

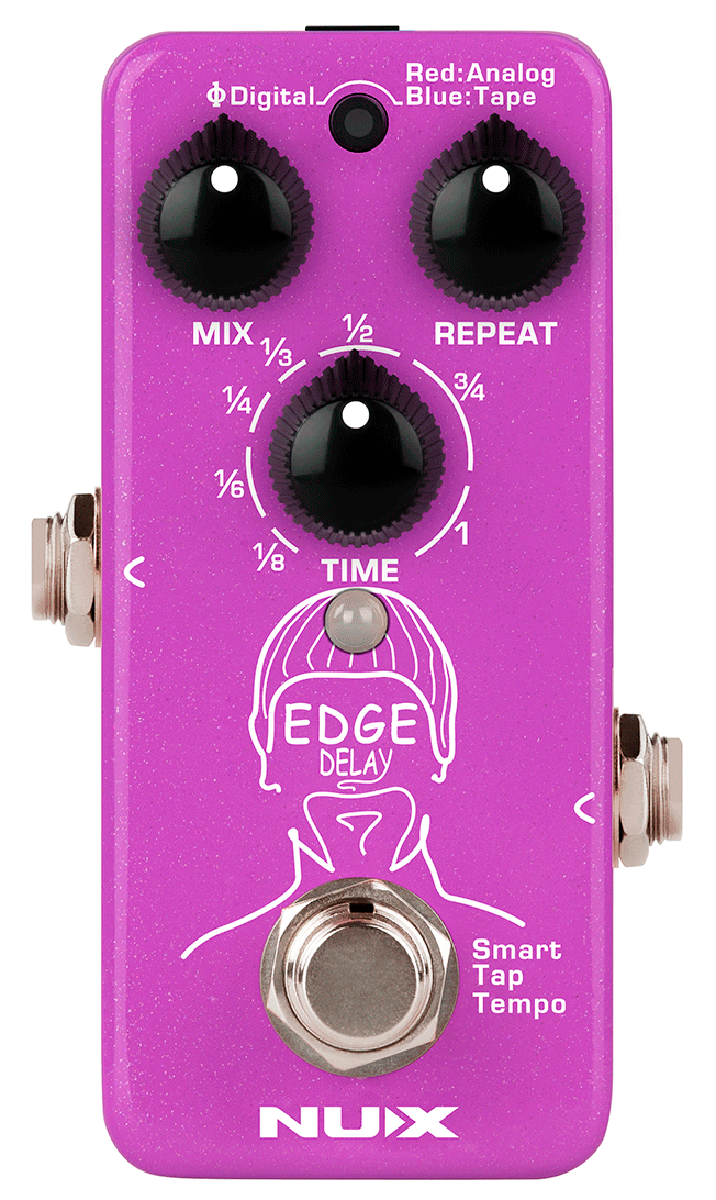

The Edge Delay gets straight to the point with three essential knobs: Time (delay time, with access to subdivisions and a maximum of 1500 ms), Repeat (number of repeats), and Mix (effect signal blend in your sound). This layout allows quick delay adjustments without confusion, while being detailed enough to find "the right spot" depending on your guitar, amp, and gain level.

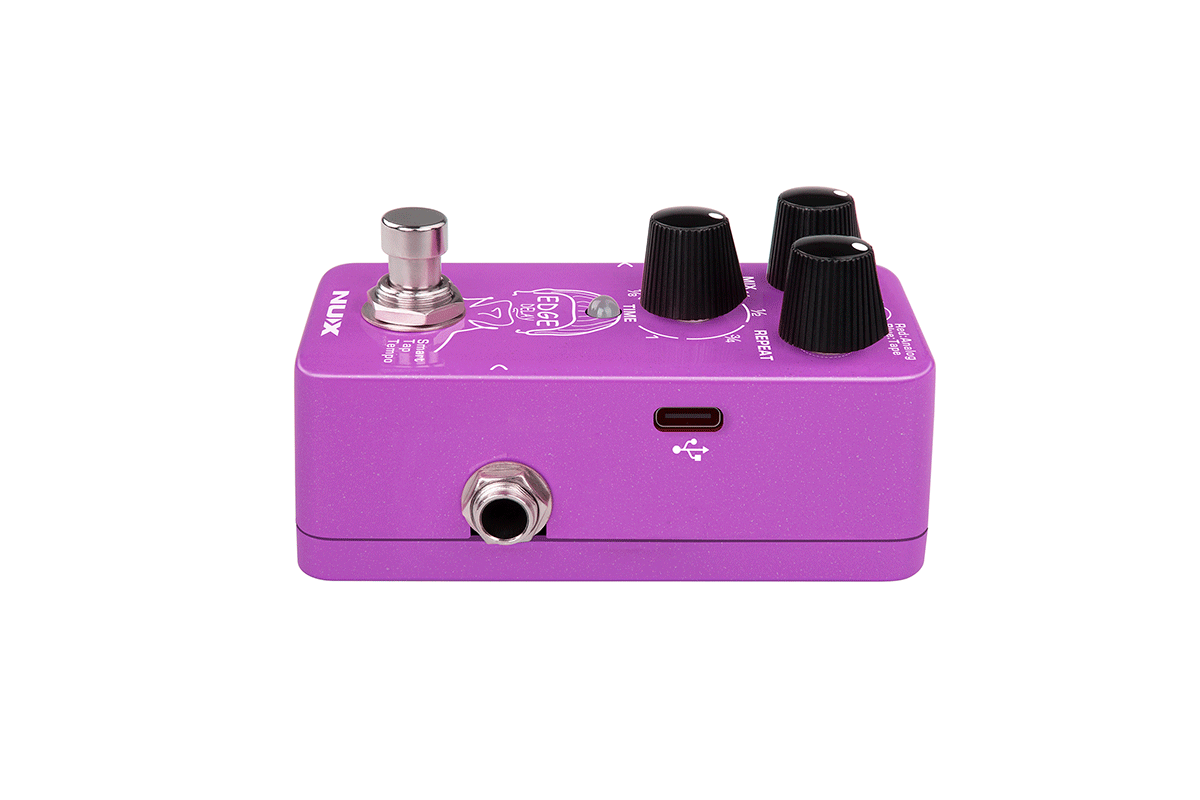

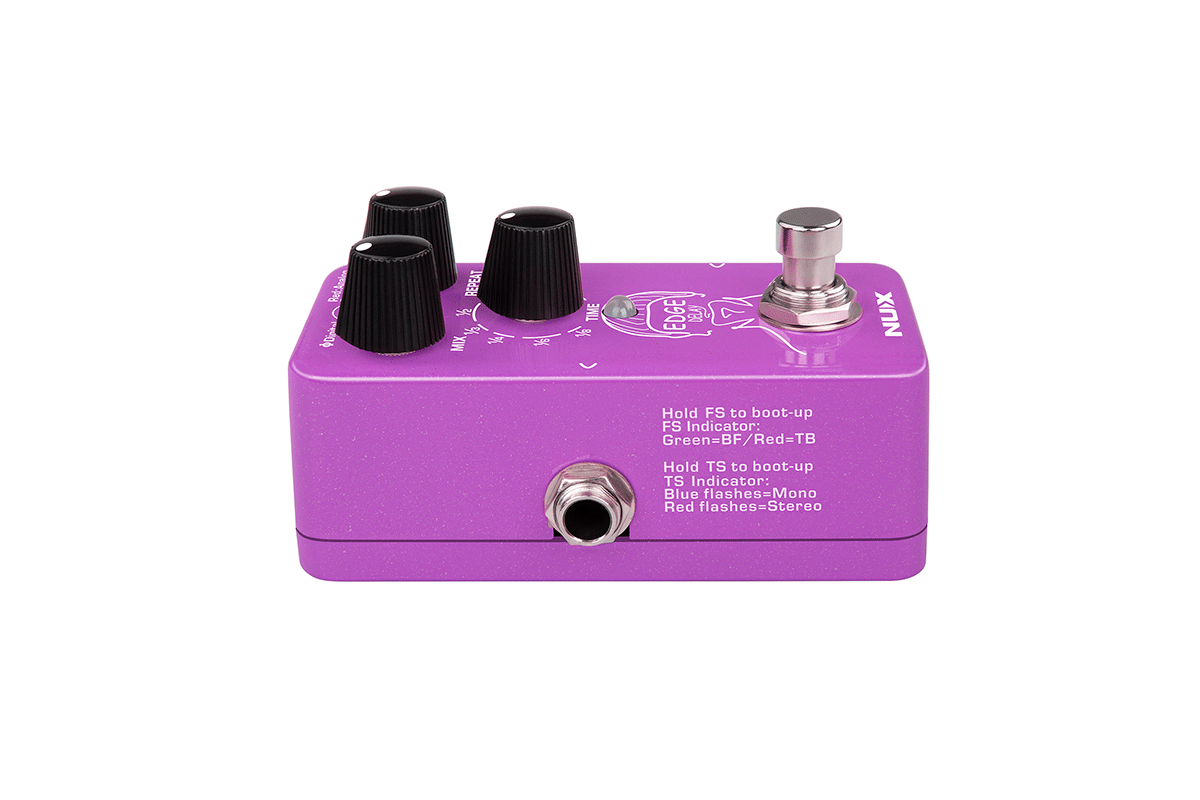

The footswitch includes a secondary Smart Tap Tempo function: handy for adapting the repeat time to the song without bending down, especially on stage. For integration, the pedal offers two bypass modes: true bypass for a direct signal path when the effect is off, or buffered bypass (trails) to naturally preserve the delay tail when you deactivate the effect during play. Finally, connectivity includes mono operation via 6.35mm Jack, with a TRS mode supporting stereo signals, and a USB-C port for firmware updates via PC.

Sound Character

The Edge Delay's character stands out with a natural and dynamic rendering, featuring an analog dry signal that preserves attack, touch, and the personality of your guitar. The Digital mode delivers precise, well-defined repeats, ideal for rhythmic parts that need clarity. The Analog mode rounds off the repeats and helps them blend into the sound, perfect for thickening without overpowering. The Tape mode offers a more textured, very musical color that gives a sense of depth and movement, particularly enjoyable on melodic lines, arpeggios, or more expressive pick playing.

Thanks to the true/buffered choice and trails mode, you can also think of your delay as an "extension" of your sound: turning off the effect while letting the repeats fade naturally provides a cleaner, more professional result, especially during transitions or between song sections.

Technical specifications

Effects	Delay	EQ	No
Technology	Analog & Digital	Settings	mix, repeats, time
Format	Pedal	Type	sector
Inputs	Stereo jack	Use	guitar
Outputs	Stereo Jack	Color	Purple
Modelling number	3	Power supply included	No
Display	Led	Weight	175 g
Switch	On/Off, Tap tempo	Dimensions (mm)	94 x 53 x 51

Delay types	Digital, Analog, Tape	Analog dry signal	latency-free rendering with very low noise floor
Controls	Mix, Repeat, Time	Input/output	6.35mm Jack (mono)
Time	available rhythmic subdivisions	TRS mode	supports stereo signal
Maximum delay time	1500 ms	USB-C port	firmware updates via PC
Footswitch	secondary Smart Tap Tempo function (activated after 2 presses)	Dimensions	94 x 53 x 51 mm
Bypass modes	True Bypass, Buffered Bypass (trails)	Power supply	not included
DSP processing	48 kHz / 32 bit	Required power	9V DC center negative
A/D and D/A conversion	48 kHz / 24 bit	Compatible adapter	MNU ACD006A (optional)
