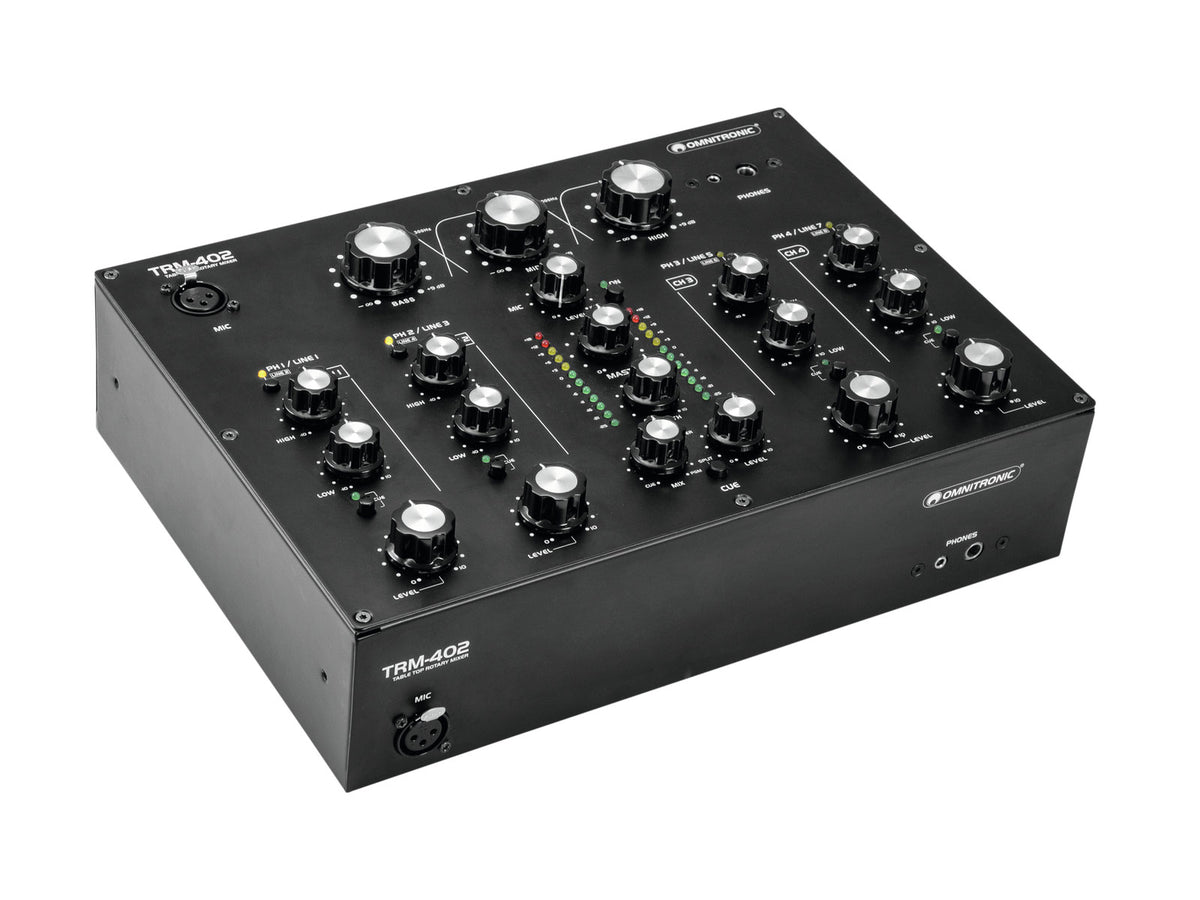

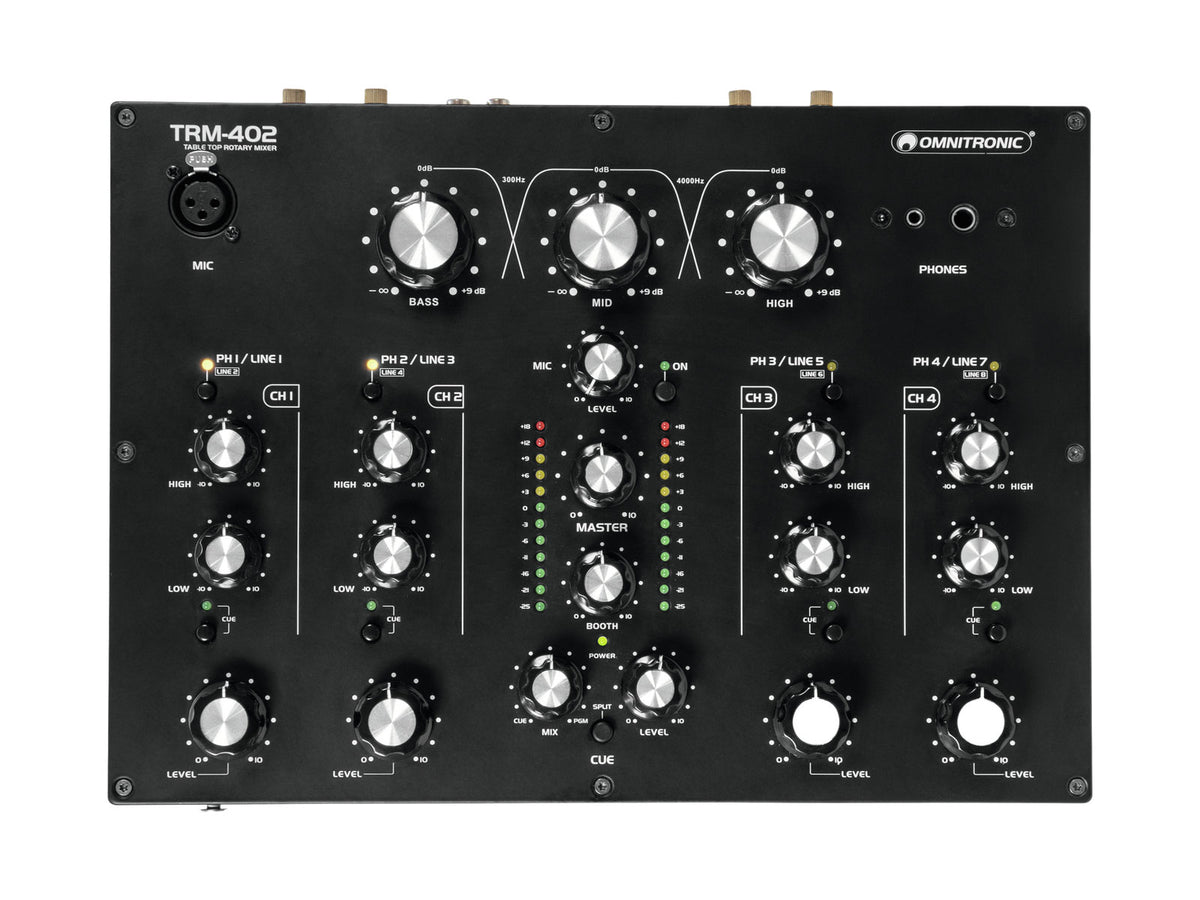

OMNITRONIC DJ TRM-402MK3 - 4- CHANNEL ROTARY MIXER
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Omnitronic
https://www.steinigke.de
info@steinigke.de
------------------------
Safety manager:
Steinigke Showtechnic GmbH
Email: info@steinigke.de
Address:
The Charm of Rotary, Today's Reliability
The TRM-402 MK3 modernizes the aesthetics and feel of classic large rotary mixers while adopting current and stable electronics. Its built-in 3-band isolator and wide, precisely-tensioned controls offer an organic gesture appreciated in house, disco, and techno, without sacrificing the flexibility required by modern setups.For Which DJs and Uses?
Ideal for selector DJs, club residents, vinyl-only sets, and refined sound reinforcement, this mixer excels wherever the dynamics and color of the mix take precedence over the "cut." In clubs, audiophile bars, mobile booths, or at home, its separate booth and master outputs, advanced headphone management, and microphone input make it a complete and reliable solution.Features and Innovations

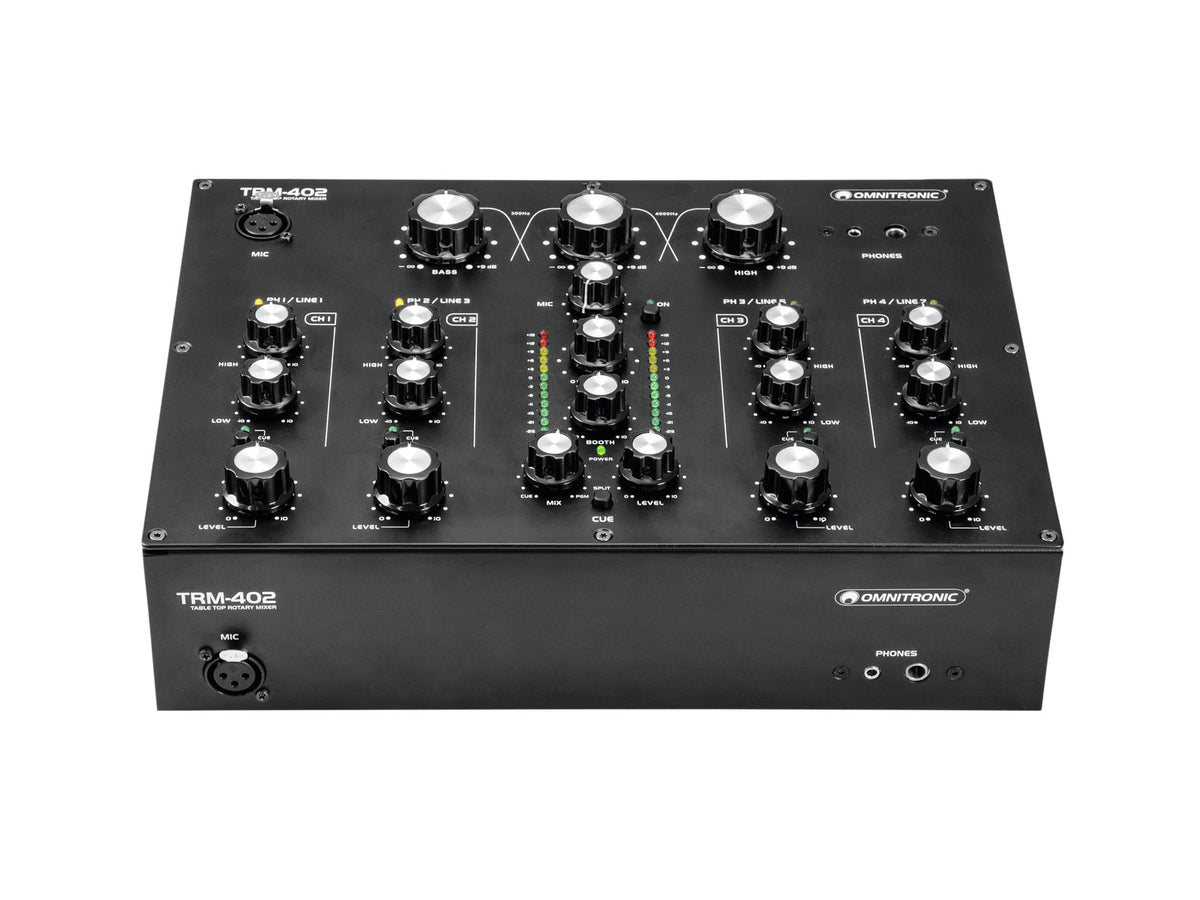

Each channel features a dedicated gain, a 2-band equalizer (bass/treble), and a phono/line selector for easy switching between turntables and players. The master 3-band isolator offers a musical range from full cut to generous boost to sculpt bass, mids, and highs in real time. The 12-segment stereo LED level display secures your levels, while the "Rec" output allows you to archive your sets. The pre-listening offers "Cue Mix/Split" mode for precise headphone blend control. Comprehensive XLR and RCA connectivity integrates with any PA system.Technical specifications
| Type | Analog |
| USB stereo recording / playback | No |
| Number of faders | 4 |
| Rackable | No |
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 20 W |
| Protection class | SK I |
| Connection | recessed IEC "cold device" connector, power cable with protective contact plug (included) |
| Frequency response | Microphone 20-20000 Hz; Line 20-20000 Hz; Phono 40-18000 Hz |
| Signal-to-noise ratio | Phono greater than 77 dB; Microphone greater than 80 dB; Line greater than 85 dB |
| Total harmonic distortion | Line less than 0.03% at 1 kHz; Phono less than 0.1% at 1 kHz |
| Gain | Microphone 44 dB; Line 20 dB; Phono from 60 to +75 dB |
| Maximum output level | +22 dBu |
| Master 3-band isolator | total attenuation to +9 dB boost |
| Frequencies/cuts | Low/Mid 300 Hz, 18 dB/octave, Butterworth; Mid/High 4000 Hz, 18 dB/octave, Butterworth |
| Inputs | 4 x Line/Phono via stereo RCA; 2 x Line via stereo RCA; 1 x Microphone via 3-pin XLR |

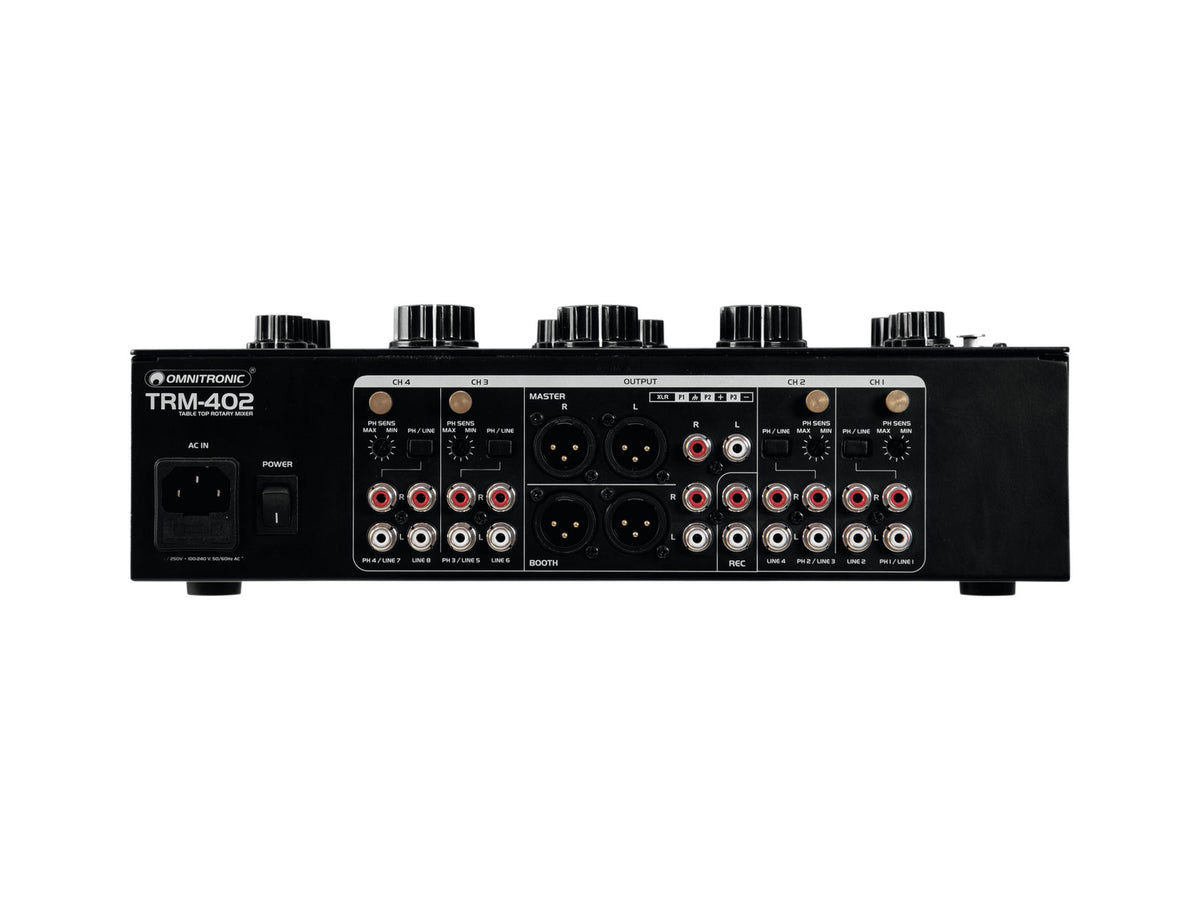

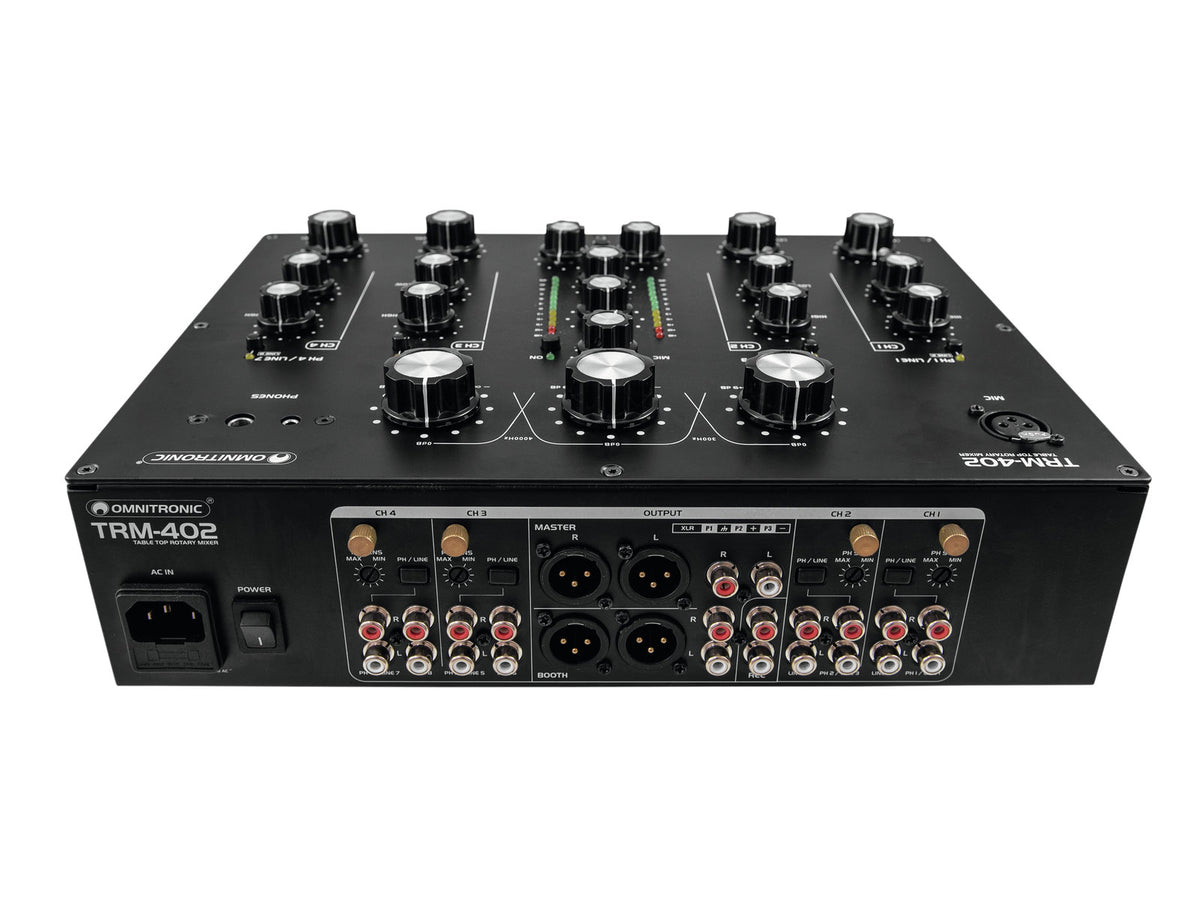

| Outputs | 2 x Master via 3-pin XLR; 1 x Master via stereo RCA; 2 x Booth via 3-pin XLR; 1 x Booth via stereo RCA; 1 x Rec via stereo RCA; 1 x Headphones via 6.35 mm stereo jack |
| Per channel | Line/Line-Phono switch via RCA, 2-band EQ control, phono gain, CUE switch, source switch |
| Microphone channel | 1 x mono via XLR, dedicated volume, "On Air" switch |
| Pre-listening | channel and master selection via adjustable headphone output |
| Chassis design | desktop housing |
| Dimensions | 19 cm (W) x 25 cm (D) x 10.7 cm (H) |
| Weight | 2.68 kg |
Questions frequently asked
Is the TRM-402MK3 suitable for turntables?
Four stereo RCA Line/Phono inputs allow connection of turntables, each with a phono/line selector. The phono frequency response is specified from 40 Hz to 18 kHz.
What rotary controls are available on the 4 channels?

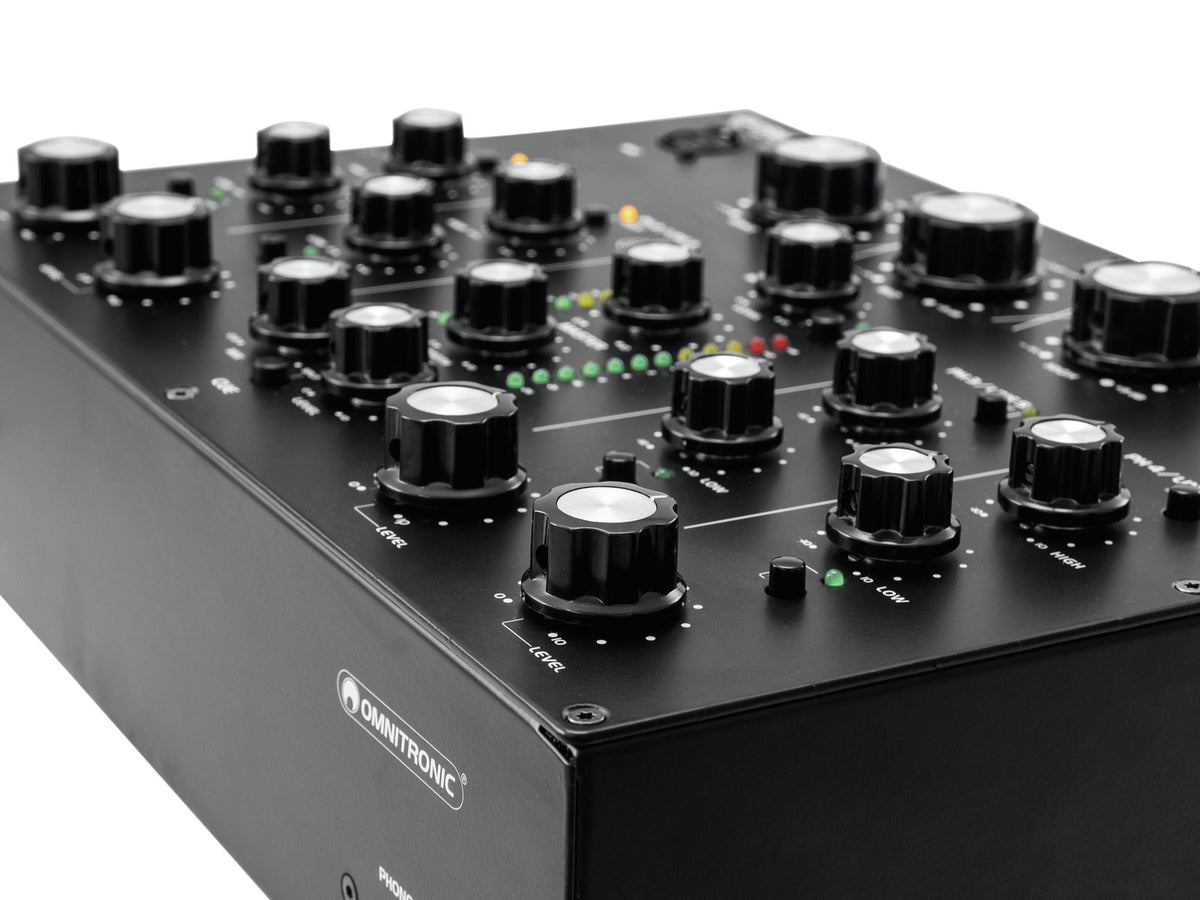

Each channel has a gain control, a 2-band bass/treble EQ, a source selector, and a CUE button. Level control is managed by four large rotary knobs.
Does the master isolator completely cut frequencies?
The 3-band master isolator ranges from full attenuation to +9 dB. The crossover points are fixed at 300 Hz between bass and mid, and 4,000 Hz between mid and treble, using 18 dB/octave Butterworth filters.
What outputs are provided for master, booth, and recording?
There are two master XLR outputs, one master RCA output, two booth XLR outputs, and one booth RCA output. A stereo RCA Rec output allows recording of a set.
Is it possible to pre-listen to channels on headphones and connect a microphone?

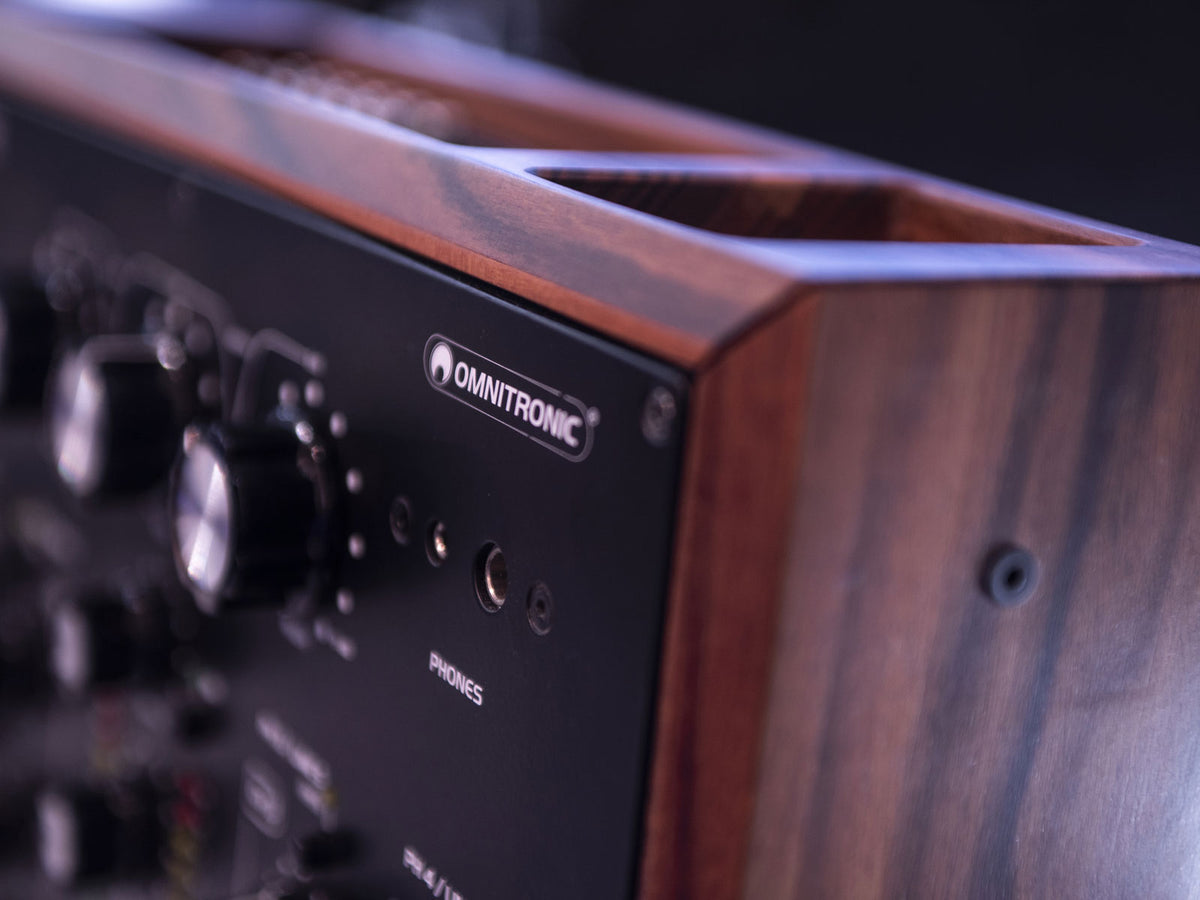

The headphone section with 6.35 mm stereo jack allows selection of channels and master, with Cue Mix/Split adjustment. A mono microphone input on 3-pin XLR features dedicated volume and an "On Air" switch. A 12-segment stereo meter aids level monitoring.
