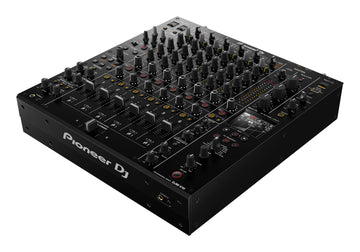

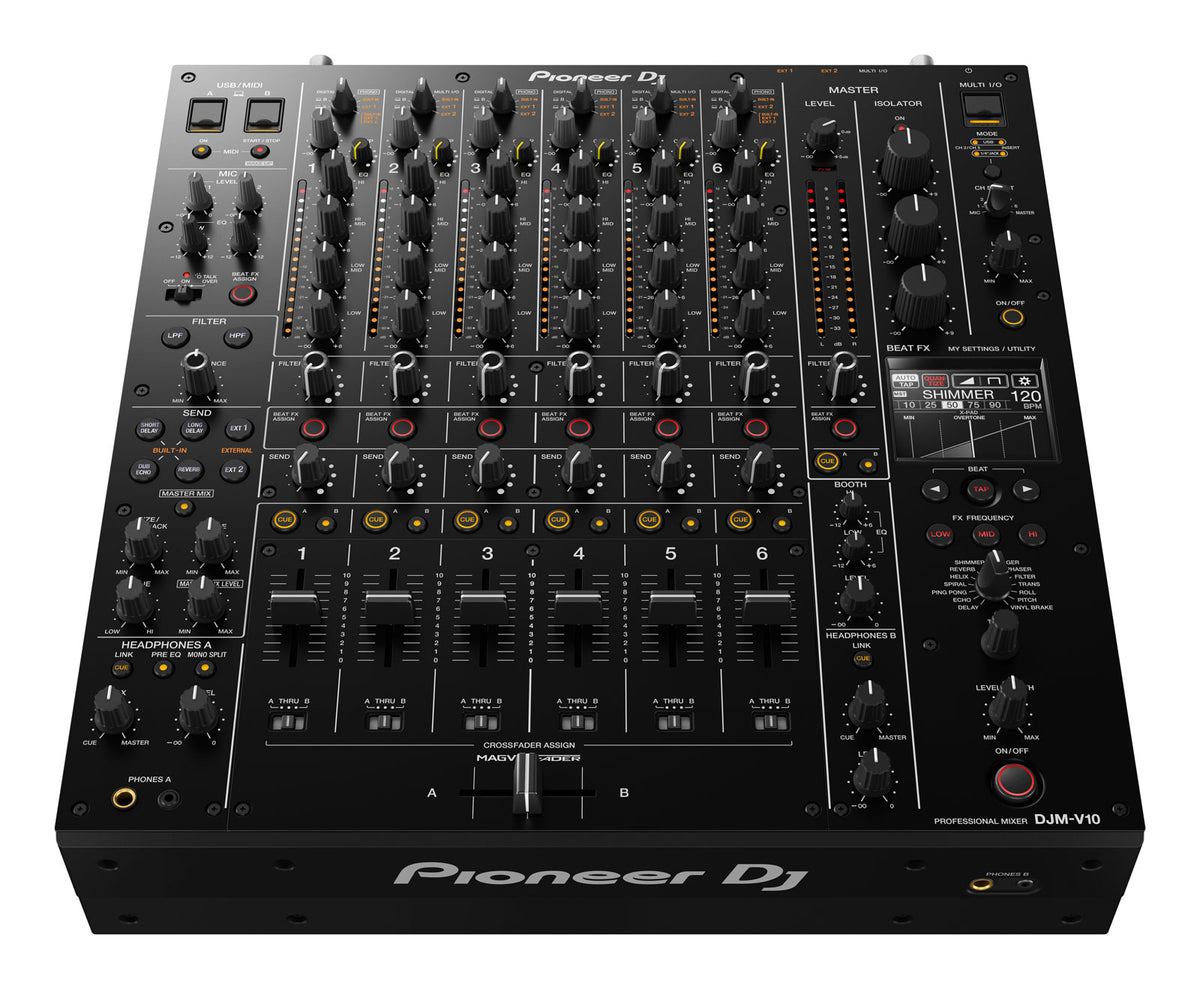

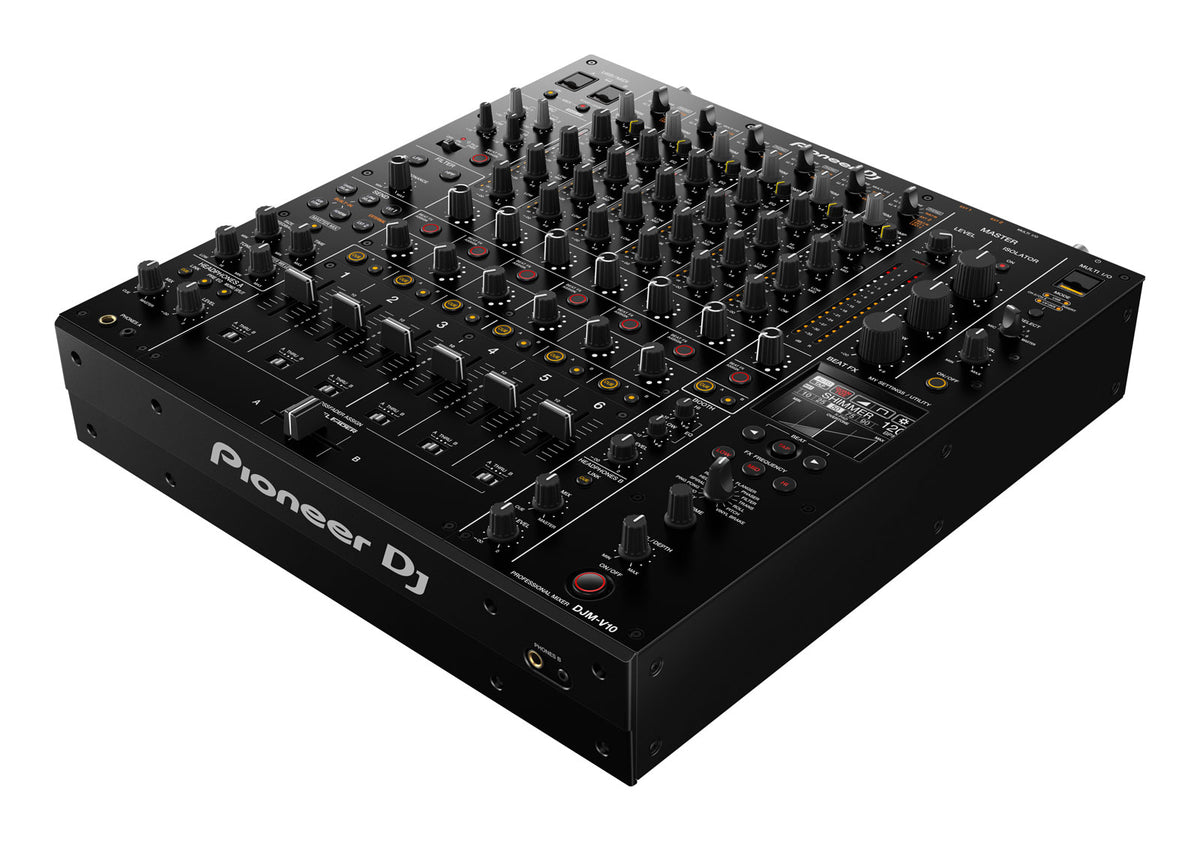

The New Pioneer DJ 6-Channel Club Standard

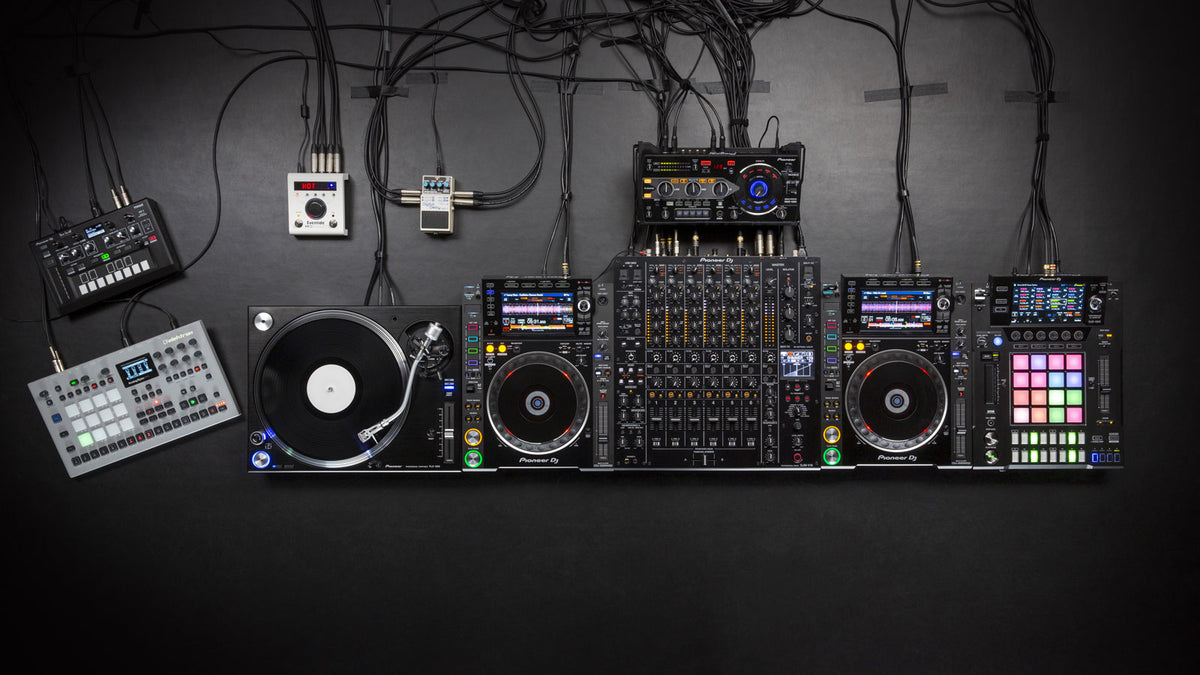

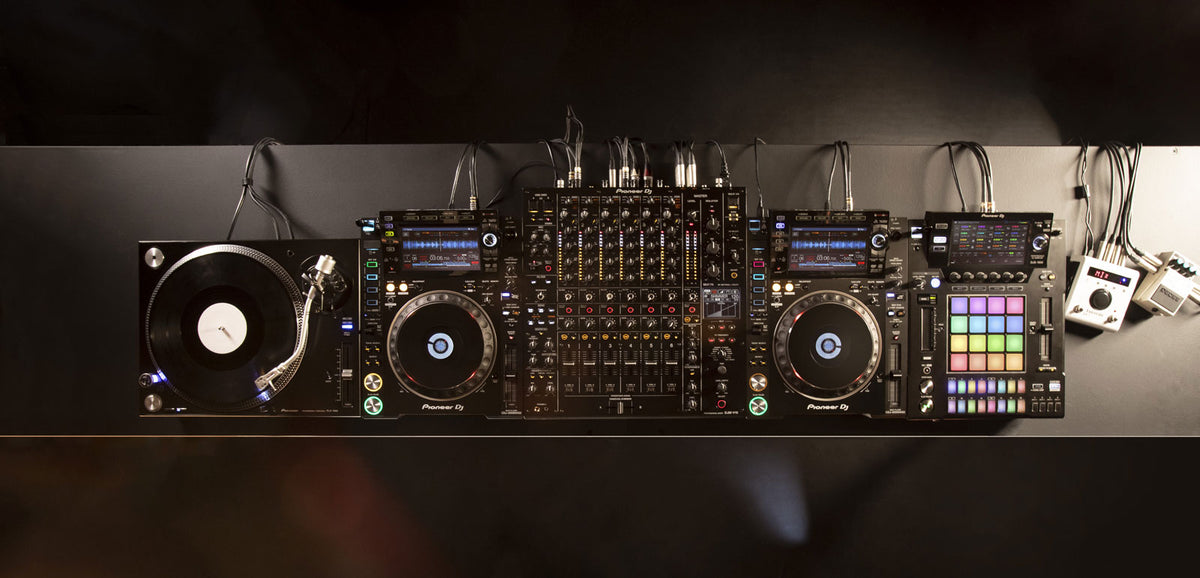

Born from an unprecedented concept, the "DJM-V10" stands at the top of Pioneer DJ's club range. Designed for extended sets and layering sources (CDJs, vinyl, instruments, effects), it offers a warm sonic signature and headroom reserve that inspire the most creative DJs.Intended Uses and DJ Profiles
Ideal for club residencies, festival stages, and premium mobile setups, the DJM-V10 targets experienced and professional DJs, live performers, and demanding sound engineers. Its two independent headphone sections facilitate extended back-to-back sessions, while the Booth EQ ensures comfortable monitoring in the booth.Features and Innovations

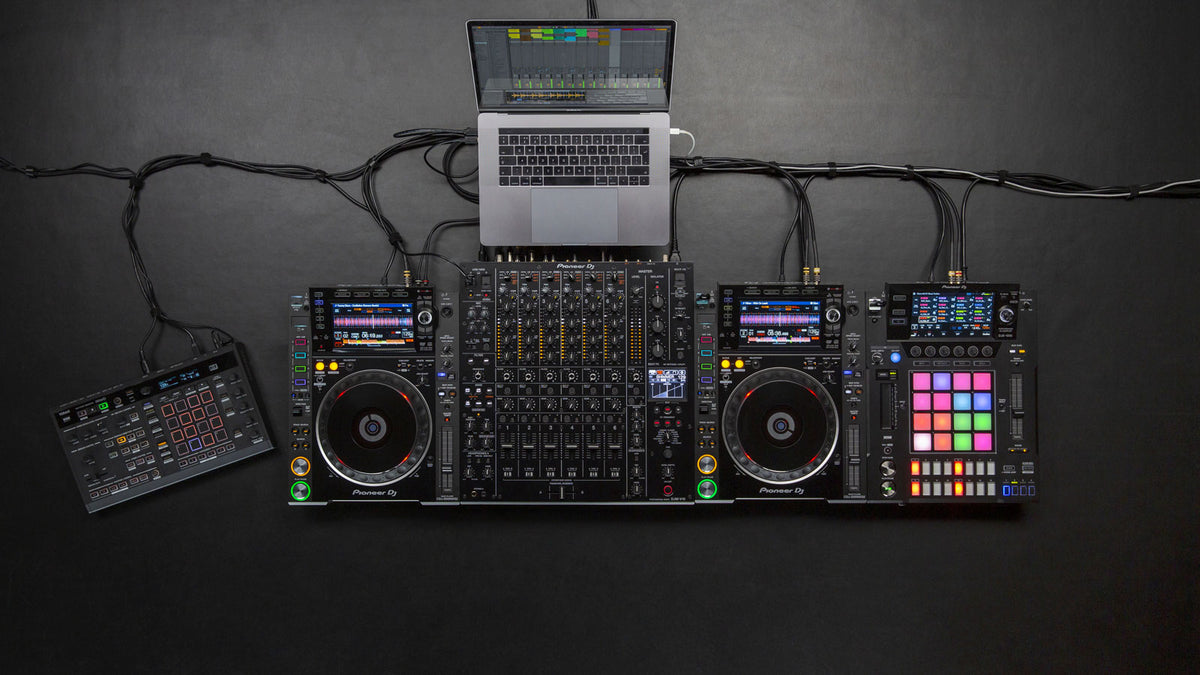

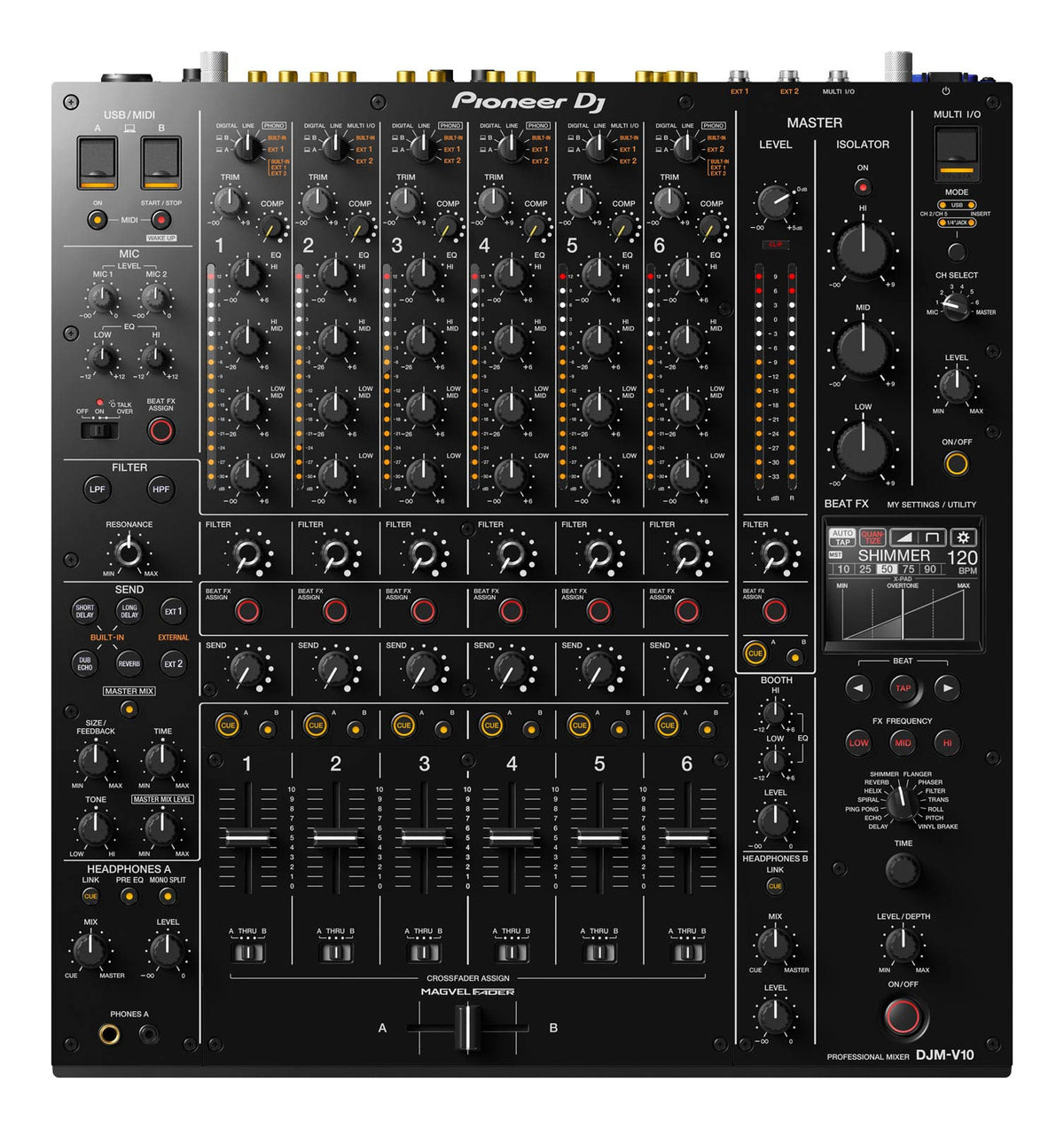

The 4-band equalizer allows sharp cuts at the extremes and surgical midrange work thanks to dedicated curves. Each channel features a filter with progressive response HPF or LPF controlled by a dedicated rotary knob. The Send/Return section combines four internal effects (Short/Long Delay, Dub Echo, Reverb) and supports external devices, plus a MULTI I/O for app integration via USB Type A. On the effects side, Beat FX include Delay, Echo, Spiral, Helix, Reverb, and the highly musical "Shimmer". A 3-band Master isolator shapes the overall sound, and the channel compressor homogenizes tracks from diverse sources. Compatible with rekordbox, Serato DJ Pro, and TRAKTOR PRO 3 (DVS/licenses required, sold separately), the V10 integrates effortlessly into current software ecosystems.Technical specifications
| Type | Analog |
| USB stereo recording / playback | Yes |
| Number of faders | 6 |
| Rackable | No |
| Dimensions (W x H x D) | 437.6 x 107.9 x 467 mm |
| Weight | 11.9 kg |
| Frequency range | 20 Hz to 40,000 Hz |
| Sampling rate | 96 kHz |
| A/D converter | 32-bit |
| D/A converter | 32-bit |
| Distortion (LINE) | less than 0.005% |
| S/N ratio LINE | 105 dB |
| S/N ratio PHONO | 88 dB |
| S/N ratio MIC | 79 dB |
| Number of channels | 6 |
| EQ | 4 bands |
| EQ range | Hi/Low - full cut to +6 dB; Hi Mid/Low Mid: -26 to +6 dB |
| Channel filter | HPF and LPF (dedicated rotary) |
| Internal SEND effects | Short Delay, Long Delay, Dub Echo, Reverb |
| External devices | up to 2 (6.35 mm TS jack) |
| MULTI I/O | 6.35 mm jack and USB (Type A) |
| Beat FX | Delay, Echo, Ping Pong, Spiral, Helix, Reverb, Shimmer, Flanger, Phaser, Filter, Trans, Roll, Pitch, Vinyl Brake |

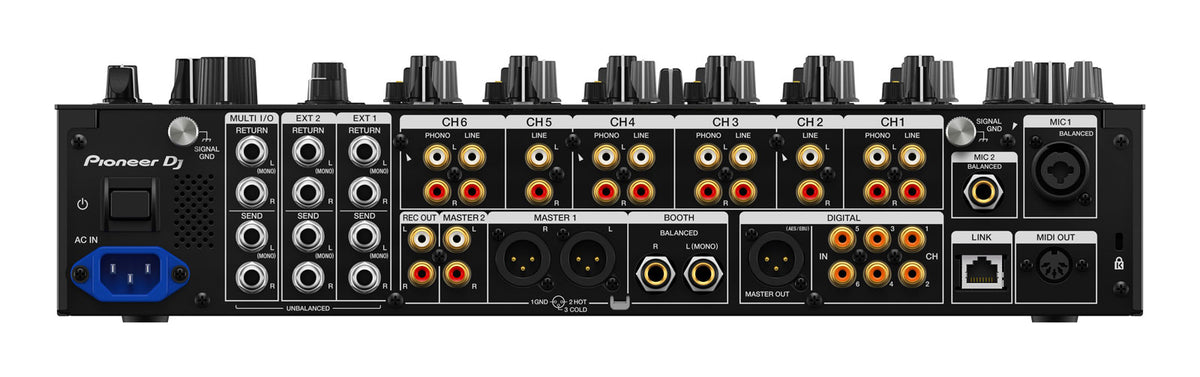

| Inputs | 6 Digital (coaxial), 6 Line (RCA), 4 Phono (RCA) |
| Send/Return | 1 Send (6.35 mm TS jack), 3 Return (6.35 mm TS jack) |
| Network | 1 LAN |
| USB | 2 USB B ports, 1 USB A port |
| Outputs | 2 Master (XLR, RCA), 1 Booth (6.35 mm TRS jack), 4 headphone outputs (6.35 mm jack and mini-jack), 1 Rec Out (RCA), 1 Digital (AES/EBU), 1 MIDI (DIN) |
| Mic inputs | combo XLR/jack and 6.35 mm TRS jack |
| Talkover | 3-position selector |
Questions frequently asked
Is the Pioneer DJ DJM-V10 suitable for sets with multiple turntables and players?
Its 6 channels support 6 digital coaxial sources, 6 RCA line inputs, and 4 RCA phono inputs. Each channel features a 4-band EQ, a dedicated HPF/LPF filter, and a compressor to level the signals. The 6 faders facilitate layering numerous sources.
Which DJ software is compatible with this mixer?
Compatibility is announced with rekordbox, Serato DJ Pro, and TRAKTOR PRO 3. Use in DVS mode requires the corresponding licenses, sold separately.
Which effects are available on the DJM-V10?
The Send/Return section offers Short Delay, Long Delay, Dub Echo, and Reverb, with up to 2 external devices connectable via 6.35 mm TS jack. Beat FX include Delay, Ping Pong, Spiral, Helix, Shimmer, Flanger, Phaser, and Vinyl Brake. A USB Type A MULTI I/O port also allows application integration.
Is it possible to mix with two headphones on this console?
Two independent headphone sections are provided, with a total of 4 headphone outputs in 6.35 mm jack and mini-jack.
What output connectivity and audio quality does it offer?
The master section features XLR and RCA outputs, complemented by a Booth output on 6.35 mm TRS jack with dedicated EQ. There is also a digital AES/EBU output, an RCA Rec Out, and a MIDI DIN output. The USB conversion operates at 32 bits/96 kHz with a frequency response from 20 Hz to 40 kHz.
