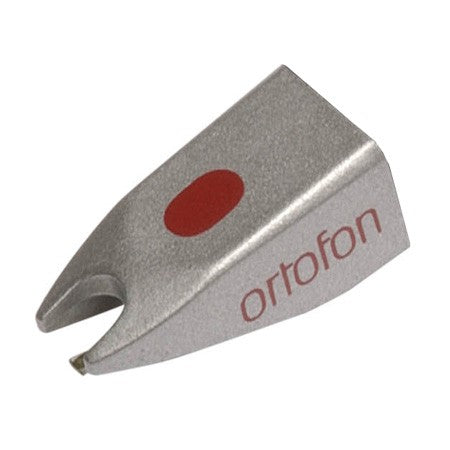

ORTOFON DJ Stylus Pro A

Name: Stylus Pro A
Brand: ORTOFON DJ
SKU: 109956
Price: 33.00 EUR
Availability: InStock
Rating: 4.78 (9 reviews)

33,00 €VAT incl.

0,00 € Ecotax included

Reference price

In stock online

In stock in store

Estimated Shipping Widget will be displayed here!

ID : 109956

EAN : 5705796140071

ORTOFON DJ

Information

Essential Information About the Ortofon Stylus Pro A Diamond
• Spherical diamond designed for stable and tolerant playback, ideal for DJing.
• Output 5 mV (at 1000 Hz, 5 cm/sec) for a comfortable level on a DJ mixer.
• Solid tracking (up to 70 µm at 315 Hz, at the recommended tracking force) to minimize skipping.
• Easy replacement to restore the bite and precision of your compatible cartridge.

Stylus Pro A

33,00 €VAT incl.

0,00 € Ecotax included

Reference price

A Replacement Diamond in Ortofon's "Pro" Spirit

The Stylus Pro A is a replacement diamond designed to restore the original performance of a Pro A cartridge, with a focus on robustness and reliability for DJ use.

For Which DJs and Uses?

This diamond is intended for DJs who play on vinyl turntables in clubs, mobile events, or home practice, and who want a reliable stylus capable of handling a tracking force adapted to mixing and manipulation.

Features and Innovations

With its spherical tip (radius R 18 µm) and a tracking force range of 3.0 to 5.0 g (recommended 4.0 g), this diamond prioritizes groove holding and consistency. The stated frequency response covers 20 to 20,000 Hz, with channel separation of 20 dB at 1 kHz (15 dB at 15 kHz), and electrical parameters designed for a standard phono load (47 kOhm, capacitance 200 to 600 pF).

Technical specifications

DJing type	Mix	Diamond tip	spherical
Category	diamond	Color	Grey
Type	diamond	Quantity	1
Destination	DJ

Output voltage at 1000 Hz, 5 cm/sec	5 mV	Tracking force range	3.0-5.0 g (30-50 mN)
Frequency range at -3 dB	20-20,000 Hz	Recommended tracking force	4.0 g (40 mN)
Frequency response	20-20,000 Hz +/-3 dB / -2 dB	Tracking angle	20 degrees
Channel balance at 1 kHz	1.5 dB	Resistance	750 Ohm
Channel separation at 1 kHz	20 dB	Inductance	450 mH
Channel separation at 15 kHz	15 dB	Impedance	47 kOhm
Tracking ability at 315 Hz at recommended force	70 µm	Capacitance	200-600 pF
Dynamic compliance	7 µm/mN	Compatible with cartridges	Concorde Pro A
Tip type	spherical	Compatible with the case	Concorde Twin Pro A
Tip radius	R 18 µm

Questions frequently asked

Is the Ortofon DJ Stylus Pro A compatible with the Concorde Pro A?

This replacement stylus is compatible with the Concorde Pro A cartridge and the Concorde Twin Pro A set.

What tracking force should be set with this stylus?

The recommended tracking force is 4.0 g, or 40 mN. The acceptable adjustment range is from 3.0 to 5.0 g.

Spherical tip R 18 µm: what DJ use?

The spherical tip with an 18 µm radius is designed for mixing. Its tracking ability reaches 70 µm at 315 Hz with the recommended tracking force.

What frequency response does this stylus offer?

The frequency response covers 20 Hz to 20,000 Hz, with a stated tolerance of +3 dB/-2 dB. Channel separation is 20 dB at 1 kHz and reaches 15 dB at 15 kHz.
