Ortofon Hifi STYLUS 30

Name: STYLUS 30
Brand: Ortofon Hifi
SKU: 387986
Price: 299.00 EUR
Availability: InStock

299,00 €VAT incl.

0,00 € Ecotax included

Reference price

In stock online

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 387986

EAN : 5705796130096

Information

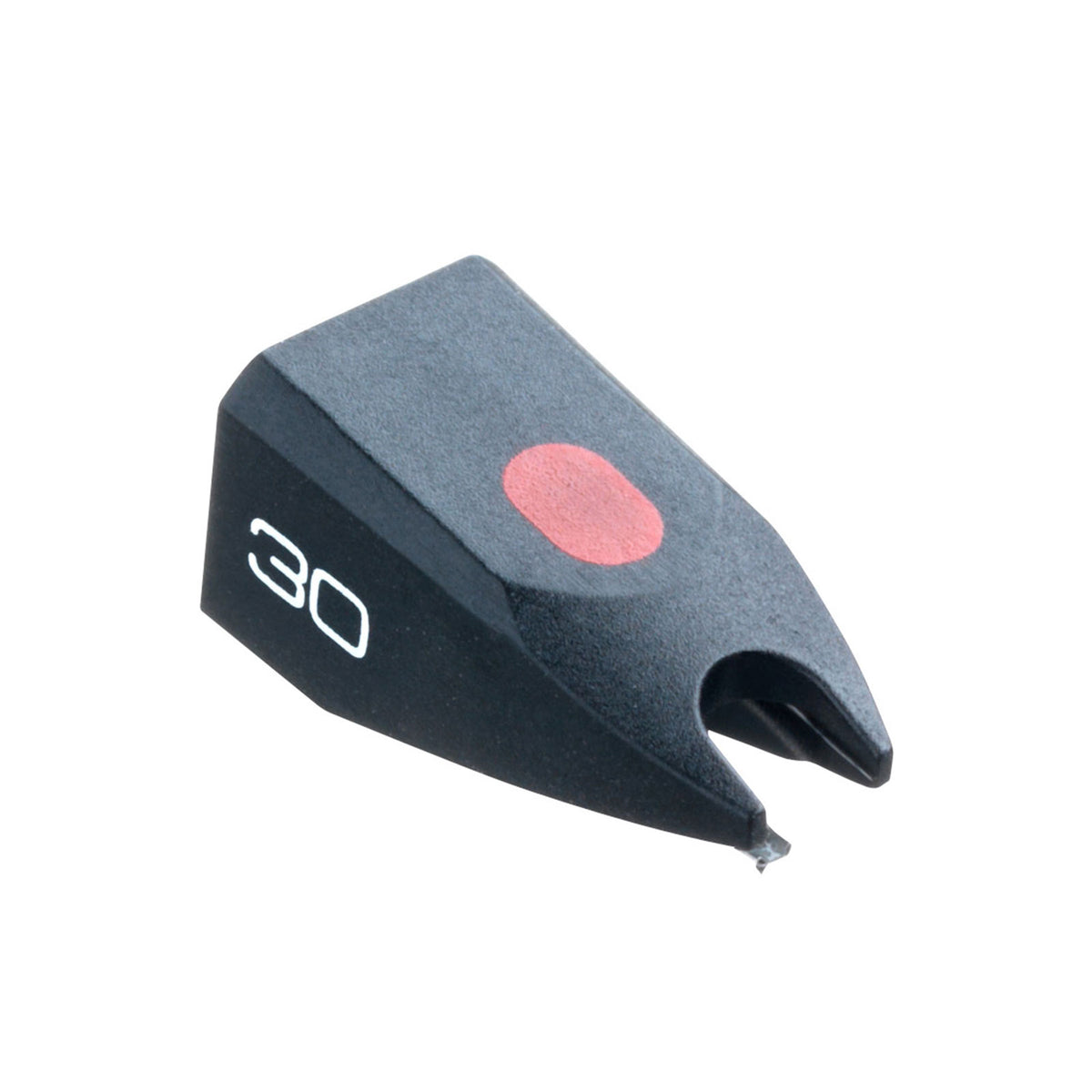

Essential Information About the Ortofon Stylus 30 Replacement Diamond
• Line Contact Nude Fine Line Profile : precise playback, rich in detail, and excellent channel separation of groove information.
• Effective tracking : tracking capability rated at 70 um (at 315 Hz with the recommended tracking force), to limit distortion on demanding passages.
• Simple adjustment : recommended tracking force at 1.5 g, ideal for a balance between finesse, stability, and record preservation.
• Targeted compatibility : designed for many Ortofon cartridges from the 30 series (OM, Super OM, Concorde, LM, TM, etc.).

STYLUS 30

299,00 €VAT incl.

0,00 € Ecotax included

Reference price

A "hi-fi" diamond designed for Ortofon 30 series cartridges

This stylus fits into an upgrade and maintenance logic for compatible Ortofon cartridges: you replace only the diamond while keeping the cartridge body. Its Nude Fine Line profile (Line Contact type) aims for finer groove reading, with detailed reproduction and controlled wear when the tracking force is properly set.

Who is it for, and in what vinyl turntable uses?

This replacement diamond is intended for vinyl enthusiasts and audiophiles who want to restore the original performance of their cartridge or step up precision in a hi-fi setup. It is particularly well-suited for home listening (living room, dedicated room, office), with a well-adjusted turntable and records in good condition, to enjoy a clean soundstage and clear treble without harshness.

Features and innovations

The Stylus 30 adopts a Nude Fine Line tip, with a tip radius r/R of 8/40 um, designed to improve reading of micro groove information. The frequency response is rated at 20-20,000 Hz (+2 / -3 dB). Its lateral dynamic compliance of 25 um/mN and tracking force range of 1.25-1.75 g (12.5-17.5 mN) allow optimizing stability depending on the tonearm, with a recommended force of 1.5 g (15 mN). Tracking angle: 20deg. Stylus color: black.

Technical specifications

DJing type	Monitoring
Category	diamond
Type	diamond
Destination	hifi

Diamond tip	Fine line
Color	Black
Quantity	1

Stylus tip radius	r/R 8/40 um
Stylus color	Black

Frequency response	20-20,000 Hz +2 / -3 dB
Tracking capability (315 Hz, with recommended tracking force)	70 um
Lateral dynamic compliance	25 um/mN

Tracking force range	1.25-1.75 g (12.5-17.5 mN)
Recommended tracking force	1.5 g (15 mN)
Tracking angle	20deg

Questions frequently asked

Is the Stylus 30 compatible with Ortofon series 30 cartridges?

This replacement diamond is designed for compatible Ortofon series 30 cartridges, maintaining the existing cartridge body.

What tracking force should be set with this Fine Line stylus?

The recommended tracking force is 1.5 g, or 15 mN. The allowed adjustment range spans from 1.25 to 1.75 g (12.5 to 17.5 mN).

What tip profile does this Ortofon stylus feature?

The Nude Fine Line tip of the Line Contact type has an r/R radius of 8/40 µm, intended to finely read the micro details of the groove.

What is the frequency response of the Ortofon Hifi Stylus 30?

The stated frequency response covers 20 Hz to 20,000 Hz, with a tolerance of +2 / -3 dB. The lateral dynamic compliance is 25 µm/mN. The tracking capability reaches 70 µm at 315 Hz with the recommended tracking force.

Is this stylus suitable for DJing or hi-fi listening?

The intended use is hi-fi listening, with a stylus rake angle of 20°. Its use is designed for a properly adjusted turntable and well-maintained records.
