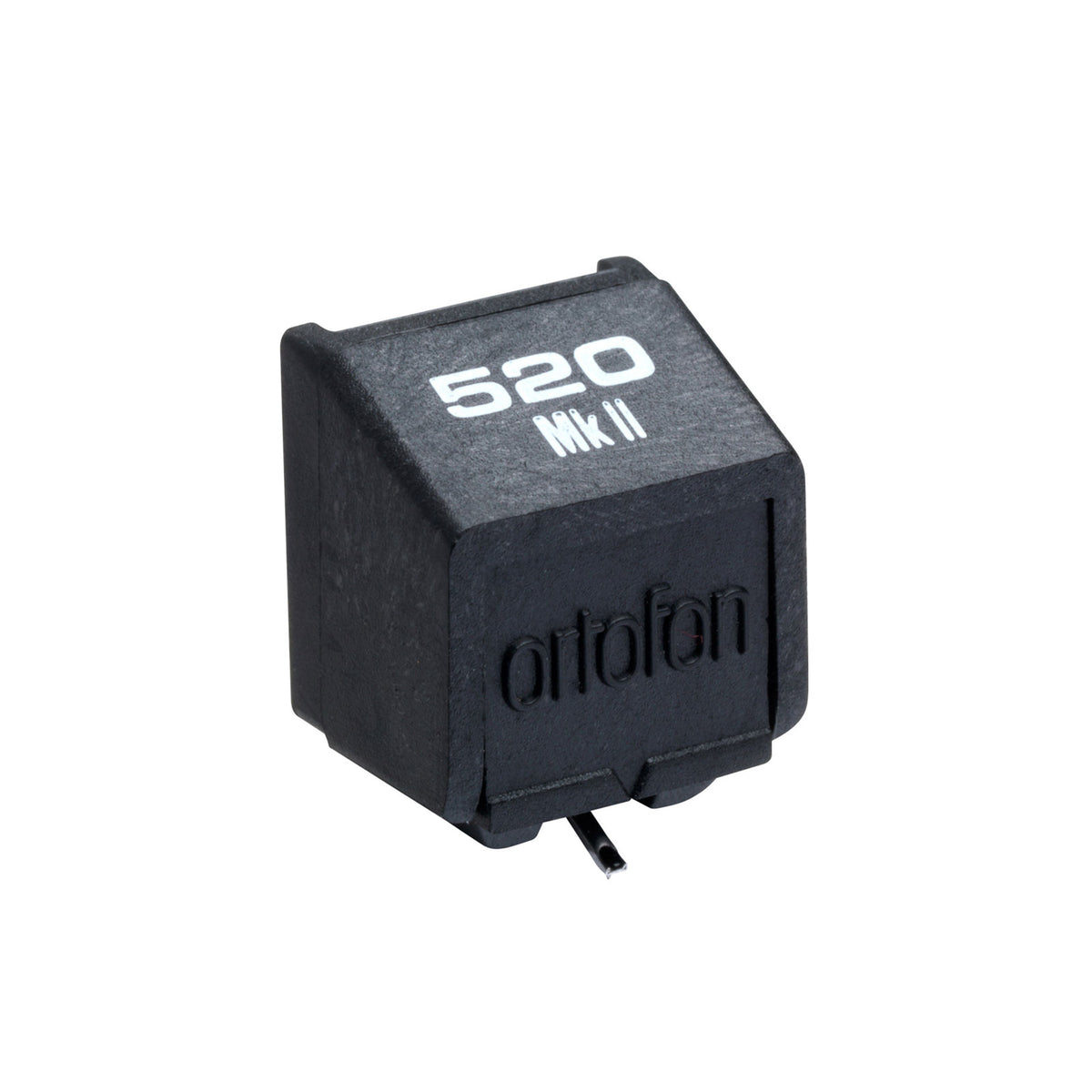

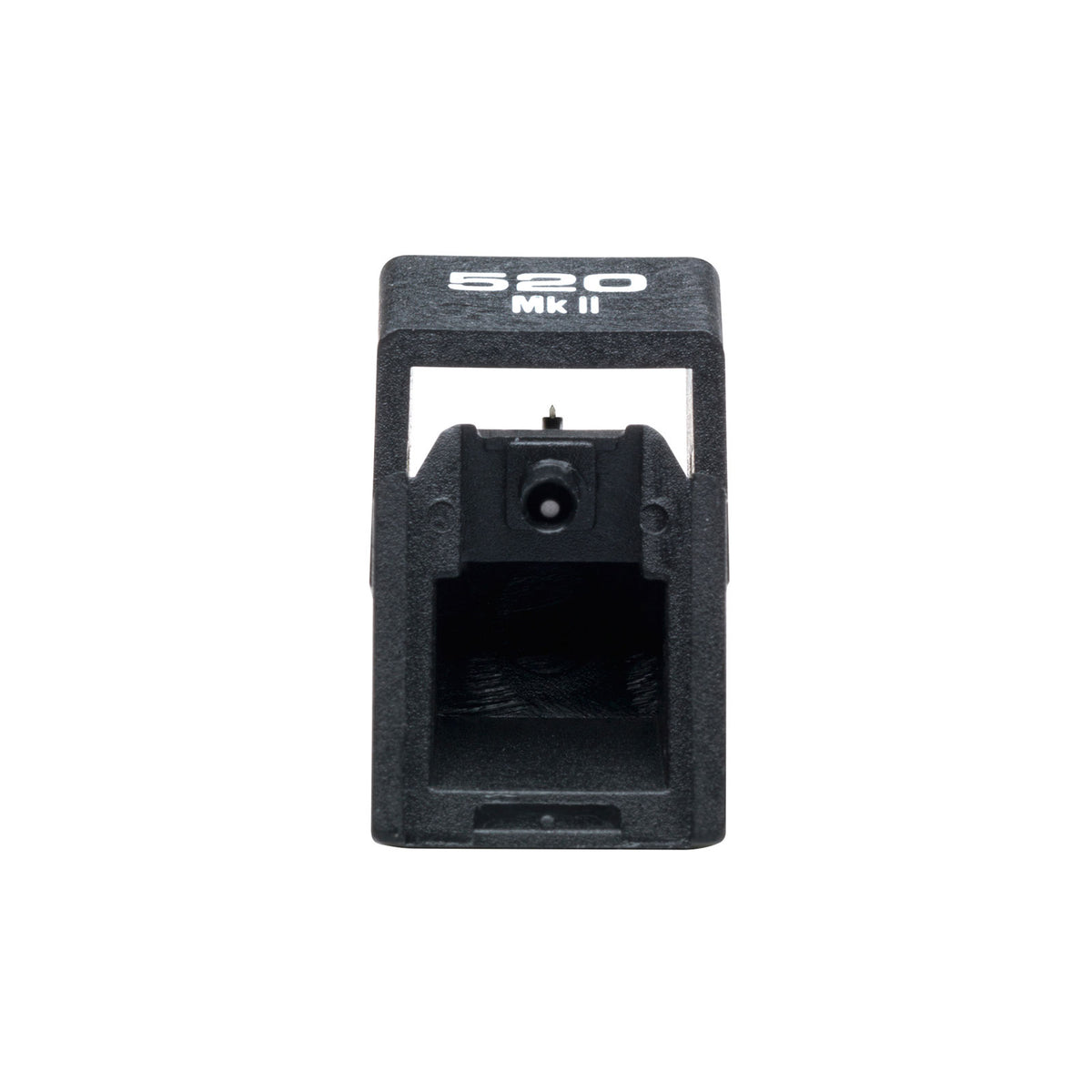

A Replacement Stylus Designed for Demanding Playback
This Nu Elliptical type diamond follows a precision-oriented approach: a finer tip than a conical profile, designed to better fit the groove and improve sound reproduction, while remaining easy to adjust and use daily.
For Whom and What Uses?
Ideal for vinyl enthusiasts and DJs seeking clean playback and good tracking stability. Suitable for both hi-fi listening and sets in "real life" conditions (studio, bar, events), provided the tracking force is respected.
Features and Innovations
The nu elliptical profile promotes reading precision and reduces sibilance, while the tracking force range of 1.25-1.75 g allows optimization depending on the tonearm and cartridge. Its lateral compliance of 25 µm/mN and 20-degree tracking angle contribute to balanced and stable reproduction.
Technical specifications
| Frequency response | 20 Hz - 22 kHz |
| DJing type | Monitoring, Mix |
| Category | diamond |
| Type | diamond |
| Destination | hifi |
| Diamond tip | elliptical |
| Color | Black |
| Quantity | 1 |
| Diamond | Nude / Elliptical tip |
| Stylus type | Nu Elliptical |
| Stylus tip radius | r/R 8/18 µm |
| Stylus color | Black |
| Tracking capability (315 Hz at recommended tracking force) | 70 µm |
| Lateral compliance, dynamic | 25 µm/mN |
| Tracking force range | 1.25-1.75 g (12.5-17.5 mN) |
| Recommended tracking force | 1.5 g (15 mN) |
| Tracking angle | 20 degrees |
Questions frequently asked
Is the Stylus 520 MK II suitable for hi-fi listening?
Intended for hi-fi, this diamond covers a frequency response from 20 Hz to 22 kHz. Its Nude Elliptical tip is designed to accurately follow the groove and reduce sibilance.
What tracking force should be set for this Ortofon Hifi Stylus 520 MK II diamond?
The recommended tracking force is 1.5 g, or 15 mN. The setting can be adjusted within a range of 1.25 to 1.75 g depending on the tonearm and cartridge.
Can the 520 MK II elliptical tip be used for mixing?
This model is suitable for listening and mixing, with a compliance to read 70 µm at 315 Hz under the recommended tracking force.
What are the dimensions of the elliptical tip?
The tip radius is 8/18 µm (r/R). This nude elliptical profile has a contact angle of 20°.
What lateral compliance does this stylus offer?
The specified lateral dynamic compliance is 25 µm/mN. This value contributes to stable playback when the tracking force is properly set. A black diamond is supplied individually.
