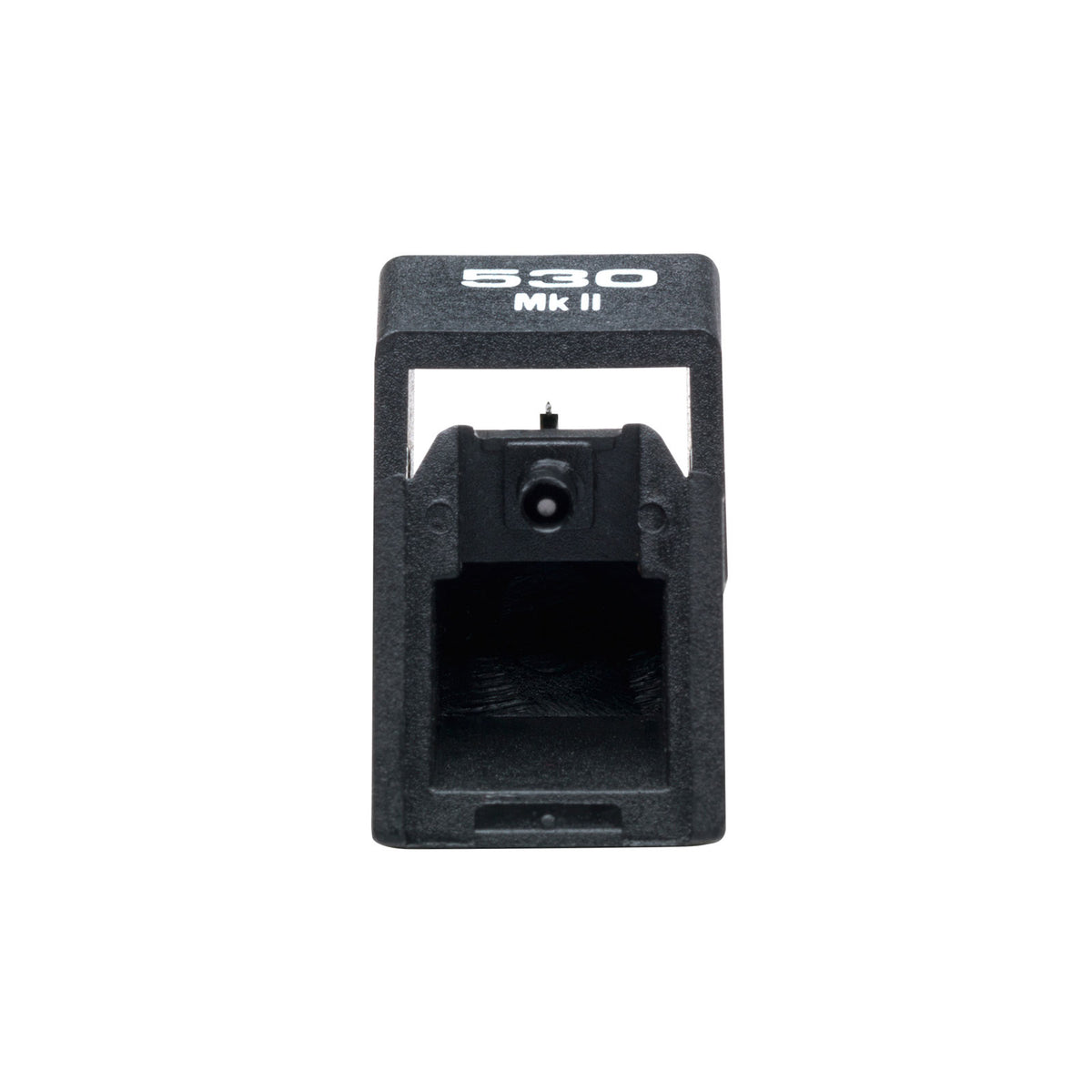

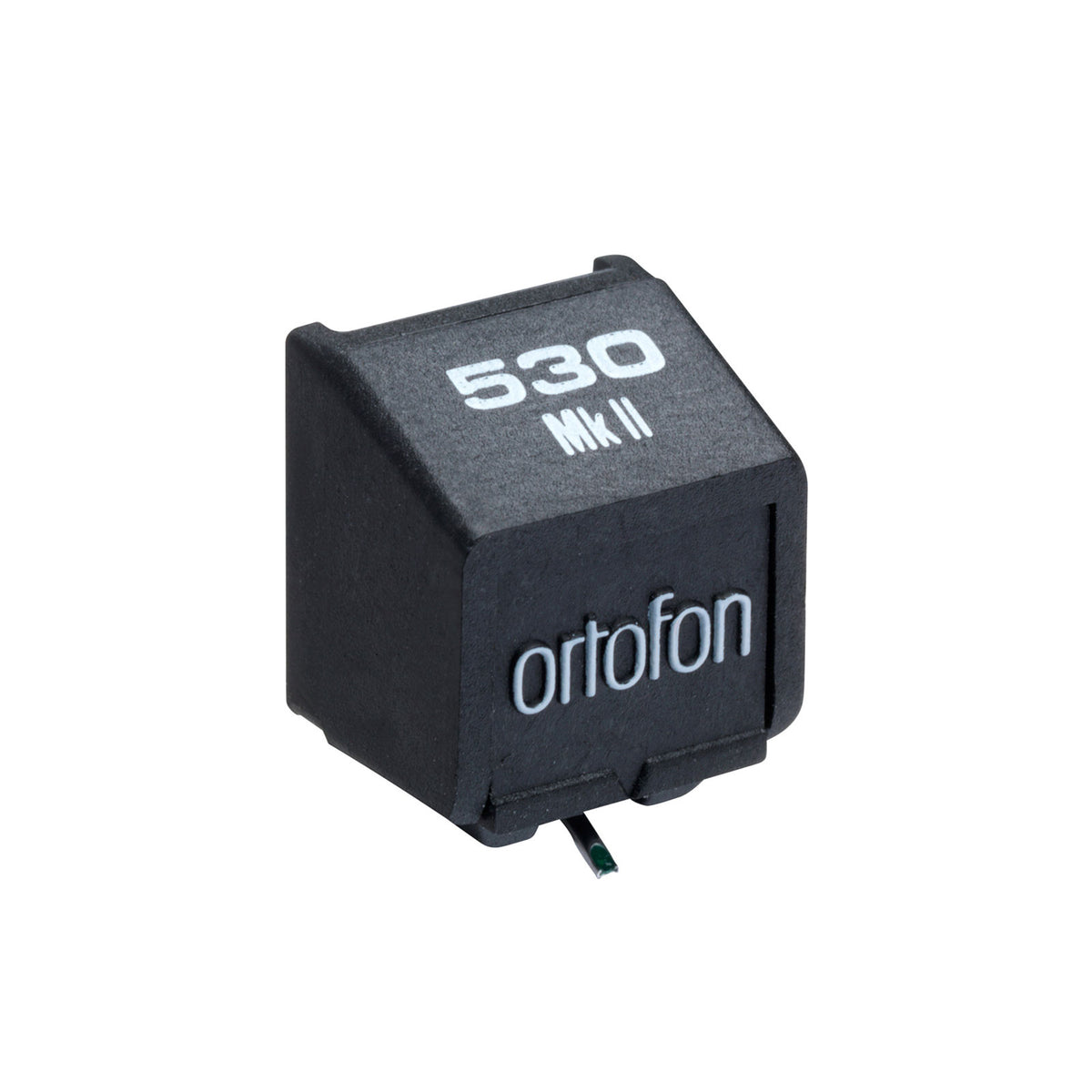

Ortofon Hifi STYLUS 530 MK II

Name: STYLUS 530 MK II
Brand: Ortofon Hifi
SKU: 387973
Price: 349.00 EUR
Availability: InStock

349,00 €VAT incl.

0,00 € Ecotax included

Reference price

Available on order

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 387973

EAN : 5705796150032

Information

Essential Information About the Fine Line (Line Contact) Platinum Diamond Compatible with 530 Series
• Fine Line / Line Contact Profile : excellent reading precision, ideal for revealing micro-details of the groove.
• Stable tracking with a reading capacity rated up to 70 µm (at 315 Hz, recommended tracking force).
• Wide frequency response : 20 to 20,000 Hz (+2 / -3 dB) for a balanced and detailed sound reproduction.
• Compatibility : recommended for 530 MkII, 530, and 530 P series.

STYLUS 530 MK II

349,00 €VAT incl.

0,00 € Ecotax included

Reference price

A Replacement Diamond Designed to Stay True to Your Cartridge

This replacement stylus features a "Fine Line" extended contact tip, designed to optimize groove reading while maintaining a precise sonic signature. It is intended for users wishing to restore the performance of their 530 series compatible setup, with clean tracking and nuanced playback.

Who Is It For, and What Are Its Uses?

This diamond is particularly suited for demanding vinyl enthusiasts, home Hi-Fi setups, and turntables used for critical listening. Its Line Contact profile is beneficial if you seek greater definition, better separation, and finer reading of recordings, including rich or highly dynamic pressings.

Features and Innovations

Thanks to its Fine Line geometry and 8 / 40 µm radius r/R, this stylus aims for a more optimized contact surface within the groove, promoting precision and stability. The tracking force range of 1.25 to 1.75 g (12.5 to 17.5 mN) allows adjustment according to your tonearm and setup, with a recommended force of 1.5 g (15 mN). The tracking angle is specified at 20 degrees, ensuring reading conforms to the intended geometry.

Technical specifications

DJing type	Monitoring
Category	diamond
Type	diamond
Destination	hifi

Diamond tip	Fine line
Color	Grey
Quantity	1

Diamond	naked tip / Line Contact
Stylus type	extra fine diamond "Fine Line"
Stylus tip radius	r/R 8 / 40 µm
Stylus color	black/grey

Frequency response	20-20,000 Hz +2 / -3 dB
Tracking capacity (315 Hz with recommended tracking force)	70 µm
Lateral compliance, dynamic	25 µm/mN

Tracking force range	1.25-1.75 g (12.5-17.5 mN)
Recommended tracking force	1.5 g (15 mN)
Tracking angle	20 degrees

Recommended for series

530 MkII, 530, 530 P

Questions frequently asked

Is the Stylus 530 MK II compatible with an Ortofon 530 cartridge?

This replacement diamond is recommended for the 530 MkII, 530, and 530 P series.

What tracking force should be set with this Fine Line stylus?

The recommended tracking force is 1.5 g. The allowable adjustment range extends from 1.25 to 1.75 g, that is 12.5 to 17.5 mN.

What tip profile does the Ortofon Hifi Stylus 530 MK II have?

The Fine Line tip has a radius r/R of 8 / 40 µm. This extended contact geometry is designed to optimize groove tracing. It promotes detailed playback on rich or dynamic pressings.
