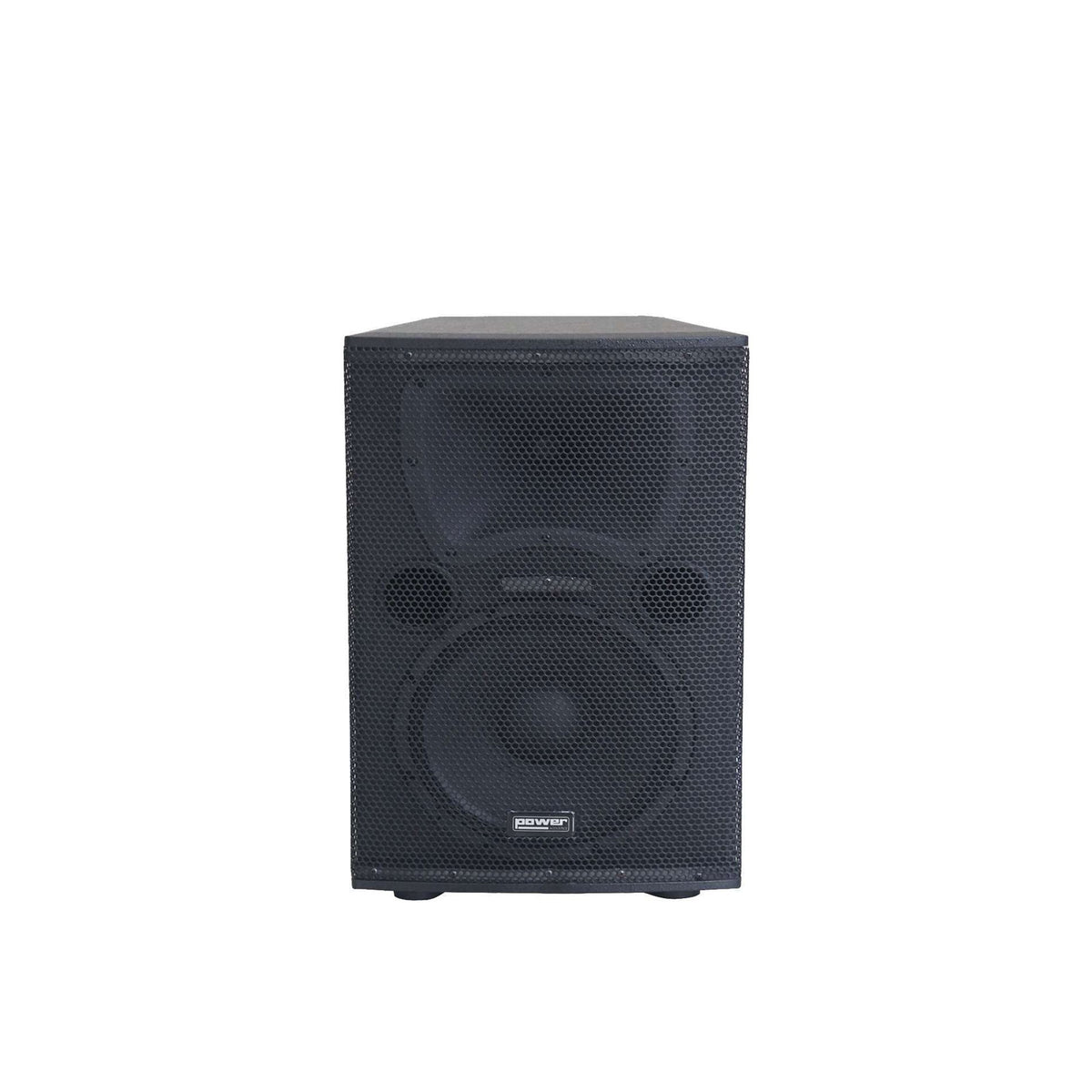

POWER ACOUSTICS SONORISATION Dys 112 V2

A Sound Reinforcement Speaker in the Tradition of 2-Way "Full-Range" Designs

2-way full-range passive speakers are a classic in sound reinforcement: they combine a large diameter woofer with a dedicated high-frequency driver to achieve a balanced, powerful, and intelligible sound while remaining simple to implement. With its 31 cm woofer and 34 mm titanium driver, this model follows this "efficient and direct" approach, suitable for both mobile setups and fixed installations.

Its format, MDF enclosure, and dual Speakon input connectors facilitate integration into an existing audio chain, whether as a front-of-house speaker or as a stage monitor thanks to the beveled edge.

Who Is It For and What Are Its Uses?

This speaker is aimed at musicians, DJs, associations, small venues, service providers, and places of worship seeking a robust and simple passive solution to pair with a suitable power amplifier. Its sensitivity of 96 dB (1W/1m) allows for a good sound level with properly sized amplification, while maintaining usable clarity for vocals, amplified instruments, and musical content.

Thanks to its compact dimensions (400 x 360 x 650 mm) and weight of 17 kg, it is easy to transport and position. The beveled edge allows floor placement oriented toward the artist, making it a relevant option for vocals, guitar, keyboards, or general stage monitoring.

Design, Components, and Key Points

A 2-Way Architecture for a Clearer Mix

The 2-way configuration divides the workload between the woofer (31 cm) and the tweeter (34 mm driver), promoting cleaner reproduction of midrange and high frequencies. The result is improved intelligibility of vocals and greater precision on transients (strings, percussion, attacks), while maintaining a present low end suitable for contemporary music.

Power and Durability: A Solid Foundation for Sound Reinforcement

With a rated power of 220W RMS (440W PROG, 880W MAX) and an impedance of 8 ohms, the speaker is designed to work with many sound reinforcement amplifiers. It is important to choose amplification consistent with the impedance and power rating to maintain headroom, limit distortion, and protect the drivers during dynamic peaks.

Speakon Connectivity: Convenient in Chains

The two Speakon connectors simplify wiring on stage and in installations: input from the amplifier, then pass-through to a second speaker if your setup allows. This type of connector is appreciated for its reliability and locking mechanism, particularly useful in live contexts.

MDF Enclosure and User-Oriented Finishes

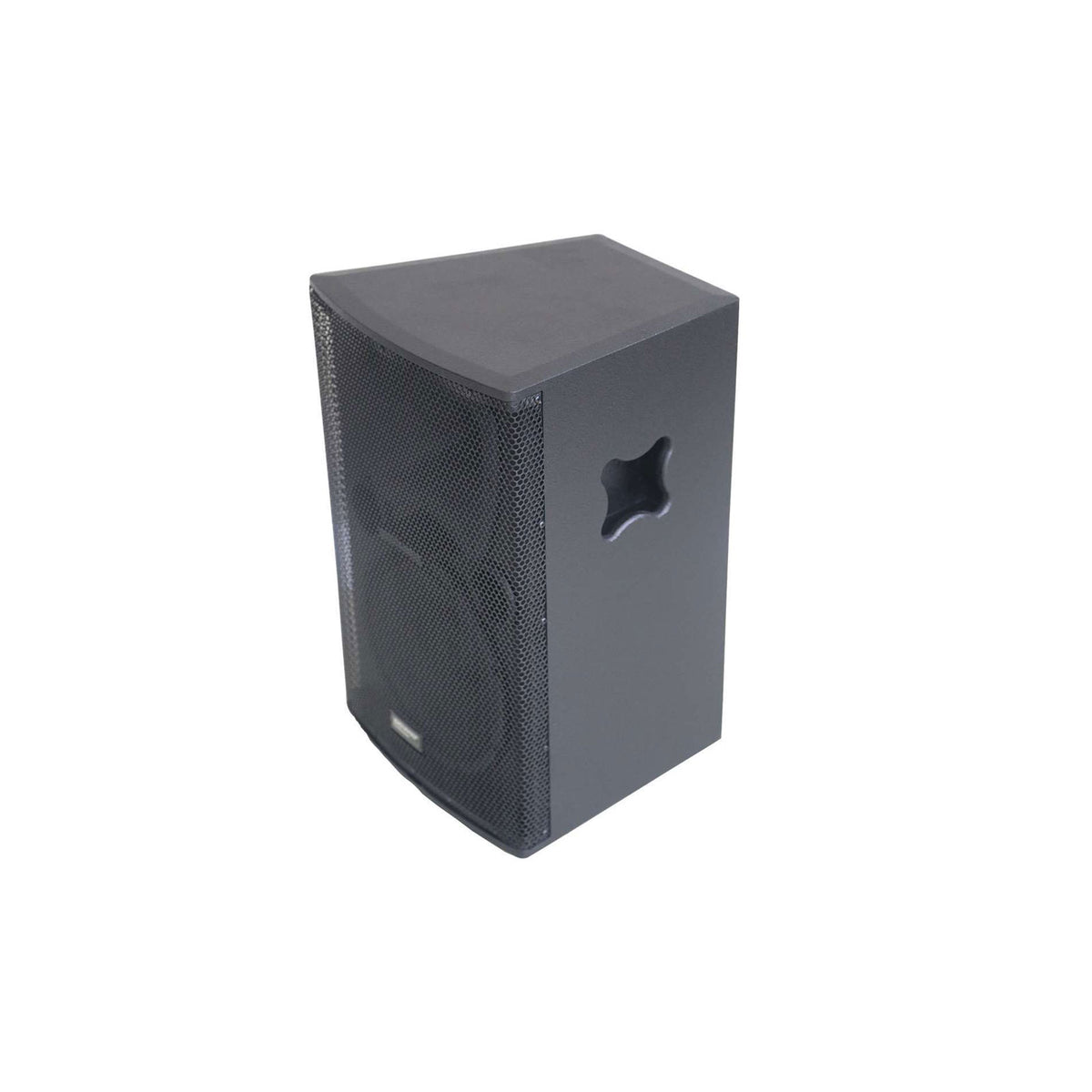

The MDF wood enclosure strikes a good balance between rigidity and vibration control. The granite black finish and two handles are suited for regular use (transport, setup, teardown). The beveled edge increases versatility by allowing monitor placement without additional accessories.

Technical specifications

Bluetooth

No

Type	2-way full-range	Sensitivity	96 dB (1W/1m)
Enclosure	MDF wood	Frequency response	50 Hz - 20 kHz
Finish	granite black	Connectors	Speakon x 2
Woofer	31 cm driver	Accessories	2 handles
Magnetic system	50 OZ	Beveled edge	yes, for monitor use
Tweeter	34 mm titanium driver	Dimensions (H x W x D)	400 x 360 x 650 mm
Power	220W RMS, 440W PROG, 880W MAX	Weight	17 kg
Impedance	8 ohms
