Power Studio DI 200A
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Essential Information About the DI 200A Active 2-Channel Direct Box
Essential Information About the DI 200A Active 2-Channel Direct Box
- Dual channel : easily connect two instruments or two line sources, ideal for both stage and studio use.
- Unbalanced to balanced conversion : transforms a high-impedance signal into a low-impedance balanced signal for clean console input.
- Less interference : the ground lift switch helps reduce buzz and hum caused by ground loops.
- Flexible power supply : operates via phantom power (18V DC to 48V DC) with an active design for a stable and controlled signal.
Manufacturer Information
Power Studio
https://www.sogetronic.fr
------------------------
Safety manager:
SOGETRONIC
Email:
Address:

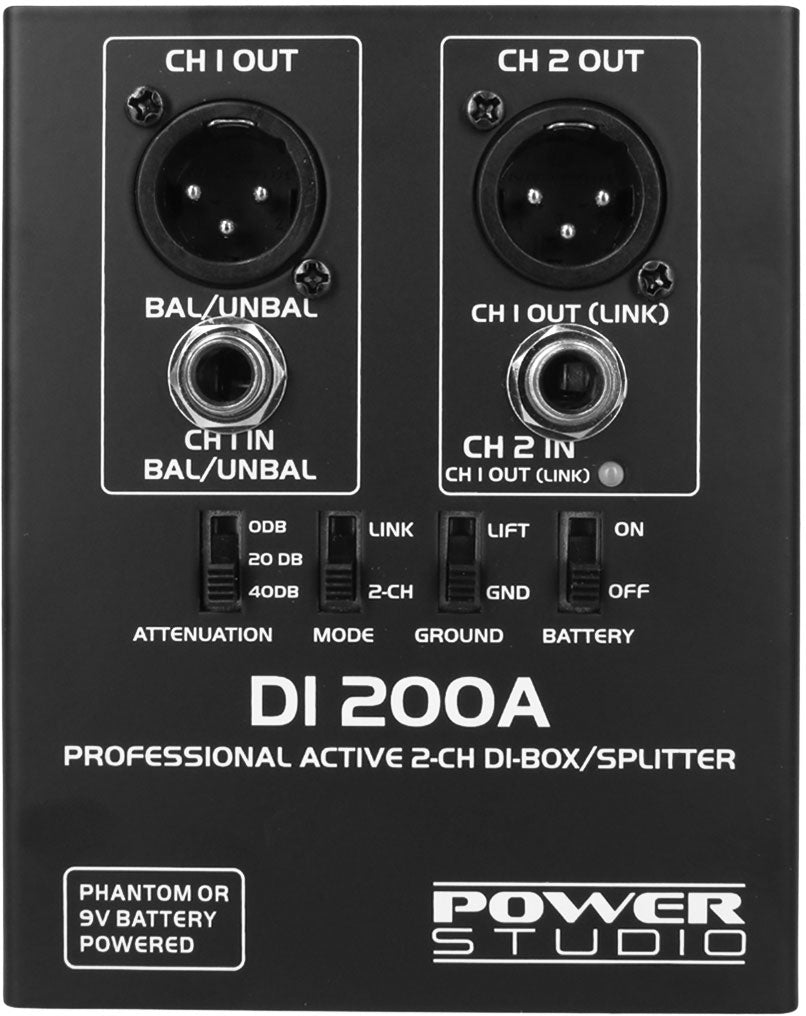

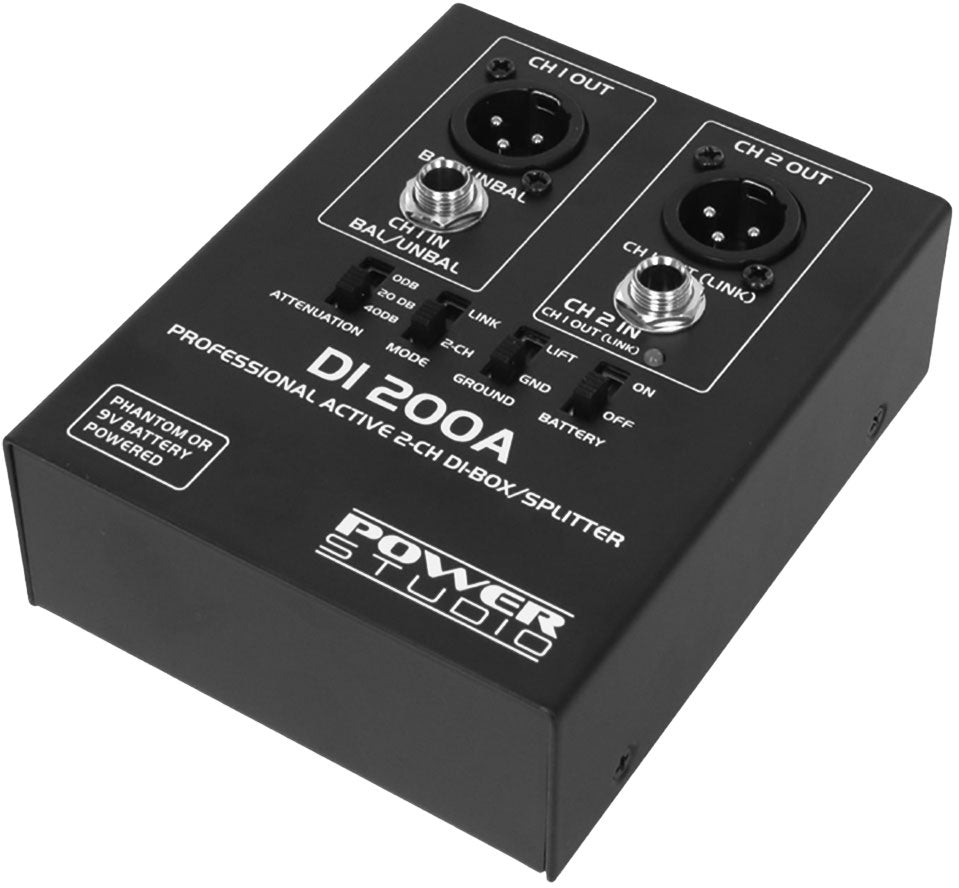

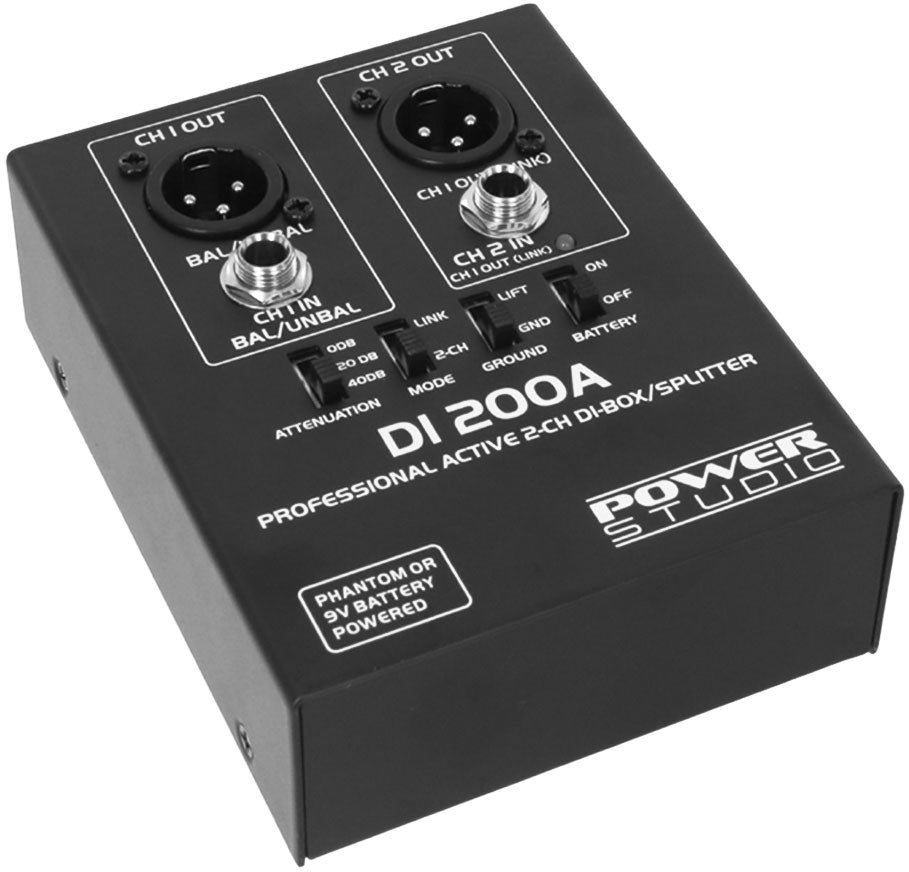

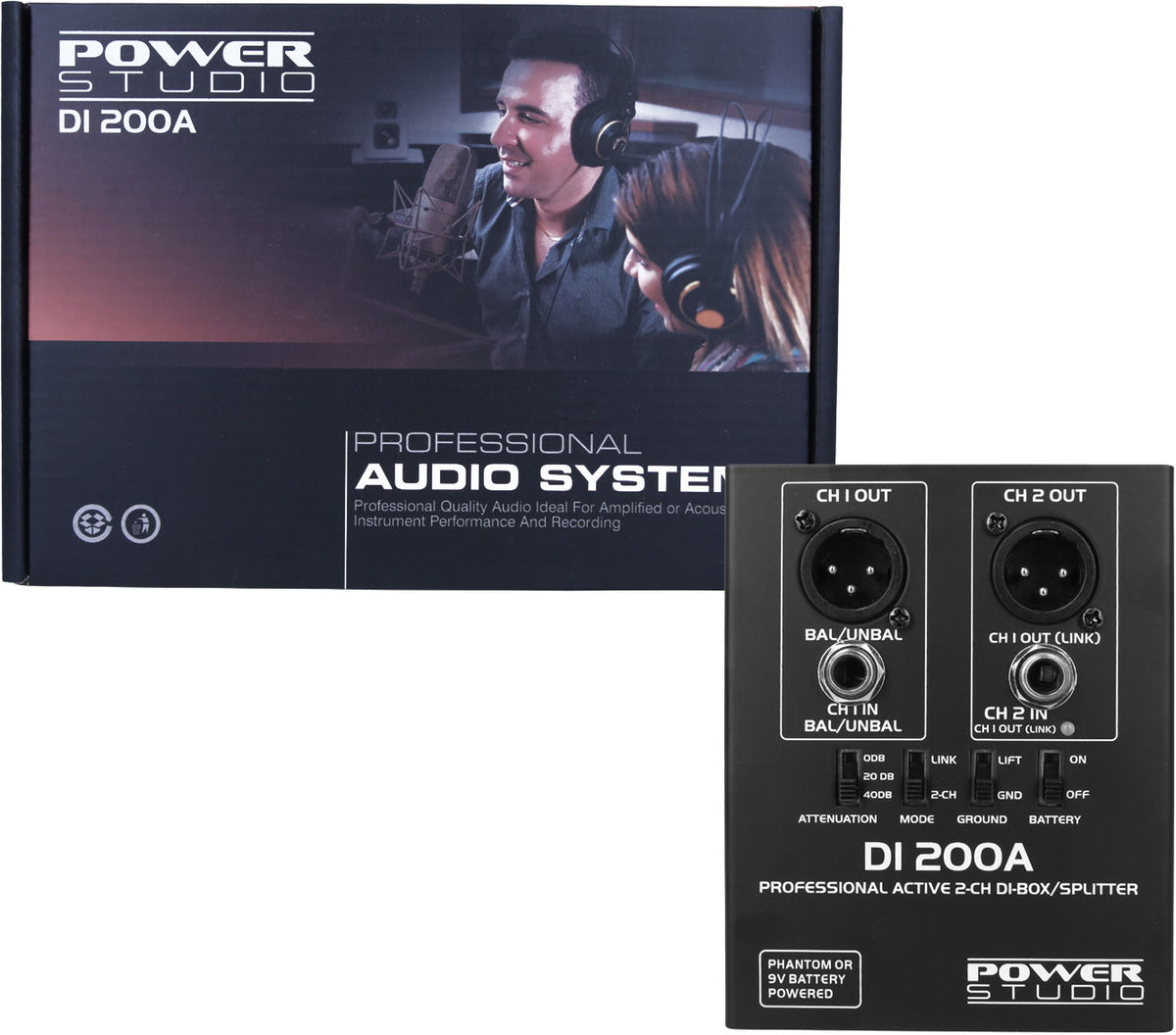

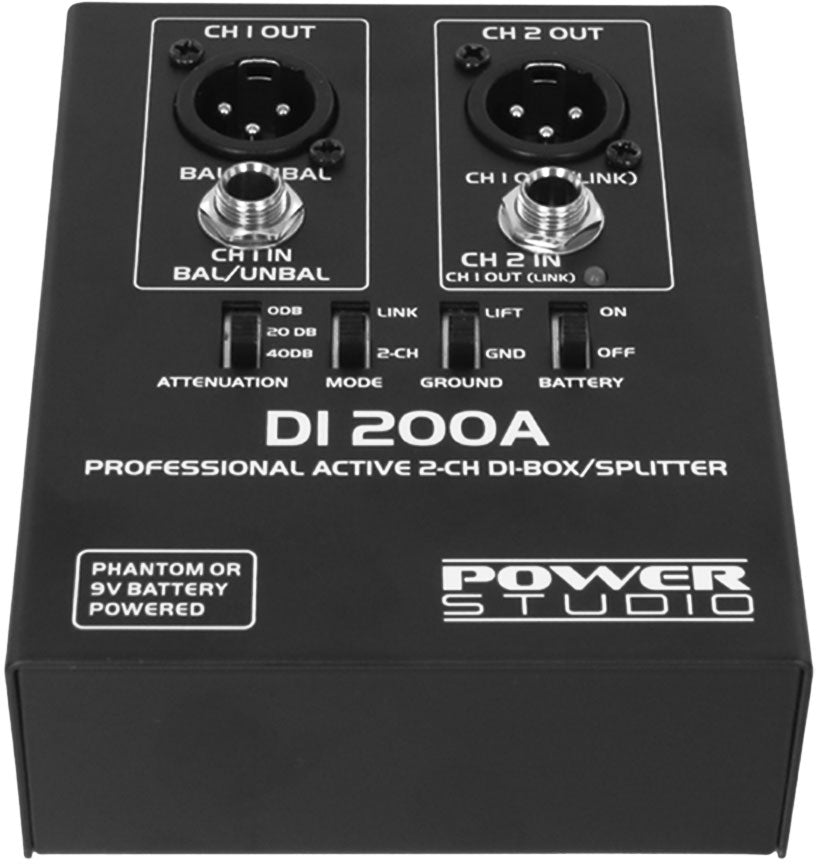

DI 200A: a dual-channel active direct box designed for modern setups
The DI 200A belongs to the family of active 2-channel direct boxes, designed to meet the current needs of musicians, technicians, and home studio users: increasing inputs, simplifying cabling, and ensuring reliable signal transmission. Its robust aluminum housing and sound reinforcement-oriented connectivity make it a practical tool to keep close to the stage, rack, or recording station, especially when managing multiple sources and long cable runs.
Who is it for and what are its uses?
This direct box is intended for those who want to retrieve a clean and usable signal from a guitar, bass, keyboard, sound module, or any unbalanced source. By converting a high-impedance unbalanced signal into a low-impedance balanced signal, the DI 200A facilitates input into a mixing console, audio interface, or recording system while improving signal integrity over long distances. It is a relevant choice for concerts (quick patching, quieter stage), rehearsals (reliable setup), and studio work (clean direct input, better controlled levels).
Technical specifications
| Number of channels | 2 | Type | Box |
| Rackable | No | Color | Black |
| Category | audio converter | ||
You will also like
LD Systems
LDI 02 - ACTIVE DIRECT BOX
Klark Teknik
Pro DI AV 2 DI 22P - Passive Stereo DI Box
Samson
MD1 - S-MAX SERIES MONO PASSIVE DIRECT BOX
DBX
Djdi
Klark Teknik
DN100 V2
Klark Teknik
PRO DI 2 DI 20P
Klark Teknik
PRO DI DI 10P
Palmer
PAN 02 PRO - ACTIVE DIRECT BOX
Questions frequently asked
Can the Power Studio DI 200A handle a guitar and a keyboard at the same time?
The 2 channels allow processing of two distinct sources, such as a guitar and a keyboard. The Link/2-CH switch adjusts the routing according to the selected patch.
What power supply is required for this active DI?
Phantom power from 18 V DC to 48 V DC is accepted. No other power options are specified.
Are the outputs suitable for a mixer located far from the stage?
The balanced XLR outputs deliver a low impedance signal of 250 ohms, suitable for long cable runs. The conversion is made from an unbalanced high impedance signal. The stated frequency response ranges from 10 Hz to 70 kHz.
How to avoid saturation with a high-level source?
Three attenuation settings are available: 0 dB, 20 dB, and 40 dB. They allow level adjustment for a keyboard, a preamp, or another more powerful source.
Does the DI 200A have a headphone output?
A 3.5 mm mini-jack headphone socket is integrated for signal monitoring. The aluminum housing measures 150 x 130 x 60 mm.
