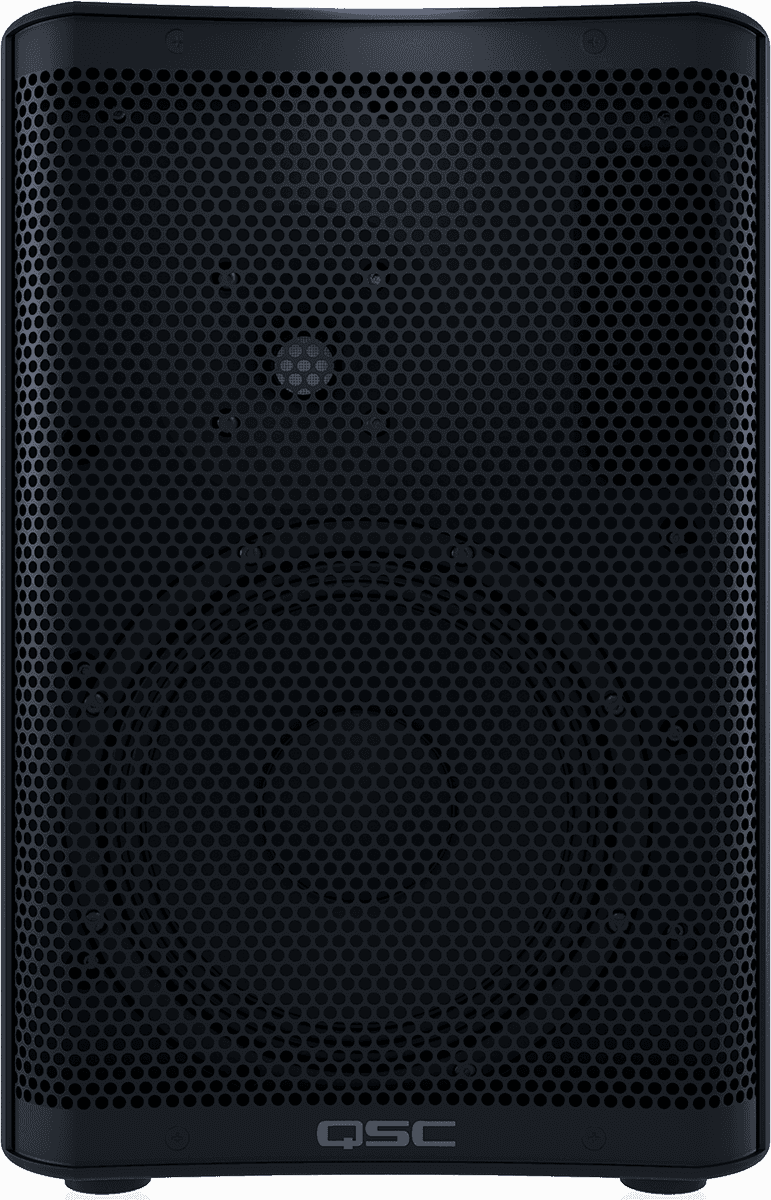

Essential Information About the QSC CP8 Active Speaker
- Controlled Power: 500 W RMS (1000 W peak) via Class D amplifier for levels up to 124 dB.
- Intelligent DSP: "Intrinsic Correction" processing for consistent performance and effective protection.
- Ultra-compact Format: 8-inch woofer, robust enclosure, and only 9.50 kg.
- Immediate Versatility: front-of-house, stage monitor, or fixed installation, with full connectivity and 35 mm pole mount.
The CP8, the Compact Spirit of the CP Series by QSC
Within the CP series (CP8/CP12), the CP8 condenses QSC's DNA into a particularly elegant and robust format. Every line of its enclosure has been designed to offer a discreet speaker, easy to integrate and ready to deliver a faithful response. Drawing on over 50 years of expertise in professional sound reinforcement, QSC emphasizes reliability and daily efficiency here.
For Stage, Events, and Installation
Whether you are a musician, DJ, technician, or venue operator, the CP8 adapts: as a front-of-house speaker on a stand, a stage monitor, or permanently mounted. Its small footprint, light weight, and intuitive connectivity allow for a clean and quick system deployment without compromising clarity and projection.
Power, Control, and Clarity Serving the Mix
The 2-way architecture, 8-inch woofer, and 1.4-inch compression driver form a tight and precise ensemble. The Class D amplification delivers 500 W continuous with a 1000 W peak reserve, while the "Intrinsic Correction" DSP optimizes response and protects the transducers. The 90-degree axisymmetric coverage ensures even dispersion, ideal for varied audiences or tight stages, with an extended frequency range from 56 Hz to 20 kHz (-6 dB).
Technical specifications
| Battery | No | Baseplate width | 35 mm |
| Category | Soundsystem | Cutaway | Yes |
| Type | active speaker | Frequency response | 53 Hz - 20 kHz, 56 Hz - 20 kHz |
| Peak power | 1000 W | SPL max | 124 dB |
| Number of channels | 2 channels | Speaker structure | polypropylene |
| Amplification | Active amplified | Transport | 1 handle |
| Application | Facade, Stage monitor | Inputs | minijack, 2 x combo XLR/jack |
| Bluetooth | No | Outputs | XLR mix out |
| Connection | Combo, XLR Link, XLR | Color | Black |
| Speaker diameter | 8", 1,4" | Finishing | Black & chrome |
| Number of speakers | 2 | Power output | 500 W |
| Tweeter | 1,4" | Weight | 9.5 kg |
| EQ | Yes | Dimensions (mm) | 411 x 273 x 256 |
| Design | 2-way active speaker | Auxiliary Input | 1x minijack TRS (stereo) |
| Frequency Response (-6 dB) | 56 Hz - 20 kHz | Output | 1x male XLR (Mix output) |
| Frequency Response (-10 dB) | 53 Hz - 20 kHz | Enclosure | polypropylene |
| Max SPL (Peak @ 1 m) | 124 dB | Mounting | 35 mm pole mount |
| Nominal Coverage | 90 deg axisymmetric | Net Weight | 9.50 kg |
| Woofer | 8-inch cone | AC Consumption | 100 VAC 0.75 A - 240 VAC 0.31 A |
| RMS Power | 500 W (Class D) | Accessories (not included) | cover, soft case, and mounting system |
| Processing | DSP with "Intrinsic Correction" | Warranty | 3 years + 3 years**6-year warranty when the new product is registered on the QSC website within 30 days of purchase |
Questions frequently asked

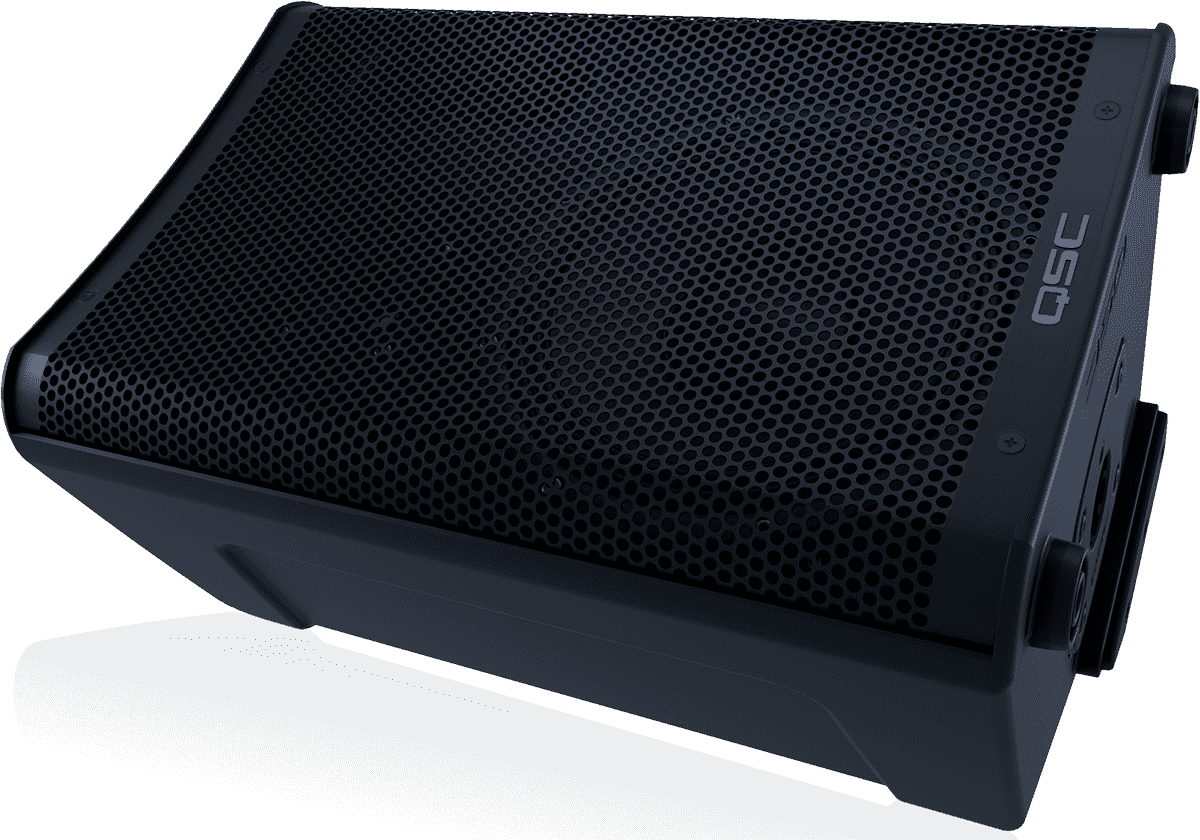

Can the QSC CP8 be used as a stage monitor?
Its 2-way format can be used as a main speaker or as a stage monitor. The polypropylene enclosure houses an 8-inch woofer and a 1.4-inch compression driver.
What power and sound level does this active speaker provide?
The Class D amplification delivers 500 W continuous and 1000 W peak. The maximum advertised sound pressure level reaches 124 dB SPL at 1 meter.

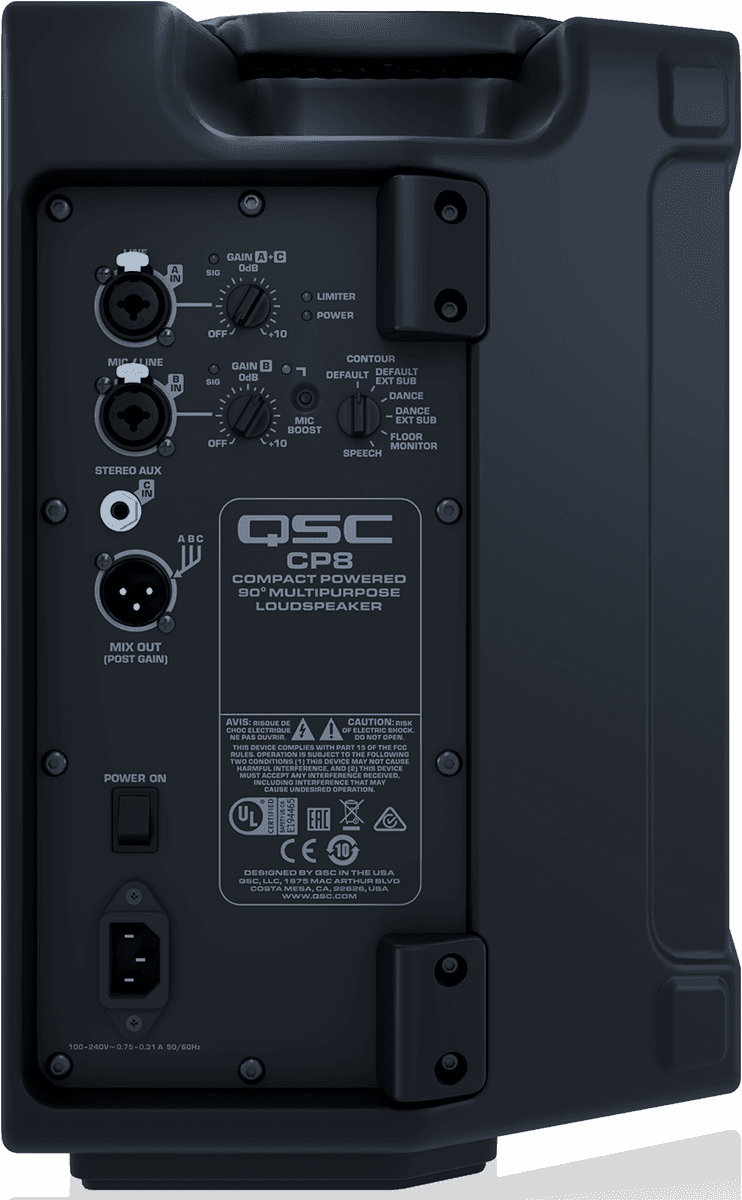

What inputs are available on the CP8?
There are two XLR inputs and a stereo mini-jack TRS auxiliary input. A male XLR Mix output allows sending the mix to another speaker.

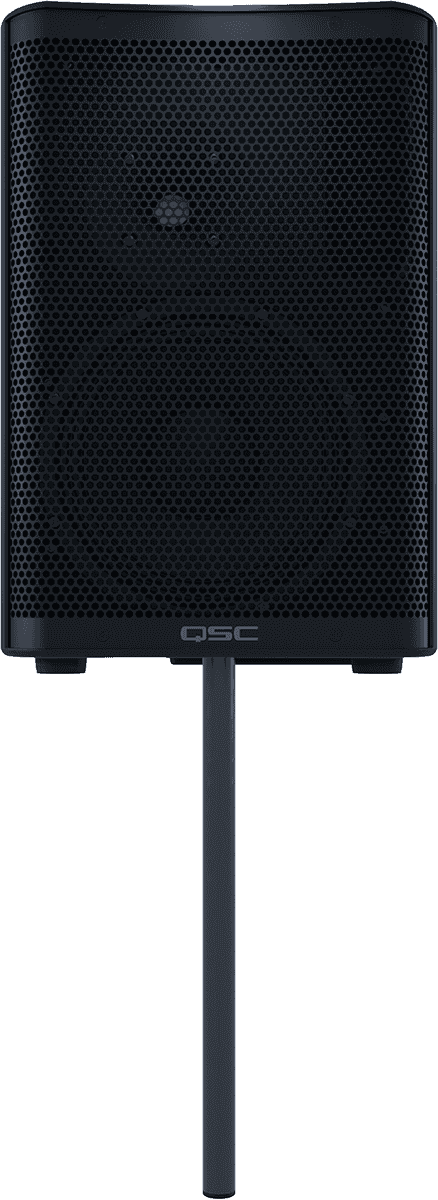

Can the CP8 be mounted on a speaker stand?
A 35 mm pole mount enables stand installation. Weighing 9.5 kg with dimensions of 411 x 273 x 256 mm, the speaker remains compact when deployed.
What is the sound coverage and bass response?
The nominal axisymmetric coverage of 90° ensures even dispersion. The frequency response ranges from 56 Hz to 20 kHz at -6 dB, and from 53 Hz to 20 kHz at -10 dB. The Intrinsic Correction DSP optimizes response and protects the drivers.
