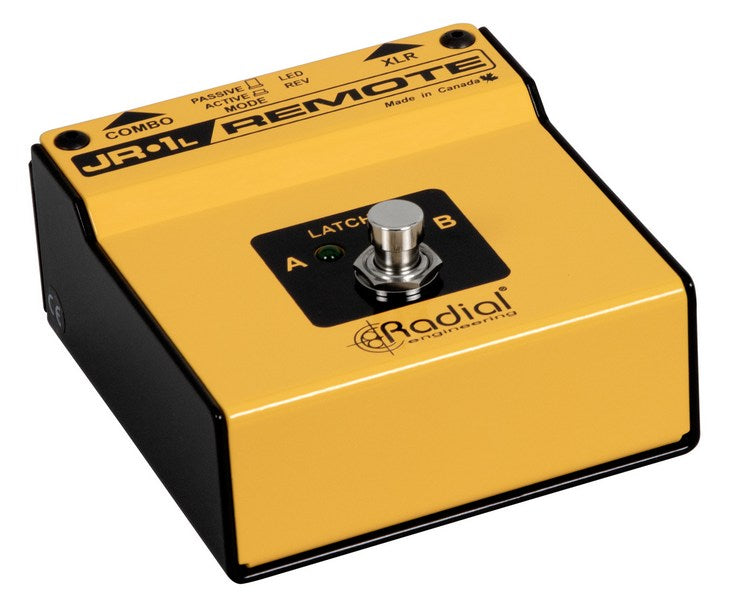

A Radial Accessory Designed for Studio and Stage Workflows
Designed to integrate into the Radial ecosystem, the JR1-L addresses a concrete need: triggering a function remotely without letting go of your instrument. In environments where takes, settings, and routings alternate (studio, control room, live), a dedicated footswitch provides direct, fast, and coherent control within an existing setup.Who and What: Direct Foot Control
The Radial JR1-L is aimed at guitarists, bassists, keyboardists, technicians, and sound engineers who want to switch a function with their foot (for example, an A/B selection) while keeping their hands on the instrument or console. Ideal when you need to chain sections, recall a configuration, or control routing without interrupting the performance.Passive Operation and "L" Switching Logic
Mechanical contact, zero power
As a passive device, the JR1-L uses a mechanical switch that shorts the positive to ground. This allows for simple, robust operation without power requirements, convenient both on tour and in the studio.6.35mm Jack or XLR Connectivity

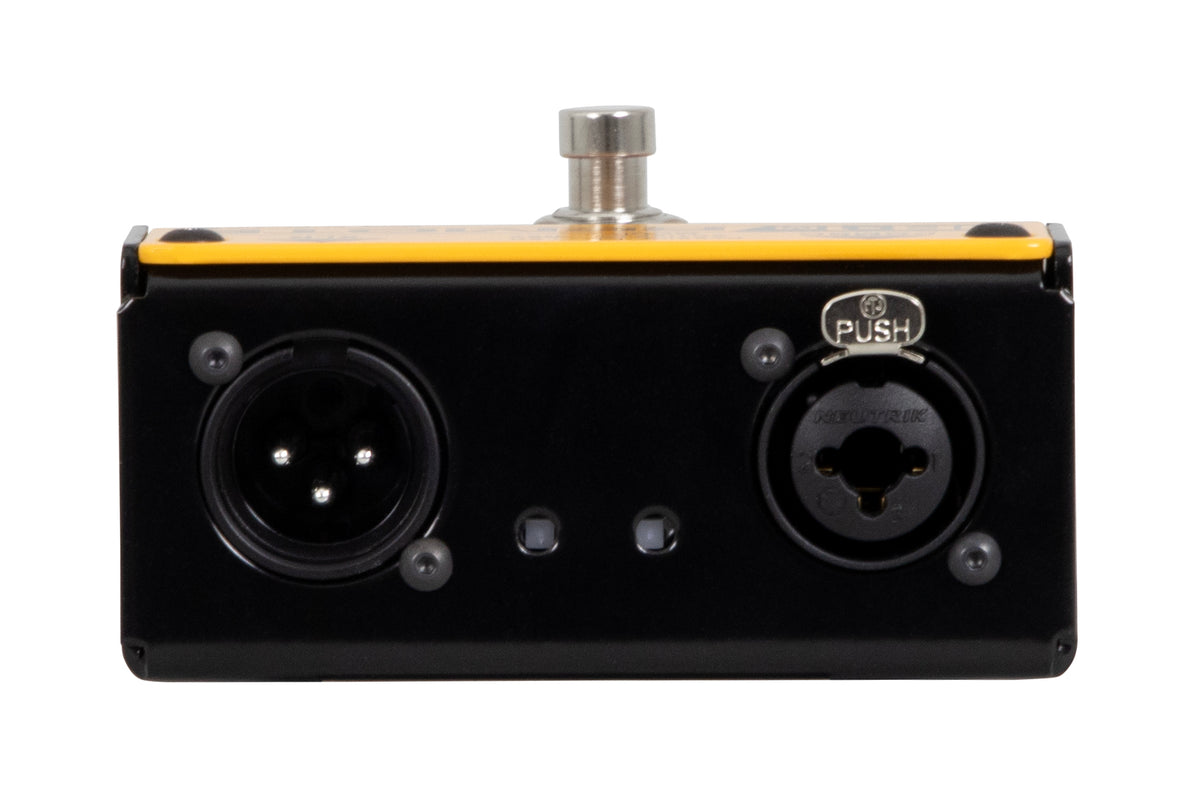

Control can be achieved via 6.35mm Jack or XLR connections, depending on the Radial equipment being controlled. The "L" (locking) version is particularly suitable when you want to maintain a state (A or B, active/inactive) without keeping your foot on the pedal.Technical specifications
| Number of lanes | 2 |
| Category | footswitch |
| Destination | Radial compatible products |
| Led indicators | 2 |
| Color | Yellow |
| Intended for | compatible Radial products |
| Number of channels | 2 |
| Type | passive (no power required) |
| Version | "L" locking |
| Control connections | 6.35mm Jack or XLR |
Questions frequently asked
Does the Radial JR1L operate without power?
Its passive circuit uses a mechanical switch and requires no power supply.
What is the difference between the L version and a momentary footswitch?
The "L" version has a latching function: each action holds the selected state. It is suitable for maintaining an A/B or on/off function without continuous pressure on the pedal.
Which devices can be controlled with this footswitch?
This model is designed for Radial products compatible with foot control. It allows switching a function such as A/B selection while keeping hands on the instrument or console.
Radial JR1L footswitch connection: jack or XLR?
Control connections accept either a 6.35 mm jack or an XLR, depending on the Radial equipment being controlled. The choice depends on the control input available on the compatible device.
How many LEDs does the JR1L have?
Two LED indicators are integrated to show the status of the two channels. The enclosure is yellow, and the switch shorts the positive to ground.
