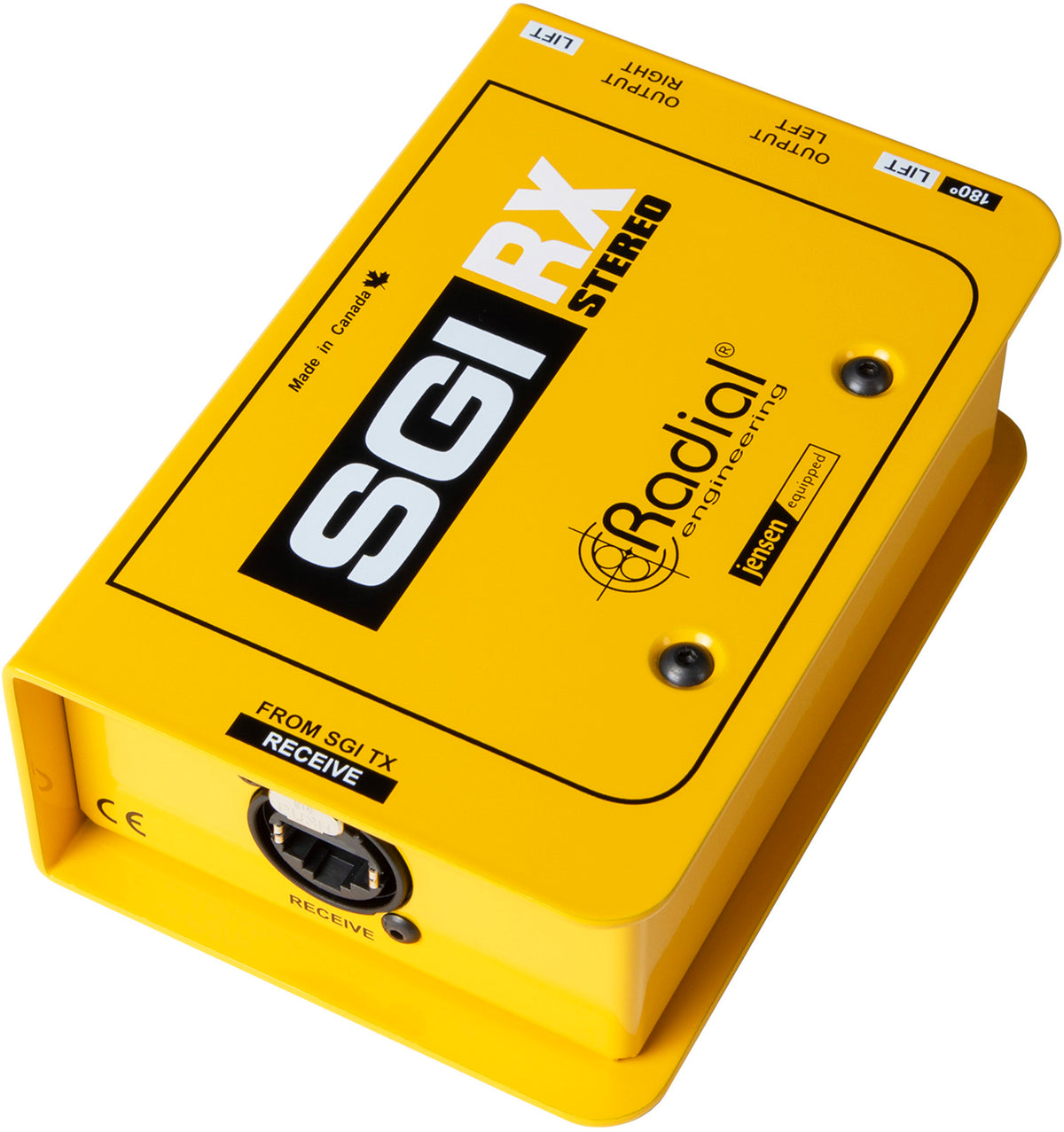

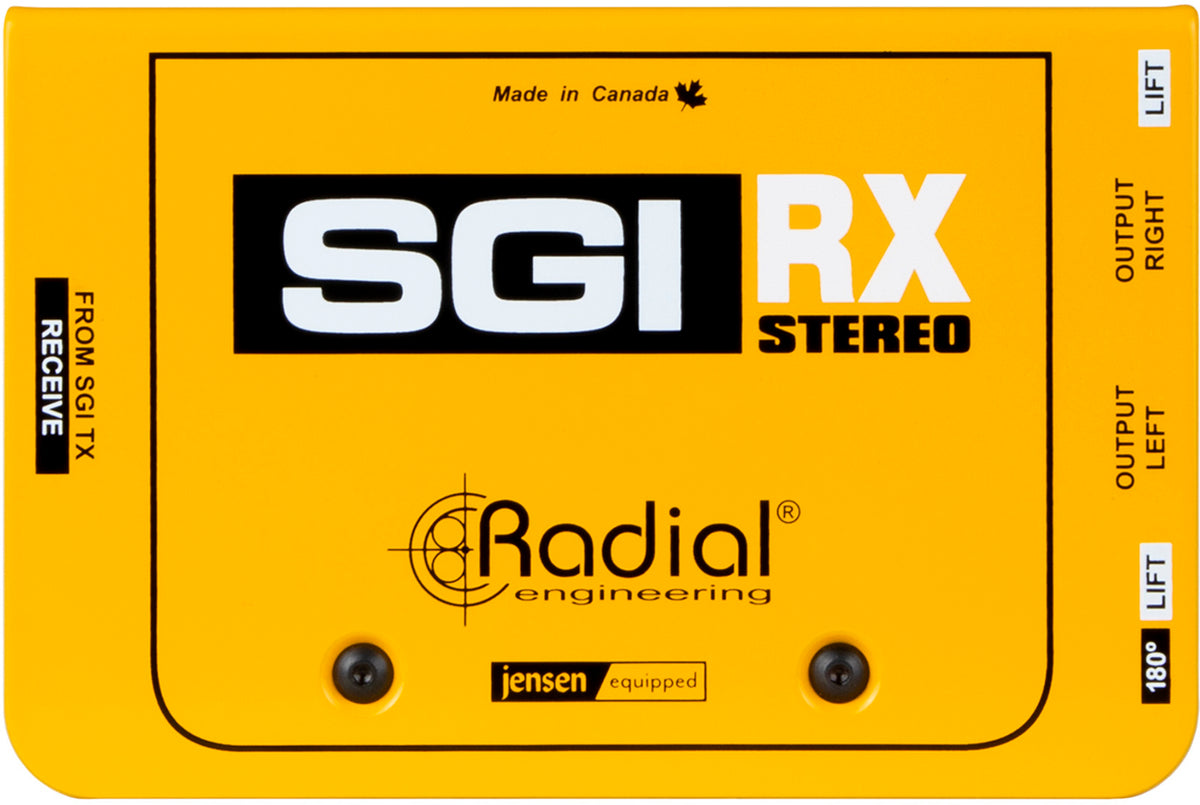

Radial SGI-STEREO-RX
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Essential Information About the SGI Stereo Receiver Signal Extender
Essential Information About the SGI Stereo Receiver Signal Extender
- Receiver dedicated to the SGI Stereo system: designed for easy integration into a stereo transmission chain.
- 2 channels: coherent stereo playback for stage, studio, or installation setups.
- EtherCon connectivity: robust and secure format, suitable for demanding environments.
- Built-in preamp + 2 jack outputs: facilitates level adjustment and connection to your equipment.
Manufacturer Information
Radial
https://www.radialeng.com
info@radialeng.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
A receiver designed to complement an SGI Stereo system
This model is a receiver for the SGI Stereo system. Its role is to serve as the receiving link in a signal extension solution: a particularly useful approach when the stereo source needs to be used remotely while maintaining a clear and structured setup. With its compact format, EtherCon connectivity, and field-oriented construction, it naturally fits into a configuration where reliability and quick installation matter.
Its yellow color code also provides a practical advantage: on stage, in the control room, or in a rack, visual identification is immediate, which limits patching errors and speeds up stage changes.
Who is it for and what is it used for?

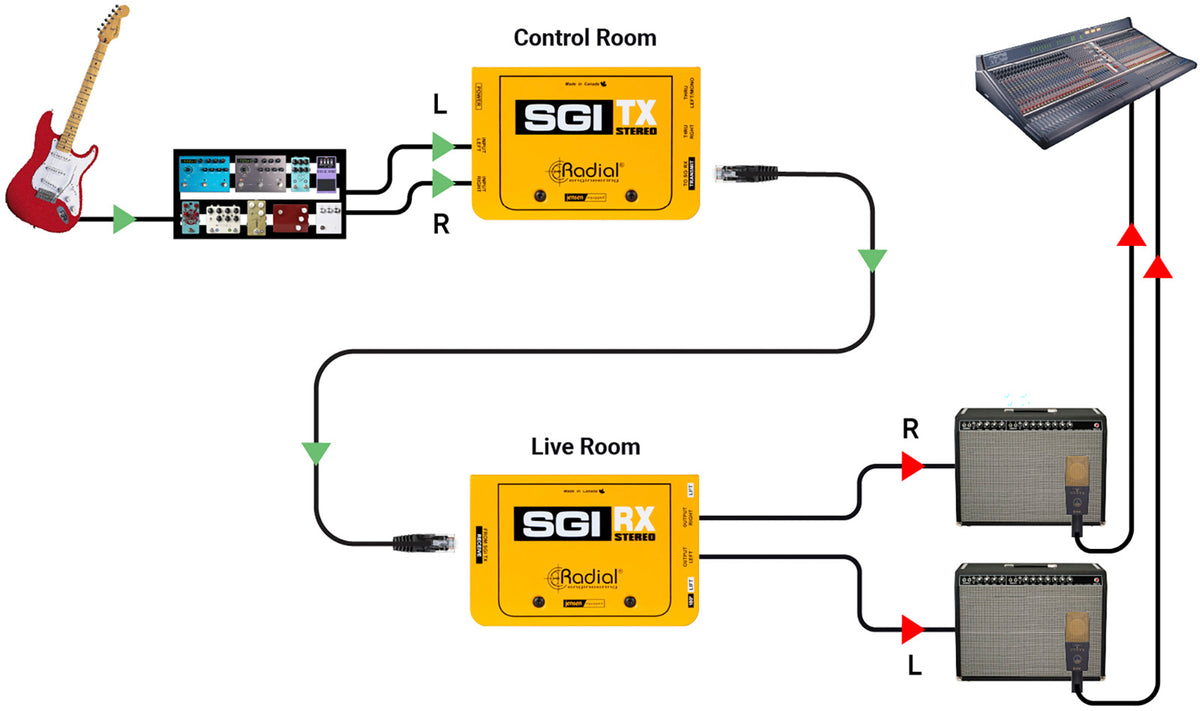

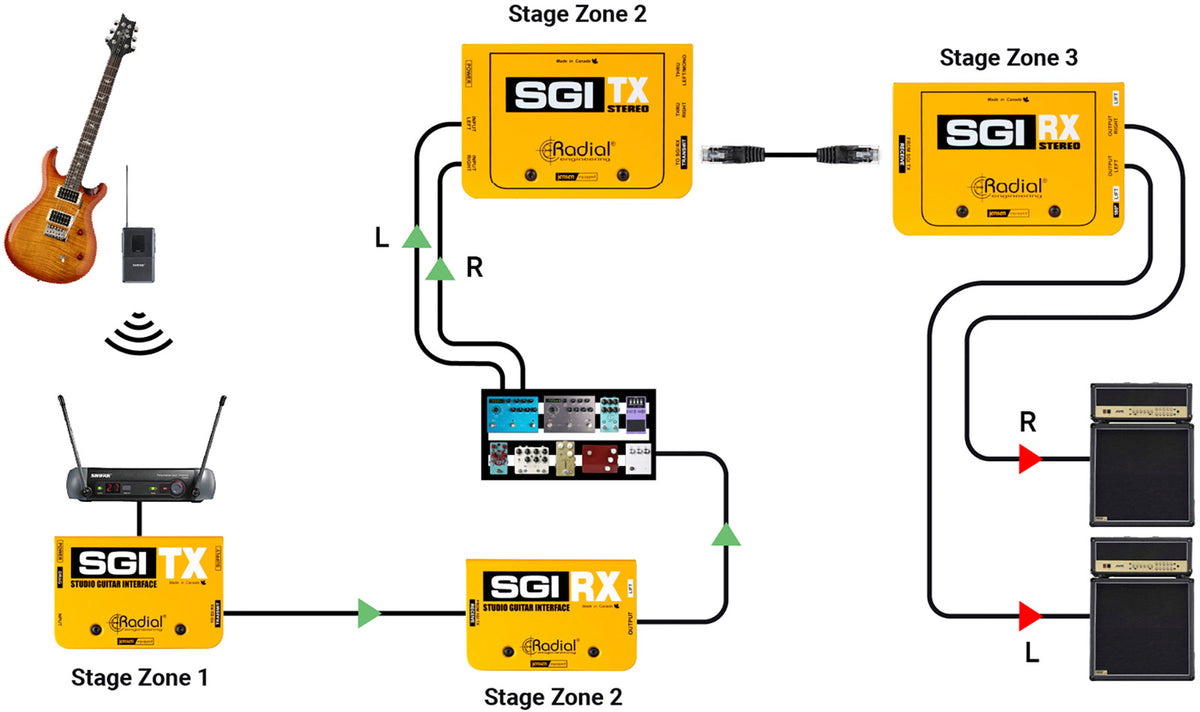

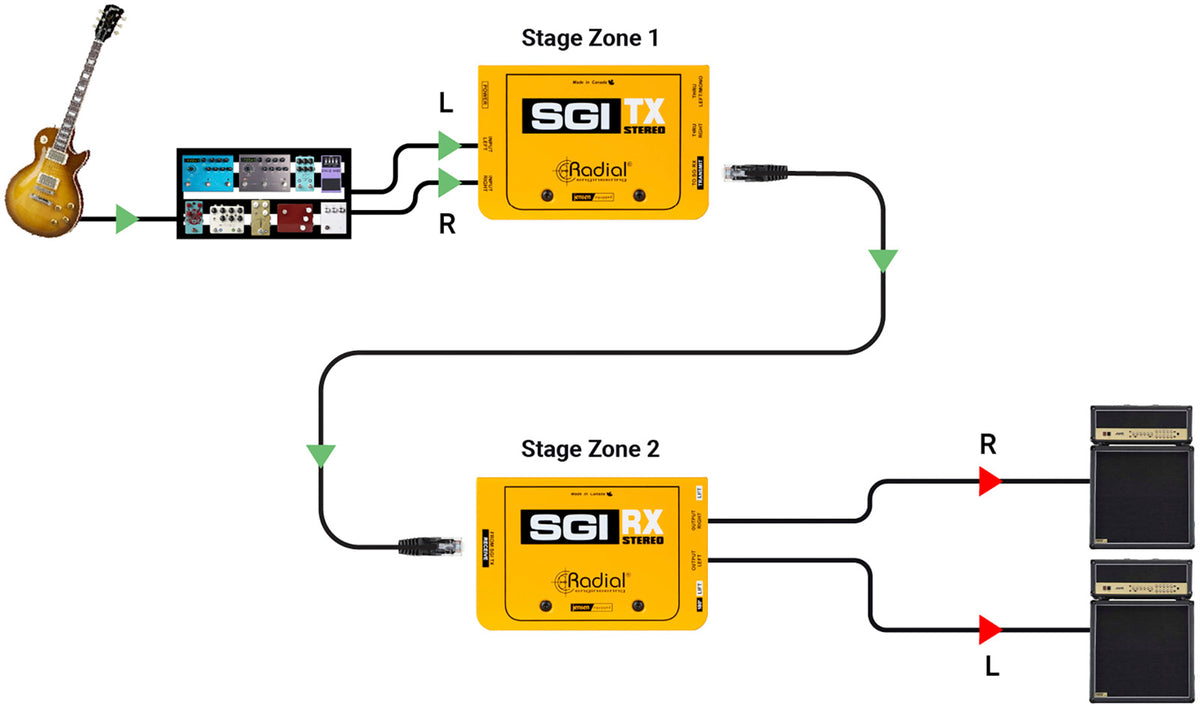

This signal extender is aimed at musicians and technicians who need to retrieve a stereo signal at the receiving end, then easily distribute it to standard equipment via its 2 jack outputs. It is relevant for uses such as a remote stereo pedalboard, monitor management, a link between an instrument area and a control room, or a fixed installation requiring a clean and secure routing.
Thanks to its 2 channels, it is suitable both for stereo instruments and sources (keyboards, multi-effects, players) and for situations where you simply want to separate two signal lines. Its size and weight remain compatible with frequent transport and mobile use.
Technical specifications
| Category | signal extender | Color | Yellow |
| Number of channels | 2 | Ports | EtherCon |
| Integrated preamp | Yes | Weight | 0.8 kg |
| Analog outputs | 2 x jack | Dimensions (mm) | 70 x 108 x 44 |
You will also like
Radial
J48 CLASS A ACTIVE DI BOX 48V PHANTOM POWERED
Radial
JDI PASSIVE-DI
Radial
PRO AV2 - PASSIVE MULTIMEDIA DI STEREO
Radial
J33 PHONO RPEAMP DI
Palmer
Pan 16 Pro
Radial
X-Amp Active Reamper
Palmer
PRMMS8 PRO - 8-CHANNEL MICROPHONE SEPARATOR
Montarbo
MDI-2M
Questions frequently asked
Does the Radial SGI-STEREO-RX work with an SGI Stereo system?
This model is designed as a receiver to complement an SGI Stereo system. It captures the signal at the destination point to distribute it via two jack outputs. Its two channels allow maintaining a stereo connection or carrying two separate lines.

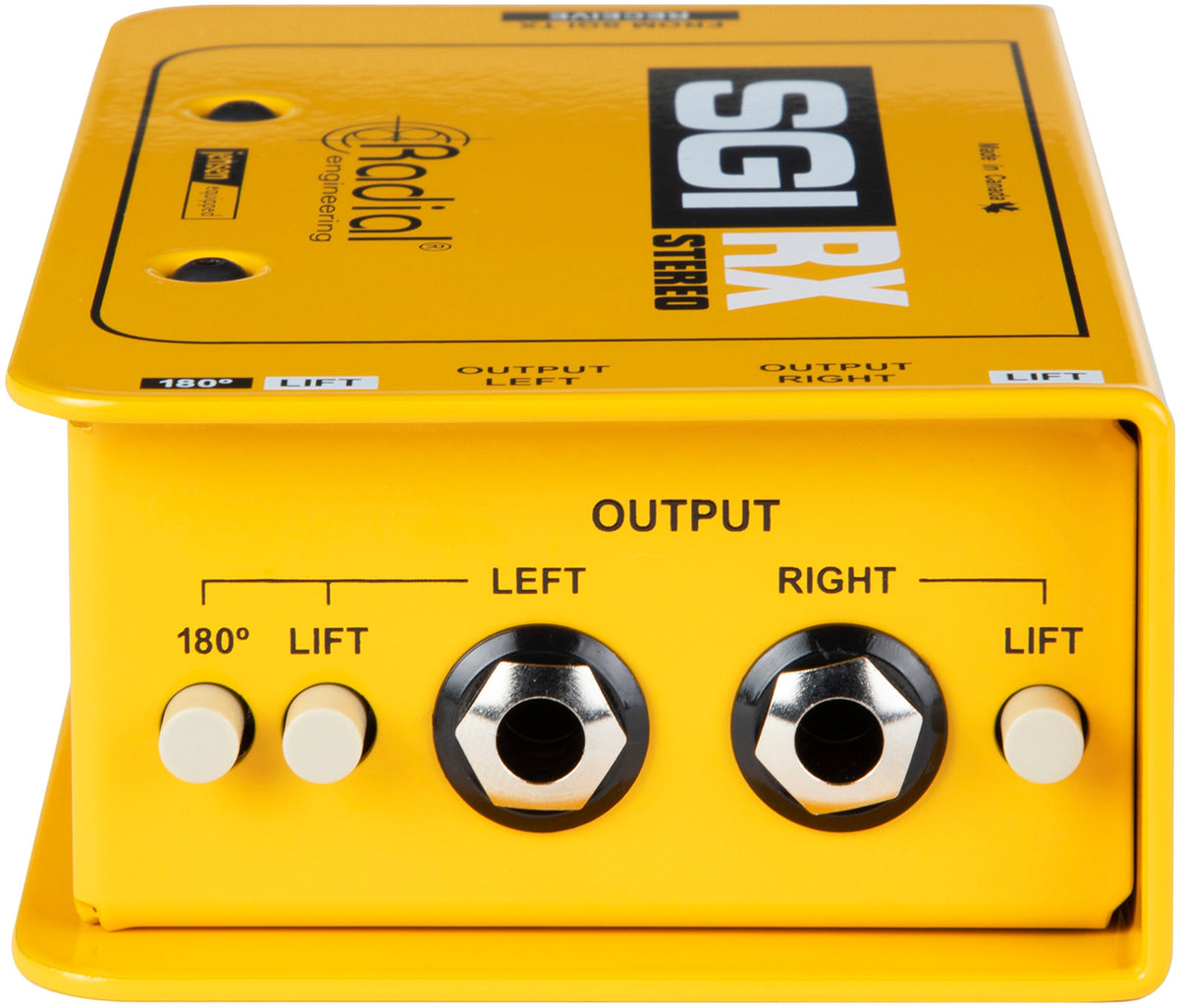

What outputs are available on this stereo receiver?
The output connections include 2 analog jacks, intended for connection to standard audio inputs.
Does the SGI-STEREO-RX have a preamp?
An integrated preamp is present to adapt the received signal's use to the connected audio chain. The level can thus be adjusted according to the equipment placed after the receiver.

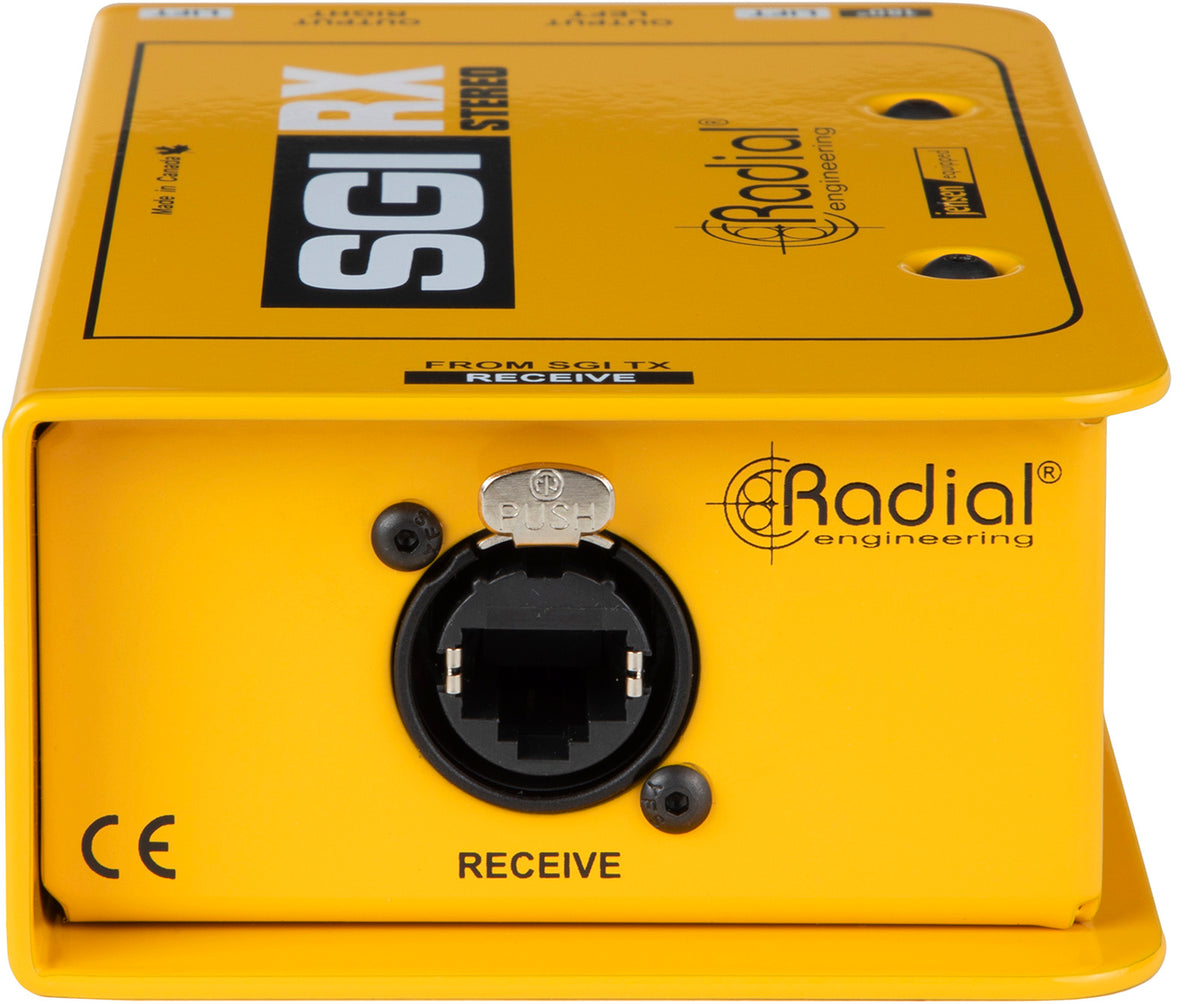

What connectors are used for the link between the two units?
EtherCon ports ensure the system's link connection. This format favors mechanical robustness suited for stage, control room, or rack installations.
What are the dimensions and weight of the yellow receiver?
With dimensions of 70 x 108 x 44 mm and a weight of 0.8 kg, this receiver fits into a pedalboard, rack, or mobile setup. Its yellow finish facilitates visual identification within stage cabling.
