Radial SGI-STEREO-TX
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
What you need to know
What you need to know
- 2-channel transmitter for carrying a stereo signal over long distances via a dedicated network link
- Reliable stage connectivity with EtherCon ports and RJ45 output for a robust connection
- Built-in preamp to preserve signal integrity and facilitate adaptation to various sources
- Flexible power supply from 9V to 18V DC, convenient for pedalboards, racks, or fixed installations
Manufacturer Information
Radial
https://www.radialeng.com
info@radialeng.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
A transmitter designed to integrate into the SGI Stereo system

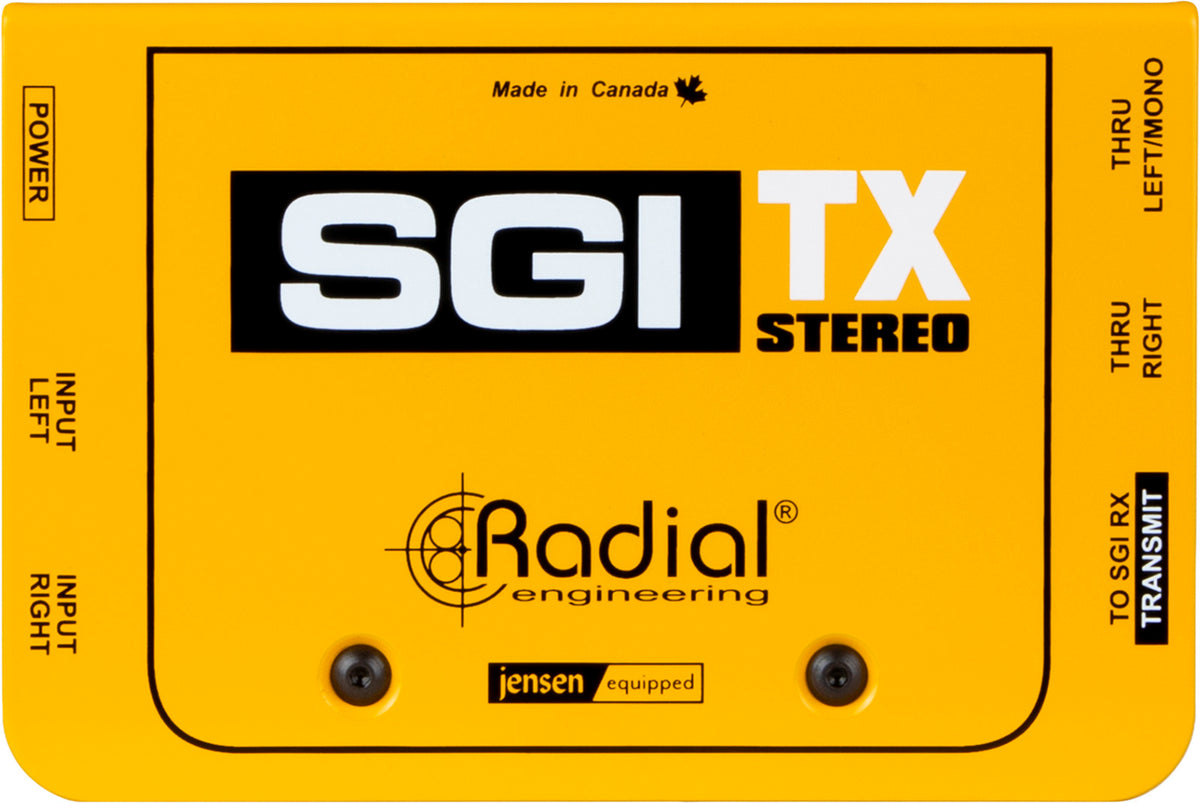

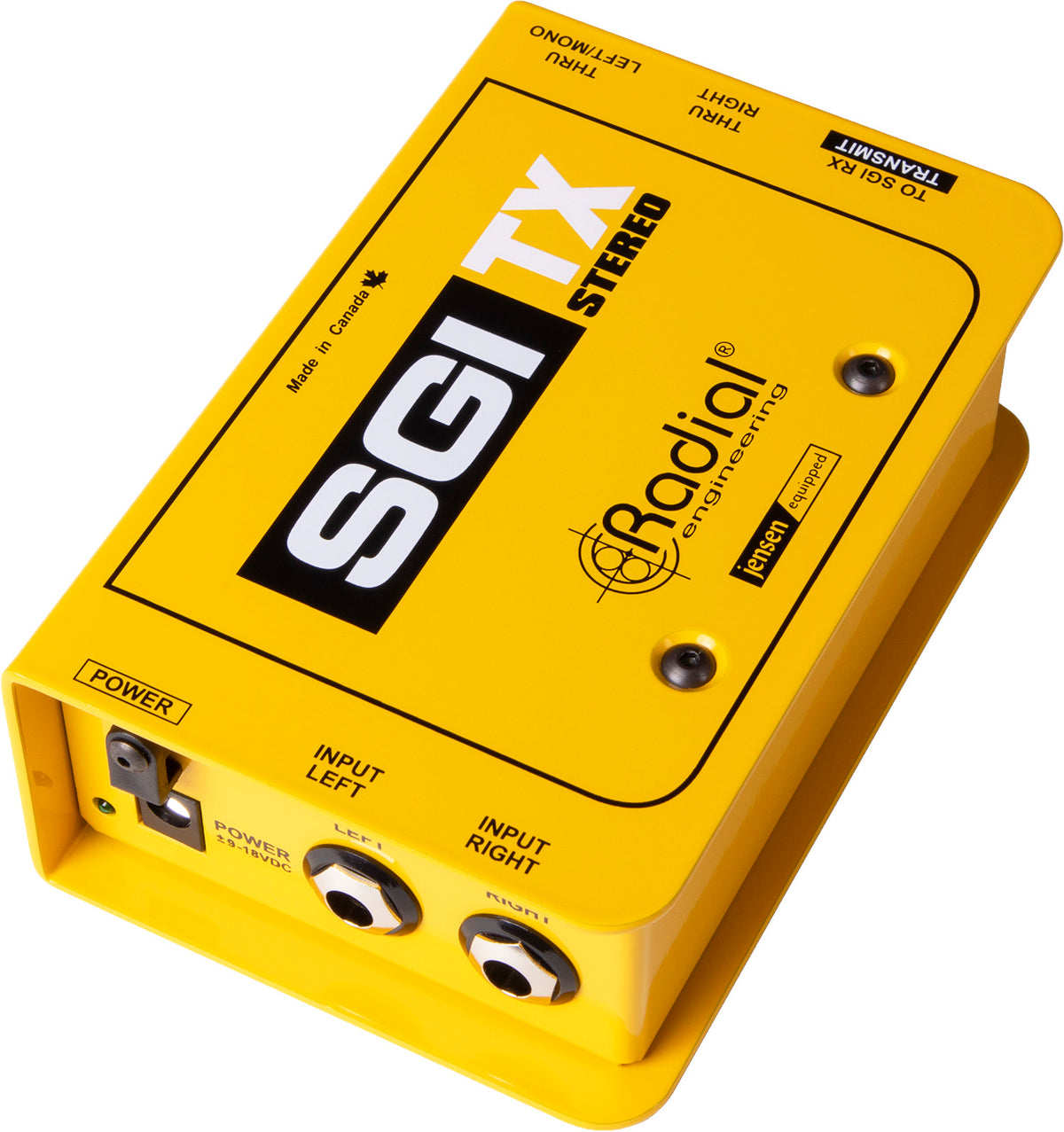

Designed as the "transmission" part of an SGI Stereo system, this signal extender aims for simple integration into an existing chain: it features a stage- and installation-oriented approach, with clear connectivity and a compact format. Its yellow finish also facilitates quick identification amid dense cabling.
Who is this signal extender for?

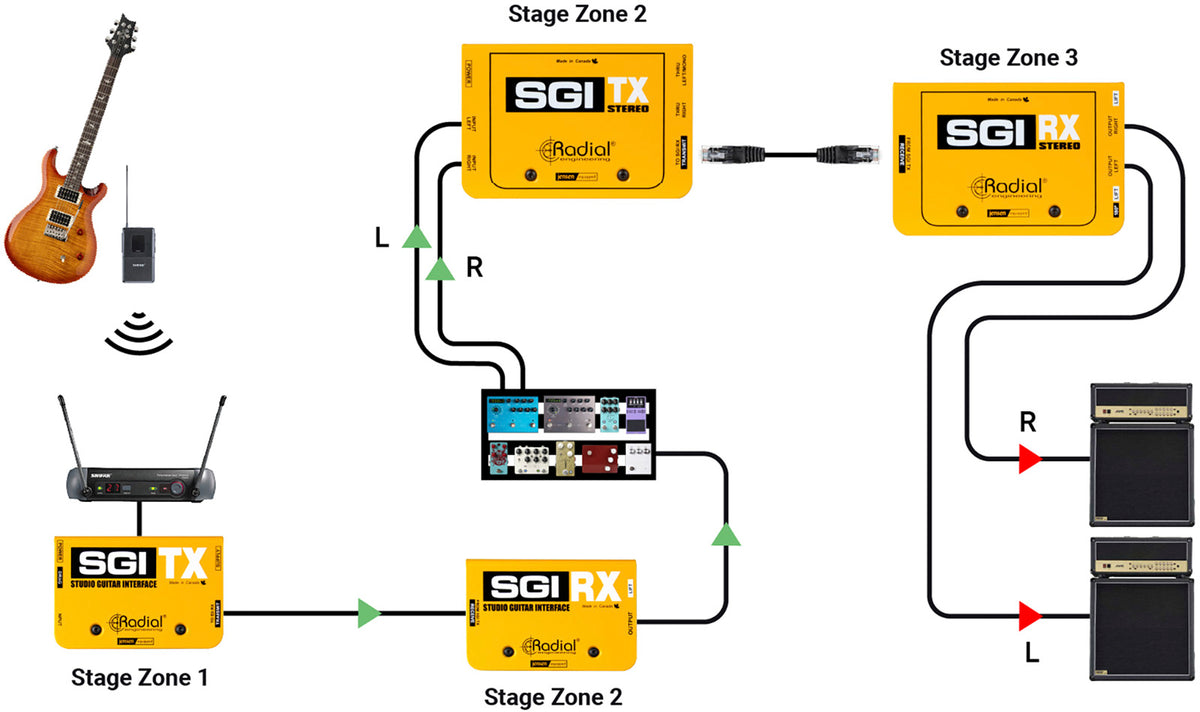

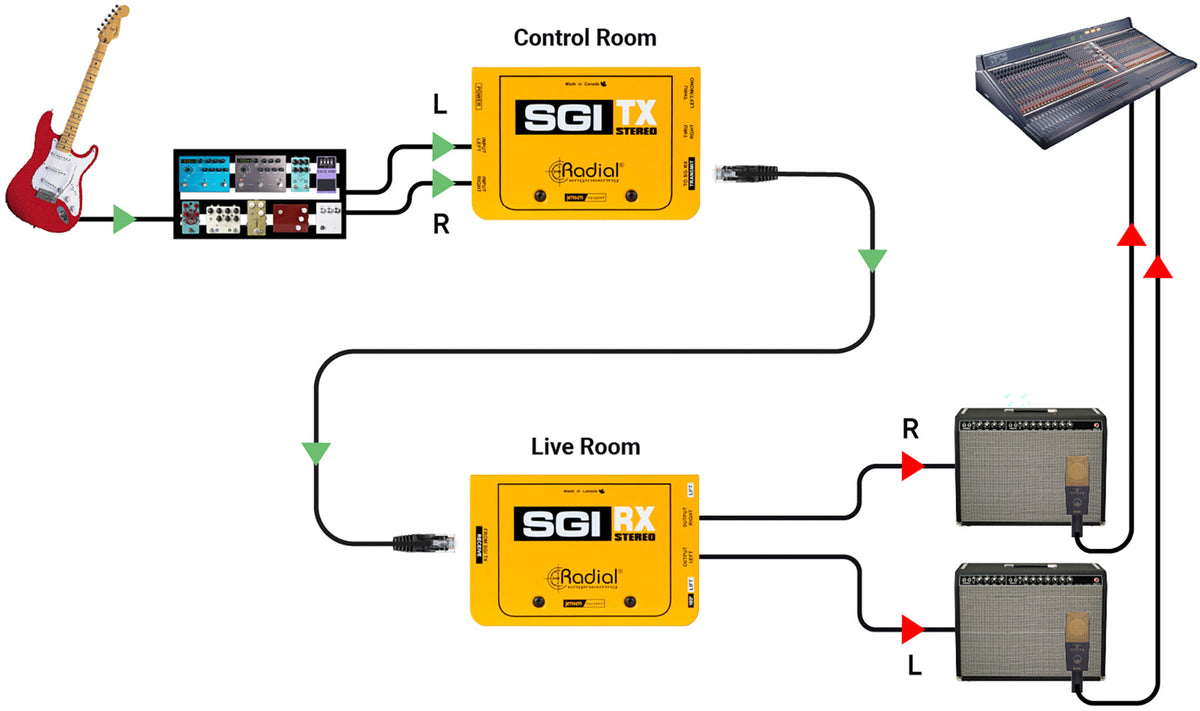

It is intended for guitarists, keyboardists, technicians, and integrators who want to extend a stereo signal without multiplying audio cables over long distances. Ideal for connecting a pedalboard to a mixing console, a stage to a technical room, or securing cabling during live performances.
Technical specifications
| Category | signal extender | Color | Yellow |
| Number of channels | 2 | Power supply | 9 - 18V DC power |
| Integrated preamp | Yes | Ports | EtherCon |

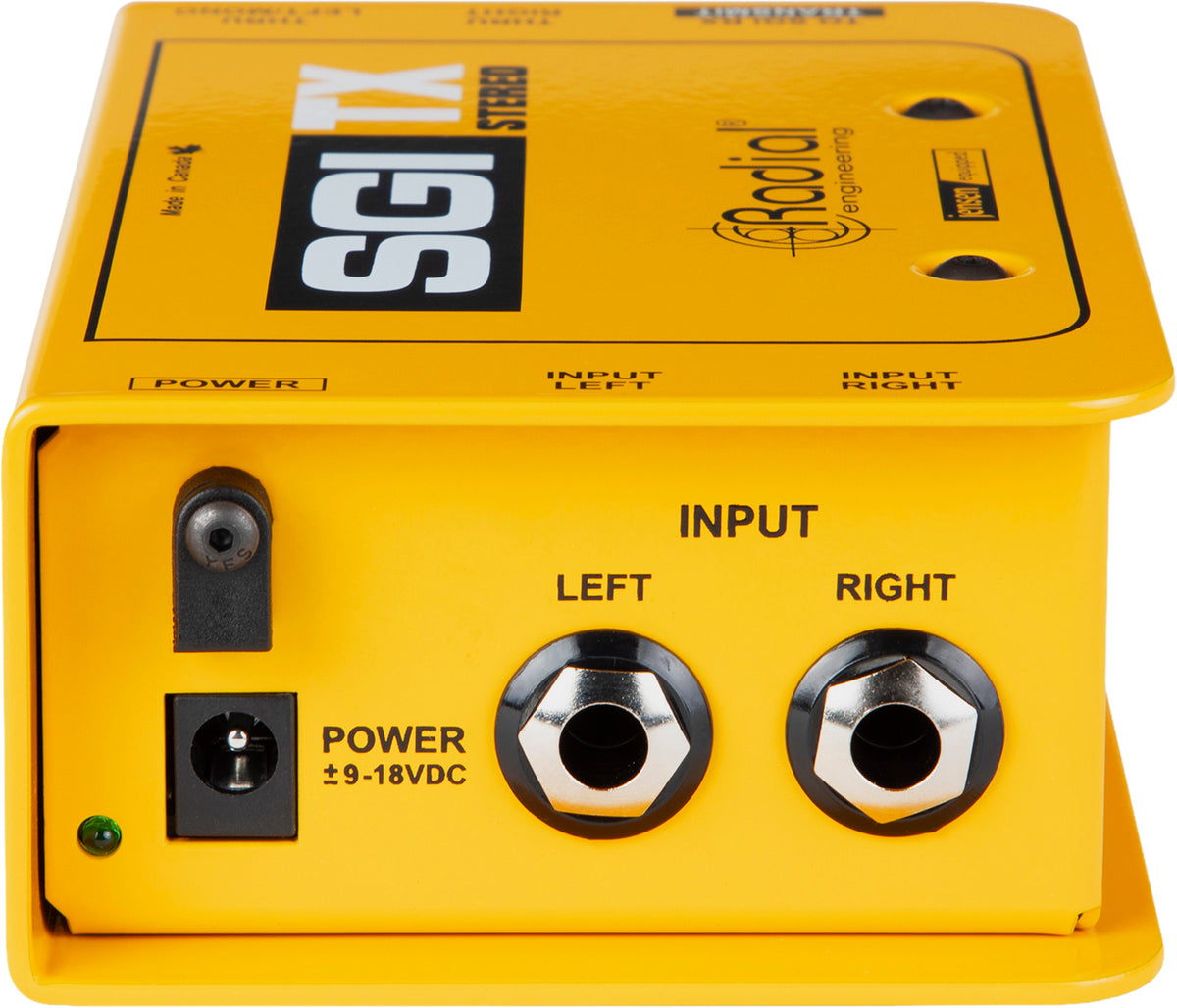

| Inputs | 2 x jack | Weight | 0.5 kg |
| Analog outputs | 2 x jack, RJ45 | Dimensions (mm) | 70 x 108 x 44 |
You will also like
Radial
J48 CLASS A ACTIVE DI BOX 48V PHANTOM POWERED
Rupert Neve Designs
RNDI Active DI
Radial
JDI PASSIVE-DI
Radial
Twin Iso Passive Stereo Converter
Radial
J33 PHONO RPEAMP DI
Palmer
Pan 16 Pro
Radial
X-Amp Active Reamper
Palmer
PRMMS8 PRO - 8-CHANNEL MICROPHONE SEPARATOR
Questions frequently asked
Does the Radial SGI-STEREO-TX operate in stereo?
The 2 channels allow transmitting a stereo signal or two separate signals. Two jack inputs and two jack outputs provide the analog connection of the system.
What type of RJ45 connection is used to extend the signal?

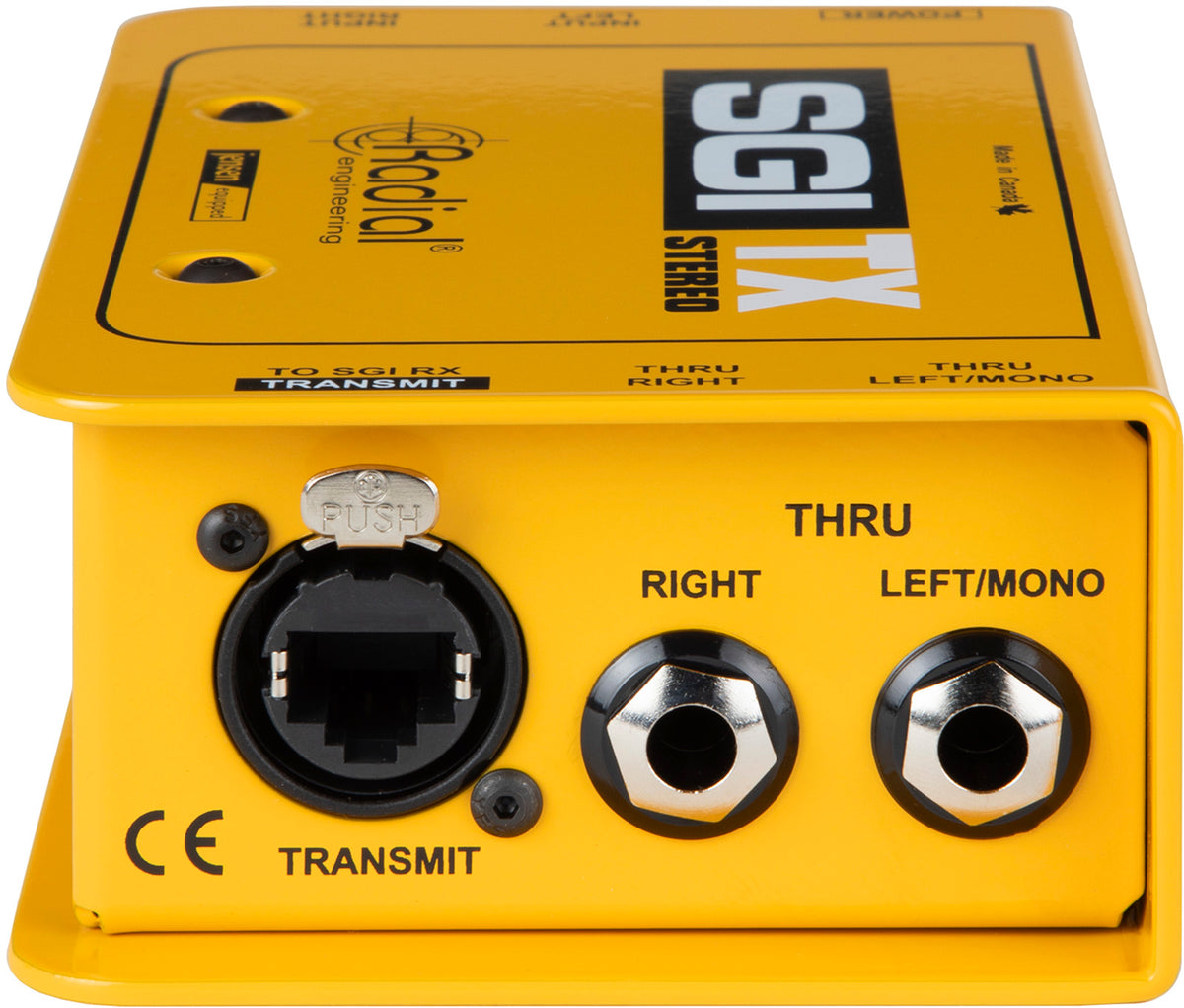

The connection is made via an RJ45 port with EtherCon connectors. This format is designed for mechanical retention suitable for stage conditions.
What power supply is required for this SGI Stereo transmitter?
A DC power supply between 9 V and 18 V is required.

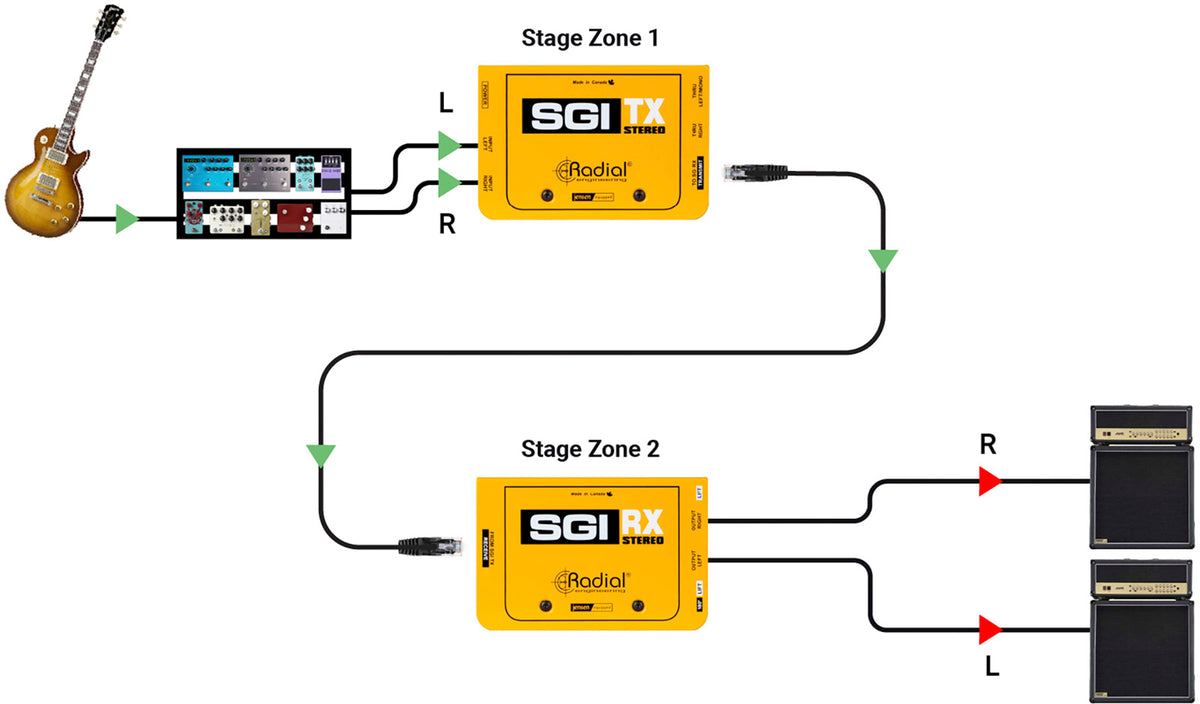

Can a stereo pedalboard be connected to a remote mixing console?
The 2-channel format allows integrating a stereo pedalboard into an SGI Stereo system. The RJ45 connection is designed to extend the signal without multiplying long audio cables. A preamp is built into the transmitter.
What are the dimensions and weight of the unit?
With 70 x 108 x 44 mm and a weight of 0.5 kg, this model has a compact form factor. Its yellow finish facilitates its identification within dense cabling.
