Radial SW8 USB

Name: SW8 USB
Brand: Radial
SKU: 305766
Price: 2724.00 EUR
Availability: InStock

2.724,00 €VAT incl.

0,90 € Ecotax included

Reference price

Available on order

Store: on order

Estimated Shipping Widget will be displayed here!

ID : 305766

EAN : 0676101044788

This item is covered for 3 years

Information

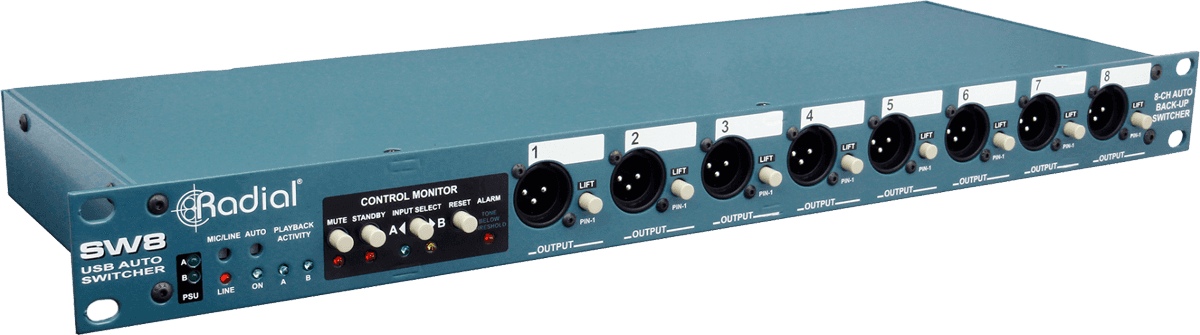

Essential Information About the Radial SW8-USB Automatic Switcher

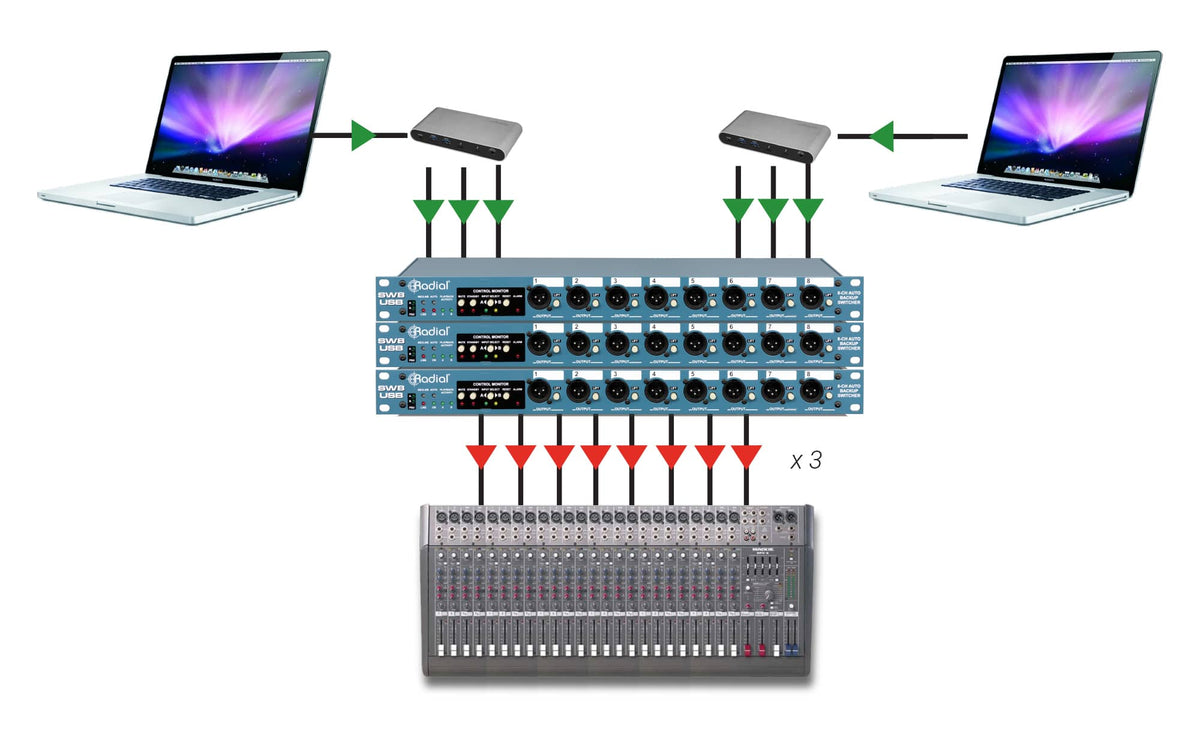

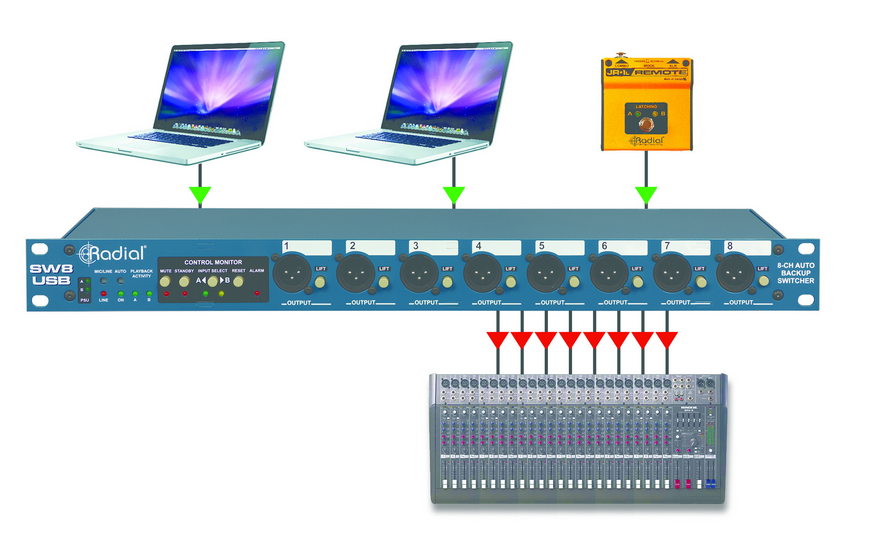

• Secure Redundant Playback: designed to work with a primary computer and a backup computer, providing a true backup solution for the stage.
• Two Built-in USB Interfaces: direct connection of your two machines via USB, without needing to add an external interface dedicated to each computer.
• 8 Audio Channels: ideal for sending multiple stems to front of house and monitors while maintaining a clear routing organization.
• Designed for Live Use: a "stress-free" approach for shows where audio continuity is critical (concerts, musicals, corporate events).

SW8 USB

2.724,00 €VAT incl.

0,90 € Ecotax included

Reference price

A Benchmark Designed for Redundant Playback Rigs on Stage

The Radial SW8-USB fits within the logic of modern playback setups, where the computer has become a central source just like an instrument. When a show depends on tracks, cues, or a preprogrammed arrangement, the question is no longer "if" an incident might occur, but "how" the system reacts when it does. This is precisely the philosophy of the SW8-USB: to offer an automated switching solution oriented towards the stage, optimized for dual USB sources (primary computer + backup computer) to support live performances with a significantly higher level of confidence.

Who Is It For and What Are Its Uses?

The SW8-USB is aimed at musicians, stage managers, musical directors, and technicians who use multitrack playbacks and want reliable audio continuity in case of a problem with the main machine. It is particularly suitable for tours, TV studios, shows, places of worship, corporate events, and high-demand performances where even a few seconds of interruption can compromise the show.

With its 8 channels, it is perfectly adapted to current configurations: separate sending of stems (drums, bass, synths, backing vocals), management of click tracks and guides according to the team's needs, or organizing a sufficiently detailed playback mix to facilitate front of house and monitor work. The idea is simple: you keep your computer playback workflow but add a redundancy logic directly integrated into the system.

Technical specifications

Category	switch
Number of channels	8
Digital conversion	24-bits / 44,1 kHz @ 192 kHz
Inputs	USB, Midi

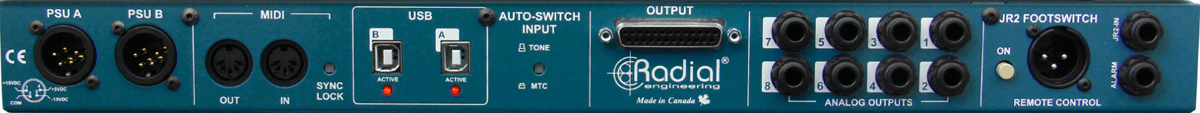

Analog outputs	8 x jack, Sub-D 25, XLR
Display	LED
Weight	3.5 kg
Dimensions (mm)	482,6 x 44,5 x 171,5

Questions frequently asked

Can the Radial SW8 USB handle two playback computers?

Two USB inputs allow connection of a primary computer and a backup machine. Automatic switching is designed to maintain audio flow in case of issues with the main source.

How many audio outputs are available for stems?

Eight audio channels are available to distribute stems such as drums, bass, synths, or backing vocals. Analog outputs include 8 jacks, a Sub-D 25 connector, and XLRs.

What is the audio resolution of the switcher?

The digital conversion operates at 24 bits, with sampling rates from 44.1 kHz to 192 kHz.

Does the SW8-USB support MIDI?

The MIDI input is listed among the connections, in addition to the two USB ports. This setup integrates into a playback rig requiring synchronized source management.

Is the SW8-USB form factor suitable for a touring rack?

Its chassis measures 482.6 x 44.5 x 171.5 mm, corresponding to a rack-mountable height of 44.5 mm. Weighing 3.5 kg, the unit is suited for stage installations and touring control rooms. LED indicators facilitate visual monitoring of the device.
