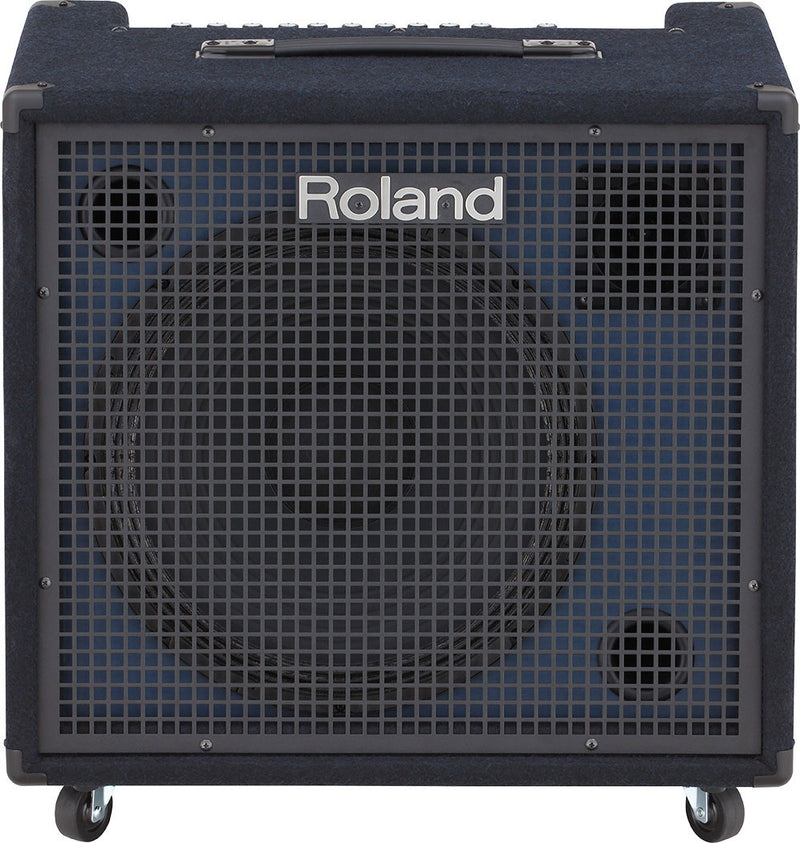

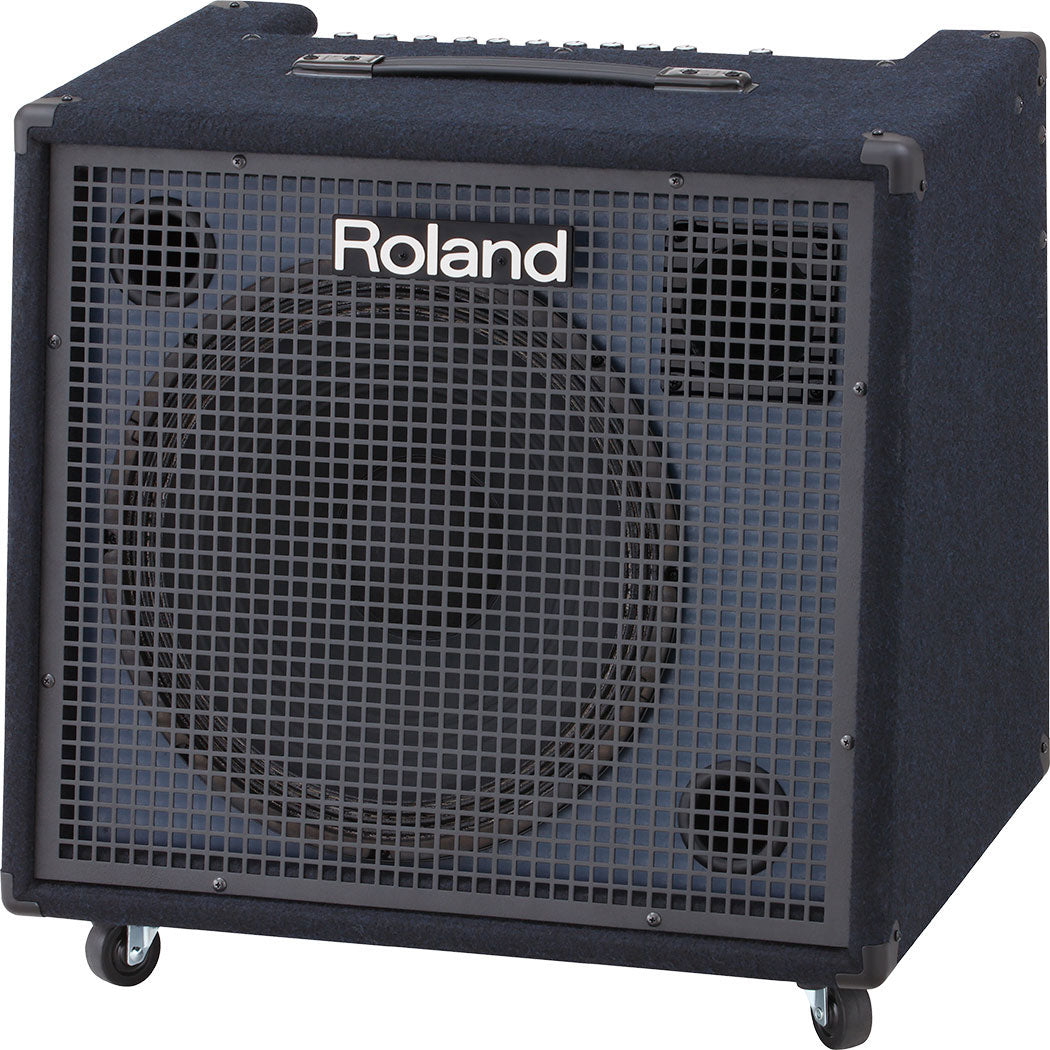

Roland KC-600 Amplifier
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Roland
https://www.roland.com
------------------------
Safety manager:
Roland Central Europe N.V.
Email:
Address:
Amplification Designed for Keyboardists, from Digital Pianos to Synths
Designed to respect the touch and dynamics of a pianist as well as the energy of a synth, this keyboard amplifier combines power, precision, and practicality. Its 38 cm speaker adds depth to the lows (left hand, basses, pads), while the tweeter preserves the definition of attacks and harmonics, ideal for electric piano, organ, or lead sounds. The built-in mixer facilitates connecting multiple sources (main keyboard, second keyboard, playback via AUX), with a 3-band equalizer to tailor your sound to the room. On the output side, you benefit from useful options for live and home studio: LINE OUT to a console, STEREO LINK to extend a stereo system, and SUB OUT to reinforce the low end. The GND LIFT helps reduce ground loop noise, and the included casters simplify transportation.Technical specifications
| Power handling | 200 W |
| Speaker diameter | 15" |
| Fictitious load | No |
| IR loader | No |
| Headphone outputs | Yes |
| Color | Black |
| Connections | XLR, Mini-jack stereo, RCA |
| Nominal output power | 200 W |
| Nominal input level (1 kHz) | CH1 (BALANCED, L / MONO, R) -50 to -20 dBu; CH2 (L / MONO, R) -20 dBu; CH3 (L / MONO, R) -20 dBu; CH4 (L / MONO, R) -20 dBu; AUX IN / MONITOR IN (AUX 1, AUX 2, AUX 3) -10 dBu; STEREO LINK (IN) 0 dBu |
| Nominal output level (1 kHz) | LINE OUT (L / MONO, R) +4 dBu; LINE OUT (BALANCED L, R) +4 dBu; STEREO LINK (OUT) 0 dBu; SUB OUT +4 dBu |
| Speakers | 38 cm (15-inch) woofer x 1; tweeter x 1 |

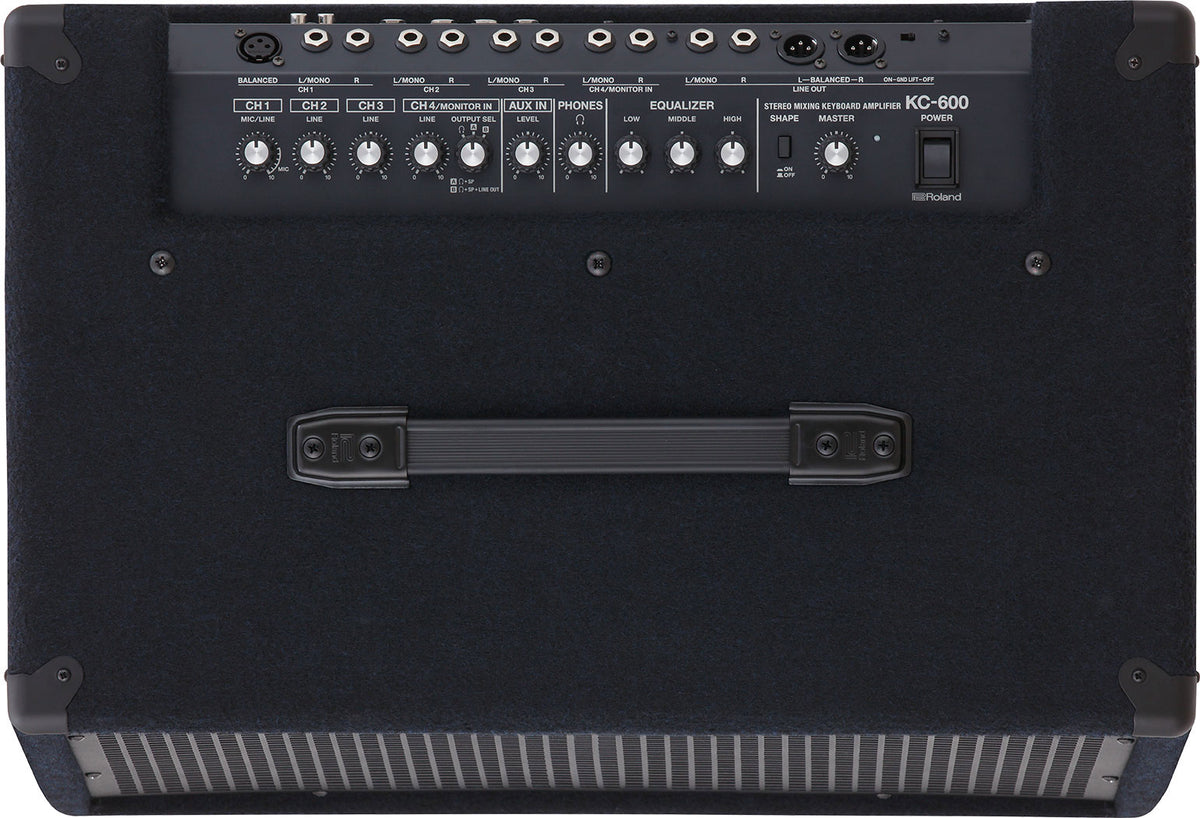

| Controls | Power switch; GND LIFT switch; CH1 MIC / LINE button; CH2 LINE button; CH3 LINE button; CH4 LINE button; AUX IN LEVEL button; EQUALIZER LOW, MIDDLE, HIGH buttons; PHONES VOLUME button |
| Indicator | Power |

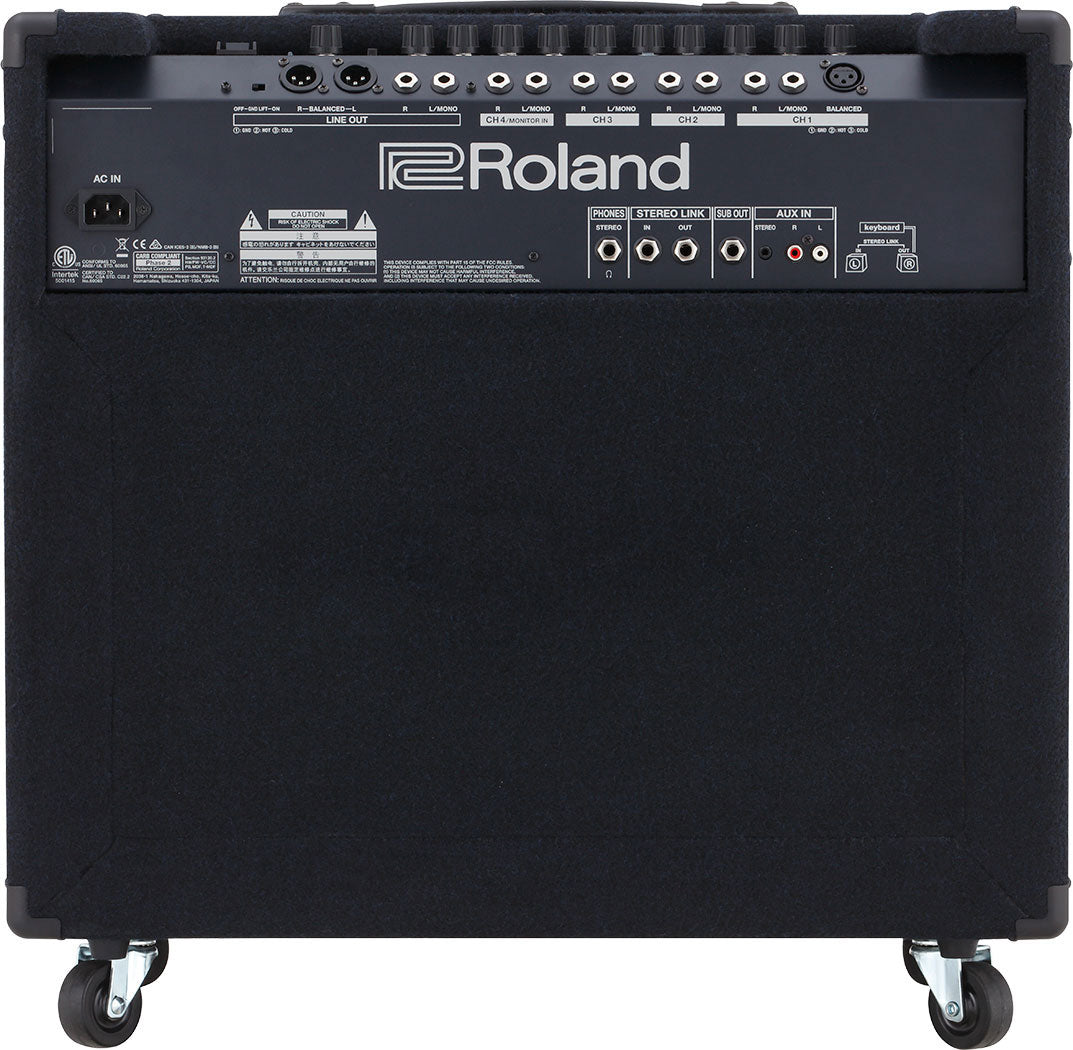

| Connectivity | CH1 (BALANCED) XLR type; CH1 (L/MONO, R) 3.5 mm jack; CH2 (L/MONO, R) 3.5 mm jack; CH3 (L/MONO, R) 3.5 mm jack; CH4/MONITOR IN (L/MONO, R) 3.5 mm jack; LINE OUT (L/MONO, R) 3.5 mm jack; LINE OUT (BALANCED L, R) XLR type; AUX IN (L, R) RCA phono type; AUX IN (STEREO) 3.5 mm stereo jack; SUB OUT 3.5 mm jack; STEREO LINK (IN, OUT) 3.5 mm jack; PHONES 3.5 mm stereo TRS jack |
| Power consumption | 50 W |
| Accessories | owner's manual; 4 casters |
| Dimensions | width 590 mm; depth 445 mm; height (including casters) 590 mm; height (excluding casters) 536 mm |
| Weight | 29 kg |
Questions frequently asked
Is the Roland KC-600 suitable for a digital piano and a synthesizer?
Its 200 W power and 38 cm woofer support the lows of digital pianos, pads, and bass lines. The tweeter reproduces the attacks of electric piano, organ, and lead sounds.
How many keyboards can be connected to this keyboard amplifier?
Four input channels are available to connect multiple keyboards. Channel 1 features a balanced XLR input and a MIC/LINE selector, while channels 2 to 4 have L/MONO and R inputs.
Can the amplifier be connected to a mixing console?
Two LINE OUT outputs are provided: a pair of L/MONO and R jacks, as well as a pair of balanced XLRs, all at a nominal level of +4 dBu.
How to add a subwoofer or a second amp to the KC-600?
A SUB OUT at +4 dBu allows sending the signal to a low-frequency reinforcement. The STEREO LINK IN/OUT connection, at 0 dBu level, is used to expand the system with another compatible amplifier. The GND LIFT switch helps reduce ground noise.
Is the Roland KC-600 amplifier easy to move?
Four casters are included despite a weight of 29 kg. The cabinet measures 590 mm wide, 445 mm deep, and 590 mm high with the casters.
