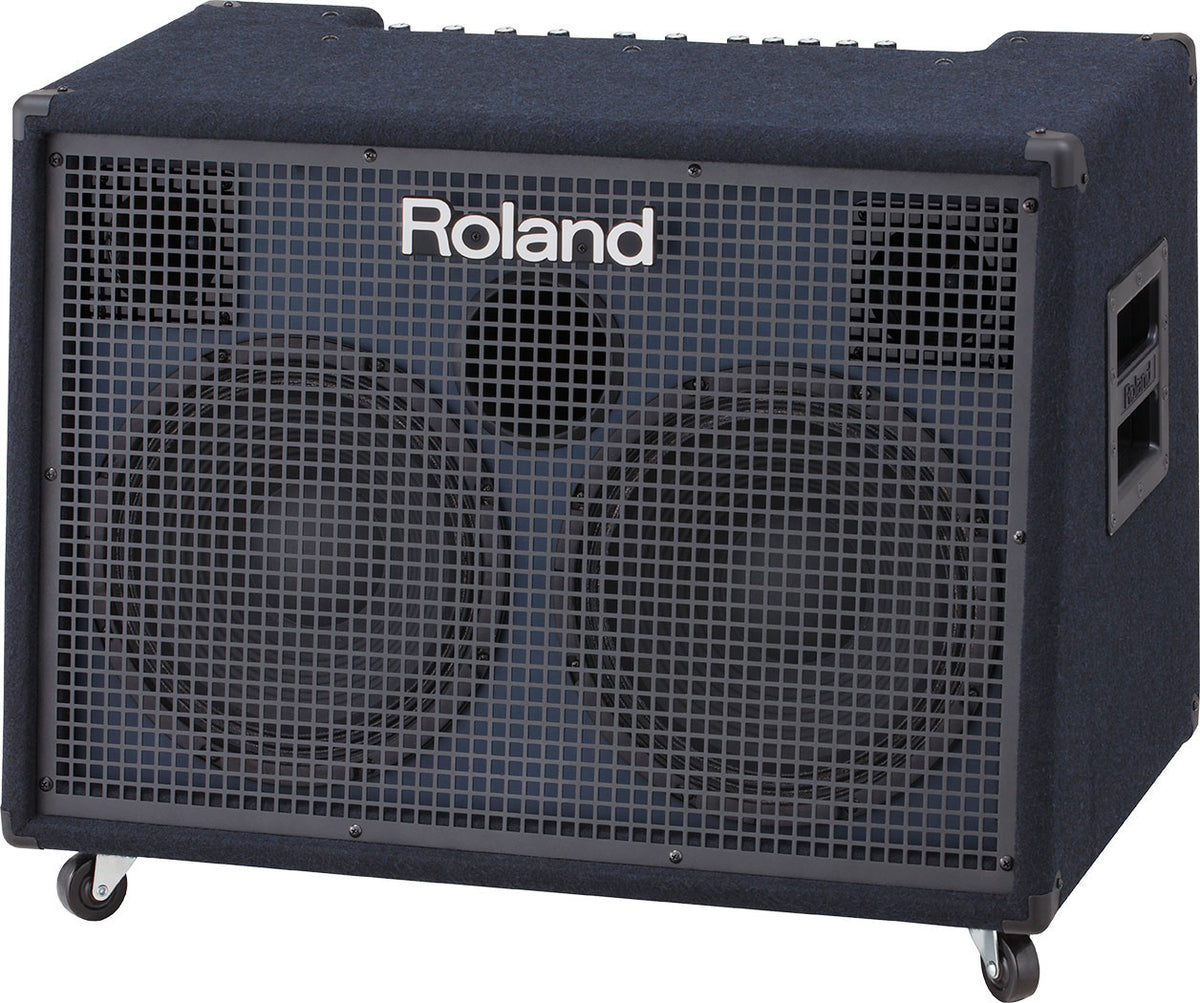

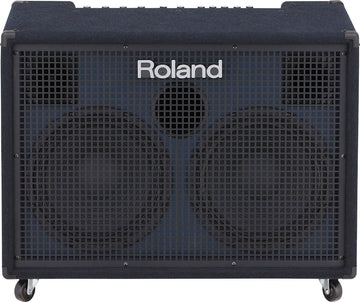

Roland KC-990 Amplifier

A Stereo Amp Designed for Keyboard Dynamics

A good keyboard amplifier must respect the dynamics, touch, and stereo width of a digital piano while remaining clear with denser synth sounds. With dedicated speakers for lows and highs, this model offers stable projection, solid bass, and clear definition, useful for working on attack details as well as holding a band mix. The channels allow connecting multiple keyboards (or a keyboard and a module), plus an auxiliary source, then adjusting levels with a single gesture. The 3-band equalizer facilitates adaptation to the room, and the effects section adds value during rehearsals. The LINE OUT outputs and STEREO LINK function simplify sending signals to a mixer or expanding the system, while the headphone output helps monitor your settings without disturbing the environment.

Technical specifications

Power handling	320 W	Headphone outputs	Yes
Speaker diameter	12"	Color	Black
Fictitious load	No	Connections	XLR, Mini-jack stereo, Audio/Video analog, RCA
IR loader	No

Rated Output Power	320 W (160 W + 160 W)	Connectors	CH1 (BALANCED) XLR type; CH1 (L / MONO, R) 1/4-inch phone jacks; CH2 (L / MONO, R) 1/4-inch phone jacks; CH3 (L / MONO, R) 1/4-inch phone jacks; CH4 (L / MONO, R) 1/4-inch phone jacks; AUX IN / MONITOR IN: AUX 1 (L / MONO, R) 1/4-inch phone jacks, AUX 2 (L, R) RCA phono jacks, AUX 3 (STEREO) stereo mini-jack; PHONES 1/4-inch TRS stereo phone jack (mono signal output); STEREO LINK (IN, OUT L, OUT R) 1/4-inch phone jacks; LINE OUT (L / MONO, R) 1/4-inch phone jacks; LINE OUT (BALANCED L, R) XLR type; FOOT SW 1/4-inch TRS phone jack
Nominal Input Level (1 kHz)	CH1 (BALANCED, L / MONO, R) -50 to -20 dBu; CH2 (L / MONO, R) -20 dBu; CH3 (L / MONO, R) -20 dBu; CH4 (L / MONO, R) -20 dBu; AUX IN / MONITOR IN (AUX 1, AUX 2, AUX 3) -10 dBu; STEREO LINK (IN) 0 dBu	Power Consumption	98 W
Nominal Output Level (1 kHz)	LINE OUT (L / MONO, R) +4 dBu; LINE OUT (BALANCED L, R) +4 dBu; STEREO LINK (OUT) 0 dBu	Accessories	owner's manual; 4 casters
Speakers	2 x 30 cm woofers; 2 tweeters	Dimensions	759 x 470 x 585 mm

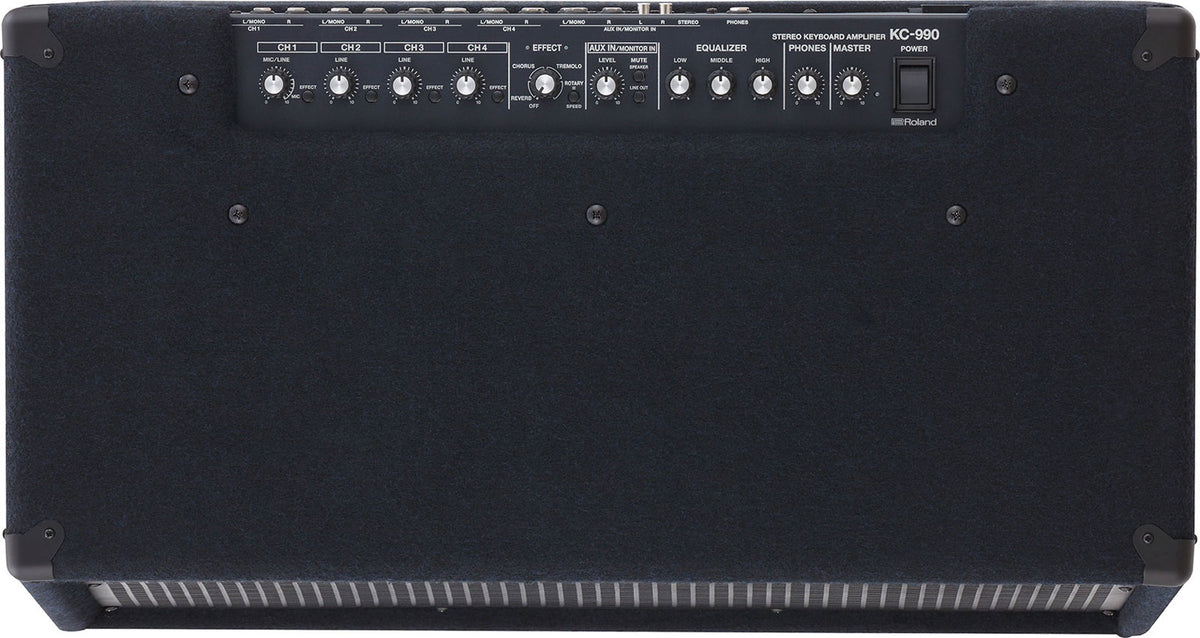

Controls	power switch; GND LIFT switch; [CH1] MIC / LINE button, EFFECT button; [CH2] LINE button, EFFECT button; [CH3] LINE button, EFFECT button; [CH4] LINE button, EFFECT button; [EFFECT] EFFECT button, ROTARY SPEED key; [AUX IN] LEVEL lever, MUTE SPEAKER button, MUTE LINE OUT key; [EQUALIZER] LOW button, MIDDLE button, HIGH button; [TELEPHONES] VOLUME button; MASTER control	Height (excluding casters)	534 mm
Indicator	power	Weight	42 kg
