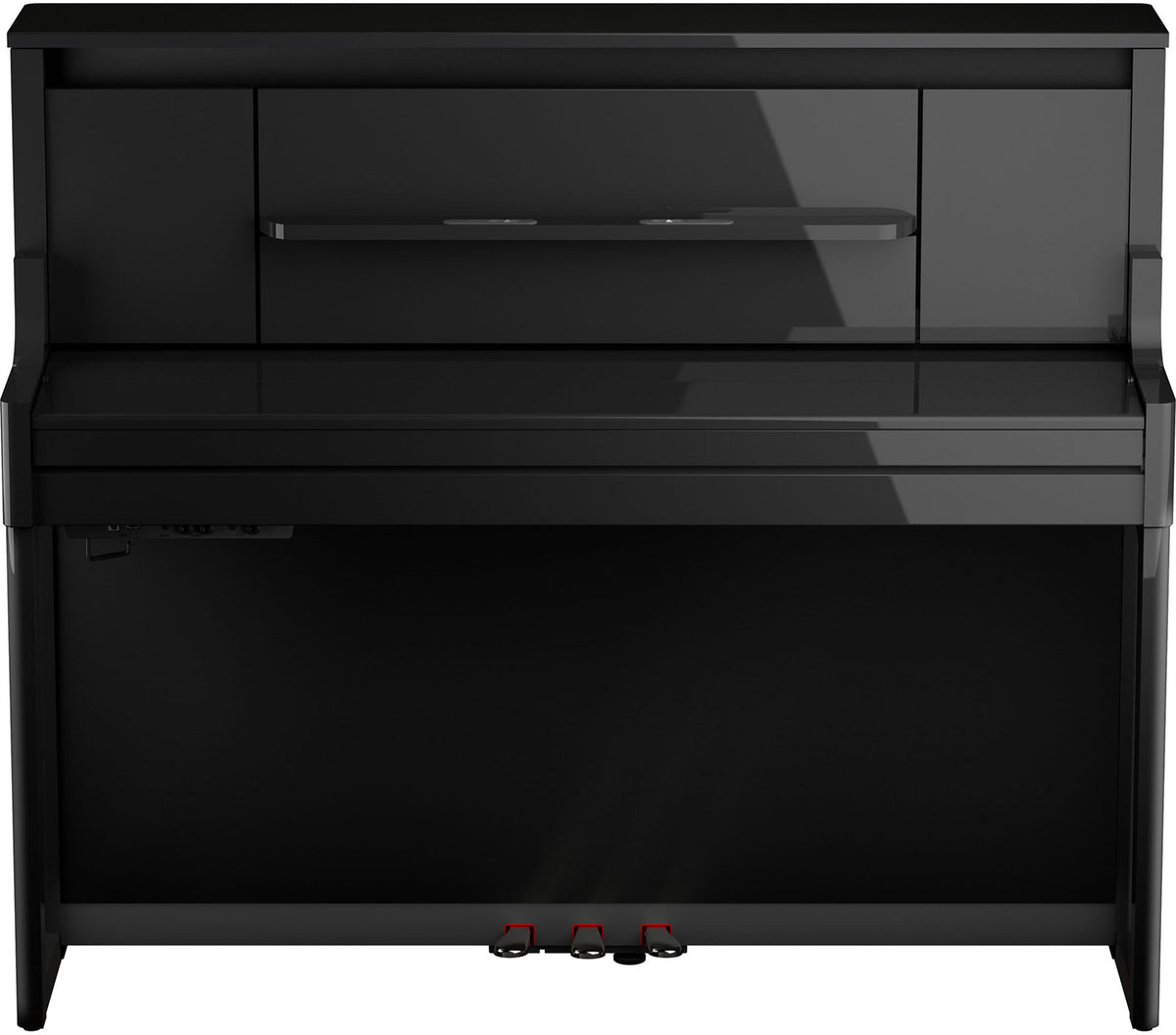

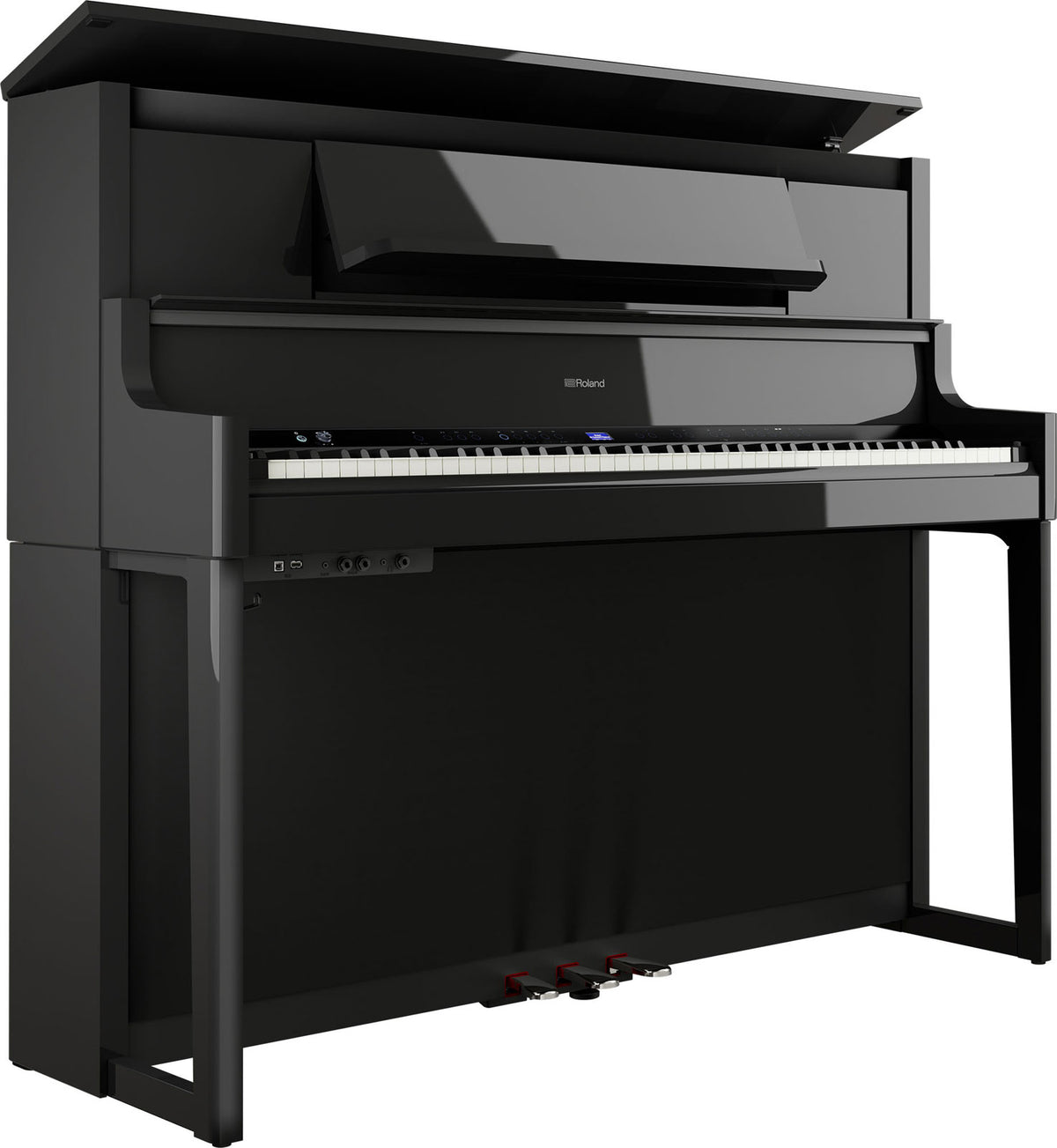

Roland LX-9 Polished Black

Roland LX-9: The Pinnacle of the LX Range, Designed as a "Domesticated" Concert Piano

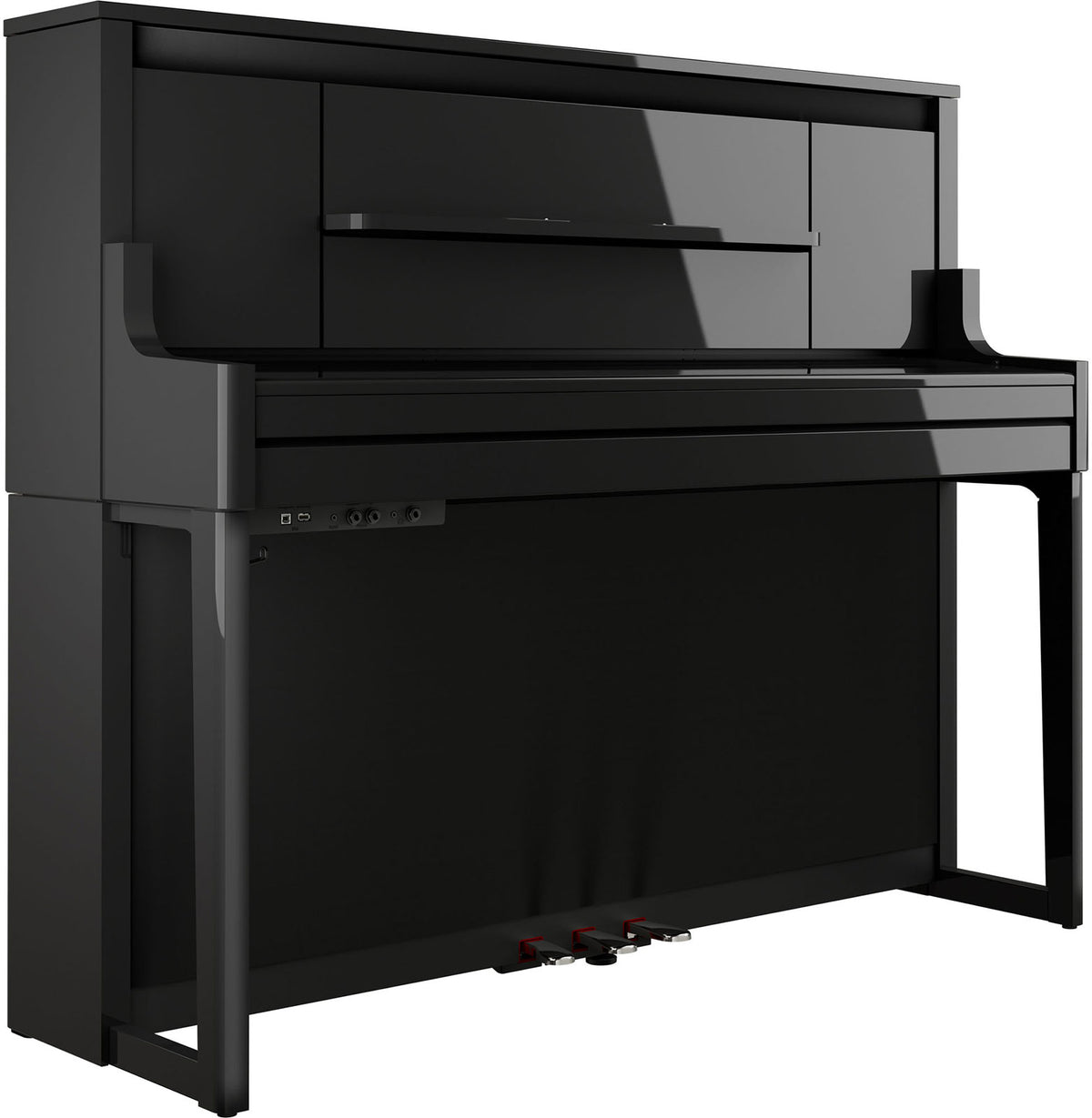

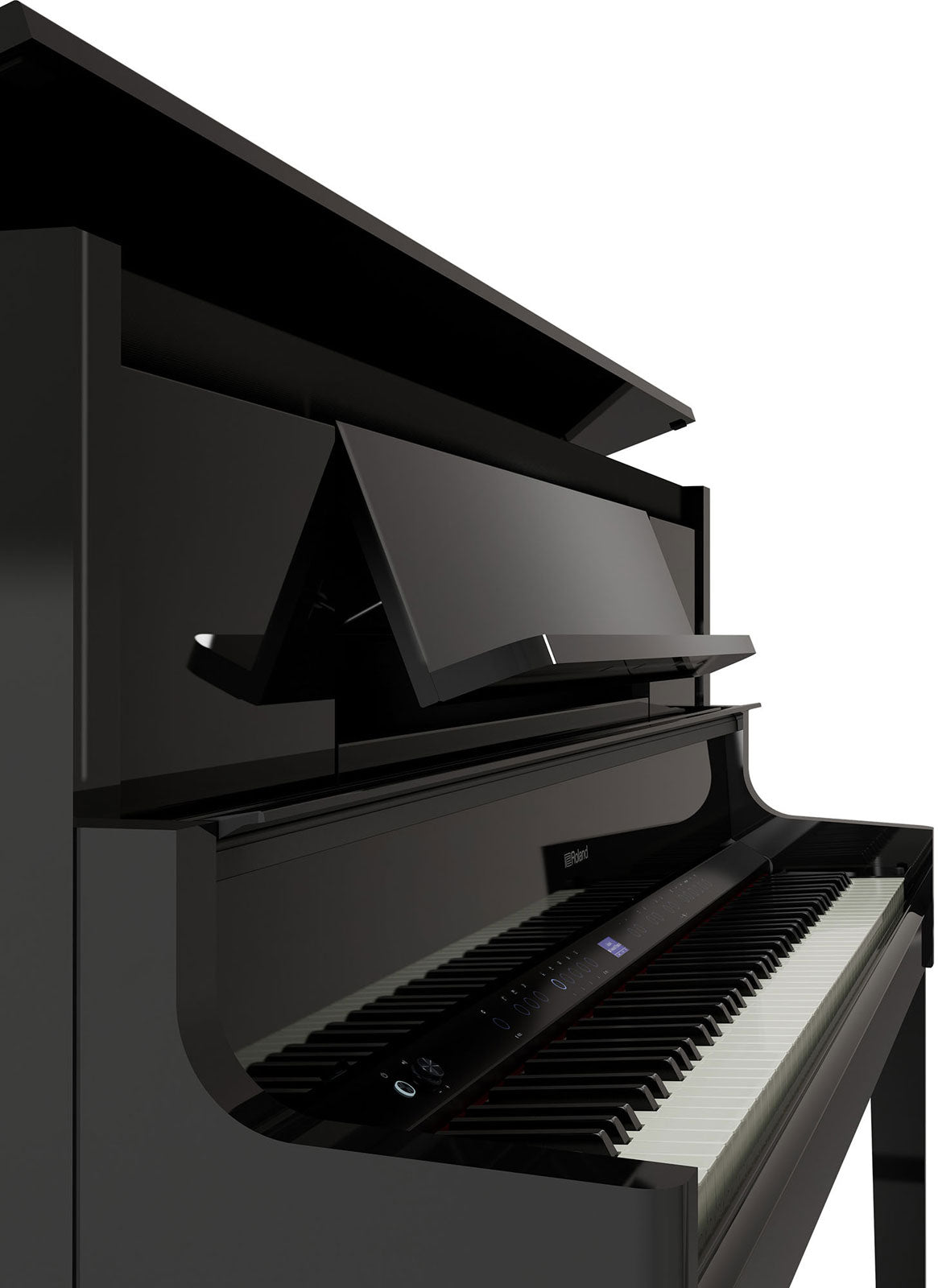

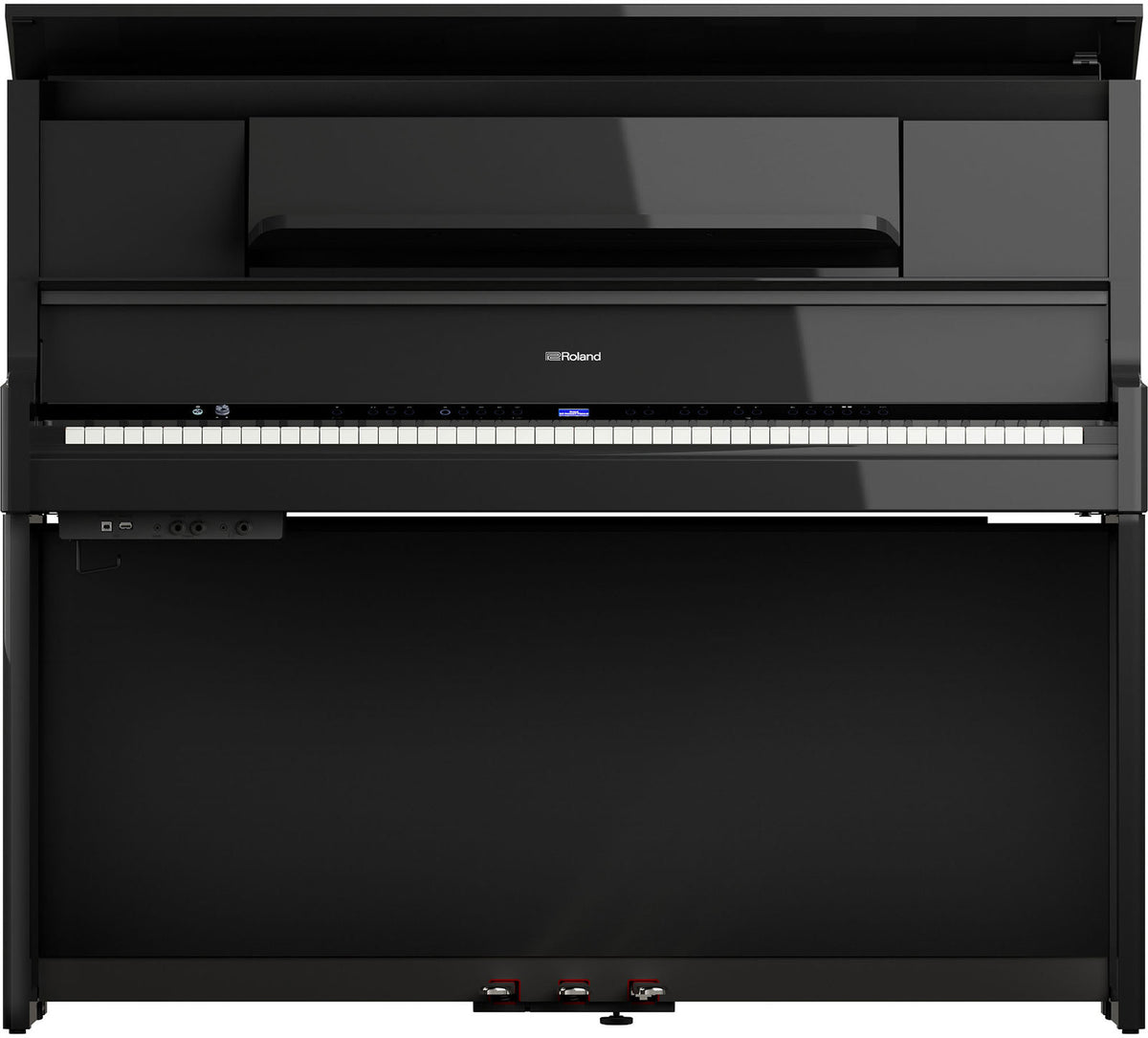

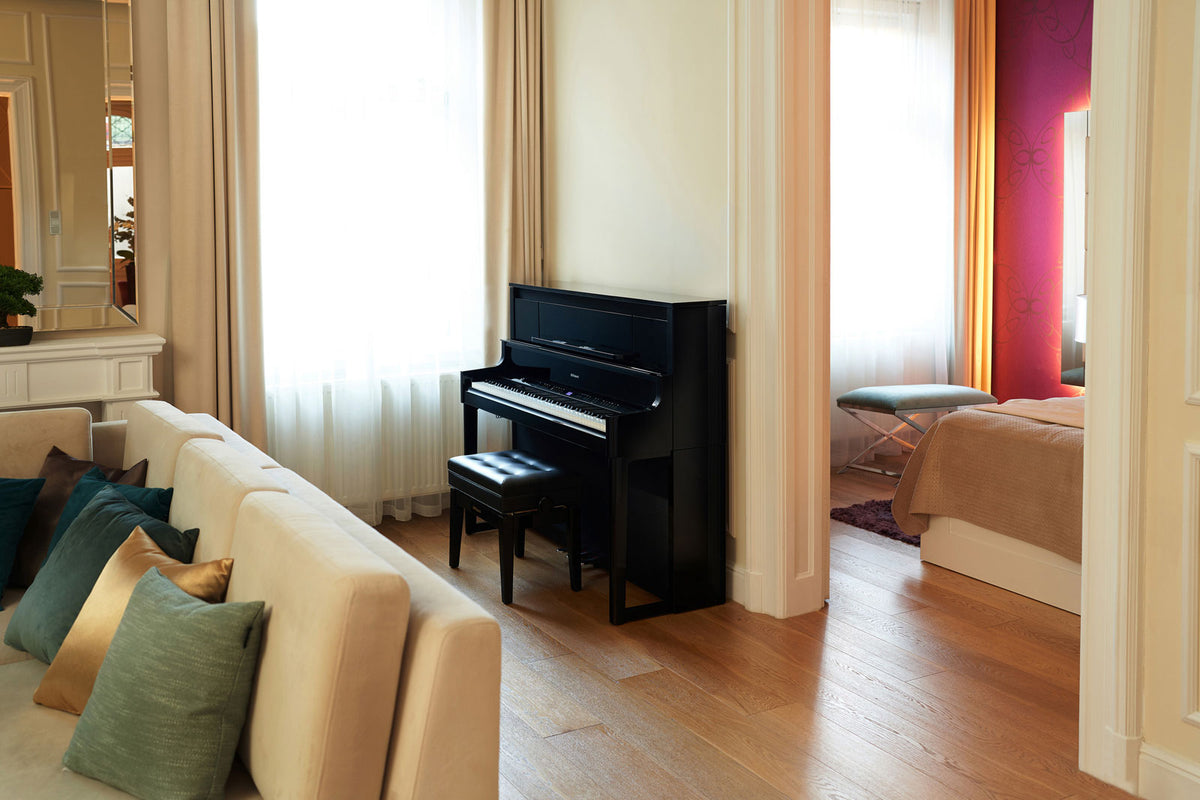

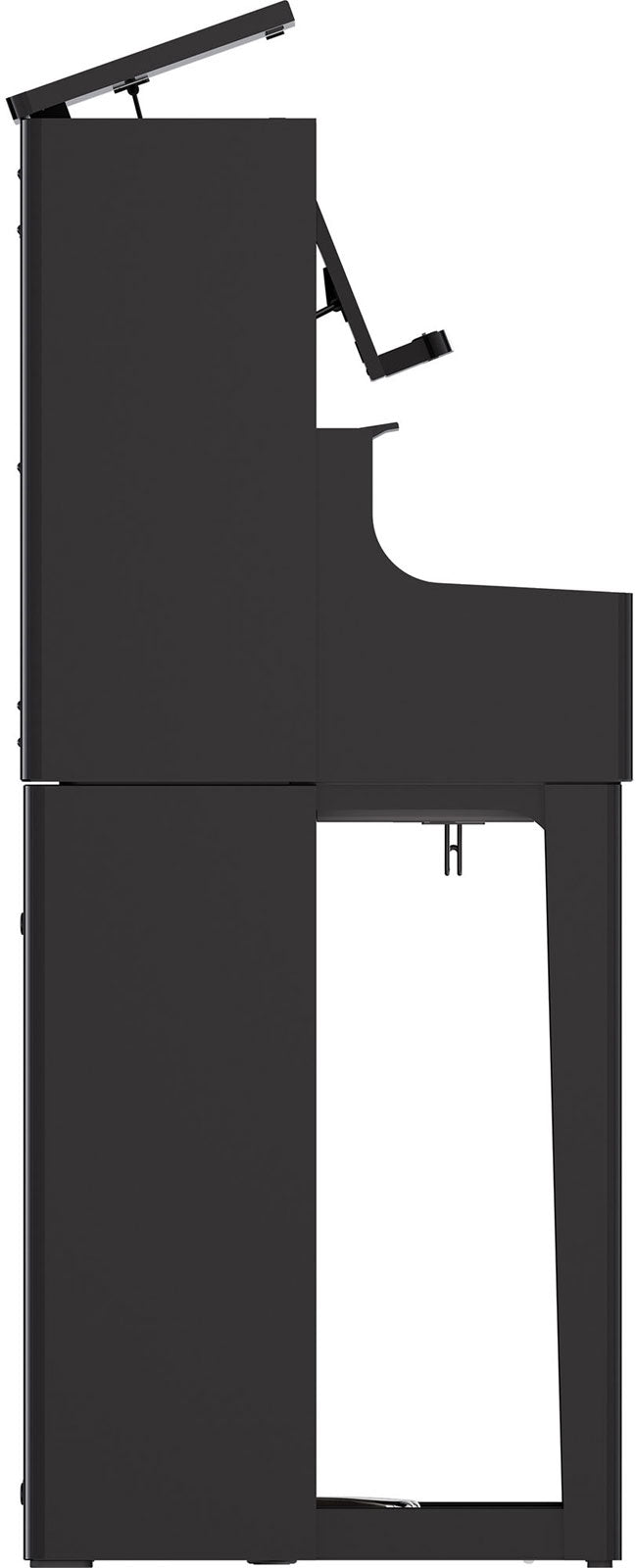

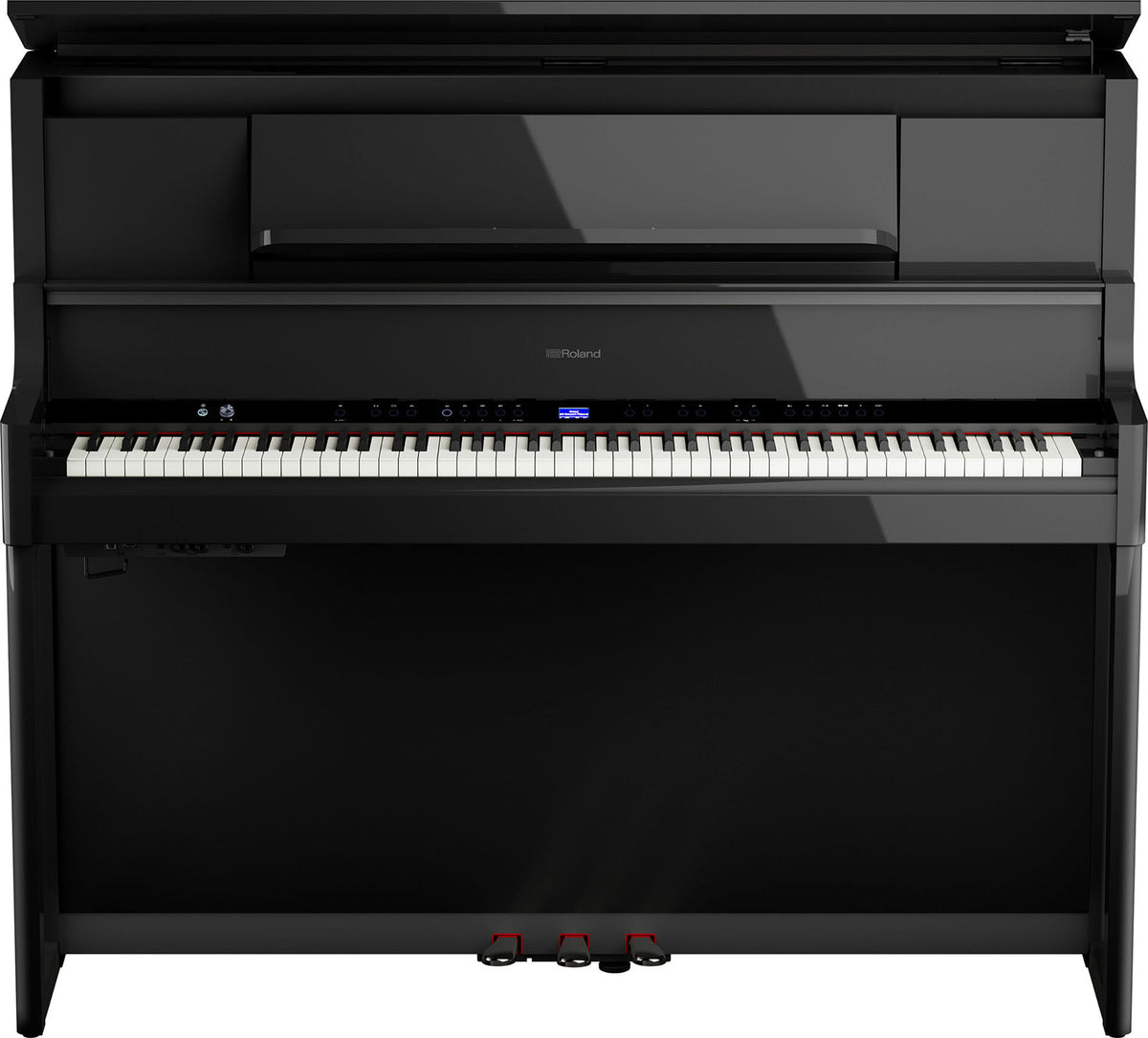

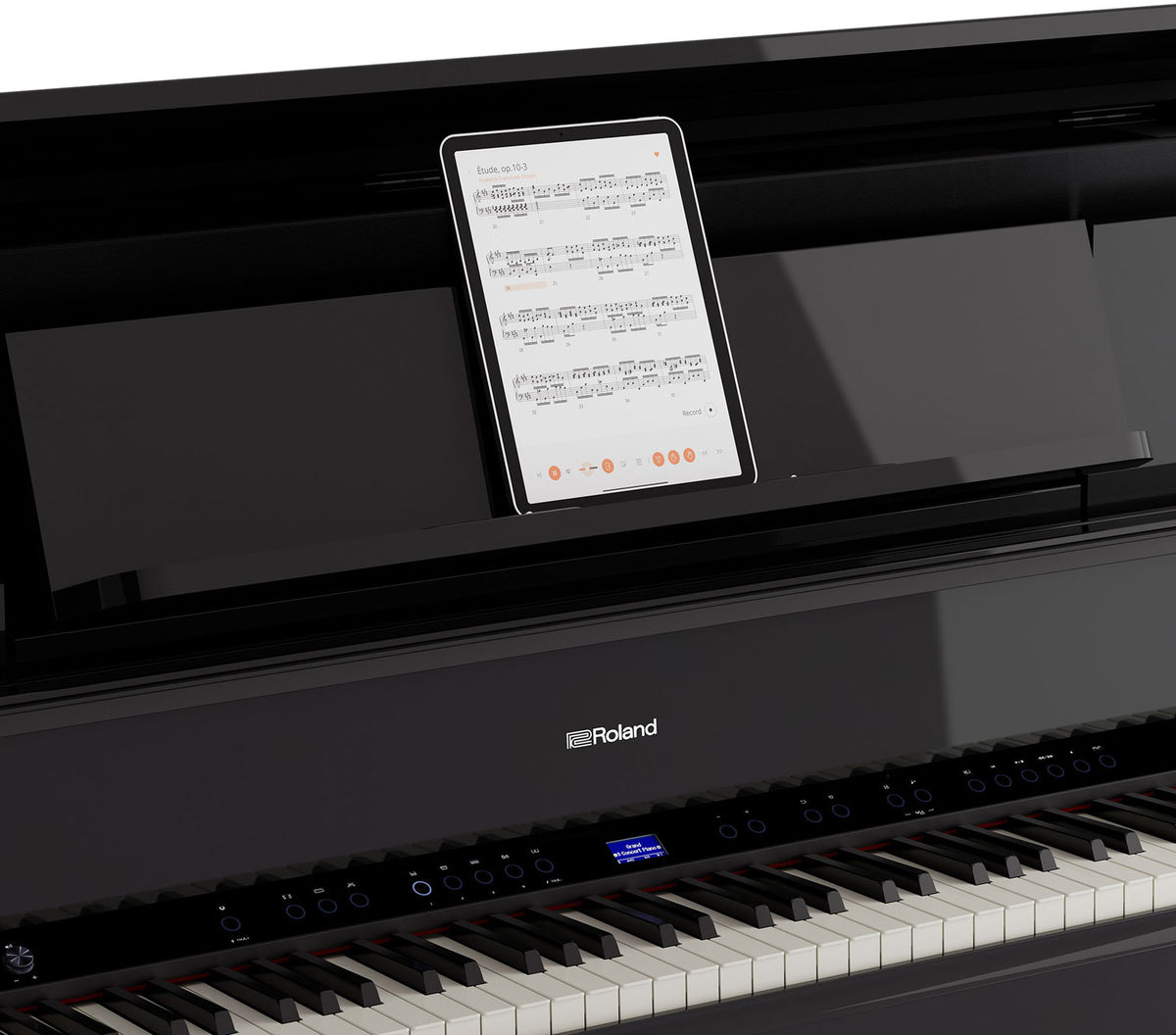

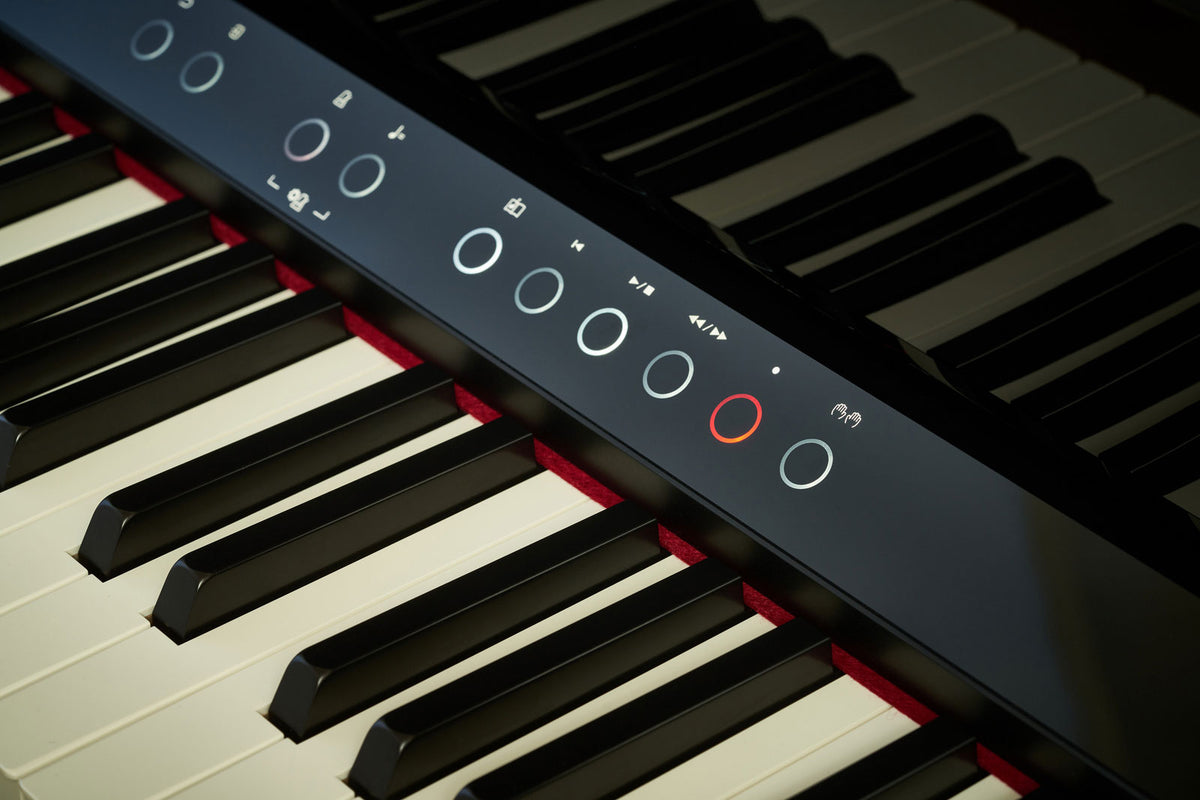

The Roland LX-9 holds the position of flagship model in the LX range: it concentrates the brand's Piano Reality technologies to bring the experience closer to that of an acoustic grand piano, while retaining the advantages of digital. Its concept is clear: a large upright piano cabinet, refined details (discreet touch panel, adjustable lid open or closed), and a sound approach that adapts equally well to a living room or a workspace, without the tuning constraints of a traditional piano.

Keyboard Design

The Hybrid Grand keyboard (88 keys) with progressive hammer action aims to provide a feel close to a grand piano, featuring escapement for better control of pianissimo and repetitions, and a long pivot length that stabilizes the touch even when playing far from the key center. The hybrid wood and molded material keys with "Ebony/Ivory Feel" surface (ivory and ebony type) enhance grip and the "acoustic instrument" sensation. The High Precision Sensing technology refines velocity detection, and haptic vibrations add subtle physical feedback, useful for regaining interpretive and control cues.

Sound Quality

The Piano Reality Modeling engine generates a rich grand piano sound, with complex harmonics and an organic response to playing nuances. In practice, the LX-9 accompanies you from pianissimo to fortissimo with very natural musical continuity, and offers unlimited polyphony for solo play on sounds in the "Piano" category (and 256 voices for other sounds). The library includes 324 sounds in total (grand pianos, uprights, classical pianos, electric pianos, organs, and more). On the sound projection side, the Piano Reality Projection system combines advanced audio processing and 8 speakers including a dedicated center channel, to project the different components of the timbre (attack, resonances, cabinet body) and create a real sense of space, even at moderate volume.

Built-in Effects

• Piano Reality Ambience: 6 environments (Studio, Lounge, Concert Hall, Wooden Hall, Stone Hall, Cathedral) with adjustable depth (11 levels)
• Brilliance (global character adjustment)
• Piano Designer: lid setting, key release noises (Key Off Noise), hammer noises (Hammer Noise), Duplex Scale
• Resonances and body: Full Scale String Resonance, Key Off Resonance, Cabinet Resonance, Soundboard Type
• Pedal and behavior: Damper Modeling, Soft Pedal adjustment
• Per-note settings: tuning (Single Note Tuning), volume (Single Note Volume), character (Single Note Character)

Technical specifications

Type	Hybrid Grand Keyboard (progressive hammer action)	Damper	Responsive Damper Action, continuous detection, Damper Modeling
Number of keys	88	Soft	continuous detection, assignable function
Technologies	escapement, Ebony/Ivory Feel surface, High Precision Sensing, haptic vibrations	Sostenuto	assignable function, with mute (muffler) function
Sensitivity	Key Touch 100 levels (plus fixed mode)	Techniques	supports half-pedal and traditional techniques
Hammer response	Off + 10 levels	System	Piano Reality Projection
Piano sound generator	Piano Reality Modeling	Configuration	8 speakers with dedicated center channel
Polyphony	unlimited (solo play with sounds from the "Piano" category)	Speakers	Cabinet 25 cm x 2, Near-field (12 cm x 8 cm) x 2, Center Near-field 8 cm x 2, Spatial 2.5 cm x 2
Polyphony other sounds	256	Rated power	33 W x 2, 21 W x 2, 13 W x 2, 14 W x 2
Total number of tones	324	Headphones	Piano Reality Headphones Ambience
Distribution (categories)	Grand 4, Upright 5, Classical 5, E.Piano 12, Organ 12, Other 286	Internal songs	394 (Listening 27, Ensemble 30, Entertainment 20, Do Re Mi Lesson 30, Lesson 287: Scale, Hanon, Beyer, Burgmuller, Czerny 100)
Ambience	Piano Reality Ambience (Studio, Lounge, Concert Hall, Wooden Hall, Stone Hall, Cathedral), depth 11 levels	Playback	Standard MIDI Files (Format 0, 1)
Effect	Brilliance	Audio playback (USB flash drive required, supports USB drives up to 32 GB)	WAV 44.1 kHz 16-bit linear, MP3 44.1 kHz 64 kbps to 320 kbps
Piano Designer	Lid, Key Off Noise, Hammer Noise, Duplex Scale, Full Scale String Resonance, Key Off Resonance, Cabinet Resonance, Soundboard Type, Damper Modeling, Soft Pedal	MIDI recorder	Standard MIDI Files (Format 0), 100 songs, 3 parts, about 500 KB per song
Per note settings	Single Note Tuning, Single Note Volume, Single Note Character	Audio recorder (USB flash drive required, supports USB drives up to 32 GB)	WAV 44.1 kHz 16-bit linear, 200 songs, up to 80 minutes per song (about 800 MB)
