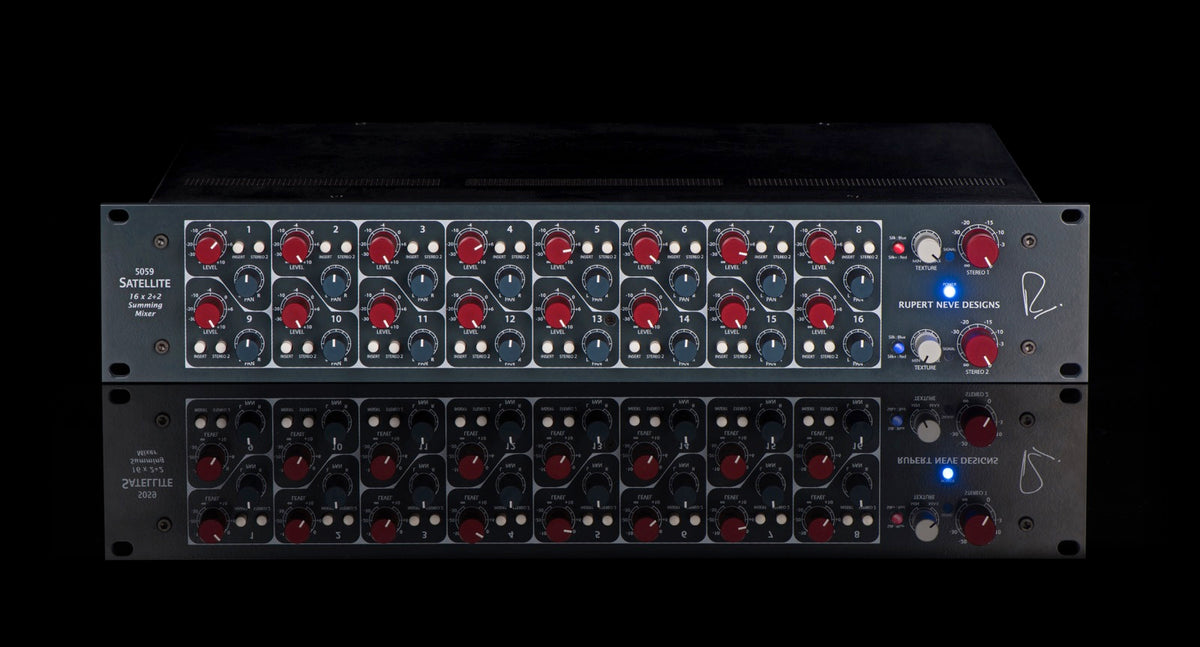

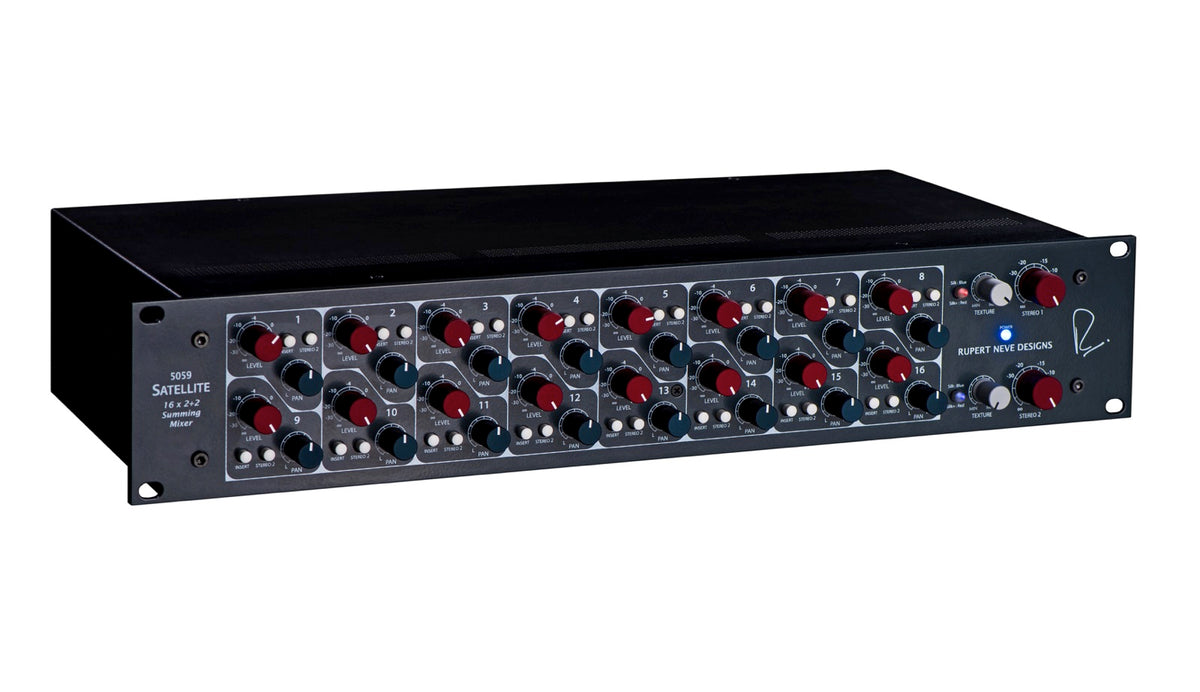

Rupert Neve Designs 5059 Satellite Shelford

A Console Heritage, Adapted to Rack Format for Modern Mixing

The 5059 Satellite follows the tradition of Rupert Neve's analog circuits, with an approach focused on both "sound" and workflow. Designed as a high-end rack-mountable summing module, it aims to bring the feel of a console to digital audio production: a mix bus that responds when levels are pushed, harmonic character linked to the transformers, and a presence that naturally builds through summing.

Within the range, the 5059 stands out for its flexibility in hybrid studios: it doesn't just sum channels, it also provides an architecture designed to integrate external hardware (inserts) and organize the mix into stems via its two stereo outputs. The "new Class A topologies" emphasize high purity and zero crossover distortion to maintain definition while allowing color to emerge when desired.

Who It's For and What It's For: Summing, Stems, and Hardware Integration

The Rupert Neve Designs 5059 Satellite is aimed at sound engineers, mixers, and producers working in hybrid environments who want to move beyond "all in the box" without complicating their chain. It is particularly relevant if you want to:

Create a wider and more coherent mix by summing 16 outputs from your audio interface, organize your session into stem mixes (two stereo buses), or add dimension to a mix that feels too clean, too dry, or too "flat."

Its format and connectivity also make it an excellent choice for those who already own bus compressors, EQs, or external saturators: you can process your stems (or your sum) analogically, then send everything back to an AD converter for the final print.

Texture, Silk, Routing: The Sonic Signature Under Control

Two Character Modes, Continuous Control

The Texture section is at the heart of the 5059 experience. Rather than altering the frequency curve like an equalizer, Texture works by saturating the output transformers to generate musical harmonics. The result: you modulate density, brightness, and the sense of "3D" while keeping the mix clear.

The 5059 offers two complementary flavors: Silk, which emphasizes high-frequency saturation to add brilliance and enhance detail perception, and Silk+, which boosts low and low-mid frequencies to thicken a source or add body to a thin mix. Since the adjustment is continuous, you can stay subtle (just a finish) or embrace a true analog signature.

Two Stereo Outputs for Easier Stem Management

The 5059 Satellite's two stereo outputs allow you to split your 16 inputs into two groups and build stems ready for processing: bus compression on drums, parallel processing on music, or two mix versions (cleaner / more colored) for quick comparison. Each output has its own level and Texture control, enabling you to tailor the color to the musical content.

Channel Inserts: The Missing Link in Hybrid Studios

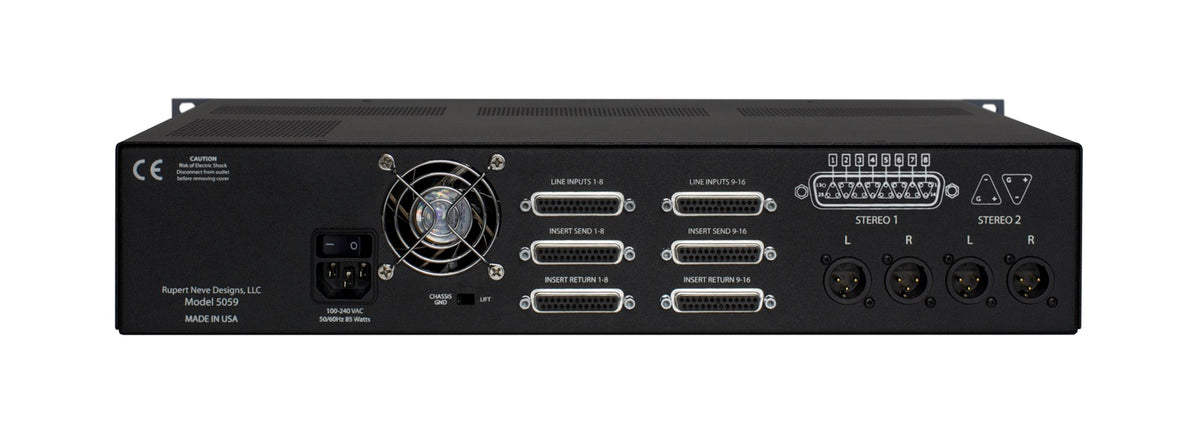

One limitation of "integrated" mixing is access to analog hardware on a per-channel basis. With its channel inserts, the 5059 facilitates interconnection with external processors, extending processing possibilities without sacrificing the comfort of your DAW. The routing also opens expansion scenarios: by linking a second 5059 via the insert outputs, you can exploit the dual stereo outputs to add extra auxiliaries per channel, depending on your studio's architecture.

A Class A Topology Designed to Push Levels

The behavior of the mix bus is part of the magic of a high-end summing mixer. On the 5059, the Class A topologies and custom transformers were designed to provide galvanic isolation, headroom, and musicality that reveals itself when you "push" the mix. This yields a sound that is solid, more present, and more lively, with the option to remain very clean if your aesthetic requires it.

Technical specifications
