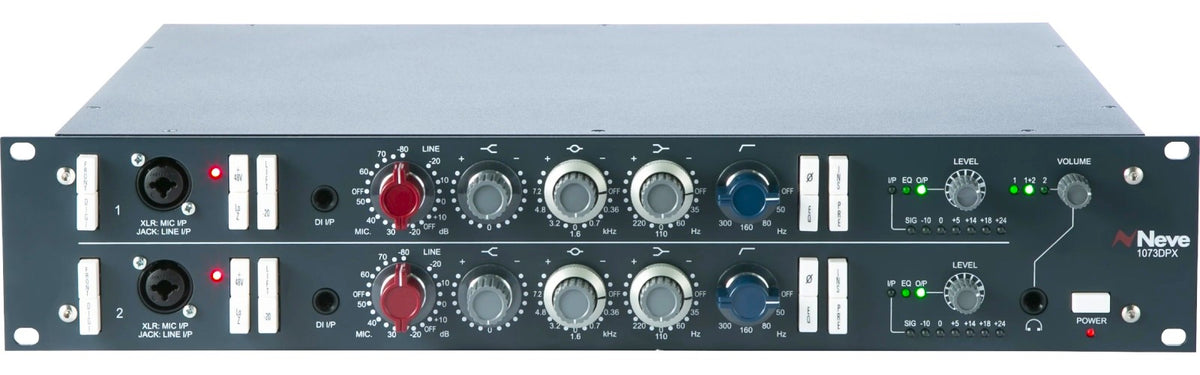

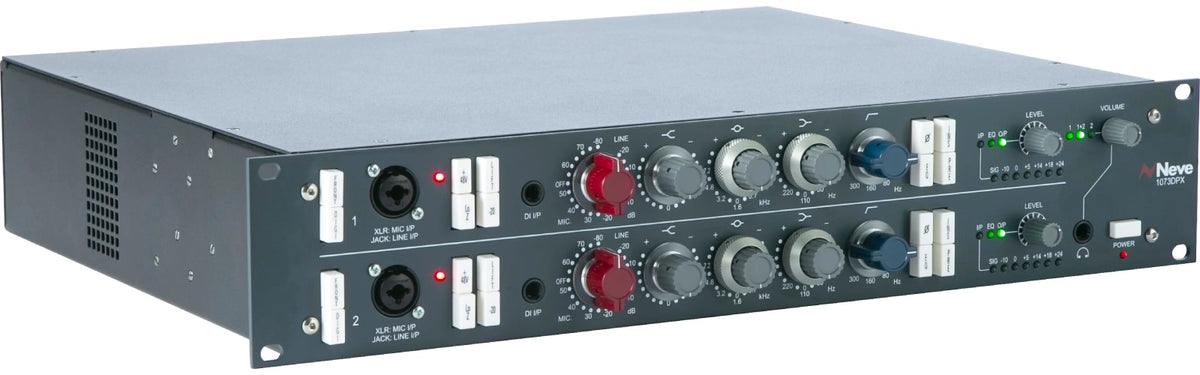

Ams Neve 1073DPX
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Ams Neve
https://www.ams-neve.com
info@ams-neve.com
------------------------
Safety manager:
Woodbrass.com
Email: support@woodbrass.com
Address:
A 1073 Legacy, Reinvented in a Dual-Channel Rack
Since 1970, the 1073 has set the standard for musical preamps featured on countless recordings. The 1073DPX carries on this DNA by using the original circuit and selected components for absolute fidelity, while integrating it into a 2U stereo unit ready for the contemporary studio. The result: the "Neve sound" texture - harmonic density, presence, and depth - with modern ergonomics.
Designed for Demanding Studios, Producers, and Creators
The 1073DPX is aimed at engineers, artistic directors, and high-end home studios seeking an immediately inspiring sonic signature for both recording and mixing. Lead vocals, guitars, overheads, pianos, synths, or bass via DI: everything gains body, focus, and image, regardless of style, from rock to rap to classical.
Key Features for a Modern Workflow

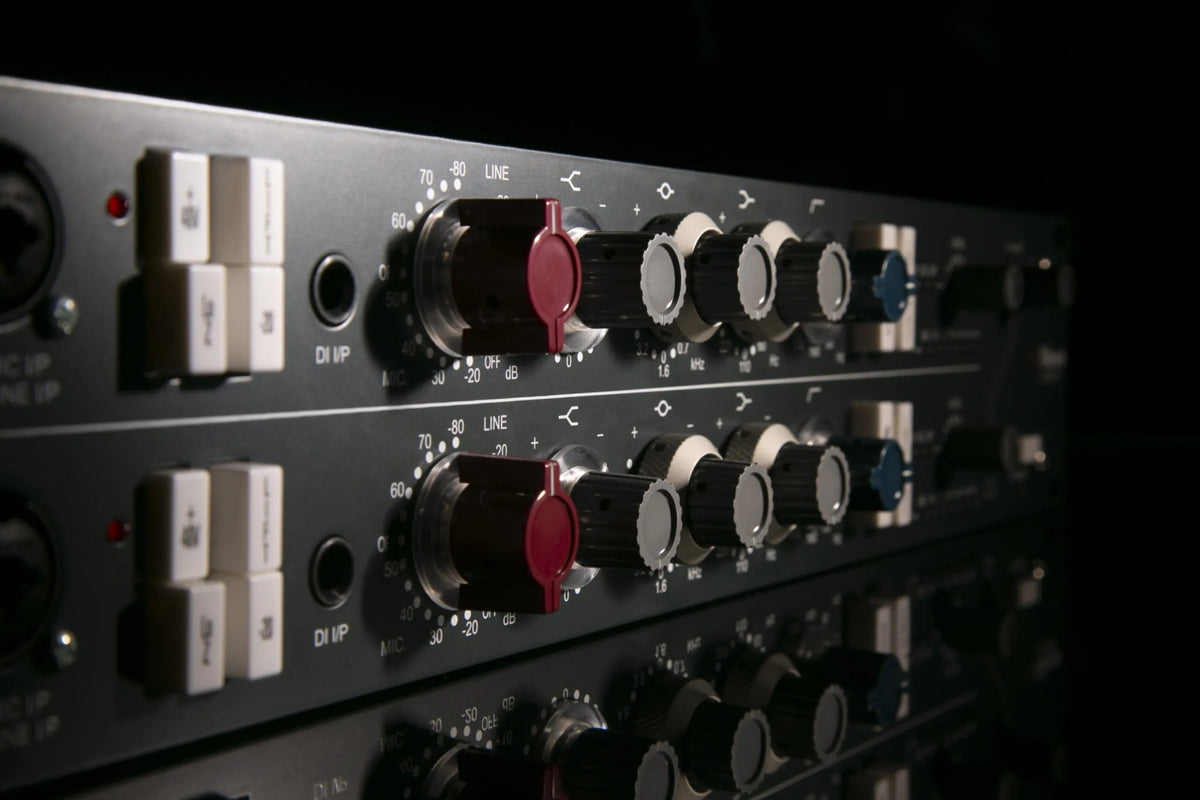

Class A Preamp and 1073 EQ
Each channel delivers the dynamic headroom and musical saturation characteristic of the 1073. The 3-band EQ, with fixed high frequencies and two switchable bands for cut/boost, allows quick and effective adjustments, supported by a high-pass filter to clean unwanted low end right at the source.

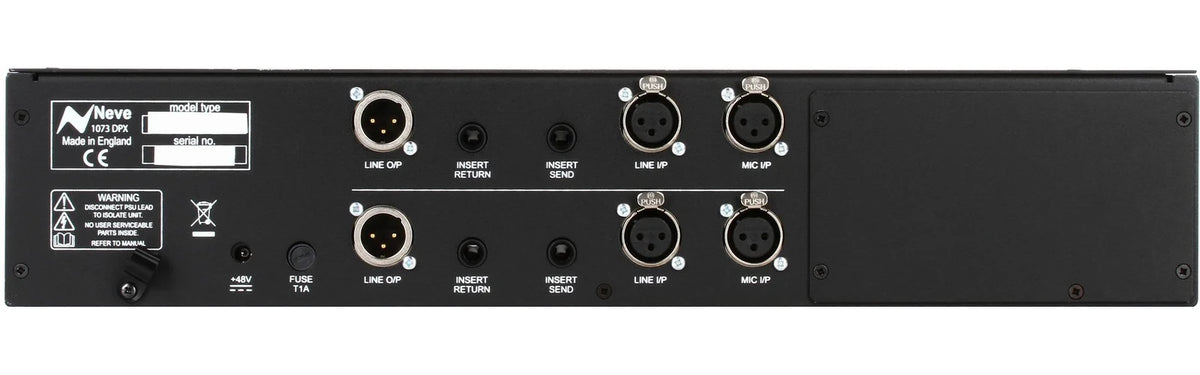

Connectivity and Inserts
Dedicated input/output connectors per channel simplify setup. The selectable insert with send/return facilitates integration of compressors, external equalizers, or effects chains without repatching.

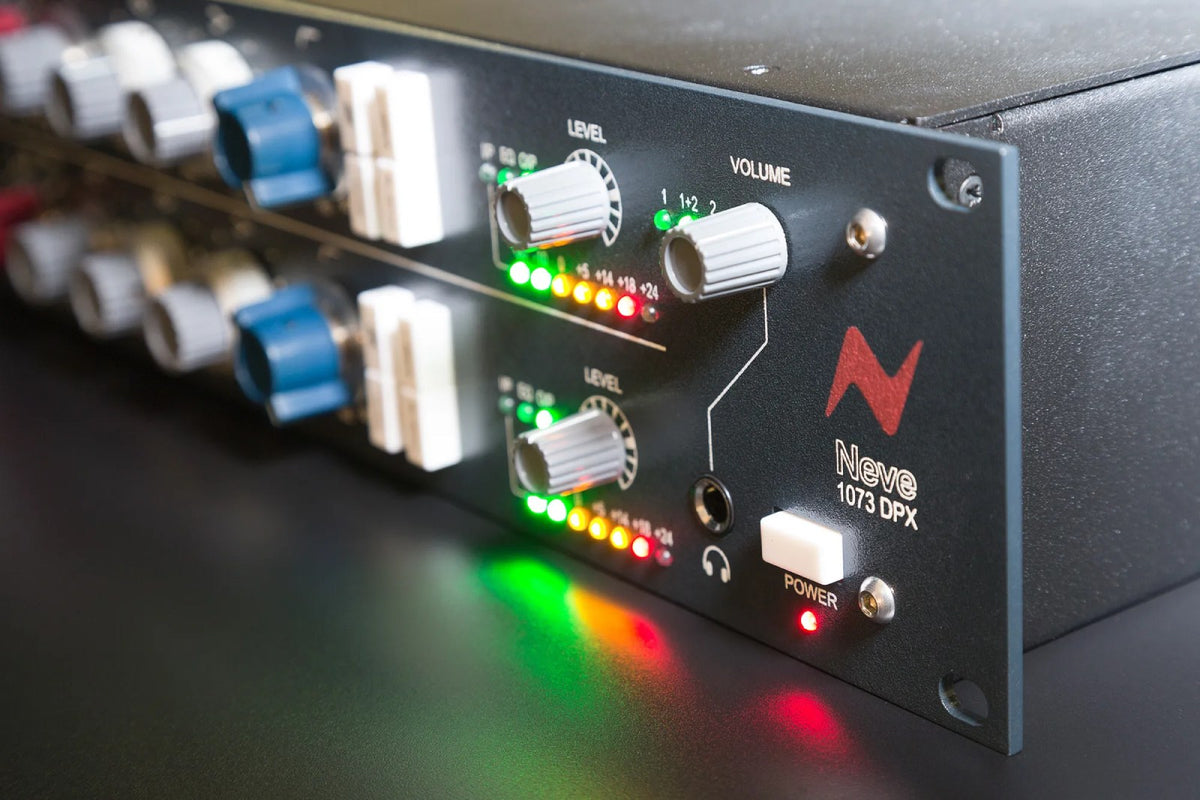

Monitoring and Control
Level indicators provide precise visual feedback, while selectable headphone monitoring allows confident listening to both source and effect. Switchable phantom power secures the use of condenser microphones.
Construction and Power Supply
The 19" 2U rack chassis fits into any studio. The multi-voltage external power supply reduces noise and enhances reliability, with English design and manufacturing ensuring durability.
Technical specifications
| Number of channels | 2 |
| EQ | 3 channels |
| Rack unit | 2 |
| 3-band EQ | fixed HF + two switchable bands with cut/boost capability |
Questions frequently asked
Does the 1073DPX have two independent preamps?
The two channels housed in this 19-inch 2U chassis each feature a class A preamp and a 3-band 1073 equalizer.
Which equalizer is integrated into the Neve 1073DPX preamp?
The EQ includes a fixed high band and two switchable bands with cut/boost. A high-pass filter is also integrated to reduce unwanted low frequencies at the source. This EQ section is present on both channels.
Can an external compressor be connected to both channels?
Each channel has a selectable insert with send and return, allowing insertion of a compressor, external equalizer, or effects chain.
Is phantom power available for condenser microphones?
Switchable phantom power enables the use of condenser microphones on both preamps.
Does the 1073DPX rack allow for headphone monitoring?
Selectable headphone monitoring is provided to listen to the source and the effect. Level indicators offer visual control during recording or processing.
