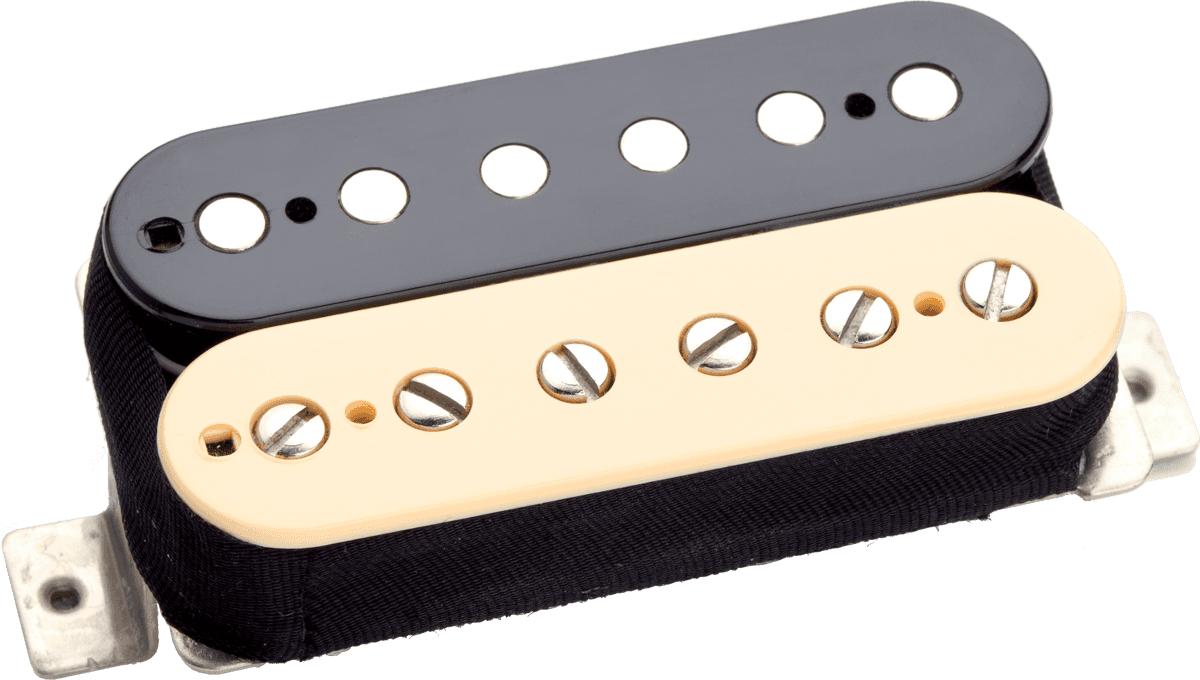

A classic "Alnico II Pro" with a distinctly musical character
The Alnico II Pro is designed to capture the traditional humbucker spirit: a flexible response under the fingers, natural compression, and dynamics that highlight playing rather than brute force. In the bridge position, the APH-1b-z maintains great definition while keeping the round and "singing" quality that has made it famous.
For which guitarists and styles?
With its applications in Jazz, Blues, Classic Rock, and Slide, this humbucker is an excellent choice if you're looking for an expressive pickup capable of moving from rich chords to fluid leads. It is especially suited for guitarists who like to control their tone via the guitar's volume and attack, delivering an organic and non-aggressive sound.
Split, 4-conductor wiring, and frequency balance
Thanks to its 4-conductor wiring, the APH-1b-z is compatible with modern setups: coil splits, series/parallel configurations, or more advanced combinations depending on your electronics. Its 7.85 K resistance indicates a moderate output level, ideal for preserving clarity and nuance. The 6.7 kHz peak helps maintain presence and articulation without harsh brightness, while the noise-cancelling design helps reduce unwanted interference in real-world situations (lighting, stages, home studios).
Technical specifications
| Electronics | Passive |
| Category | electric microphone |
| Instrument | guitar |
| Magnet | alnico II |
| Winding | double |
| Number of conductors | 4 |
| Position | bridge |
| Resistance | 8.4 KILOHM |
| Color | Multicolor |
| Model | Seymour Duncan APH-1b-z Alnico II Pro HB Bridge Zebra Humbucker Alnico II Pro |
| Applications | Jazz, Blues, Classic Rock, Slide |
| Split | Yes |
| Active | No |
| Peak | 6.7 kHz |
| Finish | Zebra |
| Other | Noise-Cancelling |
Questions frequently asked
What sound does the Alnico II Pro produce in the bridge position?
The Alnico II magnet and moderate output level promote a smooth response, with natural compression and a warm tone. The resonance peak at 6.7 kHz preserves presence without harsh brightness.
Can the Seymour Duncan APH-1b-z be coil split?
The 4-conductor wiring allows for coil splitting as well as series/parallel configurations depending on the guitar's electronics.
What styles suit a bridge APH-1b-z humbucker?
The recommended applications include jazz, blues, classic rock, and slide playing. Its rated resistance of 8.4 kΩ corresponds to moderate output, suitable for nuanced playing with dynamic volume and attack.
What is the finish of the APH-1b-z bridge pickup?
The Zebra finish combines two coils of different colors. It is a passive dual-coil humbucker designed for the bridge position.
Does this pickup reduce interference?
The noise-cancelling design helps limit hums and interference caused especially by lighting, on stage or in the home studio. The dual-coil winding contributes to this function. With its 4-conductor wiring, it remains compatible with more complex guitar configurations.
