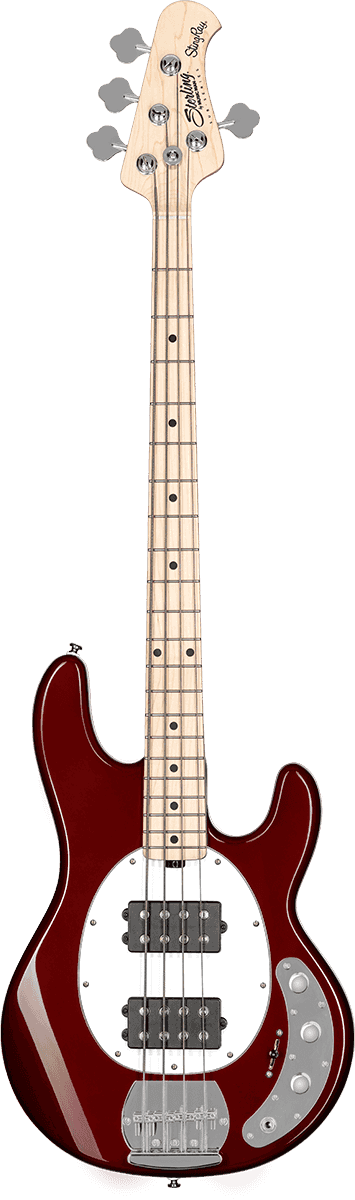

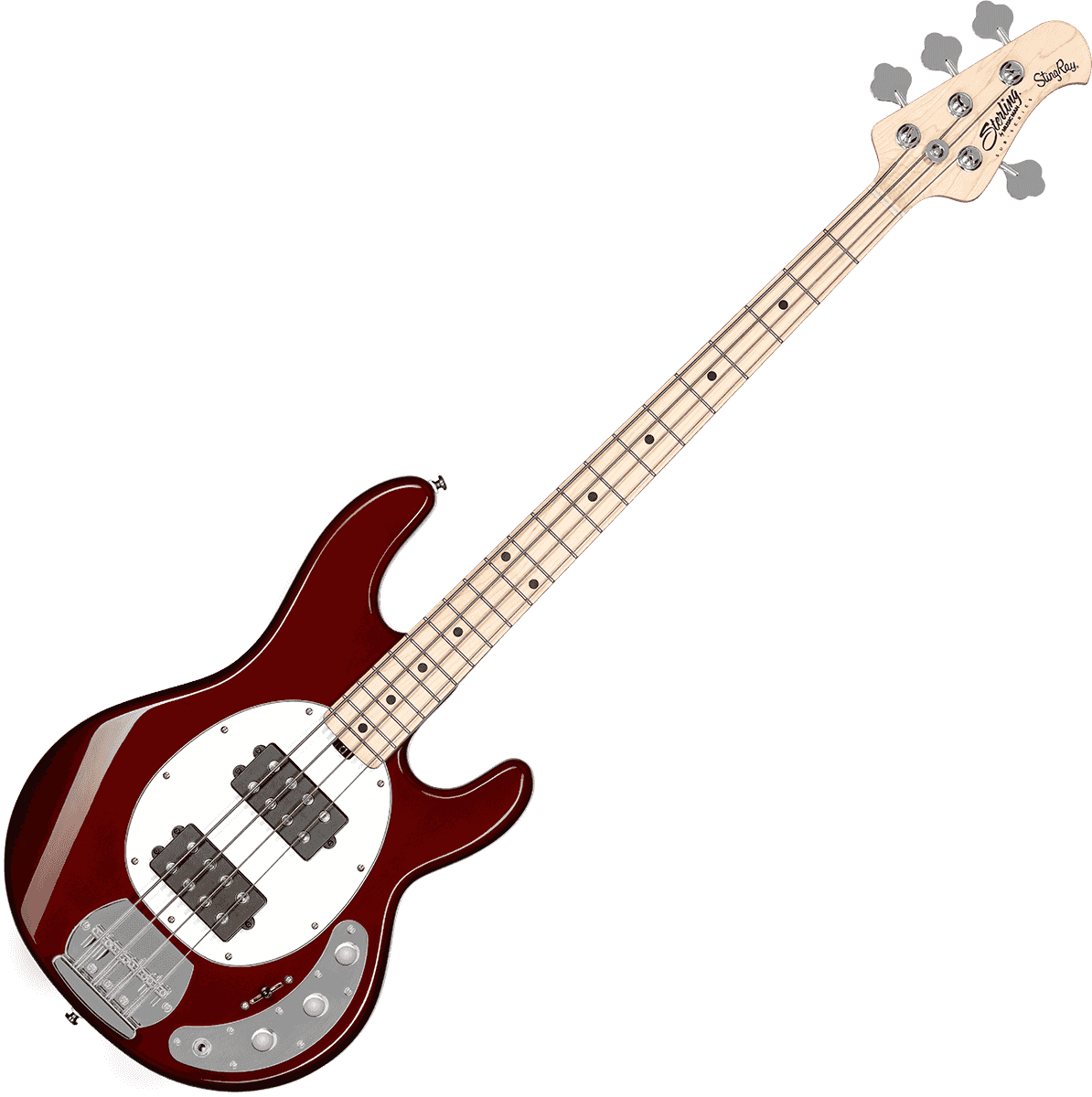

STERLING BY MUSIC MAN Stingray HH Candy Apple Red

The Essentials to Know About the Stingray RAY4HH Candy Apple Red Bass

• Ultra versatile HH configuration: two ceramic humbuckers + 5-position selector switch to switch from a massive sound to snappier combinations.


• 9V active preamp with 2-band EQ: attack, punch, and presence immediately available at your fingertips.


• Maple neck and fingerboard: fast feel, crisp response, and ideal definition for articulated bass lines.


• Iconic StingRay look: glossy finish and Candy Apple Red color for a bass that stands out on stage.

A Modern StingRay: The Music Man Spirit, the Gateway to the HH Sound

The Sterling by Music Man Stingray RAY4HH adopts the aesthetic codes and sonic DNA of the StingRay family while offering a contemporary and accessible approach. The dual humbucker (HH) version broadens the palette: more textures, more combinations, and a real ability to adapt to varied contexts, from studio to stage.

For Which Bassists and Styles?

This 4-string bass is primarily aimed at intermediate to advanced bassists who want simple-to-master active electronics but rich enough to cover many styles. It excels particularly in rock, pop, funk, metal, and contemporary music, where power, definition, and a bass that "holds" the mix effortlessly are sought after.

The Sound

With its two ceramic humbucker pickups, the RAY4HH offers a range from dense, punchy lows to tighter, more precise tones. The 5-position selector switch allows quick variation of pickup combinations to adjust the balance between attack, warmth, and bite depending on the track. The 9V active preamp and 2-band EQ provide a level boost and natural emphasis on key frequencies, ideal for achieving a present and controlled sound, even with lower tunings or energetic fingerstyle playing.

Technical specifications

Electronics: microphone configuration	HH	Scalloped	Double
Category	Other	Body	Poplar
Format	Stingray	Types of frets	Medium Jumbo
Left handed	No	Bridge / tailpiece	Fixed
Strings	Steel	Nbre of pickups	2
Nbr of strings	4	Neck Pickup	Ceramic Humbucker
Top	Poplar	Bridge pickup	Ceramic Humbucker
Neck	Maple	Electronics	Active
Radius	240 mm	Selector	5-position
Nut Width	38 mm	Settings	2-band equalization
Fingerboard	Maple	Electroacoustic	No
Marker	Point	Color	Red
Nbrs of frets	21	Colours	Candy Apple Red
Scale (mm)	864 mm	Finishing	Glossy
Tuning pegs	Open	Hardware	Chromed
Original Strings	45-105

Shape	Stingray	Inlays	dot
Cutaway	double	Bridge	fixed
Color shade	red	Tuners	open gear
Finish	glossy lacquer	Number of pickups	2
Scale length	34" / 864 mm	Selector switch	5-position
Number of frets	21	Controls	2-band EQ
Fret type	Medium Jumbo
