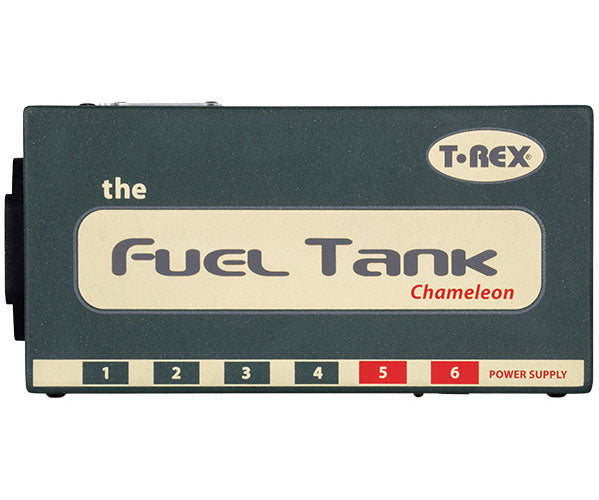

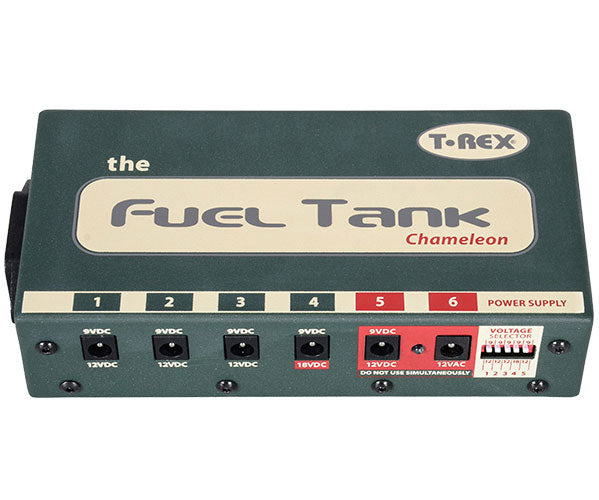

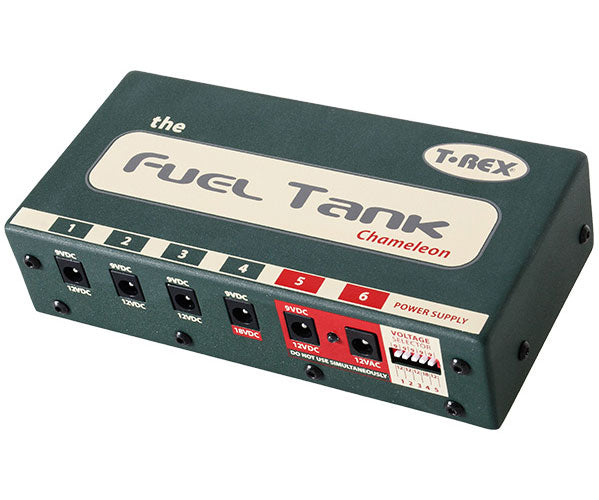

T-rex FuelTank Chameleon, boitier d'alimentation
Estimated Shipping Widget will be displayed here!
Everything you need to know about the FuelTank Chameleon power supply
Everything you need to know about the FuelTank Chameleon power supply
- Total versatility: choose the right voltage for each pedal (9 V DC, 12 V DC, 18 V DC or 12 V AC) to easily integrate very different effects on the same pedalboard.
- Galvanically isolated outputs: 6 outputs designed to limit unwanted noise and help prevent ground loops, even with a complex effects chain.
- Ample current reserve: up to 300 mA per output (and a maximum total of 1500 mA), ideal for more power-hungry modern pedals.
- Compact, road-ready design: a rugged chassis and built-in traditional EI transformer provide stable, reliable power supply performance built for live shows.
Manufacturer Information
T-rex
https://www.t-rex-effects.com
info@t-rex-effects.com
------------------------
Safety manager:
HIGH TECH DISTRIBUTION
Email: pro@htd.fr
Address:
Essential Information About the FuelTank Chameleon Power Supply Unit
- Total Versatility: choose the appropriate voltage for each pedal (9 V DC, 12 V DC, 18 V DC, or 12 V AC) to easily integrate very different effects on the same pedalboard.
- Galvanically Isolated Outputs: 6 outputs designed to limit unwanted noise and help avoid ground loops, even with a complex effects chain.
- Comfortable Current Reserve: up to 300 mA per output (and a total max of 1500 mA), ideal for modern, more power-hungry pedals.
- Compact, Road-Ready Format: robust chassis and built-in traditional EI transformer for a stable, reliable power supply designed for gigs.
A FuelTank Designed for Modern Pedalboards
The T-Rex FuelTank Chameleon belongs to the FuelTank power supply family, a range appreciated for its ease of integration on pedalboards and reliability. While some power supplies are limited to 9 V DC, the Chameleon clearly targets musicians who switch between analog effects, digital pedals, and modules requiring specific voltages. The result: a single unit can cover varied needs without multiplying power adapters on stage.
Who Is the FuelTank Chameleon For, and In What Uses Does It Make a Difference?
This power supply is aimed at guitarists and bassists who use multiple effects and want a clean, quiet, and quick-to-install setup. It suits both "club" pedalboards and more complete configurations: overdrives, compressors, digital delays, reverbs, compact multi-effects... Whenever your rig includes pedals demanding in current or voltage, the Chameleon becomes a true nerve center.
In the studio, it helps maintain a cleaner signal by reducing hum. Live, it secures pedal power and avoids the hassle of individual power supplies that take up space and increase the risk of bad connections.
Technical specifications
| Type | power supply for effects pedals | Current per output | 300 mA (150 mA at 18 V DC) |
| Number of isolated outputs | 6 | Max. total current | 1500 mA |
| Number of outputs usable simultaneously | 5 | Mains voltage selection | 115 V / 230 V (universal) |
| Isolated outputs | yes, galvanic, with noise reduction | Included connectors | numerous DC and AC cables supplied (various formats for pedal compatibility) |
| Output voltages | 9 V DC, 12 V DC, 18 V DC (selectable configuration), 12 V AC (selectable configuration) | Dimensions | approximately 160 x 38 x 80 mm |
| Output 4 configuration | 18 V DC (150 mA) | Weight | approximately 0.79 kg |
You will also like
Strymon
Ojai
Nux
ZEUS JUNIOR 6 ISOLATED OUTPUTS
MXR
DC BRICK
Palmer
PWT08 MK2
Rockboard
Power Block Iso V10
Truetone
1 Spot Pro CS7
MXR
M239 MINI ISO-BRICK POWER SUPPLIES
Rockboard
Power Block Iso V6 IEC 9 To 18V 100/230 Volt
Questions frequently asked
How many pedals can the T-Rex FuelTank Chameleon power?
Up to 5 outputs can be used simultaneously, with a total capacity of 1500 mA. Each output delivers up to 300 mA, depending on the selected voltage.
Are the outputs isolated to prevent hum?
All 6 outputs are galvanically isolated to reduce noise and ground loop issues. This design is suitable for setups combining analog effects and digital pedals.
What output voltages are available?
The power supply offers selectable outputs at 9 V DC, 12 V DC, 18 V DC, and 12 V AC. Output 4 can operate at 18 V DC with a maximum current of 150 mA.
Can it power current-hungry digital pedals?
Each output can provide up to 300 mA, a capacity adapted to current pedals requiring more current. The total pedalboard consumption must not exceed 1500 mA. At 18 V DC, the limit for the concerned output is 150 mA.
Is the power supply suitable for touring with 115 V and 230 V?
The 115 V / 230 V mains selection allows use with both types of electrical installations. The unit measures approximately 160 x 38 x 80 mm and includes a traditional EI transformer.
