Tascam BO-16DX/IN
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Essential Information About the BO-16DX/IN
Essential Information About the BO-16DX/IN
- Audio connection box designed to convert 16 balanced female XLR inputs to 25-pin Sub-D connectors.
- Ideal for demanding environments: recording studio, broadcast, post-production, and live performance.
- Compatible with audio equipment using Sub-D 25 wiring following the Tascam AES59 standard.
- Robust 1U rack-mountable chassis with reversible brackets and clear channel labeling.
Manufacturer Information
Tascam
https://www.tascam.eu
tascam-sales@teac.de
------------------------
Safety manager:
CSI audiovisuel
Email:
Address:
Essential Information About the BO-16DX/IN
- Audio connection box designed to convert 16 balanced female XLR inputs to 25-pin Sub-D connectors.
- Ideal for demanding environments: recording studio, broadcast, post-production, and live performance.
- Compatible with audio equipment using Sub-D 25 wiring following the Tascam AES59 standard.
- Robust 1U rack-mountable chassis with reversible brackets and clear channel labeling.
Technical specifications
| Type | Analog | Rackable | Yes |
| Number of faders | 0 | ||
| Inputs | 16 balanced female XLR connectors | Brackets | removable and reversible |
| Connector | 25-pin Sub-D | Channel identification | readable in both directions |
| Wiring | balanced analog, Tascam AES59 standard | Integrated cable | no |
| Chassis | 19-inch rack-mount, 1 U high | ||
You will also like
Zoom
Livetrak L6max
Yamaha
MG12xu
Yamaha
MG10xuf
Zoom
LIVETRACK L-8
Allen & Heath
ZEDI-10FX
Mackie
Onyx 8
Midas
DM16
Yamaha
MG12
Questions frequently asked
Is the Tascam BO-16DX/IN compatible with the Tascam AES59 Sub-D standard?

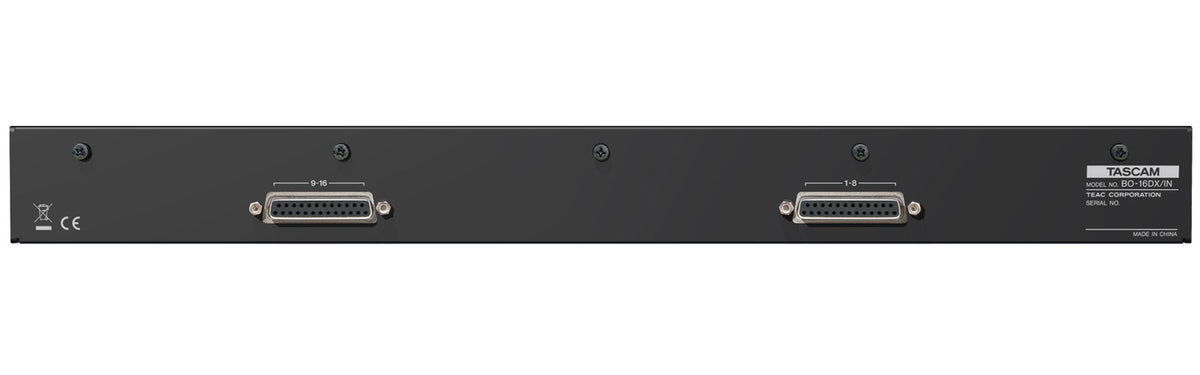

The 25-pin Sub-D connector uses the standard Tascam AES59 balanced analog wiring. It can therefore be connected to audio equipment compatible with this format.
How many XLR inputs are available?

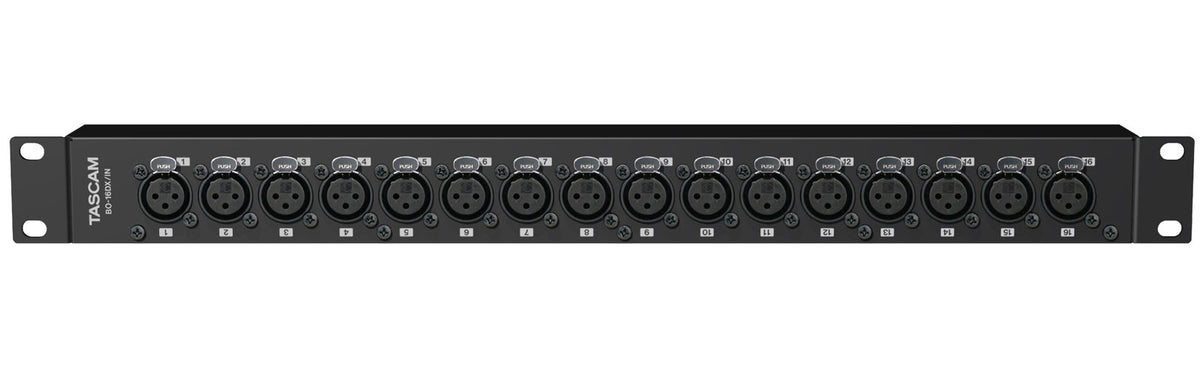

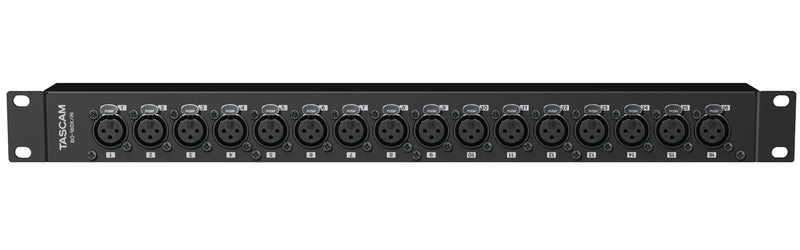

There are 16 balanced female XLR inputs on the front panel.
Can microphones be connected to the unit?
The 16 female XLRs allow connection of microphones, preamps, or stage outputs. The unit then consolidates these signals to its 25-pin Sub-D output. No cable is included, as the format is that of a breakout box.
Can the BO-16DX/IN be mounted in a 19-inch rack?
Its robust 1U chassis is designed for 19-inch rack mounting. Removable and reversible brackets facilitate installation in a technical rack or flight case.
Are the channels labeled on the unit?
Clear labeling of the 16 channels is provided on both sides. Connection identification remains readable regardless of the bracket mounting orientation.
