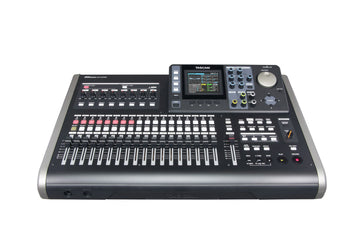

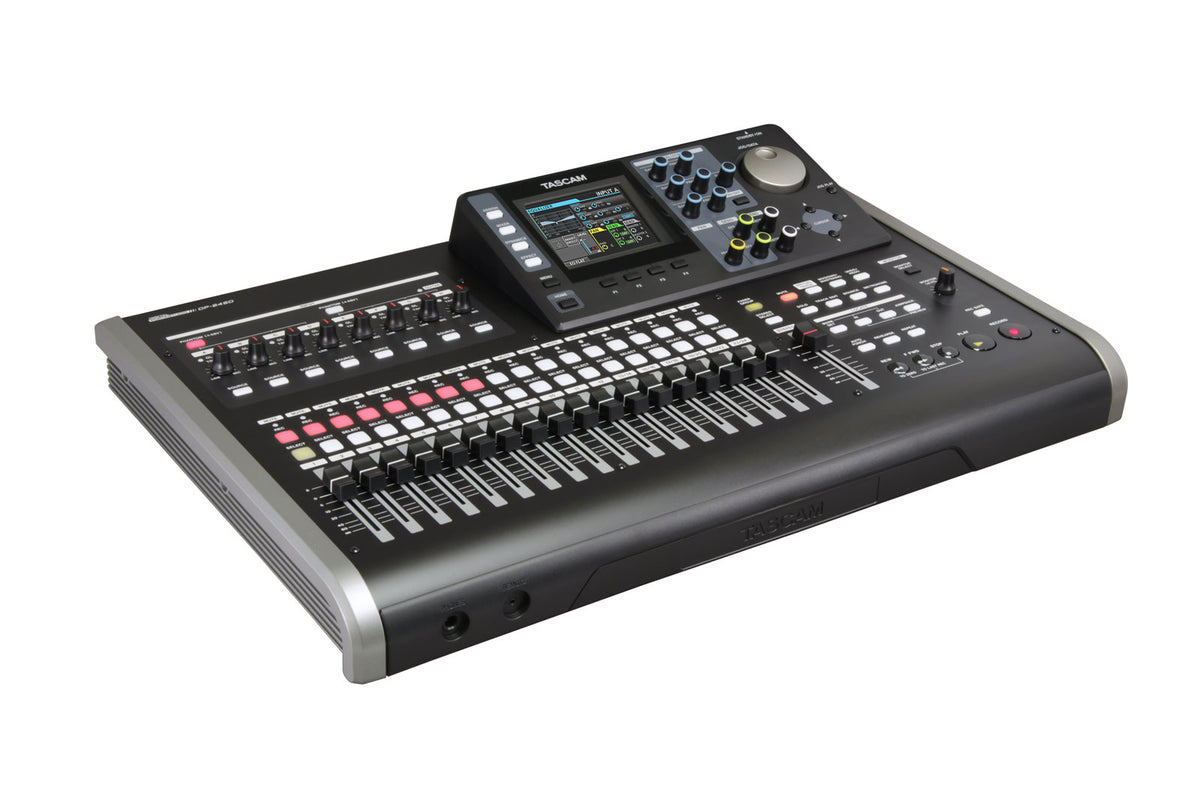

A Modern Portastudio True to the "All-in-One" Spirit
The DP-24 continues the Portastudio philosophy: compose, record, and finalize all in one place, without a computer. Its control surface with linear faders and large color screen offers a direct and musical workflow. Recording to SD card enhances durability and simplifies daily archiving.Who Is It For and What Are Its Uses?
Ideal for singer-songwriters, rehearsal bands, schools, and mobile studios, the DP-24 is suitable for live recording of up to 8 sources (vocals, guitars, keyboards, electronic drums). Its "dedicated button" workflow reassures beginners, while advanced editing features, markers, and virtual tracks appeal to demanding users in preproduction or professional demo work.Fast and Creative Production Workflow
The 12 channel encoders and dedicated controls (EQ, pan, sends) speed up sound shaping, while input processing (compressor, limiter, noise gate, exciter) ensures clean takes. The built-in guitar multi-effects allow direct recording of bass or six-string guitar via the instrument input, no amp needed. During mixing, two effects processors (reverb, chorus, delay...) and a mastering chain (EQ, multiband compressor, normalizer) help finalize a stereo master ready for sharing.Precise Editing and Smooth Navigation
View waveforms on the large LCD, position up to 99 markers per song, and edit at the subframe level. Undo/Redo with history secures every step, and the "peak hold" function on the meters facilitates gain staging. USB 2.0 transfer accelerates export and archiving of your projects.Technical specifications
| Number of channels | 24 |
| Sampling frequency | 48 kHz |
| Max resolution | 24-bits |
| Headphone outputs | Yes |

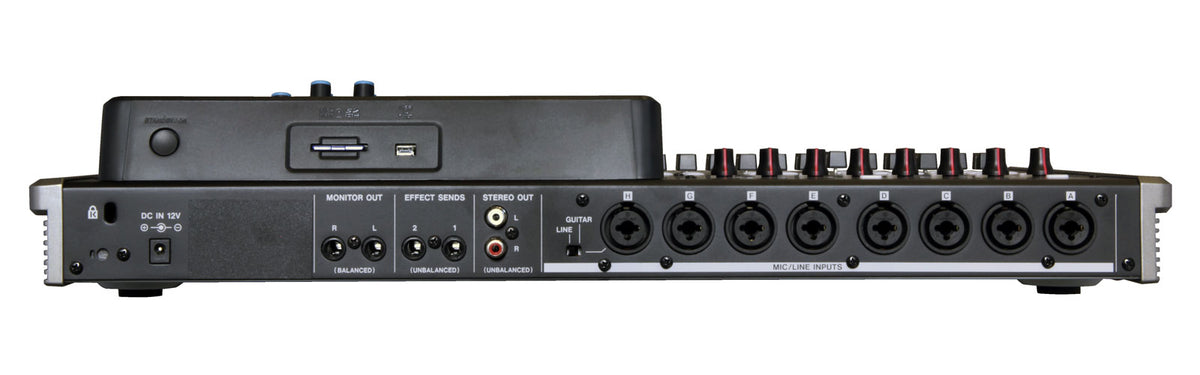

| Inputs | Jack, Line in, USB audio, XLR |
| Outputs | USB, 2 x jack, 2 x headset, Rca |
| Color | Black |
| 24-track digital Portastudio | 12 mono tracks, 6 stereo tracks, 24 tracks playback simultaneously |
| Sampling rates | 44.1 / 48 kHz |
| Resolution | 16-bit or 24-bit |
| Headphone output | 2 x 70 mW |
| Dedicated controls | equalizers, pans, effects sends |
| Input dynamic processing | limiter, compressor, noise gate, exciter |
| Guitar multi-effects | noise gate, amp simulation, compressor, chorus, flanger, phaser, tremolo, auto-wah, delay |
| Mix effects | reverb, delay, stereo chorus |
| Mastering tools | equalizer, multiband compressor, normalizer |
| Editing functions | copy/paste, copy/insert, cut/paste, cut/insert, insert silence, delete section, erase section, duplicate track, delete track |
Questions frequently asked
How many sources can be recorded simultaneously with the Tascam DP-24 SD?
Up to 8 sources can be recorded simultaneously, while 24 tracks are available for playback. The setup allows for 12 mono tracks or 6 stereo tracks.
Can a guitar be recorded directly without an amp?
The instrument input and the built-in guitar multi-effects enable direct recording of a guitar or bass. The effects section includes amp simulation, a compressor, and delay.
What recording quality does this Portastudio offer?
Recording is available at 16 or 24 bits, with sample rates of 44.1 or 48 kHz. Storage is done on an SD card.
Does the DP-24 SD feature effects and mastering tools?
Two mix effect processors provide reverb, delay, and stereo chorus. Stereo finalization uses an equalizer, a multiband compressor, and a normalizer. Input processing, including compressor and limiter, is also available.
How to export recorded tracks?
Project transfer and export of recordings are done via USB 2.0.
