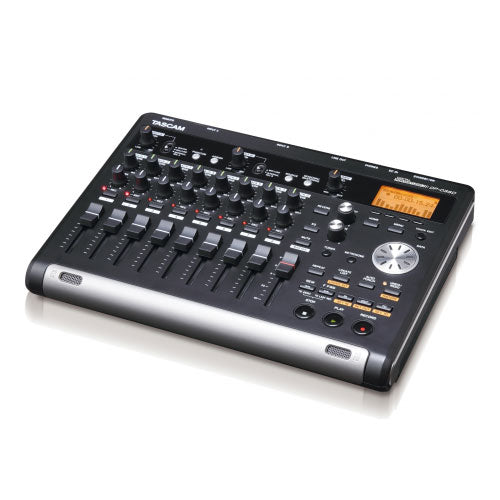

Tascam DP-03 SD

A Modern Portastudio in the TASCAM Tradition: Autonomy Serving Creativity

The DP-03SD follows the philosophy of TASCAM multitrack recorders: a machine dedicated to music, designed to go from idea to finished track with minimal setup. Its "tabletop studio" approach favors direct controls, simple navigation, and recording in PCM 44.1 kHz / 16-bit format on SD or SDHC cards, to maintain a stable and immediate workflow.

This memory card and USB transfer-oriented version emphasizes portability and ease of sharing: you can capture, edit, mix, master, then transfer the result to a computer for archiving, distribution, or encoding.

Who the TASCAM DP-03SD Makes a Difference For and Its Use Cases

The DP-03SD is particularly suited for songwriters, home studio musicians, rehearsal bands, and creators who want to record without getting lost in software settings. It is also very suitable for preproduction: laying down vocals, guitar, bass, keyboards, or drum machines, then building an arrangement track by track.

Thanks to the switchable Hi-Z input, you can plug in a guitar or bass directly, while the TRS line inputs accept synthesizers and line-level sources. The two XLR mic inputs with phantom power allow the use of studio condenser microphones, and the built-in mics enable immediate stereo recording without cabling.

Recording, Editing, Mixing, and Export: A True Studio Without a Computer

Record with Precision: Tuner, Metronome, and Auto Punch

For clean and consistent takes, the DP-03SD includes a tuner and a metronome with dedicated buttons for instant access. The Auto Punch in/out function facilitates re-recording a marked passage (vocals, solo, note correction) without manually triggering recording start and stop, improving accuracy and reducing errors.

Edit Like a Workstation: Copy, Move, Cut, Undo

Editing is designed for speed: copy/paste, mute, track cloning, and workstation-style tools (copy, move, cut). The Undo/Redo history has multiple levels, including editing functions, to test ideas stress-free. Markers allow you to quickly locate a verse, chorus, vocal entry, or transition.

Mix at the Fader: Pan, Equalization, and Reverb Sends

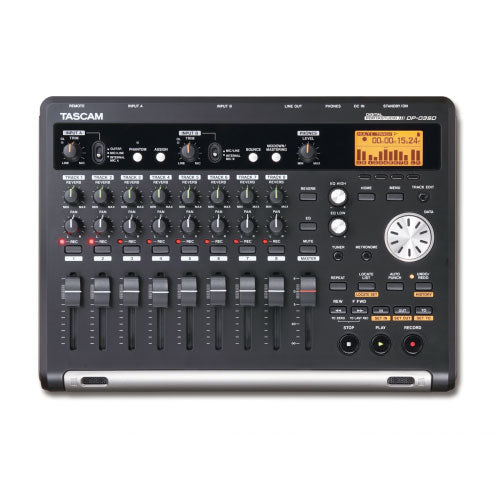

Each track has a send to a stereo reverb processor and a 2-band shelving equalizer (bass/treble), with dedicated controls to quickly shape sources. The 45 mm faders and pan knobs make mixing tangible and intuitive, like on a small console. Once the mix is balanced, you record it on the dedicated stereo master track, ready to be transferred.

Track Bounce and WAV Import: More Arrangement Freedom

The Track Bounce function (pre-mixing) allows using more than 8 tracks total by grouping several already recorded tracks onto another track. Useful for stacking backing vocals, multiplying guitars, or densifying an arrangement without losing control. You can also import a WAV file via USB and integrate it into a project (intro, sample, guide, or take recorded elsewhere).

Integrated Mastering and USB 2.0 Transfer

To achieve a more present sound, the DP-03SD offers mastering effects (2-band equalizer, mono or multiband compressor, level normalizer, and finishing processing according to your settings) to increase overall level and density. Once satisfied, transfer your projects and audio files via the USB 2.0 port: simple for archiving, sharing, or finalizing on a computer.

Technical specifications

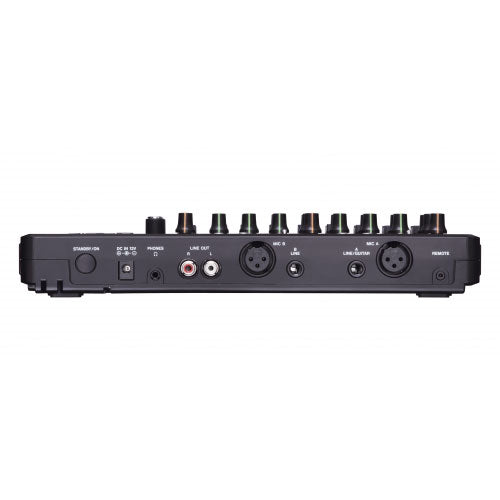

Number of channels	8	Inputs	Jack, Line in, XLR
Sampling frequency	48 kHz	Outputs	USB, Headset, Rca, 6.5 mm headphone
Max resolution	16-bits	Color	Black
Headphone outputs	Yes	Nominal mode power consumption (Wh)	5 W

Recording and playback format	PCM 44.1 kHz / 16-bit	Maximum input level (TRS)	+24 dBu
Recording media	SD card (512 MB to 2 GB) or SDHC card (4 to 32 GB)	Phantom power	available on XLR mic inputs
Simultaneous playback	8 tracks	Line output	unbalanced RCA
Simultaneous recording	2 tracks (stereo source or two independent mono sources)	Nominal output impedance (RCA)	1 kohm
Master track	dedicated stereo track for mixing	Nominal output level (RCA)	-10 dBV
File system	MTR partition (TASCAM proprietary format) and FAT partition (FAT32)	Maximum output level (RCA)	+6 dBV
Audio import and export	WAV files via USB	Headphone output	6.35 mm stereo jack
Microphones	2 omnidirectional condenser microphones	Maximum headphone output power	2 x 40 mW (THD+N <= 0.1%, at 32 ohms)
Inputs A and B	balanced XLR	USB port	mini-B connector
Nominal input impedance (XLR)	2.4 kohms	USB	USB 2.0 HIGH SPEED, mass storage class devices
Nominal input level (XLR)	-16 dBu	REMOTE port	2.5 mm jack (for RC-3F footswitch)
Maximum input level (XLR)	0 dBu	Footswitch	TASCAM RC-3F available as an option, with three pedals and assignable functions
Input A	6.35 mm TRS balanced jack	Footswitch operation mode selection	yes
INPUT A selector in MIC/LINE position	nominal input impedance >= 10 kohms	Equalization	bass and treble shelving equalizer per track and on both inputs
INPUT A selector in GUITAR position	nominal input impedance >= 1 M?	Effect	built-in reverb (send per track to stereo reverb)
Input B	6.35 mm TRS balanced jack	Built-in mastering effects	2-band equalizer, mono or multiband compressor, level normalizer
Nominal input impedance (TRS)	>= 10 kohms	Auto Punch in/out function	yes
Nominal input level (TRS)	+4 dBu	Track Bounce function	yes
