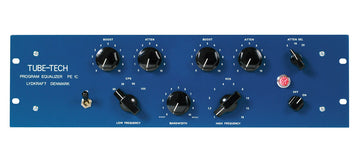

Tube Tech PE 1C

A Studio Classic Reinterpreted: From the PE 1A to the PE 1C

Tube-Tech made its name with the PE 1A, originally designed as a European alternative faithful to the spirit of vintage "program EQ" equalizers that became staples in studios. This approach, centered on extremely musical passive curves and a "smooth" sound that is hard to replicate, quickly found its place in major mixing sessions. The PE 1C continues this lineage: it retains the architecture and philosophy of passive equalization inspired by the EQP-1A design, while offering a modern build and a selection of premium components, designed for intensive use in professional environments.

Who Is It For and What Are Its Uses in Mixing and Mastering?

The Tube-Tech PE 1C is aimed at sound engineers, producers, and studios seeking an analog tube equalizer capable of transforming a source with just a few gestures, without falling into a "surgical" effect. It excels on tracks where quick auditory decisions are needed: kick and bass (foundation and low-end control), vocals (presence and air), guitars (body and brilliance), but also on buses (drums, mix bus) or in mastering to open up the highs and solidify the lows with a naturally coherent result. Its strength is not only the EQ but the sense of depth and density typical of passive circuits combined with a tube gain stage.

Musical Curves, Sculpted Lows, and "Hi-Fi" Highs: What Defines the PE 1C

The "Low End Trick": Cleaning and Thickening Simultaneously

The low-frequency section of the PE 1C combines two separate passive filters (boost and attenuation) whose frequencies do not exactly overlap. In practice, this allows increasing the fundamental energy while attenuating a neighboring area that can quickly become overwhelming. The result: clearer bass, better-controlled low-midrange, and a sense of depth without muddiness, particularly effective on electric bass, kick drum, piano, or drum bus.

A Precise High-Frequency Section with Bandwidth Control

The high-frequency section of the PE 1C is designed to provide clarity without harshness. The high-frequency boost operates in "peaking" mode with a variable bandwidth: you can choose a wide, elegant lift to add air or narrow the range to emphasize a vocal attack, snare definition, or guitar presence. Additionally, there is a high-frequency attenuation shelving type, very useful for smoothing overly bright brilliance after a boost or taming excessive sibilance and cymbals while maintaining a sense of openness.

Passive Equalization + Gain Restoration: The Dynamics of "Program EQ"

As with historical passive designs, equalization naturally causes a level loss within the filter network. The PE 1C then compensates via a tube push-pull amplifier designed to restore gain, with a low-noise and high-headroom design. This architecture contributes to the sensation of texture, depth, and "glue" often sought after on acoustic sources, lead vocals, or mixes that need to gain dimension without losing musicality.

Design Details Thought Out for the Modern Studio

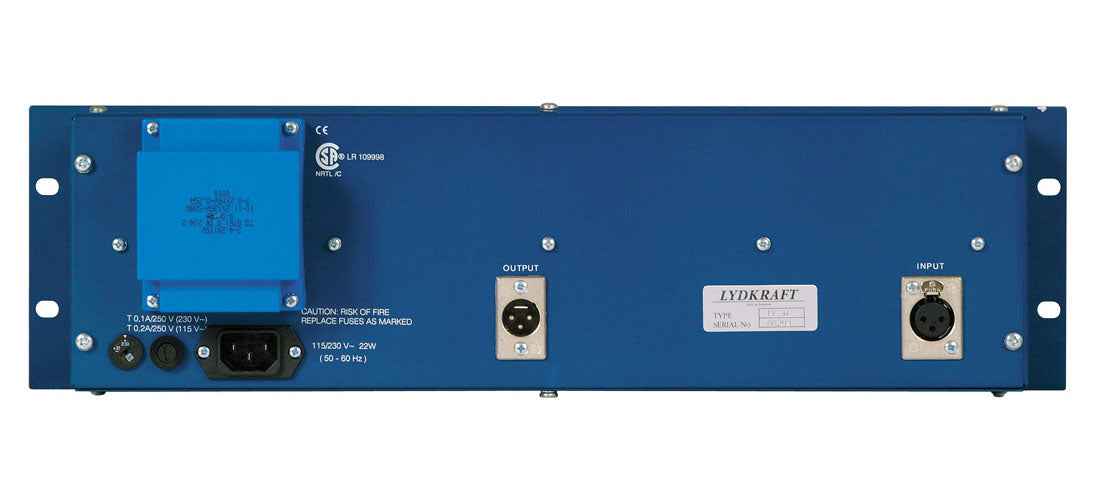

Beyond its sonic character, the PE 1C emphasizes reliable integration: silent In/Out switch for quick comparisons, conductive plastic potentiometers for stable adjustment, and transformer-balanced, fully floating inputs and outputs designed to minimize ground issues and facilitate insertion into an analog chain (console, patchbay, compressor, converters).

Technical specifications
