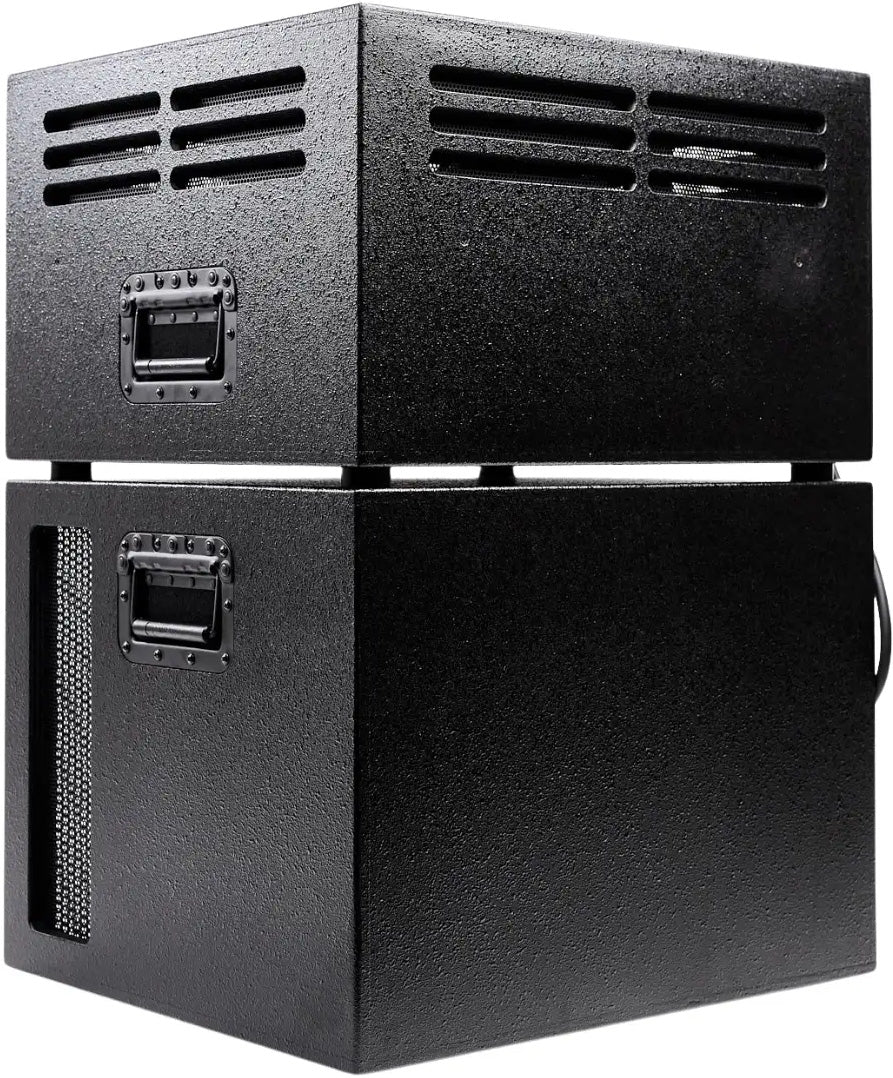

Viscount LEGEND SPIN-TONE 700
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Viscount
------------------------
Safety manager:
Email:
Address:
Technical specifications
| Power handling | 750 MILLIWATT |
| Fictitious load | No |
| Headphone outputs | Yes |
| Color | Black |
| Connections | USB, 3.5mm jack |
| Type | rotary amplifier for keyboard and organ |
| Amplified channels | 3 |
| Speaker configuration | 2 woofers with rotary effect simulation + 1 driver with rotary horn |
| Response and presets | 6 speaker response and operation presets |
| Adjustments | equalizer, volumes, preset selection, main controls on front panel |
| Rotation control | Slow, Fast, Stop |
| Control modes | control lever via Legend or Legend Soul keyboard, footswitch pedal, MIDI |
| Connectivity | 11-pin connector + audio and control connections on main panel |
| Compatible application | Rotary Editor for Windows, macOS and iOS |
| Software functions | advanced parameter editing and software update |
| Dimensions | 59 x 76 x 50 cm |
| Dimensions with wheels | 59 x 87 x 50 cm |
| Weight | 43.5 kg |
| Cabinet | plywood |
| Protection | metal grilles |
| Wheels | yes |
| Compatibility | digital organs, stage keyboards and instruments compatible with 11-pin or MIDI control |
Questions frequently asked
Is the Viscount Legend Spin-Tone 700 compatible with a Legend Soul?
Compatibility with the Legend Soul is specified, with lever control from the keyboard. Control is also possible via a footswitch or MIDI.
How does the rotary effect of this cabinet work?
The upper section includes a driver and a rotating horn, while two woofers reproduce the rotation effect in the low frequencies. Three settings are available: Slow, Fast, and Stop.
What controls are available on the Spin-Tone 700?
On the front panel, the equalizer, volume controls, and selection of the 6 presets are directly accessible. The Rotary Editor app, compatible with Windows, macOS, and iOS, allows advanced parameter editing and also serves for software updates.
What are the dimensions and weight of the cabinet?
The plywood cabinet measures 59 x 76 x 50 cm and weighs 43.5 kg. With wheels installed, the height reaches 87 cm.
Does the Spin-Tone 700 have a headphone output?
A headphone output is included, with connectivity provided via USB and 3.5 mm jack.
