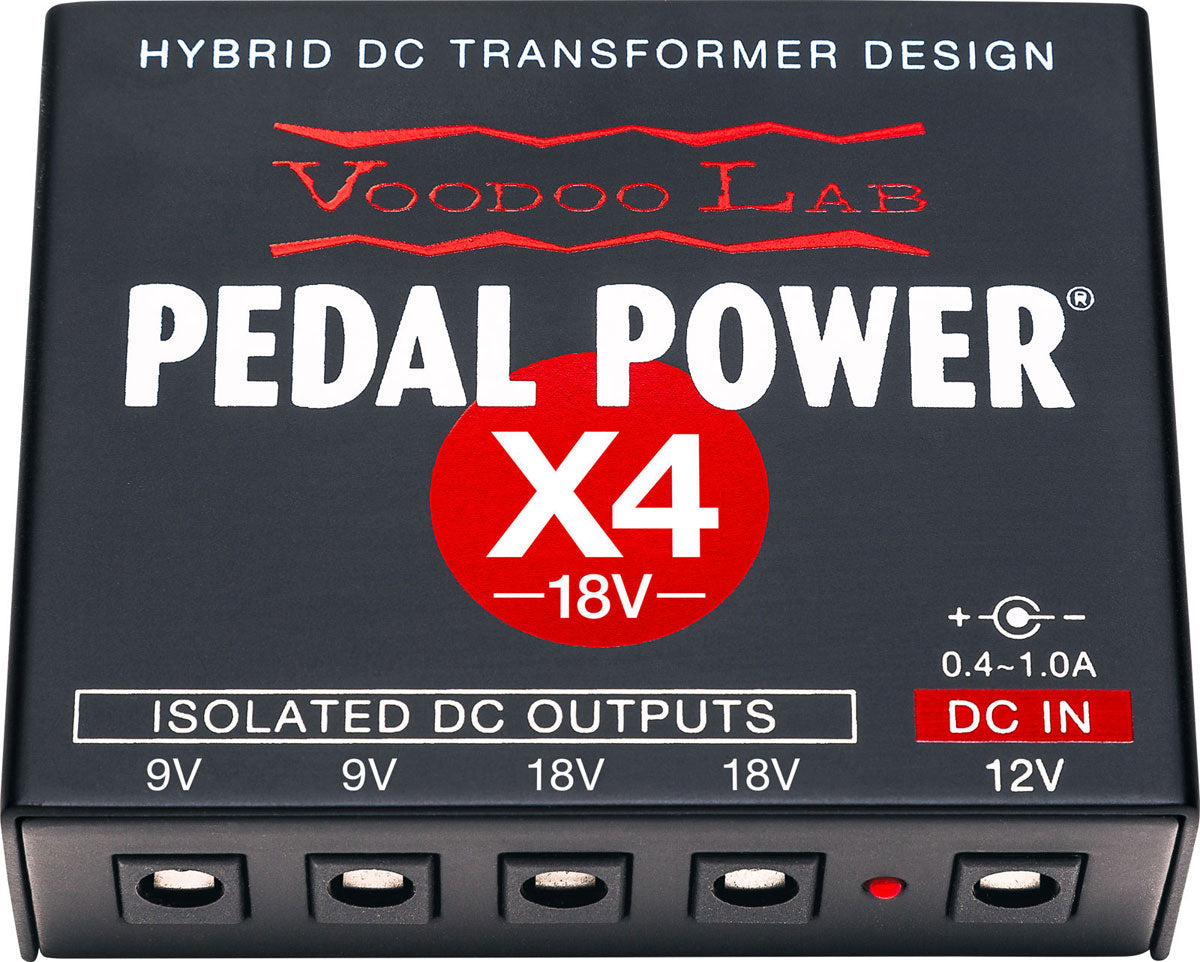

Voodoo Lab Pedal Power X4-18V

A Compact Power Supply in the Line of Voodoo Lab Solutions for Modern Pedalboards

Designed to meet the constraints of current pedalboards (limited space, higher current needs, coexistence of analog and digital effects), the Pedal Power X4-18V adopts a hybrid DC transformer architecture with quality components. The goal is clear: to offer a stable, clean, and reliable power supply while keeping a small footprint. It naturally integrates into a Voodoo Lab ecosystem and can also complement an existing power supply when your setup evolves.

Who Is the Pedal Power X4-18V For, and In What Uses Does It Make a Difference?

The Voodoo Lab Pedal Power X4-18V is aimed at guitarists and bassists who want a compact but serious pedalboard, capable of powering both analog "battery-powered" pedals (overdrive, fuzz, compressor, chorus, etc.) and more demanding digital effects. It is also an excellent option if you want to gain silence and stability on stage, in rehearsal, or in the studio: the isolated outputs help limit hum, ground loops, and interference that often appear when multiple pedals share a basic power supply.

A Design Focused on Performance and Power Supply Expansion

4 Isolated Outputs: Stability, Dynamics, and Noise Reduction

With its 4 isolated outputs (2 at 9 Volts and 2 at 18 Volts), the X4-18V allows better distribution of power according to pedal needs. Isolation is a key asset to preserve signal clarity, especially when mixing digital and analog pedals, or when your pedalboard is connected to multiple devices (amplifier, interface, switcher, etc.).

Linear Regulation and Advanced Filtering: An "Audiophile" Power Supply

Voodoo Lab relies here on linear regulation combined with optimized filtering to achieve a clean and silent power supply. The result: stable voltage, better performance when pedals draw current, and less unwanted noise in sensitive setups (high gain, fuzz, preamps, digital delays, and reverbs).

An Ultra-Compact Format Designed for Small Pedalboards

Its ultra-compact chassis facilitates installation under a lightweight pedalboard or in a minimalist transport setup. This is a relevant choice if you want a "small format" pedalboard without giving up a true isolated power supply, which is safer and cleaner than a simple multi-output adapter.

An Expandable Solution: Extension via X-LINK, or Power via 12 Volts DC / AC Output

The Pedal Power X4-18V can also be used as an additional power supply to enhance an existing setup. Connected directly to an X-LINK port of a Pedal Power 3 or 3 Plus, or to any 12 Volts DC 400 mA output, it adds 4 additional isolated outputs to your Voodoo Lab system. It can also be powered by the AC output of a Pedal Power 2 Plus, which also increases its output isolation capacity and current intensity.

Tour-Ready: Worldwide Mains Compatibility

Whether you play locally or internationally, the included universal AC power supply allows operation with mains voltages from 100V to 240V AC. Real convenience for traveling musicians, without an external transformer or country-specific version.

Technical specifications

Current	1 A	Category	Multiple power supply
Voltage	18 V	Number of outputs	4

Voltage distribution	2 at 9 Volts + 2 at 18 Volts	Filtering	advanced filtering (computer-optimized)
Total current	1,000 mA (with included adapter)	Mains range	100 to 240 Volts AC
Maximum current per output	500 mA	Can serve as extension	via X-LINK (Pedal Power 3 and 3 Plus) or via 12 Volts DC 400 mA output
Design	hybrid DC transformer	Dimensions and weight (excluding power supply)	8.6 x 7 x 2.5 cm / 0.1 Kg
Regulation	linear regulation	Dimensions and weight of power supply block	6.7 x 4.8 x 2.5 cm / 0.07 Kg
