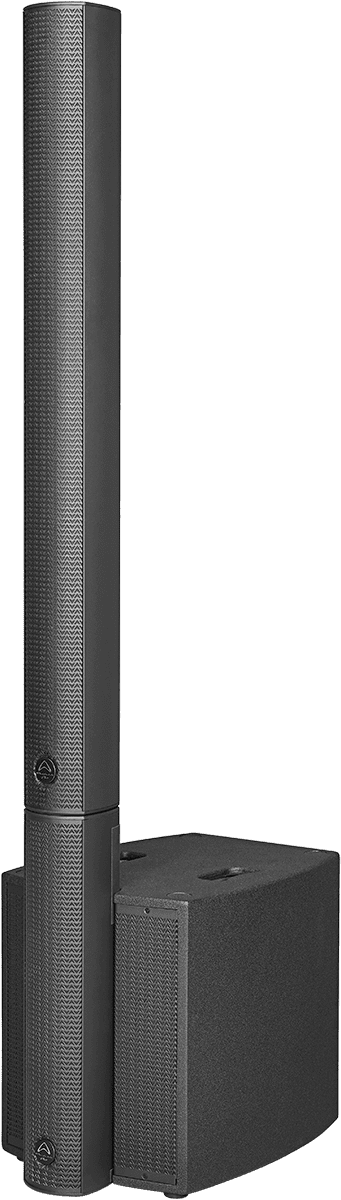

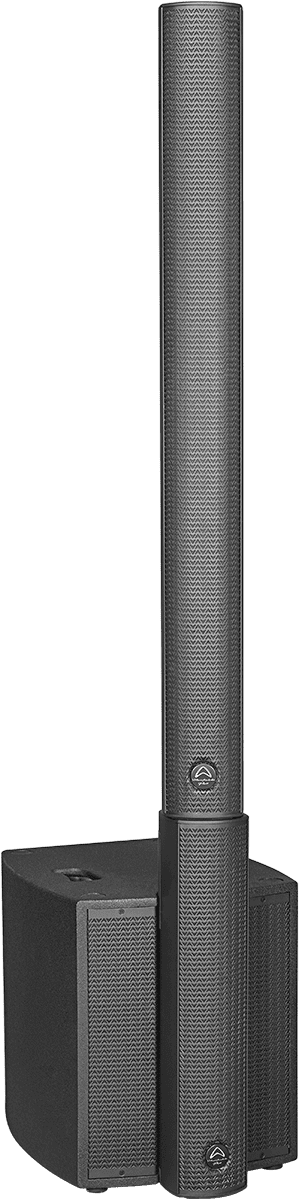

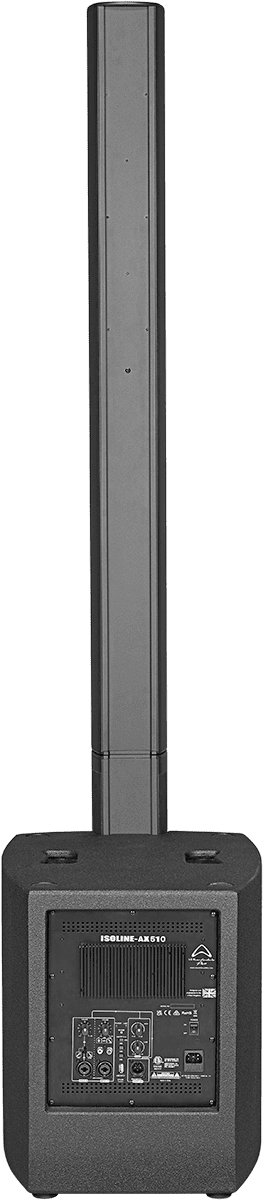

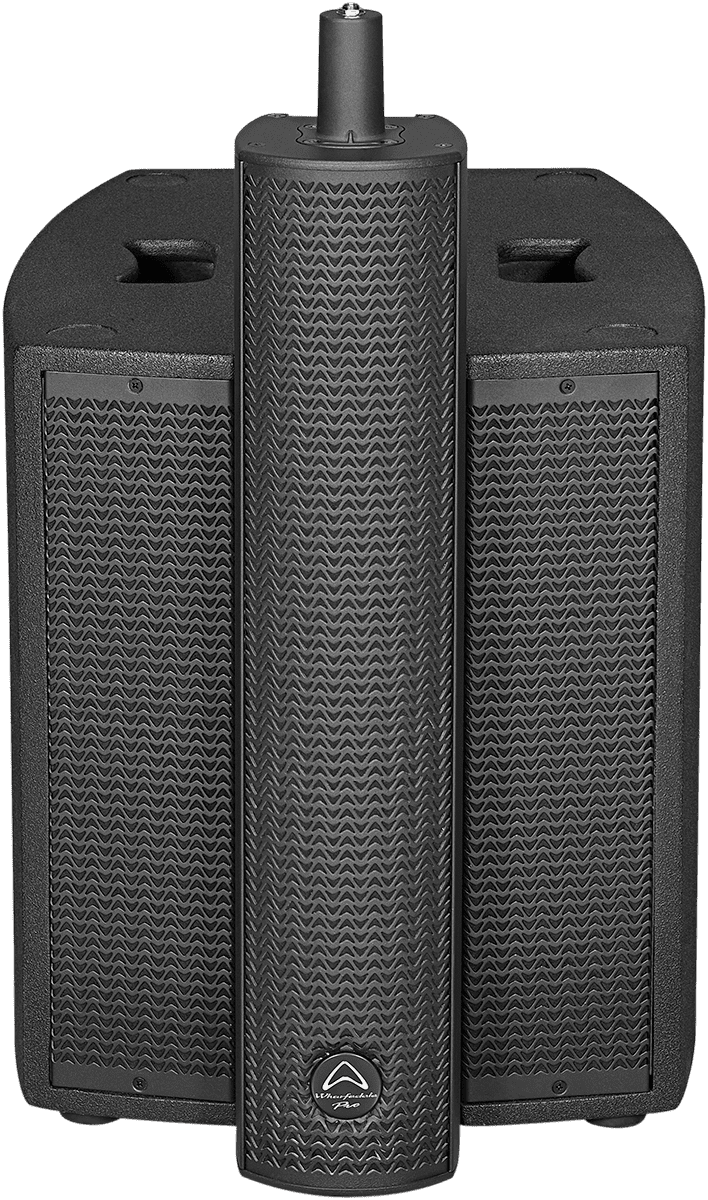

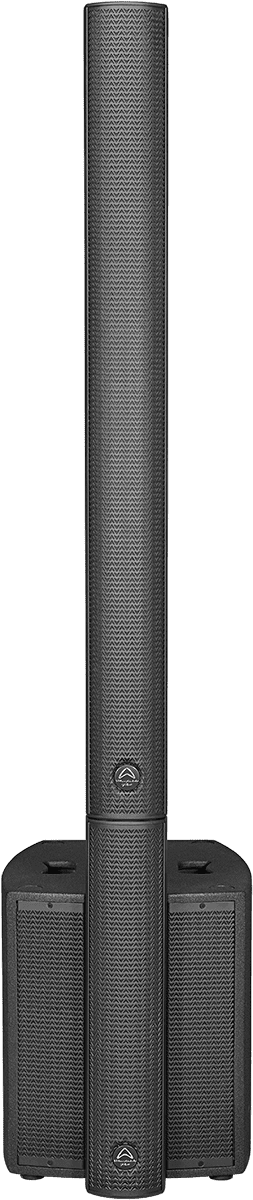

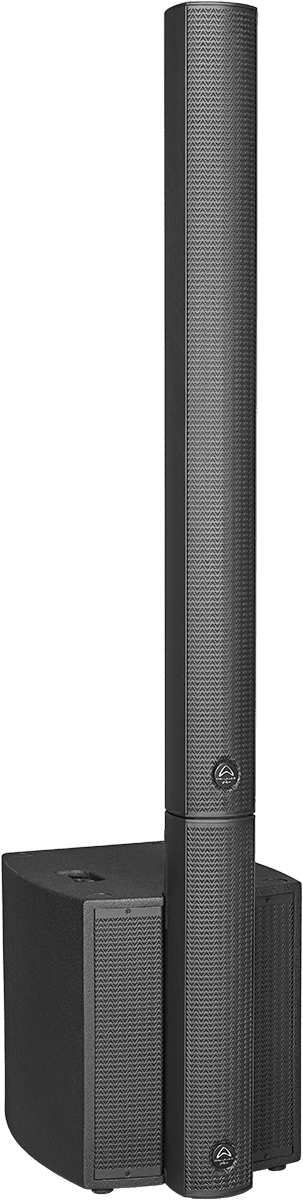

Wharfedale Pro ISOLINE-AX510
Estimated Shipping Widget will be displayed here!
- This item is covered for 3 years
Couldn't load pickup availability
Information
Information
Manufacturer Information
Wharfedale Pro
https://www.wharfedalepro.com
------------------------
Safety manager:
Algam SAS
Email: contact@algam.net
Address:
From WLA-1 DNA to a Portable Column PA System
With ISOLINE-AX, Wharfedale Pro translates the "Hybrid Curvature Array" approach of the WLA-1 series into an easy-to-transport, install, and operate column format. The goal is clear: to recreate the sensation of a "line array" sound (controlled projection, homogeneity, better control of upper midrange) without heavy structures or endless cabling.
The core of this identity lies in the "EVO-Fold" mini waveguides: they promote more precise phase alignment of upper midrange and high frequencies, delivering a cleaner and more consistent sound as you move within the listening area. The result: a portable PA system that remains intelligible even in challenging rooms and maintains a strong presence at working volume.
Who Is the Wharfedale Pro ISOLINE-AX For and What Are Its Uses?
The active column system ISOLINE-AX is primarily aimed at mobile DJs, service providers, compact configuration bands, places of worship, bars/concept venues, multipurpose rooms, and corporate events. Where quick setups, repeated configurations, and clear speech are essential, it provides a very reassuring "all-in-one" solution.
Depending on the size of the event, you can choose the most suitable approach: the ISOLINE-AX510 for lightweight formats and intimate stages, or the ISOLINE-AX912 when you need more low-end extension, higher SPL, and greater headroom. In both cases, the onboard mixer reduces the need for an external console, and Bluetooth allows immediate playback for ambiance, breaks, or announcements.
Technical specifications
| Category | Soundsystem |
| Type | active speaker |
| Speaker diameter | 10" |
| Power output | 850 W |
Questions frequently asked
Is the Wharfedale Pro ISOLINE-AX510 suitable for a mobile DJ?
This model is designed for mobile DJs, light events, and intimate venues. Its built-in 2-channel mixer and column rotation of ±15° facilitate quick setups.
What power output and SPL level does the ISOLINE-AX510 provide?
The Class D amplification delivers 550 W RMS in the low frequencies and 300 W RMS in the high frequencies. The maximum SPL announced reaches 124 dB at 1 m, with a speaker cabinet equipped with a 10-inch driver.
Can a microphone be connected and music streamed via Bluetooth?

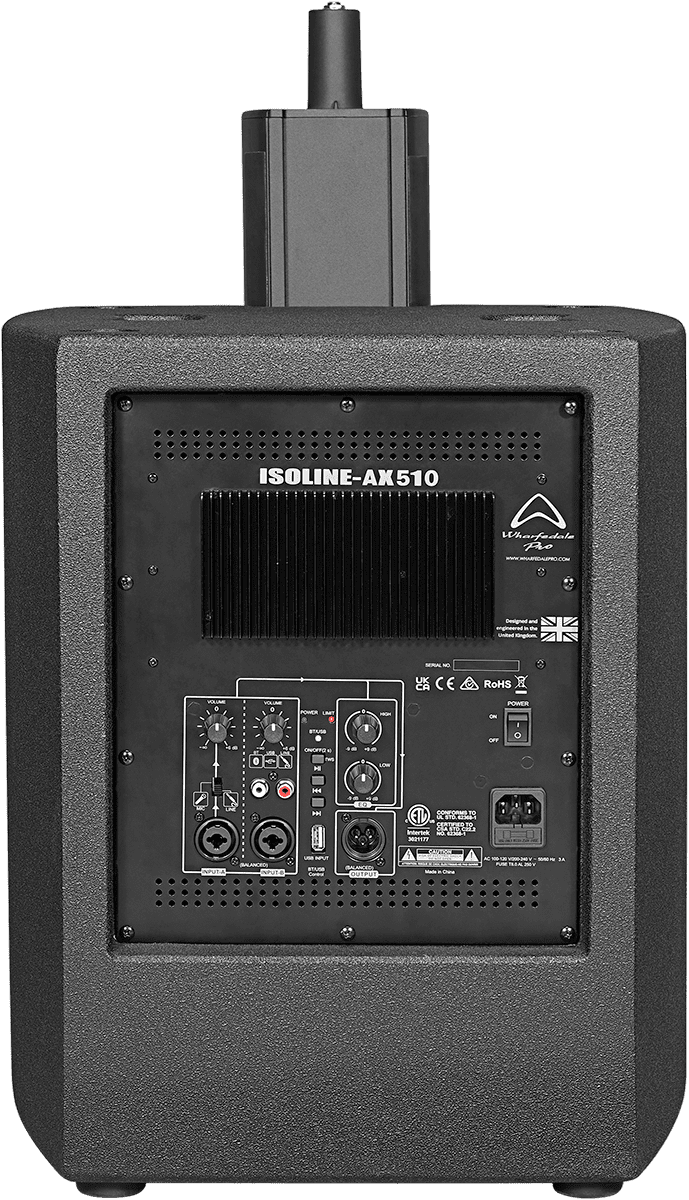

Two combined XLR/jack inputs accept microphone or line sources, while input B supports line, RCA, USB, and Bluetooth. TWS Bluetooth pairing is available and indicated by a blue LED.
What sound coverage does the AX510 column provide?
The nominal dispersion is 120° horizontal and 30° vertical. The five 3-inch full-range drivers and the EVO-Fold mini waveguide contribute to controlled mid-high and high frequency dispersion.
What frequency response does this column system offer?
The frequency response within ±3 dB ranges from 50 Hz to 20 kHz. The frequency range at -10 dB extends down to 45 Hz.
