LD Systems Maui 28 G3 Mix

The MAUI G3 Series: The "All-in-One" Column Designed for Modern Performances

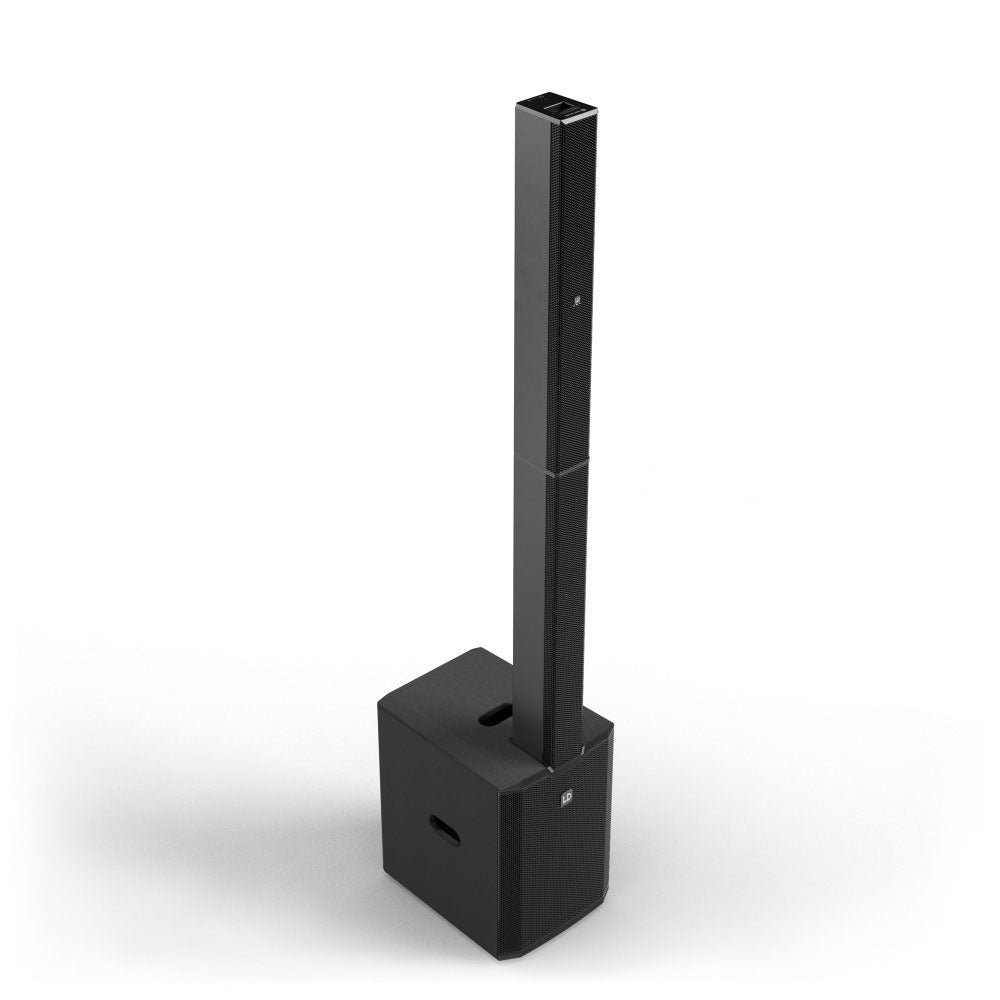

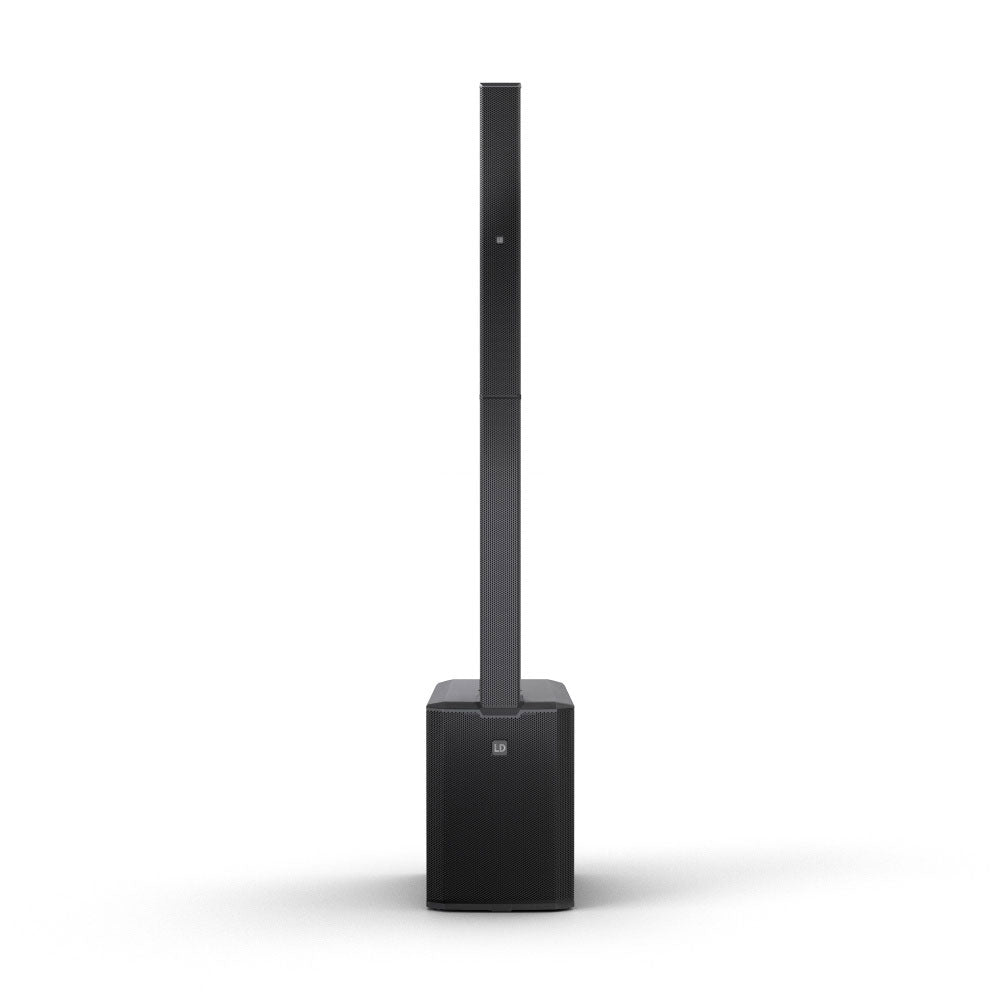

The LD Systems MAUI 28 G3 MIX belongs to the third generation of the MAUI series, known for offering a compact column format that is easy to transport and coherent in sound. This version takes the "all-in-one" concept further with an integrated digital mixer, a 24-bit / 48 kHz DSP, and a design featuring cardioid behavior, particularly relevant when you want to keep a clean sound on stage and uniform dispersion in the audience.

A Column System for Mobile DJs, Acoustic Duos/Trios, and Corporate Events

This system is aimed directly at mobile DJs, duos/trios (vocals + guitar, keyboard, light percussion), as well as for hosting, ceremonies, conferences, and speeches. Its column format allows wide dispersion without multiplying speakers, while maintaining good vocal clarity. When setup time is limited, the MAUI 28 G3 MIX offers an efficient solution: set up, plug in, adjust, and the system is ready to work with a comfortable headroom.

Integrated Mixing and Cleaner Dispersion Thanks to Cardioid Design

Solid Bass, Clear Midrange, Detailed Highs

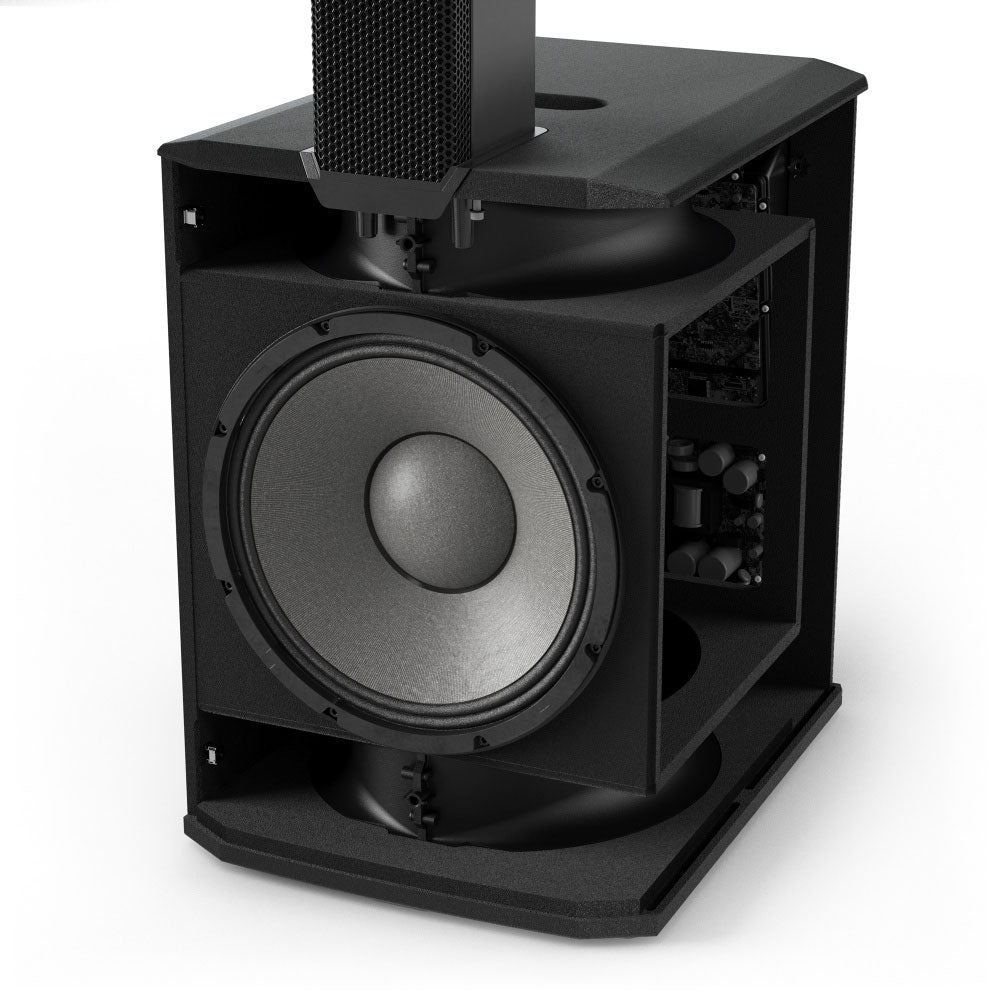

The enclosure equipped with a 12-inch subwoofer provides a firm bass foundation for music and a convincing support for amplified speech. The column combines 12 x 3.5-inch drivers for precise midrange and consistent projection, complemented by 2 x 1-inch tweeters to maintain definition without harshness. The overall aim is a balanced sound suitable both for background music and more energetic programs.

24-bit / 48 kHz DSP: Coherence and Uniformity

The 24-bit / 48 kHz DSP processing optimizes the overall system (crossover distribution, dynamic management, and protections) to maintain stable sound at various levels. In practice, this results in a more uniform sound field and a sense of a "controlled" system when increasing volume.

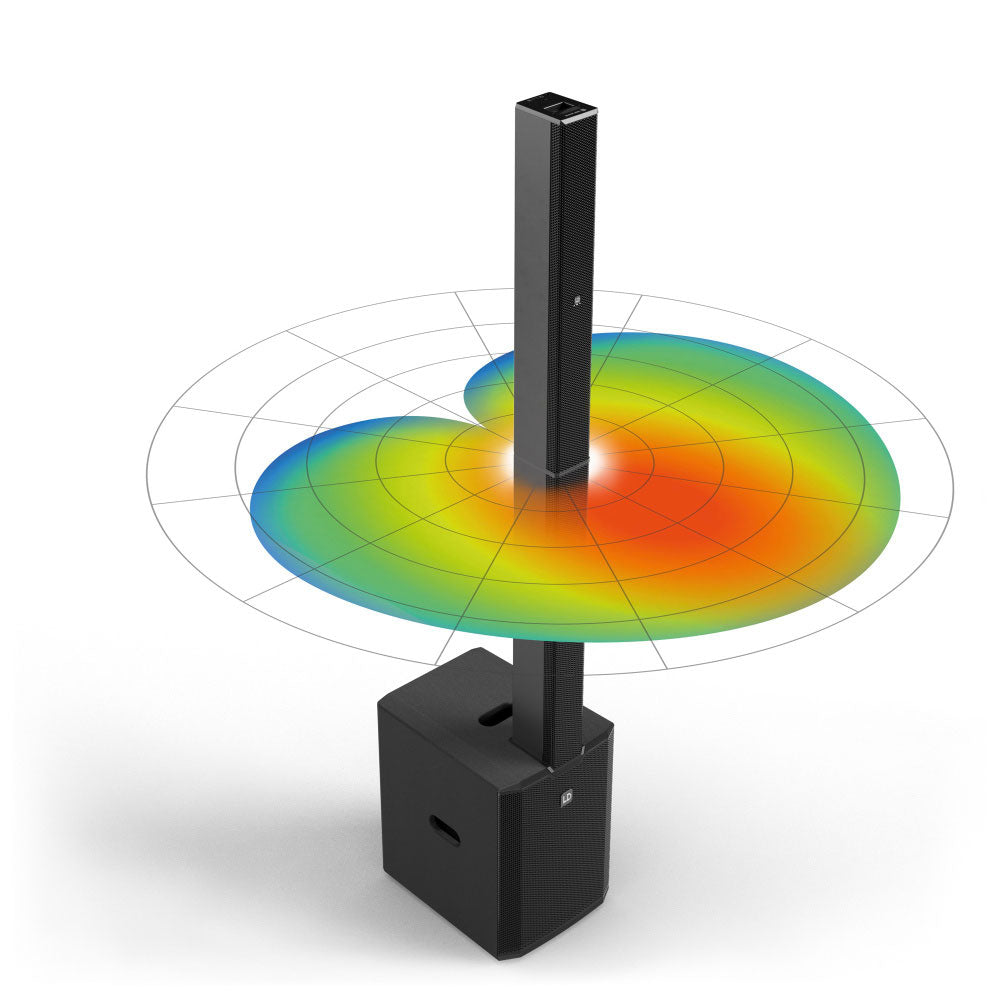

Cardioid Behavior: Less Stage Bleed, More Control

The column design with cardioid behavior focuses more energy toward the audience while attenuating the rear. This is a concrete advantage in stage setups (closer microphones, monitors, reflective walls): it provides better control and reduces sound returning to performers or unwanted areas.

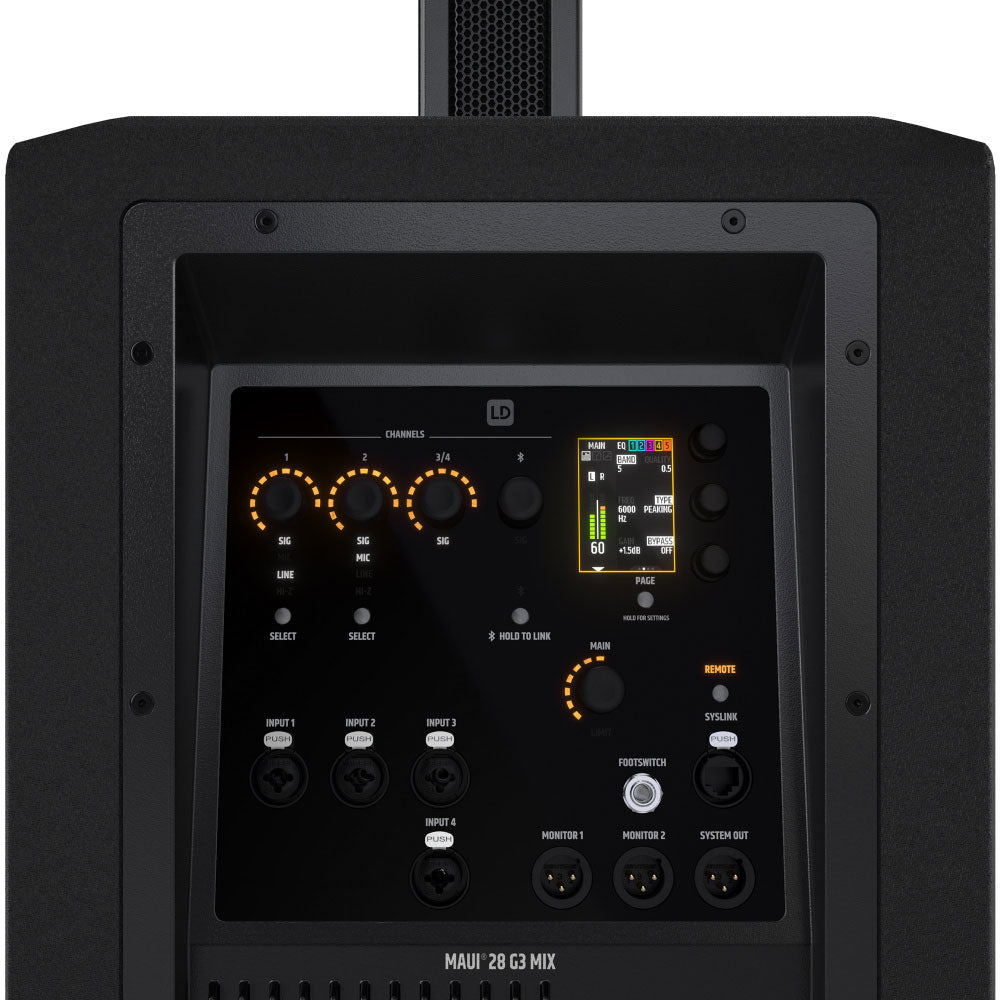

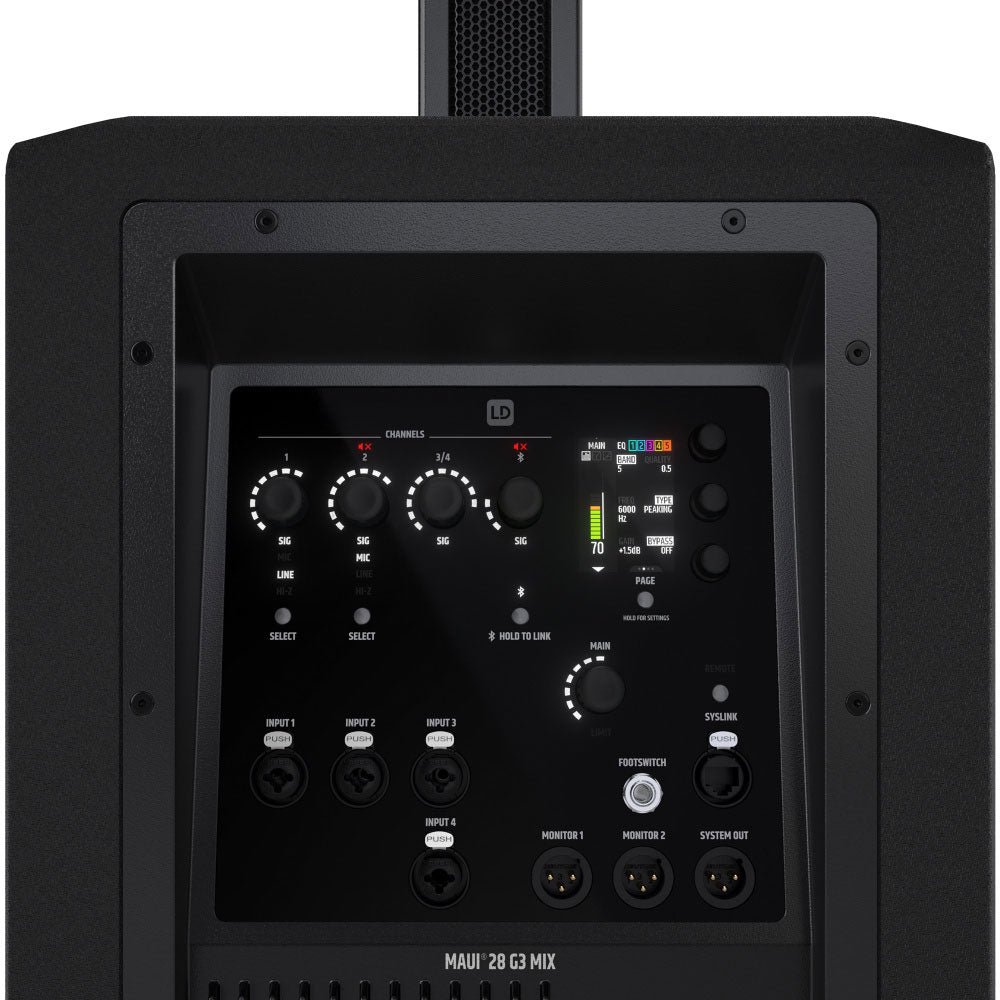

6-Channel Digital Mixer with Effects and Footswitch Input

The integrated 6-channel digital mixer simplifies operation: you can connect multiple sources directly to the system and manage a mix without adding an external console. The built-in effects are practical for vocals or acoustic setups, and the footswitch input allows easier control of effects in live situations. Optional app control is available to speed up adjustments and tailor the system to the venue.

Technical specifications

Battery	No	Media Player	Bluetooth
Number of channels	3 channels	Speaker structure	wood
Bluetooth	Yes	Inputs	combo XLR/jack, RJ45
Speaker diameter	12", 3,5"	Outputs	XLR
Number of speakers	15	Color	Black
EQ	Yes	Power output	2060 W

Power	1030 W RMS / 2060 W peak	Directivity	120 x 30 degrees; column design with cardioid behavior
Maximum sound pressure level	127 dB SPL	Integrated digital mixer	6 channels with effects
Frequency response	37 Hz to 20 kHz	SysLink port	1 x RJ45
Amplification	Class D, protections (DC, multiband limiter, short circuit, overheating), convection cooling	Total assembled height	205.2 cm
Processing	24-bit / 48 kHz DSP	Subwoofer enclosure (W x D x H)	52.7 x 47.2 x 37 cm; weight: 23.6 kg
Subwoofer	1 x 12 inches	Column module (mid/high assembly)	154 x 13.5 x 10.3 cm; weight: 12.6 kg
Column	12 x 3.5 inches (full-range) + 2 x 1 inch (highs)	Approximate total weight	36.2 kg
